BlendProtocol Class Referenceabstract

Specify the blending function according glBlendFunc Please refer to glBlendFunc in OpenGL ES Manual http://www.khronos.org/opengles/sdk/docs/man/xhtml/glBlendFunc.xml for more details. More...

#include <CCProtocols.h>

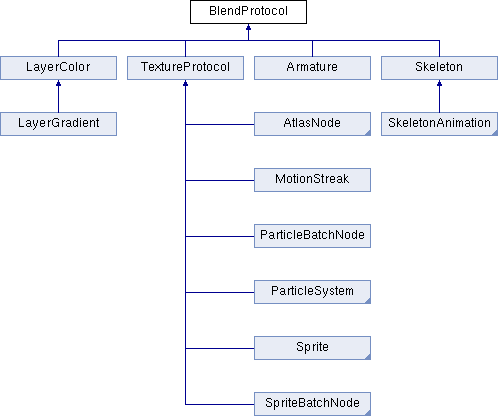

Inheritance diagram for BlendProtocol:
LayerColor TextureProtocol Armature Skeleton LayerGradient AtlasNode MotionStreak ParticleBatchNode ParticleSystem Sprite SpriteBatchNode SkeletonAnimation

Public Member Functions

virtual ~BlendProtocol ()
virtual void setBlendFunc (const BlendFunc &blendFunc)=0
 Sets the source blending function. More...

virtual const BlendFuncgetBlendFunc () const =0
 Returns the blending function that is currently being used. More...


Detailed Description

Specify the blending function according glBlendFunc Please refer to glBlendFunc in OpenGL ES Manual http://www.khronos.org/opengles/sdk/docs/man/xhtml/glBlendFunc.xml for more details.

Constructor & Destructor Documentation

virtual ~BlendProtocol ( )
inlinevirtual

Member Function Documentation

virtual const BlendFunc&
getBlendFunc
( ) const
pure virtual

Returns the blending function that is currently being used.

Returns
A BlendFunc structure with source and destination factor which specified pixel arithmetic.

Implemented in Sprite, ParticleSystem, LayerColor, Armature, SpriteBatchNode, ParticleBatchNode, MotionStreak, Skeleton, and AtlasNode.

virtual void setBlendFunc ( const BlendFunc blendFunc)
pure virtual

Sets the source blending function.

Parameters
blendFuncA structure with source and destination factor to specify pixel arithmetic, e.g. {GL_ONE, GL_ONE}, {GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA}.

Implemented in Sprite, ParticleSystem, LayerColor, Armature, SpriteBatchNode, ParticleBatchNode, Skeleton, MotionStreak, and AtlasNode.


The documentation for this class was generated from the following file:
