SkewBy Class Reference

Skews a Node object by skewX and skewY degrees. More...

#include <CCActionInterval.h>

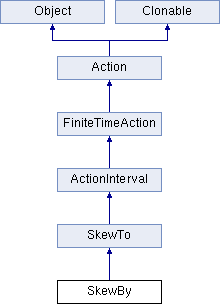

Inheritance diagram for SkewBy:
SkewTo ActionInterval FiniteTimeAction Action Object Clonable

Public Member Functions

virtual void startWithTarget (Node *target) override
 called before the action start. It will also set the target. More...

virtual SkewByclone () const override
 returns a clone of action More...

virtual SkewByreverse (void) const override
 returns a new action that performs the exactly the reverse action More...

- Public Member Functions inherited from SkewTo
virtual void update (float time) override
 called once per frame. More...

- Public Member Functions inherited from ActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

void setAmplitudeRate (float amp)
float getAmplitudeRate (void)
virtual bool isDone (void) const override
 return true if the action has finished More...

var isDone ()
 return true if the action has finished More...

local isDone ()
 return true if the action has finished More...

virtual void step (float dt) override
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local step ( local dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

- Public Member Functions inherited from FiniteTimeAction
float getDuration () const
 get duration in seconds of the action More...

var getDuration ()
 get duration in seconds of the action More...

local getDuration ()
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

var setDuration ( var duration)
 set duration in seconds of the action More...

local setDuration ( local duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from Action
virtual std::string description () const
virtual void stop ()
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

NodegetTarget () const
var getTarget ()
local getTarget ()
void setTarget (Node *target)
 The action will modify the target properties. More...

var setTarget ( var target)
 The action will modify the target properties. More...

local setTarget ( local target)
 The action will modify the target properties. More...

NodegetOriginalTarget () const
void setOriginalTarget (Node *originalTarget)
 Set the original target, since target can be nil. More...

local setOriginalTarget ( local originalTarget)
 Set the original target, since target can be nil. More...

int getTag () const
var getTag ()
local getTag ()
void setTag (int tag)
var setTag ( var tag)
local setTag ( local tag)
- Public Member Functions inherited from Object
 Object ()
 Constructor. More...

virtual ~Object ()
void release ()
 Release the ownership immediately. More...

void retain ()
 Retains the ownership. More...

Objectautorelease ()
 Release the ownership sometime soon automatically. More...

bool isSingleReference () const
 Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int retainCount () const
 Returns the object's current reference count. More...

unsigned int getReferenceCount () const
virtual bool isEqual (const Object *object)
 Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void acceptVisitor (DataVisitor &visitor)
- Public Member Functions inherited from Clonable
virtual ~Clonable ()
Objectcopy () const
 returns a copy of the object. More...

var copy ()
 returns a copy of the object. More...

local copy ()
 returns a copy of the object. More...


Static Public Member Functions

static SkewBycreate (float t, float deltaSkewX, float deltaSkewY)
 creates the action More...

- Static Public Member Functions inherited from SkewTo
static SkewTocreate (float t, float sx, float sy)
 creates the action More...


Protected Member Functions

 SkewBy ()
virtual ~SkewBy ()
bool initWithDuration (float t, float sx, float sy)
- Protected Member Functions inherited from SkewTo
 SkewTo ()
virtual ~SkewTo ()
bool initWithDuration (float t, float sx, float sy)
- Protected Member Functions inherited from ActionInterval
bool initWithDuration (float d)
 initializes the action More...

var initWithDuration ( var d)
 initializes the action More...

local initWithDuration ( local d)
 initializes the action More...

- Protected Member Functions inherited from FiniteTimeAction
 FiniteTimeAction ()
 FiniteTimeAction ()
 FiniteTimeAction ()
virtual ~FiniteTimeAction ()
var ~FiniteTimeAction ()
local ~FiniteTimeAction ()
- Protected Member Functions inherited from Action
 Action ()
 Action ()
 Action ()
virtual ~Action ()
var ~Action ()
local ~Action ()

Additional Inherited Members

- Public Attributes inherited from Object
unsigned int _ID
 object id, ScriptSupport need public _ID More...

int _luaID
 Lua reference id. More...

- Static Public Attributes inherited from Action
static const int INVALID_TAG = -1
 Default tag used for all the actions. More...

var INVALID_TAG = -1
 Default tag used for all the actions. More...

local INVALID_TAG = -1
 Default tag used for all the actions. More...

- Protected Attributes inherited from SkewTo
float _skewX
float _skewY
float _startSkewX
float _startSkewY
float _endSkewX
float _endSkewY
float _deltaX
float _deltaY

Detailed Description

Skews a Node object by skewX and skewY degrees.

Since
v1.0

Constructor & Destructor Documentation

SkewBy ( )
inlineprotected
virtual ~SkewBy ( )
inlineprotectedvirtual

Member Function Documentation

virtual SkewBy* clone ( ) const
overridevirtual

returns a clone of action

Reimplemented from SkewTo.

static SkewBy* create ( float  t,
float  deltaSkewX,
float  deltaSkewY
)
static

creates the action

bool initWithDuration ( float  t,
float  sx,
float  sy
)
protected
virtual SkewBy* reverse ( void  ) const
overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from SkewTo.

virtual void startWithTarget ( Node target)
overridevirtual

called before the action start. It will also set the target.

Reimplemented from SkewTo.


The documentation for this class was generated from the following file:
