ActionInterval Class Referenceabstract

An interval action is an action that takes place within a certain period of time. More...

#include <CCActionInterval.h>

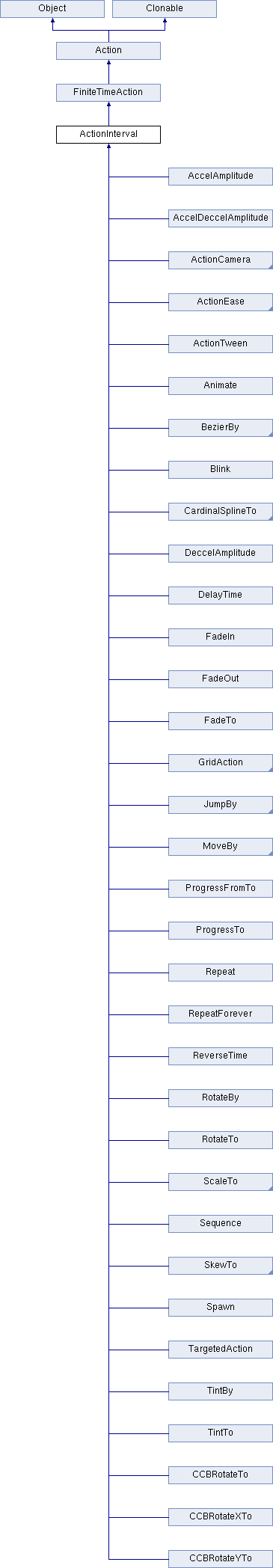

Inheritance diagram for ActionInterval:
FiniteTimeAction Action Object Clonable AccelAmplitude AccelDeccelAmplitude ActionCamera ActionEase ActionTween Animate BezierBy Blink CardinalSplineTo DeccelAmplitude DelayTime FadeIn FadeOut FadeTo GridAction JumpBy MoveBy ProgressFromTo ProgressTo Repeat RepeatForever ReverseTime RotateBy RotateTo ScaleTo Sequence SkewTo Spawn TargetedAction TintBy TintTo CCBRotateTo CCBRotateXTo CCBRotateYTo

Public Member Functions

float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

void setAmplitudeRate (float amp)
float getAmplitudeRate (void)
virtual bool isDone (void) const override
 return true if the action has finished More...

var isDone ()
 return true if the action has finished More...

local isDone ()
 return true if the action has finished More...

virtual void step (float dt) override
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local step ( local dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

virtual void startWithTarget (Node *target) override
 called before the action start. It will also set the target. More...

local startWithTarget ( local target)
 called before the action start. It will also set the target. More...

virtual ActionIntervalreverse () const override=0
 returns a new action that performs the exactly the reverse action More...

local reverse ()
 returns a new action that performs the exactly the reverse action More...

virtual ActionIntervalclone () const override=0
 returns a clone of action More...

local clone ()
 returns a clone of action More...

- Public Member Functions inherited from FiniteTimeAction
float getDuration () const
 get duration in seconds of the action More...

var getDuration ()
 get duration in seconds of the action More...

local getDuration ()
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

var setDuration ( var duration)
 set duration in seconds of the action More...

local setDuration ( local duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from Action
virtual std::string description () const
virtual void stop ()
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

virtual void update (float time)
 called once per frame. More...

local update ( local time)
 called once per frame. More...

NodegetTarget () const
var getTarget ()
local getTarget ()
void setTarget (Node *target)
 The action will modify the target properties. More...

var setTarget ( var target)
 The action will modify the target properties. More...

local setTarget ( local target)
 The action will modify the target properties. More...

NodegetOriginalTarget () const
void setOriginalTarget (Node *originalTarget)
 Set the original target, since target can be nil. More...

local setOriginalTarget ( local originalTarget)
 Set the original target, since target can be nil. More...

int getTag () const
var getTag ()
local getTag ()
void setTag (int tag)
var setTag ( var tag)
local setTag ( local tag)
- Public Member Functions inherited from Object
 Object ()
 Constructor. More...

 Object ()
 Constructor. More...

virtual ~Object ()
void release ()
 Release the ownership immediately. More...

void retain ()
 Retains the ownership. More...

Objectautorelease ()
 Release the ownership sometime soon automatically. More...

bool isSingleReference () const
 Returns a boolean value that indicates whether there is only one reference to the object. More...

unsigned int retainCount () const
 Returns the object's current reference count. More...

local retainCount ()
 Returns the object's current reference count. More...

virtual bool isEqual (const Object *object)
 Returns a boolean value that indicates whether this object and a given object are equal. More...

virtual void acceptVisitor (DataVisitor &visitor)
- Public Member Functions inherited from Clonable
virtual ~Clonable ()
Objectcopy () const
 returns a copy of the object. More...

var copy ()
 returns a copy of the object. More...

local copy ()
 returns a copy of the object. More...


Protected Member Functions

bool initWithDuration (float d)
 initializes the action More...

var initWithDuration ( var d)
 initializes the action More...

local initWithDuration ( local d)
 initializes the action More...

- Protected Member Functions inherited from FiniteTimeAction
 FiniteTimeAction ()
 FiniteTimeAction ()
 FiniteTimeAction ()
virtual ~FiniteTimeAction ()
var ~FiniteTimeAction ()
local ~FiniteTimeAction ()
- Protected Member Functions inherited from Action
 Action ()
 Action ()
 Action ()
virtual ~Action ()
var ~Action ()
local ~Action ()

Protected Attributes

float _elapsed
bool _firstTick
- Protected Attributes inherited from FiniteTimeAction
float _duration
 duration in seconds More...

- Protected Attributes inherited from Action
Node_originalTarget
local _originalTarget
Node_target
 The "target". More...

int _tag
 The action tag. More...

- Protected Attributes inherited from Object
unsigned int _reference
 count of references More...

var _reference
 count of references More...

local _reference
 count of references More...

unsigned int _autoReleaseCount
 count of autorelease More...

var _autoReleaseCount
 count of autorelease More...

local _autoReleaseCount
 count of autorelease More...


Additional Inherited Members

- Public Attributes inherited from Object
unsigned int _ID
 object id, ScriptSupport need public _ID More...

int _luaID
 Lua reference id. More...

var _luaID
 Lua reference id. More...

local _luaID
 Lua reference id. More...

- Static Public Attributes inherited from Action
static const int INVALID_TAG = -1
 Default tag used for all the actions. More...

var INVALID_TAG = -1
 Default tag used for all the actions. More...

local INVALID_TAG = -1
 Default tag used for all the actions. More...


Detailed Description

An interval action is an action that takes place within a certain period of time.

It has an start time, and a finish time. The finish time is the parameter duration plus the start time.

These ActionInterval actions have some interesting properties, like:

  • They can run normally (default)
  • They can run reversed with the reverse method
  • They can run with the time altered with the Accelerate, AccelDeccel and Speed actions.

For example, you can simulate a Ping Pong effect running the action normally and then running it again in Reverse mode.

Example:

Action *pingPongAction = Sequence::actions(action, action->reverse(), nullptr);

Member Function Documentation

virtual ActionInterval* clone ( ) const
overridepure virtual

returns a clone of action

Implements FiniteTimeAction.

Implemented in TargetedAction, Animate, ReverseTime, DelayTime, TintBy, TintTo, FadeTo, FadeOut, FadeIn, Blink, ScaleBy, ScaleTo, BezierTo, EaseBackInOut, EaseBackOut, BezierBy, EaseBackIn, JumpTo, EaseBounceInOut, JumpBy, EaseBounceOut, SkewBy, EaseBounceIn, EaseBounce, SkewTo, EaseElasticInOut, MoveTo, EaseElasticOut, EaseCubicActionInOut, MoveBy, EaseCubicActionOut, EaseElasticIn, SplitCols, EaseCubicActionIn, RotateBy, EaseElastic, SplitRows, EaseCircleActionInOut, Twirl, EaseSineInOut, JumpTiles3D, EaseCircleActionOut, RotateTo, EaseSineOut, EaseCircleActionIn, CatmullRomBy, Waves, CCBEaseInstant, WavesTiles3D, Spawn, EaseSineIn, EaseQuinticActionInOut, CCBRotateYTo, CatmullRomTo, DeccelAmplitude, Liquid, EaseExponentialInOut, CCBRotateXTo, EaseQuinticActionOut, TurnOffTiles, CardinalSplineBy, RepeatForever, CCBRotateTo, AccelAmplitude, EaseQuinticActionIn, EaseExponentialOut, Shaky3D, FadeOutDownTiles, EaseQuarticActionInOut, EaseExponentialIn, CardinalSplineTo, FadeOutUpTiles, AccelDeccelAmplitude, Ripple3D, EaseQuarticActionOut, EaseInOut, Repeat, TiledGrid3DAction, FadeOutBLTiles, EaseQuarticActionIn, EaseOut, FadeOutTRTiles, Lens3D, OrbitCamera, EaseQuadraticActionInOut, EaseIn, Sequence, Grid3DAction, FlipY3D, ShuffleTiles, EaseQuadraticActionOut, EaseRateAction, FlipX3D, ProgressFromTo, ActionTween, ActionCamera, EaseQuadraticActionIn, ShatteredTiles3D, Waves3D, ActionEase, PageTurn3D, GridAction, ProgressTo, ShakyTiles3D, and EaseBezierAction.

var clone ( )
overridepure virtual

returns a clone of action

Implements FiniteTimeAction.

Implemented in TargetedAction, Animate, ReverseTime, DelayTime, TintBy, TintTo, FadeTo, FadeOut, FadeIn, Blink, ScaleBy, ScaleTo, BezierTo, EaseBackInOut, EaseBackOut, BezierBy, EaseBackIn, JumpTo, EaseBounceInOut, JumpBy, EaseBounceOut, SkewBy, EaseBounceIn, EaseBounce, SkewTo, EaseElasticInOut, MoveTo, EaseElasticOut, EaseCubicActionInOut, MoveBy, EaseCubicActionOut, EaseElasticIn, SplitCols, EaseCubicActionIn, RotateBy, EaseElastic, SplitRows, EaseCircleActionInOut, Twirl, EaseSineInOut, JumpTiles3D, EaseCircleActionOut, RotateTo, EaseSineOut, EaseCircleActionIn, CatmullRomBy, Waves, CCBEaseInstant, WavesTiles3D, Spawn, EaseSineIn, EaseQuinticActionInOut, CCBRotateYTo, CatmullRomTo, DeccelAmplitude, Liquid, EaseExponentialInOut, CCBRotateXTo, EaseQuinticActionOut, TurnOffTiles, CardinalSplineBy, RepeatForever, CCBRotateTo, AccelAmplitude, EaseQuinticActionIn, EaseExponentialOut, Shaky3D, FadeOutDownTiles, EaseQuarticActionInOut, EaseExponentialIn, CardinalSplineTo, FadeOutUpTiles, AccelDeccelAmplitude, Ripple3D, EaseQuarticActionOut, EaseInOut, Repeat, TiledGrid3DAction, FadeOutBLTiles, EaseQuarticActionIn, EaseOut, FadeOutTRTiles, Lens3D, OrbitCamera, EaseQuadraticActionInOut, EaseIn, Sequence, Grid3DAction, FlipY3D, ShuffleTiles, EaseQuadraticActionOut, EaseRateAction, FlipX3D, ProgressFromTo, ActionTween, ActionCamera, EaseQuadraticActionIn, ShatteredTiles3D, Waves3D, ActionEase, PageTurn3D, GridAction, ProgressTo, ShakyTiles3D, and EaseBezierAction.

local clone ( )
overridepure virtual

returns a clone of action

Implements FiniteTimeAction.

Implemented in TargetedAction, Animate, ReverseTime, DelayTime, TintBy, TintTo, FadeTo, FadeOut, FadeIn, Blink, ScaleBy, ScaleTo, BezierTo, EaseBackInOut, EaseBackOut, BezierBy, EaseBackIn, JumpTo, EaseBounceInOut, JumpBy, EaseBounceOut, SkewBy, EaseBounceIn, EaseBounce, SkewTo, EaseElasticInOut, MoveTo, EaseElasticOut, EaseCubicActionInOut, MoveBy, EaseCubicActionOut, EaseElasticIn, SplitCols, EaseCubicActionIn, RotateBy, EaseElastic, SplitRows, EaseCircleActionInOut, Twirl, EaseSineInOut, JumpTiles3D, EaseCircleActionOut, RotateTo, EaseSineOut, EaseCircleActionIn, CatmullRomBy, Waves, CCBEaseInstant, WavesTiles3D, Spawn, EaseSineIn, EaseQuinticActionInOut, CCBRotateYTo, CatmullRomTo, DeccelAmplitude, Liquid, EaseExponentialInOut, CCBRotateXTo, EaseQuinticActionOut, TurnOffTiles, CardinalSplineBy, RepeatForever, CCBRotateTo, AccelAmplitude, EaseQuinticActionIn, EaseExponentialOut, Shaky3D, FadeOutDownTiles, EaseQuarticActionInOut, EaseExponentialIn, CardinalSplineTo, FadeOutUpTiles, AccelDeccelAmplitude, Ripple3D, EaseQuarticActionOut, EaseInOut, Repeat, TiledGrid3DAction, FadeOutBLTiles, EaseQuarticActionIn, EaseOut, FadeOutTRTiles, Lens3D, OrbitCamera, EaseQuadraticActionInOut, EaseIn, Sequence, Grid3DAction, FlipY3D, ShuffleTiles, EaseQuadraticActionOut, EaseRateAction, FlipX3D, ProgressFromTo, ActionTween, ActionCamera, EaseQuadraticActionIn, ShatteredTiles3D, Waves3D, ActionEase, PageTurn3D, GridAction, ProgressTo, ShakyTiles3D, and EaseBezierAction.

float getAmplitudeRate ( void  )
var getAmplitudeRate (   )
local getAmplitudeRate (   )
float getElapsed ( void  )
inline

how many seconds had elapsed since the actions started to run.

var getElapsed (   )
inline

how many seconds had elapsed since the actions started to run.

local getElapsed (   )
inline

how many seconds had elapsed since the actions started to run.

bool initWithDuration ( float  d)
protected

initializes the action

var initWithDuration ( var  d)
protected

initializes the action

local initWithDuration ( local  d)
protected

initializes the action

virtual bool isDone ( void  ) const
overridevirtual

return true if the action has finished

Reimplemented from Action.

Reimplemented in RepeatForever, and Repeat.

var isDone (   )
overridevirtual

return true if the action has finished

Reimplemented from Action.

Reimplemented in RepeatForever, and Repeat.

local isDone (   )
overridevirtual

return true if the action has finished

Reimplemented from Action.

Reimplemented in RepeatForever, and Repeat.

void setAmplitudeRate ( float  amp)
var setAmplitudeRate ( var  amp)
local setAmplitudeRate ( local  amp)
virtual void step ( float  dt)
overridevirtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented from Action.

Reimplemented in RepeatForever.

var step ( var  dt)
overridevirtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented from Action.

Reimplemented in RepeatForever.

local step ( local  dt)
overridevirtual

called every frame with it's delta time. DON'T override unless you know what you are doing.

Reimplemented from Action.

Reimplemented in RepeatForever.

Member Data Documentation

float _elapsed
protected
var _elapsed
protected
local _elapsed
protected
bool _firstTick
protected
var _firstTick
protected
local _firstTick
protected

The documentation for this class was generated from the following file:
