PageView Class Reference

#include <UIPageView.h>

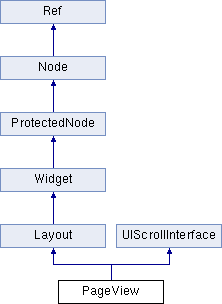

Inheritance diagram for PageView:
Layout UIScrollInterface Widget ProtectedNode Node Ref

Public Member Functions

 PageView ()
 Default constructor. More...

 PageView ()
 Default constructor. More...

 PageView ()
 Default constructor. More...

virtual ~PageView ()
 Default destructor. More...

var ~PageView ()
 Default destructor. More...

local ~PageView ()
 Default destructor. More...

void addWidgetToPage (Widget *widget, ssize_t pageIdx, bool forceCreate)
 Add a widget to a page of pageview. More...

local addWidgetToPage ( local widget, local pageIdx, local forceCreate)
 Add a widget to a page of pageview. More...

void addPage (Layout *page)
 Push back a page to pageview. More...

var addPage ( var page)
 Push back a page to pageview. More...

local addPage ( local page)
 Push back a page to pageview. More...

void insertPage (Layout *page, int idx)
 Inert a page to pageview. More...

var insertPage ( var page, var idx)
 Inert a page to pageview. More...

local insertPage ( local page, local idx)
 Inert a page to pageview. More...

void removePage (Layout *page)
 Remove a page of pageview. More...

void removePageAtIndex (ssize_t index)
 Remove a page at index of pageview. More...

var removePageAtIndex ( var index)
 Remove a page at index of pageview. More...

local removePageAtIndex ( local index)
 Remove a page at index of pageview. More...

void removeAllPages ()
void scrollToPage (ssize_t idx)
 scroll pageview to index. More...

var scrollToPage ( var idx)
 scroll pageview to index. More...

local scrollToPage ( local idx)
 scroll pageview to index. More...

ssize_t getCurPageIndex () const
 Gets current page index. More...

local getCurPageIndex ()
 Gets current page index. More...

Vector< Layout * > & getPages ()
var getPages ()
local getPages ()
LayoutgetPage (ssize_t index)
var getPage ( var index)
local getPage ( local index)
void addEventListenerPageView (Ref *target, SEL_PageViewEvent selector)
var addEventListenerPageView ( var target, var selector)
local addEventListenerPageView ( local target, local selector)
virtual bool onTouchBegan (Touch *touch, Event *unusedEvent) override
var onTouchBegan ( var touch, var unusedEvent)
local onTouchBegan ( local touch, local unusedEvent)
virtual void onTouchMoved (Touch *touch, Event *unusedEvent) override
local onTouchMoved ( local touch, local unusedEvent)
virtual void onTouchEnded (Touch *touch, Event *unusedEvent) override
local onTouchEnded ( local touch, local unusedEvent)
virtual void onTouchCancelled (Touch *touch, Event *unusedEvent) override
local onTouchCancelled ( local touch, local unusedEvent)
virtual void update (float dt) override
var update ( var dt)
local update ( local dt)
virtual void setLayoutType (LayoutType type) override
 Sets LayoutType. More...

virtual LayoutType getLayoutType () const override
 Gets LayoutType. More...

virtual std::string getDescription () const override
 Returns the "class name" of widget. More...

virtual void onEnter () override
 Event callback that is invoked every time when Node enters the 'stage'. More...

- Public Member Functions inherited from Layout
 Layout ()
virtual ~Layout ()
 Default destructor. More...

void setBackGroundImage (const char *fileName, TextureResType texType=UI_TEX_TYPE_LOCAL)
 Sets a background image for layout. More...

void setBackGroundImageCapInsets (const Rect &capInsets)
 Sets a background image capinsets for layout, if the background image is a scale9 render. More...

const RectgetBackGroundImageCapInsets ()
void setBackGroundColorType (LayoutBackGroundColorType type)
 Sets Color Type for layout. More...

LayoutBackGroundColorType getBackGroundColorType ()
void setBackGroundImageScale9Enabled (bool enabled)
 Sets background iamge use scale9 renderer. More...

bool isBackGroundImageScale9Enabled ()
void setBackGroundColor (const Color3B &color)
 Sets background color for layout, if color type is LAYOUT_COLOR_SOLID. More...

const Color3BgetBackGroundColor ()
void setBackGroundColor (const Color3B &startColor, const Color3B &endColor)
 Sets background color for layout, if color type is LAYOUT_COLOR_GRADIENT. More...

const Color3BgetBackGroundStartColor ()
const Color3BgetBackGroundEndColor ()
void setBackGroundColorOpacity (GLubyte opacity)
 Sets background opacity layout. More...

GLubyte getBackGroundColorOpacity ()
void setBackGroundColorVector (const Point &vector)
 Sets background color vector for layout, if color type is LAYOUT_COLOR_GRADIENT. More...

const PointgetBackGroundColorVector ()
void setBackGroundImageColor (const Color3B &color)
void setBackGroundImageOpacity (GLubyte opacity)
const Color3BgetBackGroundImageColor ()
GLubyte getBackGroundImageOpacity ()
void removeBackGroundImage ()
 Remove the background image of layout. More...

const SizegetBackGroundImageTextureSize () const
 Gets background image texture size. More...

void setClippingType (LayoutClippingType type)
LayoutClippingType getClippingType ()
virtual bool isClippingEnabled ()
 Gets if layout is clipping enabled. More...

virtual void visit (Renderer *renderer, const kmMat4 &parentTransform, bool parentTransformUpdated) override
 Visits this node's children and draw them recursively. More...

virtual void sortAllChildren () override
 Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

void requestDoLayout ()
virtual void onExit () override
 Event callback that is invoked every time the Node leaves the 'stage'. More...

virtual bool hitTest (const Point &pt)
 Checks a point if is in widget's space. More...

- Public Member Functions inherited from Widget
 Widget (void)
virtual ~Widget ()
 Default destructor. More...

virtual void setEnabled (bool enabled)
 Sets whether the widget is enabled. More...

bool isEnabled () const
 Determines if the widget is enabled. More...

void setBright (bool bright)
 Sets whether the widget is bright. More...

bool isBright () const
 Determines if the widget is bright. More...

virtual void setTouchEnabled (bool enabled)
 Sets whether the widget is touch enabled. More...

void setBrightStyle (BrightStyle style)
 To set the bright style of widget. More...

bool isTouchEnabled () const
 Determines if the widget is touch enabled. More...

bool isFocused () const
 Determines if the widget is on focused. More...

void setFocused (bool fucosed)
 Sets whether the widget is on focused. More...

float getLeftInParent ()
 Gets the left boundary position of this widget. More...

float getBottomInParent ()
 Gets the bottom boundary position of this widget. More...

float getRightInParent ()
 Gets the right boundary position of this widget. More...

float getTopInParent ()
 Gets the top boundary position of this widget. More...

void addTouchEventListener (Ref *target, SEL_TouchEvent selector)
 Sets the touch event target/selector of the menu item. More...

virtual void setPosition (const Point &pos) override
 Changes the position (x,y) of the widget in OpenGL coordinates. More...

void setPositionPercent (const Point &percent)
 Changes the position (x,y) of the widget in OpenGL coordinates. More...

const PointgetPositionPercent ()
 Gets the percent (x,y) of the widget in OpenGL coordinates. More...

void setPositionType (PositionType type)
 Changes the position type of the widget. More...

PositionType getPositionType () const
 Gets the position type of the widget. More...

virtual void setFlippedX (bool flippedX)
 Sets whether the widget should be flipped horizontally or not. More...

virtual bool isFlippedX ()
 Returns the flag which indicates whether the widget is flipped horizontally or not. More...

virtual void setFlippedY (bool flippedY)
 Sets whether the widget should be flipped vertically or not. More...

virtual bool isFlippedY ()
 Return the flag which indicates whether the widget is flipped vertically or not. More...

virtual void setColor (const Color3B &color) override
virtual void setOpacity (GLubyte opacity) override
const Color3BgetColor () const override
GLubyte getOpacity () const override
CC_DEPRECATED_ATTRIBUTE bool isFlipX ()
CC_DEPRECATED_ATTRIBUTE void setFlipX (bool flipX)
CC_DEPRECATED_ATTRIBUTE bool isFlipY ()
CC_DEPRECATED_ATTRIBUTE void setFlipY (bool flipY)
void didNotSelectSelf ()
 A call back function when widget lost of focus. More...

bool clippingParentAreaContainPoint (const Point &pt)
const PointgetTouchStartPos ()
const PointgetTouchMovePos ()
const PointgetTouchEndPos ()
void setName (const char *name)
 Changes the name that is used to identify the widget easily. More...

const char * getName () const
 Returns a name that is used to identify the widget easily. More...

WidgetType getWidgetType () const
 Returns a type that is widget's type. More...

virtual void setSize (const Size &size)
 Changes the size that is widget's size. More...

virtual void setSizePercent (const Point &percent)
 Changes the percent that is widget's percent size. More...

void setSizeType (SizeType type)
 Changes the size type of widget. More...

SizeType getSizeType () const
 Gets the size type of widget. More...

const SizegetSize () const
 Returns size of widget. More...

const SizegetCustomSize () const
virtual const SizegetLayoutSize ()
const PointgetSizePercent () const
 Returns size percent of widget. More...

void setLayoutParameter (LayoutParameter *parameter)
 Sets a LayoutParameter to widget. More...

LayoutParametergetLayoutParameter (LayoutParameterType type)
 Gets LayoutParameter of widget. More...

virtual void ignoreContentAdaptWithSize (bool ignore)
 Ignore the widget size. More...

bool isIgnoreContentAdaptWithSize () const
 Gets the widget if is ignore it's size. More...

Point getWorldPosition ()
 Gets world position of widget. More...

virtual NodegetVirtualRenderer ()
 Gets the Virtual Renderer of widget. More...

virtual const SizegetContentSize () const
 Gets the content size of widget. More...

Widgetclone ()
void updateSizeAndPosition ()
void updateSizeAndPosition (const Size &parentSize)
void setActionTag (int tag)
int getActionTag ()
- Public Member Functions inherited from ProtectedNode
virtual void cleanup () override
 Stops all running actions and schedulers. More...

virtual void onEnterTransitionDidFinish () override
 Event callback that is invoked when the Node enters in the 'stage'. More...

virtual void onExitTransitionDidStart () override
 Event callback that is called every time the Node leaves the 'stage'. More...

virtual void updateDisplayedOpacity (GLubyte parentOpacity) override
local updateDisplayedOpacity ( local parentOpacity)
virtual void updateDisplayedColor (const Color3B &parentColor) override
var updateDisplayedColor ( var parentColor)
local updateDisplayedColor ( local parentColor)
virtual void disableCascadeColor () override
virtual ~ProtectedNode ()
virtual void addProtectedChild (Node *child)
 Adds a child to the container with z-order as 0. More...

local addProtectedChild ( local child)
 Adds a child to the container with z-order as 0. More...

virtual void addProtectedChild (Node *child, int localZOrder)
 Adds a child to the container with a local z-order. More...

local addProtectedChild ( local child, local localZOrder)
 Adds a child to the container with a local z-order. More...

virtual void addProtectedChild (Node *child, int localZOrder, int tag)
 Adds a child to the container with z order and tag. More...

local addProtectedChild ( local child, local localZOrder, local tag)
 Adds a child to the container with z order and tag. More...

virtual NodegetProtectedChildByTag (int tag)
 Gets a child from the container with its tag. More...

virtual void removeProtectedChild (Node *child, bool cleanup=true)
 Removes a child from the container. More...

var removeProtectedChild ( var child, var true)
 Removes a child from the container. More...

local removeProtectedChild ( local child, local true)
 Removes a child from the container. More...

virtual void removeProtectedChildByTag (int tag, bool cleanup=true)
 Removes a child from the container by tag value. More...

virtual void removeAllProtectedChildren ()
 Removes all children from the container with a cleanup. More...

virtual void removeAllProtectedChildrenWithCleanup (bool cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void reorderProtectedChild (Node *child, int localZOrder)
 Reorders a child according to a new z value. More...

var reorderProtectedChild ( var child, var localZOrder)
 Reorders a child according to a new z value. More...

local reorderProtectedChild ( local child, local localZOrder)
 Reorders a child according to a new z value. More...

virtual void sortAllProtectedChildren ()
 Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

- Public Member Functions inherited from Node
virtual bool isRunning () const
 Returns whether or not the node is "running". More...

void scheduleUpdateWithPriorityLua (int handler, int priority)
 Schedules for lua script. More...

local scheduleUpdateWithPriorityLua ( local handler, local priority)
 Schedules for lua script. More...

virtual void draw (Renderer *renderer, const kmMat4 &transform, bool transformUpdated)
 Override this method to draw your own node. More...

virtual void draw () final
var draw ()
local draw ()
virtual void visit () final
var visit ()
local visit ()
virtual ScenegetScene ()
 Returns the Scene that contains the Node. More...

var getScene ()
 Returns the Scene that contains the Node. More...

local getScene ()
 Returns the Scene that contains the Node. More...

virtual Rect getBoundingBox () const
 Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...

var getBoundingBox ()
 Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...

local getBoundingBox ()
 Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...

virtual
CC_DEPRECATED_ATTRIBUTE Rect
boundingBox () const
local boundingBox ()
virtual void setEventDispatcher (EventDispatcher *dispatcher)
virtual EventDispatchergetEventDispatcher () const
local getEventDispatcher ()
void setPhysicsBody (PhysicsBody *body)
 set the PhysicsBody that let the sprite effect with physics More...

PhysicsBody * getPhysicsBody () const
 get the PhysicsBody the sprite have More...

virtual GLubyte getDisplayedOpacity () const
var getDisplayedOpacity ()
local getDisplayedOpacity ()
virtual bool isCascadeOpacityEnabled () const
virtual void setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
virtual const Color3BgetDisplayedColor () const
local getDisplayedColor ()
virtual bool isCascadeColorEnabled () const
virtual void setCascadeColorEnabled (bool cascadeColorEnabled)
virtual void setOpacityModifyRGB (bool bValue)
var setOpacityModifyRGB ( var bValue)
local setOpacityModifyRGB ( local bValue)
virtual bool isOpacityModifyRGB () const
virtual void setLocalZOrder (int localZOrder)
 LocalZOrder is the 'key' used to sort the node relative to its siblings. More...

virtual
CC_DEPRECATED_ATTRIBUTE void
setZOrder (int localZOrder)
local setZOrder ( local localZOrder)
virtual void _setLocalZOrder (int z)
virtual int getLocalZOrder () const
 Gets the local Z order of this node. More...

var getLocalZOrder ()
 Gets the local Z order of this node. More...

local getLocalZOrder ()
 Gets the local Z order of this node. More...

virtual CC_DEPRECATED_ATTRIBUTE int getZOrder () const
var getZOrder ()
local getZOrder ()
virtual void setGlobalZOrder (float globalZOrder)
 Defines the oder in which the nodes are renderer. More...

local setGlobalZOrder ( local globalZOrder)
 Defines the oder in which the nodes are renderer. More...

virtual float getGlobalZOrder () const
 Returns the Node's Global Z Order. More...

virtual void setScaleX (float scaleX)
 Sets the scale (x) of the node. More...

var setScaleX ( var scaleX)
 Sets the scale (x) of the node. More...

local setScaleX ( local scaleX)
 Sets the scale (x) of the node. More...

virtual float getScaleX () const
 Returns the scale factor on X axis of this node. More...

virtual void setScaleY (float scaleY)
 Sets the scale (y) of the node. More...

virtual float getScaleY () const
 Returns the scale factor on Y axis of this node. More...

var getScaleY ()
 Returns the scale factor on Y axis of this node. More...

local getScaleY ()
 Returns the scale factor on Y axis of this node. More...

virtual void setScaleZ (float scaleZ)
 Changes the scale factor on Z axis of this node. More...

local setScaleZ ( local scaleZ)
 Changes the scale factor on Z axis of this node. More...

virtual float getScaleZ () const
 Returns the scale factor on Z axis of this node. More...

virtual void setScale (float scale)
 Sets the scale (x,y,z) of the node. More...

local setScale ( local scale)
 Sets the scale (x,y,z) of the node. More...

virtual float getScale () const
 Gets the scale factor of the node, when X and Y have the same scale factor. More...

local getScale ()
 Gets the scale factor of the node, when X and Y have the same scale factor. More...

virtual void setScale (float scaleX, float scaleY)
 Sets the scale (x,y) of the node. More...

local setScale ( local scaleX, local scaleY)
 Sets the scale (x,y) of the node. More...

virtual const PointgetPosition () const
 Gets the position (x,y) of the node in its parent's coordinate system. More...

virtual void setPosition (float x, float y)
 Sets the position (x,y) of the node in its parent's coordinate system. More...

local setPosition ( local x, local y)
 Sets the position (x,y) of the node in its parent's coordinate system. More...

virtual void getPosition (float *x, float *y) const
 Gets position in a more efficient way, returns two number instead of a Point object. More...

local getPosition ( local x, local y)
 Gets position in a more efficient way, returns two number instead of a Point object. More...

virtual void setPositionX (float x)
 Gets/Sets x or y coordinate individually for position. More...

virtual float getPositionX (void) const
virtual void setPositionY (float y)
local setPositionY ( local y)
virtual float getPositionY (void) const
local getPositionY ()
virtual void setPosition3D (const Vertex3F &position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

var setPosition3D ( var position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

local setPosition3D ( local position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

virtual Vertex3F getPosition3D () const
 returns the position (X,Y,Z) in its parent's coordinate system More...

local getPosition3D ()
 returns the position (X,Y,Z) in its parent's coordinate system More...

virtual void setPositionZ (float positionZ)
 Sets the 'z' coordinate in the position. More...

virtual
CC_DEPRECATED_ATTRIBUTE void
setVertexZ (float vertexZ)
local setVertexZ ( local vertexZ)
virtual float getPositionZ () const
 Gets position Z coordinate of this node. More...

var getPositionZ ()
 Gets position Z coordinate of this node. More...

local getPositionZ ()
 Gets position Z coordinate of this node. More...

virtual
CC_DEPRECATED_ATTRIBUTE float
getVertexZ () const
local getVertexZ ()
virtual void setSkewX (float skewX)
 Changes the X skew angle of the node in degrees. More...

local setSkewX ( local skewX)
 Changes the X skew angle of the node in degrees. More...

virtual float getSkewX () const
 Returns the X skew angle of the node in degrees. More...

var getSkewX ()
 Returns the X skew angle of the node in degrees. More...

local getSkewX ()
 Returns the X skew angle of the node in degrees. More...

virtual void setSkewY (float skewY)
 Changes the Y skew angle of the node in degrees. More...

local setSkewY ( local skewY)
 Changes the Y skew angle of the node in degrees. More...

virtual float getSkewY () const
 Returns the Y skew angle of the node in degrees. More...

local getSkewY ()
 Returns the Y skew angle of the node in degrees. More...

virtual void setAnchorPoint (const Point &anchorPoint)
 Sets the anchor point in percent. More...

virtual const PointgetAnchorPoint () const
 Returns the anchor point in percent. More...

local getAnchorPoint ()
 Returns the anchor point in percent. More...

virtual const PointgetAnchorPointInPoints () const
 Returns the anchorPoint in absolute pixels. More...

local getAnchorPointInPoints ()
 Returns the anchorPoint in absolute pixels. More...

virtual void setContentSize (const Size &contentSize)
 Sets the untransformed size of the node. More...

local setContentSize ( local contentSize)
 Sets the untransformed size of the node. More...

virtual void setVisible (bool visible)
 Sets whether the node is visible. More...

local setVisible ( local visible)
 Sets whether the node is visible. More...

virtual bool isVisible () const
 Determines if the node is visible. More...

virtual void setRotation (float rotation)
 Sets the rotation (angle) of the node in degrees. More...

local setRotation ( local rotation)
 Sets the rotation (angle) of the node in degrees. More...

virtual float getRotation () const
 Returns the rotation of the node in degrees. More...

virtual void setRotation3D (const Vertex3F &rotation)
 Sets the rotation (X,Y,Z) in degrees. More...

virtual Vertex3F getRotation3D () const
 returns the rotation (X,Y,Z) in degrees. More...

var getRotation3D ()
 returns the rotation (X,Y,Z) in degrees. More...

local getRotation3D ()
 returns the rotation (X,Y,Z) in degrees. More...

virtual void setRotationSkewX (float rotationX)
 Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

local setRotationSkewX ( local rotationX)
 Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

virtual
CC_DEPRECATED_ATTRIBUTE void
setRotationX (float rotationX)
local setRotationX ( local rotationX)
virtual float getRotationSkewX () const
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

var getRotationSkewX ()
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

local getRotationSkewX ()
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

virtual
CC_DEPRECATED_ATTRIBUTE float
getRotationX () const
local getRotationX ()
virtual void setRotationSkewY (float rotationY)
 Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local setRotationSkewY ( local rotationY)
 Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual
CC_DEPRECATED_ATTRIBUTE void
setRotationY (float rotationY)
local setRotationY ( local rotationY)
virtual float getRotationSkewY () const
 Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual
CC_DEPRECATED_ATTRIBUTE float
getRotationY () const
local getRotationY ()
void setOrderOfArrival (int orderOfArrival)
 Sets the arrival order when this node has a same ZOrder with other children. More...

int getOrderOfArrival () const
 Returns the arrival order, indicates which children is added previously. More...

CC_DEPRECATED_ATTRIBUTE void setGLServerState (int serverState)
CC_DEPRECATED_ATTRIBUTE int getGLServerState () const
virtual void ignoreAnchorPointForPosition (bool ignore)
 Sets whether the anchor point will be (0,0) when you position this node. More...

virtual bool isIgnoreAnchorPointForPosition () const
 Gets whether the anchor point will be (0,0) when you position this node. More...

virtual void setParent (Node *parent)
 Sets the parent node. More...

var setParent ( var parent)
 Sets the parent node. More...

local setParent ( local parent)
 Sets the parent node. More...

virtual NodegetParent ()
 Returns a pointer to the parent node. More...

virtual const NodegetParent () const
var getParent ()
virtual void removeFromParent ()
 Removes this node itself from its parent node with a cleanup. More...

virtual void removeFromParentAndCleanup (bool cleanup)
 Removes this node itself from its parent node. More...

local removeFromParent ( local cleanup)
 Removes this node itself from its parent node. More...

virtual void removeChildByTag (int tag, bool cleanup=true)
 Removes a child from the container by tag value. More...

virtual void reorderChild (Node *child, int localZOrder)
 Reorders a child according to a new z value. More...

virtual int getTag () const
 Returns a tag that is used to identify the node easily. More...

virtual void setTag (int tag)
 Changes the tag that is used to identify the node easily. More...

local setTag ( local tag)
 Changes the tag that is used to identify the node easily. More...

virtual void * getUserData ()
 Returns a custom user data pointer. More...

virtual const void * getUserData () const
virtual void setUserData (void *userData)
 Sets a custom user data pointer. More...

virtual RefgetUserObject ()
 Returns a user assigned Object. More...

virtual const RefgetUserObject () const
virtual void setUserObject (Ref *userObject)
 Returns a user assigned Object. More...

local setUserObject ( local userObject)
 Returns a user assigned Object. More...

virtual GLProgramgetShaderProgram ()
 Return the shader program currently used for this node. More...

virtual const GLProgramgetShaderProgram () const
local getShaderProgram ()
virtual void setShaderProgram (GLProgram *shaderProgram)
 Sets the shader program for this node. More...

local setShaderProgram ( local shaderProgram)
 Sets the shader program for this node. More...

virtual void setActionManager (ActionManager *actionManager)
 Sets the ActionManager object that is used by all actions. More...

virtual ActionManagergetActionManager ()
 Gets the ActionManager object that is used by all actions. More...

virtual const ActionManagergetActionManager () const
ActionrunAction (Action *action)
 Executes an action, and returns the action that is executed. More...

var runAction ( var action)
 Executes an action, and returns the action that is executed. More...

local runAction ( local action)
 Executes an action, and returns the action that is executed. More...

void stopAllActions ()
 Stops and removes all actions from the running action list . More...

void stopAction (Action *action)
 Stops and removes an action from the running action list. More...

var stopAction ( var action)
 Stops and removes an action from the running action list. More...

local stopAction ( local action)
 Stops and removes an action from the running action list. More...

void stopActionByTag (int tag)
 Removes an action from the running action list by its tag. More...

var stopActionByTag ( var tag)
 Removes an action from the running action list by its tag. More...

local stopActionByTag ( local tag)
 Removes an action from the running action list by its tag. More...

ActiongetActionByTag (int tag)
 Gets an action from the running action list by its tag. More...

ssize_t getNumberOfRunningActions () const
 Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

CC_DEPRECATED_ATTRIBUTE ssize_t numberOfRunningActions () const
local numberOfRunningActions ()
virtual void setScheduler (Scheduler *scheduler)
 Sets a Scheduler object that is used to schedule all "updates" and timers. More...

virtual SchedulergetScheduler ()
 Gets a Sheduler object. More...

virtual const SchedulergetScheduler () const
local getScheduler ()
bool isScheduled (SEL_SCHEDULE selector)
 Checks whether a selector is scheduled. More...

void scheduleUpdate (void)
 Schedules the "update" method. More...

void scheduleUpdateWithPriority (int priority)
 Schedules the "update" method with a custom priority. More...

void unscheduleUpdate (void)
var unscheduleUpdate ()
local unscheduleUpdate ()
void schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
 Schedules a custom selector. More...

void schedule (SEL_SCHEDULE selector, float interval)
 Schedules a custom selector with an interval time in seconds. More...

void scheduleOnce (SEL_SCHEDULE selector, float delay)
 Schedules a selector that runs only once, with a delay of 0 or larger. More...

void schedule (SEL_SCHEDULE selector)
 Schedules a custom selector, the scheduled selector will be ticked every frame. More...

void unschedule (SEL_SCHEDULE selector)
 Unschedules a custom selector. More...

void unscheduleAllSelectors (void)
 Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...

var unscheduleAllSelectors ()
 Unschedule all scheduled selectors: custom selectors, and the 'update' selector. More...

void resume (void)
 Resumes all scheduled selectors, actions and event listeners. More...

void pause (void)
 Pauses all scheduled selectors, actions and event listeners. More...

var pause ()
 Pauses all scheduled selectors, actions and event listeners. More...

local pause ()
 Pauses all scheduled selectors, actions and event listeners. More...

CC_DEPRECATED_ATTRIBUTE void resumeSchedulerAndActions (void)
 Resumes all scheduled selectors, actions and event listeners. More...

local resumeSchedulerAndActions ()
 Resumes all scheduled selectors, actions and event listeners. More...

CC_DEPRECATED_ATTRIBUTE void pauseSchedulerAndActions (void)
 Pauses all scheduled selectors, actions and event listeners. More...

local pauseSchedulerAndActions ()
 Pauses all scheduled selectors, actions and event listeners. More...

virtual void updateTransform ()
 Calls children's updateTransform() method recursively. More...

virtual const kmMat4 & getNodeToParentTransform () const
 Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

local getNodeToParentTransform ()
 Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

virtual AffineTransform getNodeToParentAffineTransform () const
local getNodeToParentAffineTransform ()
virtual void setNodeToParentTransform (const kmMat4 &transform)
 Sets the Transformation matrix manually. More...

virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
nodeToParentTransform () const
local nodeToParentTransform ()
virtual const kmMat4 & getParentToNodeTransform () const
 Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

virtual AffineTransform getParentToNodeAffineTransform () const
local getParentToNodeAffineTransform ()
virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
parentToNodeTransform () const
local parentToNodeTransform ()
virtual kmMat4 getNodeToWorldTransform () const
 Returns the world affine transform matrix. More...

virtual AffineTransform getNodeToWorldAffineTransform () const
local getNodeToWorldAffineTransform ()
virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
nodeToWorldTransform () const
local nodeToWorldTransform ()
virtual kmMat4 getWorldToNodeTransform () const
 Returns the inverse world affine transform matrix. More...

local getWorldToNodeTransform ()
 Returns the inverse world affine transform matrix. More...

virtual AffineTransform getWorldToNodeAffineTransform () const
local getWorldToNodeAffineTransform ()
virtual
CC_DEPRECATED_ATTRIBUTE
AffineTransform
worldToNodeTransform () const
local worldToNodeTransform ()
Point convertToNodeSpace (const Point &worldPoint) const
 Converts a Point to node (local) space coordinates. More...

Point convertToWorldSpace (const Point &nodePoint) const
 Converts a Point to world space coordinates. More...

Point convertToNodeSpaceAR (const Point &worldPoint) const
 Converts a Point to node (local) space coordinates. More...

var convertToNodeSpaceAR ( var worldPoint)
 Converts a Point to node (local) space coordinates. More...

local convertToNodeSpaceAR ( local worldPoint)
 Converts a Point to node (local) space coordinates. More...

Point convertToWorldSpaceAR (const Point &nodePoint) const
 Converts a local Point to world space coordinates.The result is in Points. More...

Point convertTouchToNodeSpace (Touch *touch) const
 convenience methods which take a Touch instead of Point More...

Point convertTouchToNodeSpaceAR (Touch *touch) const
 converts a Touch (world coordinates) into a local coordinate. More...

var convertTouchToNodeSpaceAR ( var touch)
 converts a Touch (world coordinates) into a local coordinate. More...

local convertTouchToNodeSpaceAR ( local touch)
 converts a Touch (world coordinates) into a local coordinate. More...

void setAdditionalTransform (kmMat4 *additionalTransform)
 Sets an additional transform matrix to the node. More...

var setAdditionalTransform ( var additionalTransform)
 Sets an additional transform matrix to the node. More...

local setAdditionalTransform ( local additionalTransform)
 Sets an additional transform matrix to the node. More...

void setAdditionalTransform (const AffineTransform &additionalTransform)
ComponentgetComponent (const std::string &pName)
 gets a component by its name More...

var getComponent ( var pName)
 gets a component by its name More...

local getComponent ( local pName)
 gets a component by its name More...

virtual bool addComponent (Component *pComponent)
 adds a component More...

var addComponent ( var pComponent)
 adds a component More...

local addComponent ( local pComponent)
 adds a component More...

virtual bool removeComponent (const std::string &pName)
 removes a component by its name More...

var removeComponent ( var pName)
 removes a component by its name More...

local removeComponent ( local pName)
 removes a component by its name More...

virtual void removeAllComponents ()
 removes all components More...

- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Release the ownership immediately. More...

local release ()
 Release the ownership immediately. More...

Refautorelease ()
 Release the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

virtual ~Ref ()
- Public Member Functions inherited from UIScrollInterface
virtual ~UIScrollInterface ()
var ~UIScrollInterface ()
local ~UIScrollInterface ()

Static Public Member Functions

static PageViewcreate ()
 Allocates and initializes. More...

var create ()
 Allocates and initializes. More...

local create ()
 Allocates and initializes. More...

- Static Public Member Functions inherited from Layout
static Layoutcreate ()
 Allocates and initializes a layout. More...

- Static Public Member Functions inherited from Widget
static Widgetcreate ()
 Allocates and initializes a widget. More...

- Static Public Member Functions inherited from ProtectedNode
static ProtectedNodecreate (void)
- Static Public Member Functions inherited from Node
static Nodecreate (void)
 Allocates and initializes a node. More...

var create ()
 Allocates and initializes a node. More...

local create ()
 Allocates and initializes a node. More...


Public Attributes

CC_CONSTRUCTOR_ACCESS __pad0__: virtual bool init() override
local __pad0__: virtual bool init() override
- Public Attributes inherited from Layout
CC_CONSTRUCTOR_ACCESS __pad0__: virtual bool init() override
- Public Attributes inherited from Widget
CC_CONSTRUCTOR_ACCESS __pad0__: virtual bool init() override
- Public Attributes inherited from ProtectedNode
CC_CONSTRUCTOR_ACCESS __pad0__: ProtectedNode()

Protected Member Functions

virtual void addChild (Node *child) override
 Adds a child to the container with z-order as 0. More...

virtual void addChild (Node *child, int zOrder) override
 Adds a child to the container with a z-order. More...

var addChild ( var child, var zOrder)
 Adds a child to the container with a z-order. More...

local addChild ( local child, local zOrder)
 Adds a child to the container with a z-order. More...

virtual void addChild (Node *child, int zOrder, int tag) override
 Adds a child to the container with z order and tag. More...

local addChild ( local child, local zOrder, local tag)
 Adds a child to the container with z order and tag. More...

virtual void removeChild (Node *widget, bool cleanup=true) override
 Removes a child from the container. More...

var removeChild ( var widget, var true)
 Removes a child from the container. More...

local removeChild ( local widget, local true)
 Removes a child from the container. More...

virtual void removeAllChildren () override
 Removes all children from the container with a cleanup. More...

virtual void removeAllChildrenWithCleanup (bool cleanup) override
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual Vector< Node * > & getChildren () override
 Returns the array of the node's children. More...

local getChildren ()
 Returns the array of the node's children. More...

virtual const Vector< Node * > & getChildren () const override
local getChildren ()
virtual ssize_t getChildrenCount () const override
 Returns the amount of children. More...

local getChildrenCount ()
 Returns the amount of children. More...

virtual NodegetChildByTag (int tag) override
 Gets a child from the container with its tag. More...

local getChildByTag ( local tag)
 Gets a child from the container with its tag. More...

virtual WidgetgetChildByName (const char *name) override
 Gets a child from the container with its name. More...

LayoutcreatePage ()
float getPositionXByIndex (ssize_t idx)
var getPositionXByIndex ( var idx)
local getPositionXByIndex ( local idx)
void updateBoundaryPages ()
var updateBoundaryPages ()
local updateBoundaryPages ()
virtual void handlePressLogic (const Point &touchPoint) override
var handlePressLogic ( var touchPoint)
local handlePressLogic ( local touchPoint)
virtual void handleMoveLogic (const Point &touchPoint) override
virtual void handleReleaseLogic (const Point &touchPoint) override
local handleReleaseLogic ( local touchPoint)
virtual void interceptTouchEvent (int handleState, Widget *sender, const Point &touchPoint) override
local interceptTouchEvent ( local handleState, local sender, local touchPoint)
virtual void checkChildInfo (int handleState, Widget *sender, const Point &touchPoint) override
virtual bool scrollPages (float touchOffset)
void movePages (float offset)
var movePages ( var offset)
local movePages ( local offset)
void pageTurningEvent ()
var pageTurningEvent ()
local pageTurningEvent ()
void updateChildrenSize ()
var updateChildrenSize ()
local updateChildrenSize ()
void updateChildrenPosition ()
var updateChildrenPosition ()
local updateChildrenPosition ()
virtual void onSizeChanged () override
virtual WidgetcreateCloneInstance () override
local createCloneInstance ()
virtual void copySpecialProperties (Widget *model) override
local copySpecialProperties ( local model)
virtual void copyClonedWidgetChildren (Widget *model) override
virtual void setClippingEnabled (bool enabled) override
 Changes if layout can clip it's content and child. More...

virtual void doLayout () override
var doLayout ()
local doLayout ()
- Protected Member Functions inherited from Layout
void addBackGroundImage ()
void supplyTheLayoutParameterLackToChild (Widget *child)
void stencilClippingVisit (Renderer *renderer, const kmMat4 &parentTransform, bool parentTransformUpdated)
void scissorClippingVisit (Renderer *renderer, const kmMat4 &parentTransform, bool parentTransformUpdated)
void setStencilClippingSize (const Size &size)
const RectgetClippingRect ()
void onBeforeVisitStencil ()
void onAfterDrawStencil ()
void onAfterVisitStencil ()
void onBeforeVisitScissor ()
void onAfterVisitScissor ()
void updateBackGroundImageColor ()
void updateBackGroundImageOpacity ()
void updateBackGroundImageRGBA ()
LayoutExecutant * createCurrentLayoutExecutant ()
- Protected Member Functions inherited from Widget
virtual void initRenderer ()
virtual void onPressStateChangedToNormal ()
virtual void onPressStateChangedToPressed ()
virtual void onPressStateChangedToDisabled ()
void pushDownEvent ()
void moveEvent ()
void releaseUpEvent ()
void cancelUpEvent ()
void updateAnchorPoint ()
virtual void updateTextureColor ()
virtual void updateTextureOpacity ()
virtual void updateTextureRGBA ()
virtual void updateFlippedX ()
virtual void updateFlippedY ()
void updateColorToRenderer (Node *renderer)
void updateOpacityToRenderer (Node *renderer)
void updateRGBAToRenderer (Node *renderer)
void copyProperties (Widget *model)
WidgetgetWidgetParent ()
- Protected Member Functions inherited from ProtectedNode
void insertProtectedChild (Node *child, int z)
 helper that reorder a child More...

var insertProtectedChild ( var child, var z)
 helper that reorder a child More...

local insertProtectedChild ( local child, local z)
 helper that reorder a child More...

- Protected Member Functions inherited from Node
 Node ()
 Node ()
 Node ()
virtual ~Node ()
local ~Node ()
virtual bool init ()
local init ()
void childrenAlloc (void)
 lazy allocs More...

var childrenAlloc ()
 lazy allocs More...

local childrenAlloc ()
 lazy allocs More...

void insertChild (Node *child, int z)
 helper that reorder a child More...

var insertChild ( var child, var z)
 helper that reorder a child More...

local insertChild ( local child, local z)
 helper that reorder a child More...

void detachChild (Node *child, ssize_t index, bool doCleanup)
 Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

var detachChild ( var child, var index, var doCleanup)
 Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

local detachChild ( local child, local index, local doCleanup)
 Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

Point convertToWindowSpace (const Point &nodePoint) const
 Convert cocos2d coordinates to UI windows coordinate. More...

var convertToWindowSpace ( var nodePoint)
 Convert cocos2d coordinates to UI windows coordinate. More...

local convertToWindowSpace ( local nodePoint)
 Convert cocos2d coordinates to UI windows coordinate. More...

kmMat4 transform (const kmMat4 &parentTransform)
virtual void updateCascadeOpacity ()
var updateCascadeOpacity ()
local updateCascadeOpacity ()
virtual void disableCascadeOpacity ()
var disableCascadeOpacity ()
local disableCascadeOpacity ()
virtual void updateCascadeColor ()
var updateCascadeColor ()
local updateCascadeColor ()
virtual void updateColor ()
var updateColor ()
local updateColor ()
- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...

 Ref ()
 Constructor. More...


Protected Attributes

ssize_t _curPageIdx
Vector< Layout * > _pages
var _pages
local _pages
PVTouchDir _touchMoveDir
var _touchMoveDir
local _touchMoveDir
float _touchStartLocation
var _touchStartLocation
local _touchStartLocation
float _touchMoveStartLocation
var _touchMoveStartLocation
local _touchMoveStartLocation
Point _movePagePoint
var _movePagePoint
local _movePagePoint
Widget_leftChild
var _leftChild
local _leftChild
Widget_rightChild
var _rightChild
local _rightChild
float _leftBoundary
var _leftBoundary
local _leftBoundary
float _rightBoundary
var _rightBoundary
local _rightBoundary
bool _isAutoScrolling
var _isAutoScrolling
local _isAutoScrolling
float _autoScrollDistance
var _autoScrollDistance
local _autoScrollDistance
float _autoScrollSpeed
var _autoScrollSpeed
local _autoScrollSpeed
int _autoScrollDir
var _autoScrollDir
local _autoScrollDir
float _childFocusCancelOffset
var _childFocusCancelOffset
local _childFocusCancelOffset
Ref_pageViewEventListener
var _pageViewEventListener
local _pageViewEventListener
SEL_PageViewEvent _pageViewEventSelector
var _pageViewEventSelector
local _pageViewEventSelector
- Protected Attributes inherited from Layout
bool _clippingEnabled
bool _backGroundScale9Enabled
Node_backGroundImage
std::string _backGroundImageFileName
Rect _backGroundImageCapInsets
LayoutBackGroundColorType _colorType
TextureResType _bgImageTexType
LayerColor_colorRender
LayerGradient_gradientRender
Color3B _cColor
Color3B _gStartColor
Color3B _gEndColor
Point _alongVector
GLubyte _cOpacity
Size _backGroundImageTextureSize
LayoutType _layoutType
LayoutClippingType _clippingType
DrawNode_clippingStencil
bool _scissorRectDirty
Rect _clippingRect
Layout_clippingParent
bool _doLayoutDirty
bool _clippingRectDirty
GLboolean _currentStencilEnabled
GLuint _currentStencilWriteMask
GLenum _currentStencilFunc
GLint _currentStencilRef
GLuint _currentStencilValueMask
GLenum _currentStencilFail
GLenum _currentStencilPassDepthFail
GLenum _currentStencilPassDepthPass
GLboolean _currentDepthWriteMask
GLboolean _currentAlphaTestEnabled
GLenum _currentAlphaTestFunc
GLclampf _currentAlphaTestRef
Color3B _backGroundImageColor
GLubyte _backGroundImageOpacity
LayoutExecutant * _curLayoutExecutant
GLint _mask_layer_le
GroupCommand _groupCommand
CustomCommand _beforeVisitCmdStencil
CustomCommand _afterDrawStencilCmd
CustomCommand _afterVisitCmdStencil
CustomCommand _beforeVisitCmdScissor
CustomCommand _afterVisitCmdScissor
- Protected Attributes inherited from Widget
bool _enabled
 Highest control of widget. More...

bool _bright
 is this widget bright More...

bool _touchEnabled
 is this widget touch endabled More...

bool _touchPassedEnabled
 is the touch event should be passed More...

bool _focus
 is the widget on focus More...

BrightStyle _brightStyle
 bright style More...

Point _touchStartPos
 touch began point More...

Point _touchMovePos
 touch moved point More...

Point _touchEndPos
 touch ended point More...

Ref_touchEventListener
SEL_TouchEvent _touchEventSelector
std::string _name
WidgetType _widgetType
int _actionTag
Size _size
Size _customSize
bool _ignoreSize
bool _affectByClipping
SizeType _sizeType
Point _sizePercent
PositionType _positionType
Point _positionPercent
bool _reorderWidgetChildDirty
bool _hitted
EventListenerTouchOneByOne_touchListener
Color3B _color
GLubyte _opacity
bool _flippedX
bool _flippedY
Map< int, LayoutParameter * > _layoutParameterDictionary
- Protected Attributes inherited from ProtectedNode
Vector< Node * > _protectedChildren
 array of children nodes More...

var _protectedChildren
 array of children nodes More...

local _protectedChildren
 array of children nodes More...

bool _reorderProtectedChildDirty
- Protected Attributes inherited from Node
float _rotationX
 rotation on the X-axis More...

float _rotationY
 rotation on the Y-axis More...

var _rotationY
 rotation on the Y-axis More...

local _rotationY
 rotation on the Y-axis More...

float _rotationZ_X
 rotation angle on Z-axis, component X More...

var _rotationZ_X
 rotation angle on Z-axis, component X More...

local _rotationZ_X
 rotation angle on Z-axis, component X More...

float _rotationZ_Y
 rotation angle on Z-axis, component Y More...

var _rotationZ_Y
 rotation angle on Z-axis, component Y More...

local _rotationZ_Y
 rotation angle on Z-axis, component Y More...

float _scaleX
 scaling factor on x-axis More...

var _scaleX
 scaling factor on x-axis More...

local _scaleX
 scaling factor on x-axis More...

float _scaleY
 scaling factor on y-axis More...

var _scaleY
 scaling factor on y-axis More...

local _scaleY
 scaling factor on y-axis More...

float _scaleZ
 scaling factor on z-axis More...

var _scaleZ
 scaling factor on z-axis More...

local _scaleZ
 scaling factor on z-axis More...

Point _position
 position of the node More...

var _position
 position of the node More...

local _position
 position of the node More...

float _positionZ
 OpenGL real Z position. More...

var _positionZ
 OpenGL real Z position. More...

local _positionZ
 OpenGL real Z position. More...

float _skewX
 skew angle on x-axis More...

var _skewX
 skew angle on x-axis More...

local _skewX
 skew angle on x-axis More...

float _skewY
 skew angle on y-axis More...

var _skewY
 skew angle on y-axis More...

local _skewY
 skew angle on y-axis More...

Point _anchorPointInPoints
 anchor point in points More...

var _anchorPointInPoints
 anchor point in points More...

local _anchorPointInPoints
 anchor point in points More...

Point _anchorPoint
 anchor point normalized (NOT in points) More...

var _anchorPoint
 anchor point normalized (NOT in points) More...

local _anchorPoint
 anchor point normalized (NOT in points) More...

Size _contentSize
 untransformed size of the node More...

var _contentSize
 untransformed size of the node More...

local _contentSize
 untransformed size of the node More...

kmMat4 _modelViewTransform
 ModelView transform of the Node. More...

var _modelViewTransform
 ModelView transform of the Node. More...

local _modelViewTransform
 ModelView transform of the Node. More...

kmMat4 _transform
 transform More...

var _transform
 transform More...

local _transform
 transform More...

bool _transformDirty
 transform dirty flag More...

var _transformDirty
 transform dirty flag More...

local _transformDirty
 transform dirty flag More...

kmMat4 _inverse
 inverse transform More...

var _inverse
 inverse transform More...

local _inverse
 inverse transform More...

bool _inverseDirty
 inverse transform dirty flag More...

var _inverseDirty
 inverse transform dirty flag More...

local _inverseDirty
 inverse transform dirty flag More...

kmMat4 _additionalTransform
 transform More...

var _additionalTransform
 transform More...

local _additionalTransform
 transform More...

bool _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

var _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

local _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

bool _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

int _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

var _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

local _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

float _globalZOrder
 Global order used to sort the node. More...

var _globalZOrder
 Global order used to sort the node. More...

local _globalZOrder
 Global order used to sort the node. More...

Vector< Node * > _children
 array of children nodes More...

local _children
 array of children nodes More...

Node_parent
 weak reference to parent node More...

var _parent
 weak reference to parent node More...

local _parent
 weak reference to parent node More...

int _tag
 a tag. Can be any number you assigned just to identify this node More...

var _tag
 a tag. Can be any number you assigned just to identify this node More...

local _tag
 a tag. Can be any number you assigned just to identify this node More...

std::string _name
 a string label, an user defined string to identify this node More...

var _name
 a string label, an user defined string to identify this node More...

local _name
 a string label, an user defined string to identify this node More...

void * _userData
 A user assingned void pointer, Can be point to any cpp object. More...

var _userData
 A user assingned void pointer, Can be point to any cpp object. More...

local _userData
 A user assingned void pointer, Can be point to any cpp object. More...

Ref_userObject
 A user assigned Object. More...

var _userObject
 A user assigned Object. More...

local _userObject
 A user assigned Object. More...

GLProgram_shaderProgram
 OpenGL shader. More...

var _shaderProgram
 OpenGL shader. More...

local _shaderProgram
 OpenGL shader. More...

int _orderOfArrival
 used to preserve sequence while sorting children with the same localZOrder More...

var _orderOfArrival
 used to preserve sequence while sorting children with the same localZOrder More...

local _orderOfArrival
 used to preserve sequence while sorting children with the same localZOrder More...

Scheduler_scheduler
 scheduler used to schedule timers and updates More...

var _scheduler
 scheduler used to schedule timers and updates More...

local _scheduler
 scheduler used to schedule timers and updates More...

ActionManager_actionManager
 a pointer to ActionManager singleton, which is used to handle all the actions More...

var _actionManager
 a pointer to ActionManager singleton, which is used to handle all the actions More...

local _actionManager
 a pointer to ActionManager singleton, which is used to handle all the actions More...

EventDispatcher_eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

var _eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

local _eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

bool _running
 is running More...

bool _visible
 is this node visible More...

var _visible
 is this node visible More...

local _visible
 is this node visible More...

bool _ignoreAnchorPointForPosition
 true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

var _ignoreAnchorPointForPosition
 true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

local _ignoreAnchorPointForPosition
 true if the Anchor Point will be (0,0) when you position the Node, false otherwise. More...

bool _reorderChildDirty
 children order dirty flag More...

bool _isTransitionFinished
 flag to indicate whether the transition was finished More...

var _isTransitionFinished
 flag to indicate whether the transition was finished More...

local _isTransitionFinished
 flag to indicate whether the transition was finished More...

int _scriptHandler
 script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

var _scriptHandler
 script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

local _scriptHandler
 script handler for onEnter() & onExit(), used in Javascript binding and Lua binding. More...

int _updateScriptHandler
 script handler for update() callback per frame, which is invoked from lua & javascript. More...

var _updateScriptHandler
 script handler for update() callback per frame, which is invoked from lua & javascript. More...

local _updateScriptHandler
 script handler for update() callback per frame, which is invoked from lua & javascript. More...

ccScriptType _scriptType
 type of script binding, lua or javascript More...

var _scriptType
 type of script binding, lua or javascript More...

local _scriptType
 type of script binding, lua or javascript More...

ComponentContainer_componentContainer
 Dictionary of components. More...

var _componentContainer
 Dictionary of components. More...

local _componentContainer
 Dictionary of components. More...

PhysicsBody * _physicsBody
 the physicsBody the node have More...

GLubyte _displayedOpacity
var _displayedOpacity
local _displayedOpacity
GLubyte _realOpacity
var _realOpacity
local _realOpacity
Color3B _displayedColor
var _displayedColor
local _displayedColor
Color3B _realColor
var _realColor
local _realColor
bool _cascadeColorEnabled
var _cascadeColorEnabled
local _cascadeColorEnabled
bool _cascadeOpacityEnabled
var _cascadeOpacityEnabled
local _cascadeOpacityEnabled
- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...


Additional Inherited Members

- Static Public Attributes inherited from Node
static const int INVALID_TAG = -1
 Default tag used for all the nodes. More...

var INVALID_TAG = -1
 Default tag used for all the nodes. More...

local INVALID_TAG = -1
 Default tag used for all the nodes. More...

- Static Protected Attributes inherited from Node
static int s_globalOrderOfArrival
var s_globalOrderOfArrival
local s_globalOrderOfArrival

Constructor & Destructor Documentation

PageView ( )

Default constructor.

var PageView ( )

Default constructor.

local PageView ( )

Default constructor.

virtual ~PageView ( )
virtual

Default destructor.

var ~PageView ( )
virtual

Default destructor.

local ~PageView ( )
virtual

Default destructor.

Member Function Documentation

virtual void addChild ( Node child)
overrideprotectedvirtual

Adds a child to the container with z-order as 0.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node

Reimplemented from Layout.

var addChild ( var  child)
overrideprotectedvirtual

Adds a child to the container with z-order as 0.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node

Reimplemented from Layout.

local addChild ( local  child)
overrideprotectedvirtual

Adds a child to the container with z-order as 0.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node

Reimplemented from Layout.

virtual void addChild ( Node child,
int  zOrder
)
overrideprotectedvirtual

Adds a child to the container with a z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented from Layout.

var addChild ( var  child,
var  zOrder
)
overrideprotectedvirtual

Adds a child to the container with a z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented from Layout.

local addChild ( local  child,
local  zOrder
)
overrideprotectedvirtual

Adds a child to the container with a z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented from Layout.

virtual void addChild ( Node child,
int  zOrder,
int  tag
)
overrideprotectedvirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)
tagA interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Layout.

var addChild ( var  child,
var  zOrder,
var  tag
)
overrideprotectedvirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)
tagA interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Layout.

local addChild ( local  child,
local  zOrder,
local  tag
)
overrideprotectedvirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)
tagA interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Layout.

void addEventListenerPageView ( Ref target,
SEL_PageViewEvent  selector
)
var addEventListenerPageView ( var  target,
var  selector
)
local addEventListenerPageView ( local  target,
local  selector
)
void addPage ( Layout page)

Push back a page to pageview.

Parameters
pagepage to be added to pageview.
var addPage ( var  page)

Push back a page to pageview.

Parameters
pagepage to be added to pageview.
local addPage ( local  page)

Push back a page to pageview.

Parameters
pagepage to be added to pageview.
void addWidgetToPage ( Widget widget,
ssize_t  pageIdx,
bool  forceCreate
)

Add a widget to a page of pageview.

Parameters
widgetwidget to be added to pageview.
pageIdxindex of page.
forceCreateif force create and there is no page exsit, pageview would create a default page for adding widget.
var addWidgetToPage ( var  widget,
var  pageIdx,
var  forceCreate
)

Add a widget to a page of pageview.

Parameters
widgetwidget to be added to pageview.
pageIdxindex of page.
forceCreateif force create and there is no page exsit, pageview would create a default page for adding widget.
local addWidgetToPage ( local  widget,
local  pageIdx,
local  forceCreate
)

Add a widget to a page of pageview.

Parameters
widgetwidget to be added to pageview.
pageIdxindex of page.
forceCreateif force create and there is no page exsit, pageview would create a default page for adding widget.
virtual void checkChildInfo ( int  handleState,
Widget sender,
const Point touchPoint
)
overrideprotectedvirtual

Reimplemented from Widget.

var checkChildInfo ( var  handleState,
var  sender,
var  touchPoint
)
overrideprotectedvirtual

Reimplemented from Widget.

local checkChildInfo ( local  handleState,
local  sender,
local  touchPoint
)
overrideprotectedvirtual

Reimplemented from Widget.

virtual void
copyClonedWidgetChildren
( Widget model)
overrideprotectedvirtual

Reimplemented from Layout.

var copyClonedWidgetChildren ( var  model)
overrideprotectedvirtual

Reimplemented from Layout.

local copyClonedWidgetChildren ( local  model)
overrideprotectedvirtual

Reimplemented from Layout.

virtual void copySpecialProperties ( Widget model)
overrideprotectedvirtual

Reimplemented from Layout.

var copySpecialProperties ( var  model)
overrideprotectedvirtual

Reimplemented from Layout.

local copySpecialProperties ( local  model)
overrideprotectedvirtual

Reimplemented from Layout.

static PageView* create ( )
static

Allocates and initializes.

var create ( )
static

Allocates and initializes.

local create ( )
static

Allocates and initializes.

virtual Widget* createCloneInstance ( )
overrideprotectedvirtual

Reimplemented from Layout.

var createCloneInstance ( )
overrideprotectedvirtual

Reimplemented from Layout.

local createCloneInstance ( )
overrideprotectedvirtual

Reimplemented from Layout.

Layout* createPage ( )
protected
var createPage ( )
protected
local createPage ( )
protected
virtual void doLayout ( )
inlineoverrideprotectedvirtual

Reimplemented from Layout.

var doLayout ( )
inlineoverrideprotectedvirtual

Reimplemented from Layout.

local doLayout ( )
inlineoverrideprotectedvirtual

Reimplemented from Layout.

virtual Widget* getChildByName ( const char *  name)
inlineoverrideprotectedvirtual

Gets a child from the container with its name.

Parameters
nameAn key to find the child widget.
Returns
a Widget object whose name equals to the input parameter

Reimplemented from Widget.

var getChildByName ( var  name)
inlineoverrideprotectedvirtual

Gets a child from the container with its name.

Parameters
nameAn key to find the child widget.
Returns
a Widget object whose name equals to the input parameter

Reimplemented from Widget.

local getChildByName ( local  name)
inlineoverrideprotectedvirtual

Gets a child from the container with its name.

Parameters
nameAn key to find the child widget.
Returns
a Widget object whose name equals to the input parameter

Reimplemented from Widget.

virtual Node* getChildByTag ( int  tag)
inlineoverrideprotectedvirtual

Gets a child from the container with its tag.

Parameters
tagAn identifier to find the child node.
Returns
a Node object whose tag equals to the input parameter

Reimplemented from Node.

var getChildByTag ( var  tag)
inlineoverrideprotectedvirtual

Gets a child from the container with its tag.

Parameters
tagAn identifier to find the child node.
Returns
a Node object whose tag equals to the input parameter

Reimplemented from Node.

local getChildByTag ( local  tag)
inlineoverrideprotectedvirtual

Gets a child from the container with its tag.

Parameters
tagAn identifier to find the child node.
Returns
a Node object whose tag equals to the input parameter

Reimplemented from Node.

virtual Vector<Node*>& getChildren ( )
inlineoverrideprotectedvirtual

Returns the array of the node's children.

Returns
the array the node's children

Reimplemented from Node.

var getChildren ( )
inlineoverrideprotectedvirtual

Returns the array of the node's children.

Returns
the array the node's children

Reimplemented from Node.

local getChildren ( )
inlineoverrideprotectedvirtual

Returns the array of the node's children.

Returns
the array the node's children

Reimplemented from Node.

virtual const Vector<Node*>
& getChildren
( ) const
inlineoverrideprotectedvirtual

Reimplemented from Node.

var getChildren ( )
inlineoverrideprotectedvirtual

Reimplemented from Node.

local getChildren ( )
inlineoverrideprotectedvirtual

Reimplemented from Node.

virtual ssize_t getChildrenCount ( ) const
inlineoverrideprotectedvirtual

Returns the amount of children.

Returns
The amount of children.

Reimplemented from Node.

var getChildrenCount ( )
inlineoverrideprotectedvirtual

Returns the amount of children.

Returns
The amount of children.

Reimplemented from Node.

local getChildrenCount ( )
inlineoverrideprotectedvirtual

Returns the amount of children.

Returns
The amount of children.

Reimplemented from Node.

ssize_t getCurPageIndex ( ) const

Gets current page index.

Returns
current page index.
var getCurPageIndex ( )

Gets current page index.

Returns
current page index.
local getCurPageIndex ( )

Gets current page index.

Returns
current page index.
virtual std::string getDescription ( ) const
overridevirtual

Returns the "class name" of widget.

Reimplemented from Layout.

var getDescription ( )
overridevirtual

Returns the "class name" of widget.

Reimplemented from Layout.

local getDescription ( )
overridevirtual

Returns the "class name" of widget.

Reimplemented from Layout.

virtual LayoutType getLayoutType ( ) const
inlineoverridevirtual

Gets LayoutType.

See Also
LayoutType
Returns
LayoutType

Reimplemented from Layout.

var getLayoutType ( )
inlineoverridevirtual

Gets LayoutType.

See Also
LayoutType
Returns
LayoutType

Reimplemented from Layout.

local getLayoutType ( )
inlineoverridevirtual

Gets LayoutType.

See Also
LayoutType
Returns
LayoutType

Reimplemented from Layout.

Layout* getPage ( ssize_t  index)
var getPage ( var  index)
local getPage ( local  index)
Vector<Layout*>& getPages ( )
var getPages ( )
local getPages ( )
float getPositionXByIndex ( ssize_t  idx)
protected
var getPositionXByIndex ( var  idx)
protected
local getPositionXByIndex ( local  idx)
protected
virtual void handleMoveLogic ( const Point touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

var handleMoveLogic ( var  touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

local handleMoveLogic ( local  touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

virtual void handlePressLogic ( const Point touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

var handlePressLogic ( var  touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

local handlePressLogic ( local  touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

virtual void handleReleaseLogic ( const Point touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

var handleReleaseLogic ( var  touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

local handleReleaseLogic ( local  touchPoint)
overrideprotectedvirtual

Implements UIScrollInterface.

void insertPage ( Layout page,
int  idx
)

Inert a page to pageview.

Parameters
pagepage to be added to pageview.
var insertPage ( var  page,
var  idx
)

Inert a page to pageview.

Parameters
pagepage to be added to pageview.
local insertPage ( local  page,
local  idx
)

Inert a page to pageview.

Parameters
pagepage to be added to pageview.
virtual void interceptTouchEvent ( int  handleState,
Widget sender,
const Point touchPoint
)
overrideprotectedvirtual

Implements UIScrollInterface.

var interceptTouchEvent ( var  handleState,
var  sender,
var  touchPoint
)
overrideprotectedvirtual

Implements UIScrollInterface.

local interceptTouchEvent ( local  handleState,
local  sender,
local  touchPoint
)
overrideprotectedvirtual

Implements UIScrollInterface.

void movePages ( float  offset)
protected
var movePages ( var  offset)
protected
local movePages ( local  offset)
protected
virtual void onEnter ( )
overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Layout.

var onEnter ( )
overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Layout.

local onEnter ( )
overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Layout.

virtual void onSizeChanged ( )
overrideprotectedvirtual

Reimplemented from Layout.

var onSizeChanged ( )
overrideprotectedvirtual

Reimplemented from Layout.

local onSizeChanged ( )
overrideprotectedvirtual

Reimplemented from Layout.

virtual bool onTouchBegan ( Touch touch,
Event unusedEvent
)
overridevirtual

Reimplemented from Widget.

var onTouchBegan ( var  touch,
var  unusedEvent
)
overridevirtual

Reimplemented from Widget.

local onTouchBegan ( local  touch,
local  unusedEvent
)
overridevirtual

Reimplemented from Widget.

virtual void onTouchCancelled ( Touch touch,
Event unusedEvent
)
overridevirtual

Reimplemented from Widget.

var onTouchCancelled ( var  touch,
var  unusedEvent
)
overridevirtual

Reimplemented from Widget.

local onTouchCancelled ( local  touch,
local  unusedEvent
)
overridevirtual

Reimplemented from Widget.

virtual void onTouchEnded ( Touch touch,
Event unusedEvent
)
overridevirtual

Reimplemented from Widget.

var onTouchEnded ( var  touch,
var  unusedEvent
)
overridevirtual

Reimplemented from Widget.

local onTouchEnded ( local  touch,
local  unusedEvent
)
overridevirtual

Reimplemented from Widget.

virtual void onTouchMoved ( Touch touch,
Event unusedEvent
)
overridevirtual

Reimplemented from Widget.

var onTouchMoved ( var  touch,
var  unusedEvent
)
overridevirtual

Reimplemented from Widget.

local onTouchMoved ( local  touch,
local  unusedEvent
)
overridevirtual

Reimplemented from Widget.

void pageTurningEvent ( )
protected
var pageTurningEvent ( )
protected
local pageTurningEvent ( )
protected
virtual void removeAllChildren ( )
overrideprotectedvirtual

Removes all children from the container with a cleanup.

See Also
removeAllChildrenWithCleanup(bool)

Reimplemented from Layout.

var removeAllChildren ( )
overrideprotectedvirtual

Removes all children from the container with a cleanup.

See Also
removeAllChildrenWithCleanup(bool)

Reimplemented from Layout.

local removeAllChildren ( )
overrideprotectedvirtual

Removes all children from the container with a cleanup.

See Also
removeAllChildrenWithCleanup(bool)

Reimplemented from Layout.

virtual void
removeAllChildrenWithCleanup
( bool  cleanup)
overrideprotectedvirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters
cleanuptrue if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Layout.

var removeAllChildrenWithCleanup ( var  cleanup)
overrideprotectedvirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters
cleanuptrue if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Layout.

local removeAllChildrenWithCleanup ( local  cleanup)
overrideprotectedvirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters
cleanuptrue if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Layout.

void removeAllPages ( )
var removeAllPages ( )
local removeAllPages ( )
virtual void removeChild ( Node child,
bool  cleanup = true
)
overrideprotectedvirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters
childThe child node which will be removed.
cleanuptrue if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Layout.

var removeChild ( var  child,
var  cleanup = true
)
overrideprotectedvirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters
childThe child node which will be removed.
cleanuptrue if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Layout.

local removeChild ( local  child,
local  cleanup = true
)
overrideprotectedvirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters
childThe child node which will be removed.
cleanuptrue if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Layout.

void removePage ( Layout page)

Remove a page of pageview.

Parameters
pagepage which will be removed.
var removePage ( var  page)

Remove a page of pageview.

Parameters
pagepage which will be removed.
local removePage ( local  page)

Remove a page of pageview.

Parameters
pagepage which will be removed.
void removePageAtIndex ( ssize_t  index)

Remove a page at index of pageview.

Parameters
indexindex of page.
var removePageAtIndex ( var  index)

Remove a page at index of pageview.

Parameters
indexindex of page.
local removePageAtIndex ( local  index)

Remove a page at index of pageview.

Parameters
indexindex of page.
virtual bool scrollPages ( float  touchOffset)
protectedvirtual
var scrollPages ( var  touchOffset)
protectedvirtual
local scrollPages ( local  touchOffset)
protectedvirtual
void scrollToPage ( ssize_t  idx)

scroll pageview to index.

Parameters
idxindex of page.
var scrollToPage ( var  idx)

scroll pageview to index.

Parameters
idxindex of page.
local scrollToPage ( local  idx)

scroll pageview to index.

Parameters
idxindex of page.
virtual void setClippingEnabled ( bool  enabled)
inlineoverrideprotectedvirtual

Changes if layout can clip it's content and child.

If you really need this, please enable it. But it would reduce the rendering efficiency.

Parameters
clippingenabled.

Reimplemented from Layout.

var setClippingEnabled ( var  enabled)
inlineoverrideprotectedvirtual

Changes if layout can clip it's content and child.

If you really need this, please enable it. But it would reduce the rendering efficiency.

Parameters
clippingenabled.

Reimplemented from Layout.

local setClippingEnabled ( local  enabled)
inlineoverrideprotectedvirtual

Changes if layout can clip it's content and child.

If you really need this, please enable it. But it would reduce the rendering efficiency.

Parameters
clippingenabled.

Reimplemented from Layout.

virtual void setLayoutType ( LayoutType  type)
inlineoverridevirtual

Sets LayoutType.

See Also
LayoutType
Parameters
LayoutType

Reimplemented from Layout.

var setLayoutType ( var  type)
inlineoverridevirtual

Sets LayoutType.

See Also
LayoutType
Parameters
LayoutType

Reimplemented from Layout.

local setLayoutType ( local  type)
inlineoverridevirtual

Sets LayoutType.

See Also
LayoutType
Parameters
LayoutType

Reimplemented from Layout.

virtual void update ( float  dt)
overridevirtual

Reimplemented from Node.

var update ( var  dt)
overridevirtual

Reimplemented from Node.

local update ( local  dt)
overridevirtual

Reimplemented from Node.

void updateBoundaryPages ( )
protected
var updateBoundaryPages ( )
protected
local updateBoundaryPages ( )
protected
void updateChildrenPosition ( )
protected
var updateChildrenPosition ( )
protected
local updateChildrenPosition ( )
protected
void updateChildrenSize ( )
protected
var updateChildrenSize ( )
protected
local updateChildrenSize ( )
protected

Member Data Documentation

var __pad0__
local __pad0__
int _autoScrollDir
protected
var _autoScrollDir
protected
local _autoScrollDir
protected
float _autoScrollDistance
protected
var _autoScrollDistance
protected
local _autoScrollDistance
protected
float _autoScrollSpeed
protected
var _autoScrollSpeed
protected
local _autoScrollSpeed
protected
float _childFocusCancelOffset
protected
var _childFocusCancelOffset
protected
local _childFocusCancelOffset
protected
ssize_t _curPageIdx
protected
var _curPageIdx
protected
local _curPageIdx
protected
bool _isAutoScrolling
protected
var _isAutoScrolling
protected
local _isAutoScrolling
protected
float _leftBoundary
protected
var _leftBoundary
protected
local _leftBoundary
protected
Widget* _leftChild
protected
var _leftChild
protected
local _leftChild
protected
Point _movePagePoint
protected
var _movePagePoint
protected
local _movePagePoint
protected
Vector<Layout*> _pages
protected
var _pages
protected
local _pages
protected
Ref* _pageViewEventListener
protected
var _pageViewEventListener
protected
local _pageViewEventListener
protected
SEL_PageViewEvent
_pageViewEventSelector
protected
var _pageViewEventSelector
protected
local _pageViewEventSelector
protected
float _rightBoundary
protected
var _rightBoundary
protected
local _rightBoundary
protected
Widget* _rightChild
protected
var _rightChild
protected
local _rightChild
protected
PVTouchDir _touchMoveDir
protected
var _touchMoveDir
protected
local _touchMoveDir
protected
float _touchMoveStartLocation
protected
var _touchMoveStartLocation
protected
local _touchMoveStartLocation
protected
float _touchStartLocation
protected
var _touchStartLocation
protected
local _touchStartLocation
protected

The documentation for this class was generated from the following file:
