Calls a 'callback' with the node as the first argument N means Node. More...

#include <CCActionInstant.h>

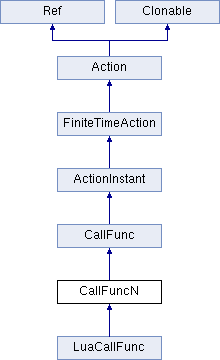

Inheritance diagram for CallFuncN:

Public Member Functions
virtual CallFuncN *	clone () const override
	returns a clone of action More...

virtual void	execute () override
	executes the callback More...

bool	initWithTarget (Ref *target, SEL_CallFuncN selector)
	initializes the action with the callback More...

Public Member Functions inherited from CallFunc
Ref *	getTargetCallback ()
void	setTargetCallback (Ref *sel)
virtual void	update (float time) override
	called once per frame. More...

virtual CallFunc *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

CC_CONSTRUCTOR_ACCESS	_callFunc (nullptr)
CC_CONSTRUCTOR_ACCESS	_function (nullptr)
virtual	~CallFunc ()
bool	initWithTarget (Ref *target)
	initializes the action with the callback typedef void (Ref::*SEL_CallFunc)(); More...

bool	initWithFunction (const std::function< void()> &func)
	initializes the action with the std::function<void()> More...

Public Member Functions inherited from ActionInstant
virtual bool	isDone () const override
	return true if the action has finished More...

local	isDone ()
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	startWithTarget (Node *target)
	called before the action start. It will also set the target. More...

virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
var	getOriginalTarget ()
local	getOriginalTarget ()
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

var	setOriginalTarget ( var originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
virtual	~Action ()
var	~Action ()
local	~Action ()
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Releases the ownership immediately. More...

Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static CallFuncN *	create (const std::function< void(Node *)> &func)
	creates the action with the callback of type std::function<void()>. More...

static CallFuncN *	create (Ref *target, SEL_CallFuncN selector)
	creates the action with the callback More...

Static Public Member Functions inherited from CallFunc
static CallFunc *	create (const std::function< void()> &func)
	creates the action with the callback of type std::function<void()>. More...

static CallFunc *	create (Ref *target, SEL_CallFunc selector)
	creates the action with the callback More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: CallFuncN():_functionN(nullptr){} virtual ~CallFuncN(){} bool initWithFunction(const std::function<void(Node*)>& func)
Public Attributes inherited from CallFunc
CC_CONSTRUCTOR_ACCESS	__pad0__: CallFunc() : _selectorTarget(nullptr)
Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS	__pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS	__pad0__: Action()

Protected Attributes
std::function< void(Node *)>	_functionN
	function that will be called with the "sender" as the 1st argument More...

Protected Attributes inherited from CallFunc
Ref *	_selectorTarget
	Target that will be called. More...

union {
SEL_CallFunc _callFunc
var _callFunc
local _callFunc
SEL_CallFuncN _callFuncN
var _callFuncN
local _callFuncN
};
std::function< void()>	_function
	function that will be called More...

Protected Attributes inherited from Action
Node *	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Detailed Description

Calls a 'callback' with the node as the first argument N means Node.

Member Function Documentation

virtual CallFuncN* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from CallFunc.

Reimplemented in LuaCallFunc.

static CallFuncN* create ( const std::function< void(Node *)> & func )

static

creates the action with the callback of type std::function<void()>.

This is the preferred way to create the callback.

static CallFuncN* create	(	Ref *	target,
		SEL_CallFuncN	selector
	)

static

creates the action with the callback

typedef void (Ref::SEL_CallFuncN)(Node);

Deprecated:: Use the std::function API instead.

virtual void execute ( )

overridevirtual

executes the callback

Reimplemented from CallFunc.

Reimplemented in LuaCallFunc.

bool initWithTarget	(	Ref *	target,
		SEL_CallFuncN	selector
	)

initializes the action with the callback

typedef void (Ref::SEL_CallFuncN)(Node);

Deprecated:: Use the std::function API instead.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

std::function<void(Node*)>
_functionN

protected

function that will be called with the "sender" as the 1st argument

The documentation for this class was generated from the following file:

/Users/guanghui/cocos2d-x-v2/cocos/2d/CCActionInstant.h
