PageView Class Reference

#include <UIPageView.h>

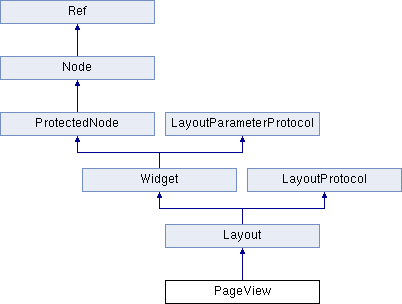

Inheritance diagram for PageView:

Public Types
enum	EventType { TURNING }
enum	TouchDirection { LEFT, RIGHT }
typedef std::function< void(Ref *, EventType)>	ccPageViewCallback
Public Types inherited from Layout
enum	Type { ABSOLUTE, VERTICAL, HORIZONTAL, RELATIVE }
enum	ClippingType { STENCIL, SCISSOR }
enum	BackGroundColorType { NONE, SOLID, GRADIENT }
Public Types inherited from Widget
enum	FocusDirection { LEFT, RIGHT, UP, DOWN }
enum	PositionType { ABSOLUTE, PERCENT }
enum	SizeType { ABSOLUTE, PERCENT }
enum	TouchEventType { BEGAN, MOVED, ENDED, CANCELED }
enum	TextureResType { LOCAL = 0, PLIST = 1 }
enum	BrightStyle { NONE = -1, NORMAL, HIGHLIGHT }
typedef std::function< void(Ref *, Widget::TouchEventType)>	ccWidgetTouchCallback
typedef std::function< void(Ref *)>	ccWidgetClickCallback
typedef std::function< void(Ref *, int)>	ccWidgetEventCallback
Public Types inherited from Node
enum	{ FLAGS_TRANSFORM_DIRTY = (1 << 0), FLAGS_CONTENT_SIZE_DIRTY = (1 << 1), FLAGS_DIRTY_MASK = (FLAGS_TRANSFORM_DIRTY | FLAGS_CONTENT_SIZE_DIRTY) }

Public Member Functions
	PageView ()
	Default constructor. More...
	PageView ()
	Default constructor. More...
	PageView ()
	Default constructor. More...
virtual	~PageView ()
	Default destructor. More...
local	~PageView ()
	Default destructor. More...
void	addWidgetToPage (Widget *widget, ssize_t pageIdx, bool forceCreate)
	Add a widget to a page of pageview. More...
var	addWidgetToPage ( var widget, var pageIdx, var forceCreate)
	Add a widget to a page of pageview. More...
local	addWidgetToPage ( local widget, local pageIdx, local forceCreate)
	Add a widget to a page of pageview. More...
void	addPage (Layout *page)
	Push back a page to pageview. More...
var	addPage ( var page)
	Push back a page to pageview. More...
local	addPage ( local page)
	Push back a page to pageview. More...
void	insertPage (Layout *page, int idx)
	Insert a page to pageview. More...
var	insertPage ( var page, var idx)
	Insert a page to pageview. More...
local	insertPage ( local page, local idx)
	Insert a page to pageview. More...
void	removePage (Layout *page)
	Remove a page of pageview. More...
var	removePage ( var page)
	Remove a page of pageview. More...
local	removePage ( local page)
	Remove a page of pageview. More...
void	removePageAtIndex (ssize_t index)
	Remove a page at index of pageview. More...
var	removePageAtIndex ( var index)
	Remove a page at index of pageview. More...
local	removePageAtIndex ( local index)
	Remove a page at index of pageview. More...
void	removeAllPages ()
var	removeAllPages ()
local	removeAllPages ()
void	scrollToPage (ssize_t idx)
	scroll pageview to index. More...
var	scrollToPage ( var idx)
	scroll pageview to index. More...
local	scrollToPage ( local idx)
	scroll pageview to index. More...
ssize_t	getCurPageIndex () const
	Gets current page index. More...
Vector< Layout * > &	getPages ()
var	getPages ()
local	getPages ()
Layout *	getPage (ssize_t index)
local	getPage ( local index)
void	addEventListenerPageView (Ref *target, SEL_PageViewEvent selector)
var	addEventListenerPageView ( var target, var selector)
local	addEventListenerPageView ( local target, local selector)
void	addEventListener (const ccPageViewCallback &callback)
var	addEventListener ( var callback)
local	addEventListener ( local callback)
virtual bool	onTouchBegan (Touch *touch, Event *unusedEvent) override
var	onTouchBegan ( var touch, var unusedEvent)
local	onTouchBegan ( local touch, local unusedEvent)
virtual void	onTouchMoved (Touch *touch, Event *unusedEvent) override
local	onTouchMoved ( local touch, local unusedEvent)
virtual void	onTouchEnded (Touch *touch, Event *unusedEvent) override
local	onTouchEnded ( local touch, local unusedEvent)
virtual void	onTouchCancelled (Touch *touch, Event *unusedEvent) override
local	onTouchCancelled ( local touch, local unusedEvent)
virtual void	update (float dt) override
var	update ( var dt)
local	update ( local dt)
virtual void	setLayoutType (Type type) override
	Sets LayoutType. More...
virtual Type	getLayoutType () const override
	Gets LayoutType. More...
var	getLayoutType ()
	Gets LayoutType. More...
local	getLayoutType ()
	Gets LayoutType. More...
virtual std::string	getDescription () const override
	Returns the "class name" of widget. More...
virtual void	onEnter () override
	Event callback that is invoked every time when Node enters the 'stage'. More...
var	onEnter ()
	Event callback that is invoked every time when Node enters the 'stage'. More...
local	onEnter ()
	Event callback that is invoked every time when Node enters the 'stage'. More...
void	setCustomScrollThreshold (float threshold)
	If you don't specify the value, the pageView will scroll when half pageview width reached. More...
var	setCustomScrollThreshold ( var threshold)
	If you don't specify the value, the pageView will scroll when half pageview width reached. More...
local	setCustomScrollThreshold ( local threshold)
	If you don't specify the value, the pageView will scroll when half pageview width reached. More...
float	getCustomScrollThreshold () const
	Return user defined scroll page threshold. More...
local	getCustomScrollThreshold ()
	Return user defined scroll page threshold. More...
void	setUsingCustomScrollThreshold (bool flag)
	Set using user defined scroll page threshold or not If you set it to false, then the default scroll threshold is pageView.width / 2. More...
var	setUsingCustomScrollThreshold ( var flag)
	Set using user defined scroll page threshold or not If you set it to false, then the default scroll threshold is pageView.width / 2. More...
local	setUsingCustomScrollThreshold ( local flag)
	Set using user defined scroll page threshold or not If you set it to false, then the default scroll threshold is pageView.width / 2. More...
bool	isUsingCustomScrollThreshold () const
	Query whether we are using user defined scroll page threshold or not. More...
Public Member Functions inherited from Layout
	Layout ()
	Default constructor. More...
virtual	~Layout ()
	Default destructor. More...
void	setBackGroundImage (const std::string &fileName, TextureResType texType=TextureResType::LOCAL)
	Sets a background image for layout. More...
void	setBackGroundImageCapInsets (const Rect &capInsets)
	Sets a background image capinsets for layout, if the background image is a scale9 render. More...
const Rect &	getBackGroundImageCapInsets () const
void	setBackGroundColorType (BackGroundColorType type)
	Sets Color Type for layout. More...
BackGroundColorType	getBackGroundColorType () const
void	setBackGroundImageScale9Enabled (bool enabled)
	Sets background iamge use scale9 renderer. More...
bool	isBackGroundImageScale9Enabled () const
void	setBackGroundColor (const Color3B &color)
	Sets background color for layout, if color type is BackGroundColorType::SOLIDE. More...
const Color3B &	getBackGroundColor () const
void	setBackGroundColor (const Color3B &startColor, const Color3B &endColor)
	Sets background color for layout, if color type is BackGroundColorType::GRADIENT. More...
const Color3B &	getBackGroundStartColor () const
const Color3B &	getBackGroundEndColor () const
void	setBackGroundColorOpacity (GLubyte opacity)
	Sets background opacity layout. More...
GLubyte	getBackGroundColorOpacity () const
void	setBackGroundColorVector (const Vec2 &vector)
	Sets background color vector for layout, if color type is BackGroundColorType::GRADIENT. More...
const Vec2 &	getBackGroundColorVector () const
void	setBackGroundImageColor (const Color3B &color)
void	setBackGroundImageOpacity (GLubyte opacity)
const Color3B &	getBackGroundImageColor () const
GLubyte	getBackGroundImageOpacity () const
void	removeBackGroundImage ()
	Remove the background image of layout. More...
const Size &	getBackGroundImageTextureSize () const
	Gets background image texture size. More...
virtual void	setClippingEnabled (bool enabled)
	Changes if layout can clip it's content and child. More...
void	setClippingType (ClippingType type)
ClippingType	getClippingType () const
virtual bool	isClippingEnabled () const
	Gets if layout is clipping enabled. More...
virtual void	addChild (Node *child) override
	Adds a child to the container with z order and tag. More...
virtual void	addChild (Node *child, int localZOrder) override
	Adds a child to the container with a local z-order. More...
virtual void	addChild (Node *child, int zOrder, int tag) override
	Adds a child to the container with z order and tag. More...
virtual void	addChild (Node *child, int zOrder, const std::string &name) override
	Adds a child to the container with z order and tag. More...
virtual void	visit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags) override
	Visits this node's children and draw them recursively. More...
virtual void	removeChild (Node *child, bool cleanup=true) override
	Removes a child from the container. More...
virtual void	removeAllChildren () override
	Removes all children from the container with a cleanup. More...
virtual void	removeAllChildrenWithCleanup (bool cleanup) override
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
void	forceDoLayout ()
	force refresh widget layout More...
void	requestDoLayout ()
	request to refresh widget layout More...
virtual void	onExit () override
	Event callback that is invoked every time the Node leaves the 'stage'. More...
void	setLoopFocus (bool loop)
	If a layout is loop focused which means that the focus movement will be inside the layout. More...
bool	isLoopFocus () const
void	setPassFocusToChild (bool pass)
bool	isPassFocusToChild () const
virtual Widget *	findNextFocusedWidget (FocusDirection direction, Widget *current) override
	When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...
Public Member Functions inherited from Widget
	Widget (void)
virtual	~Widget ()
	Default destructor. More...
virtual void	setEnabled (bool enabled)
	Sets whether the widget is enabled. More...
bool	isEnabled () const
	Determines if the widget is enabled. More...
void	setBright (bool bright)
	Sets whether the widget is bright. More...
bool	isBright () const
	Determines if the widget is bright. More...
virtual void	setTouchEnabled (bool enabled)
	Sets whether the widget is touch enabled. More...
void	setBrightStyle (BrightStyle style)
	To set the bright style of widget. More...
bool	isTouchEnabled () const
	Determines if the widget is touch enabled. More...
bool	isHighlighted () const
	Determines if the widget is highlighted. More...
void	setHighlighted (bool hilight)
	Sets whether the widget is hilighted. More...
float	getLeftInParent ()
	Gets the left boundary position of this widget in parent's coordination system. More...
float	getLeftBoundary () const
float	getBottomInParent ()
	Gets the bottom boundary position of this widget in parent's coordination system. More...
float	getBottomBoundary () const
float	getRightInParent ()
	Gets the right boundary position of this widget in parent's coordination system. More...
float	getRightBoundary () const
float	getTopInParent ()
	Gets the top boundary position of this widget in parent's coordination system. More...
float	getTopBoundary () const
void	addTouchEventListener (Ref *target, SEL_TouchEvent selector)
	Sets the touch event target/selector to the widget. More...
void	addTouchEventListener (const ccWidgetTouchCallback &callback)
void	addClickEventListener (const ccWidgetClickCallback &callback)
	Set a click event handler to the widget. More...
virtual void	addCCSEventListener (const ccWidgetEventCallback &callback)
	Set a event handler to the widget in order to use cocostudio editor and framework. More...
virtual void	setPosition (const Vec2 &pos) override
	Changes the position (x,y) of the widget in OpenGL coordinates. More...
void	setPositionPercent (const Vec2 &percent)
	Set the percent(x,y) of the widget in OpenGL coordinates. More...
const Vec2 &	getPositionPercent () const
	Gets the percent (x,y) of the widget in OpenGL coordinates. More...
void	setPositionType (PositionType type)
	Changes the position type of the widget. More...
PositionType	getPositionType () const
	Gets the position type of the widget. More...
virtual void	setFlippedX (bool flippedX)
	Sets whether the widget should be flipped horizontally or not. More...
virtual bool	isFlippedX () const
	Returns the flag which indicates whether the widget is flipped horizontally or not. More...
virtual void	setFlippedY (bool flippedY)
	Sets whether the widget should be flipped vertically or not. More...
virtual bool	isFlippedY () const
	Return the flag which indicates whether the widget is flipped vertically or not. More...
bool	isFlipX ()
void	setFlipX (bool flipX)
bool	isFlipY ()
void	setFlipY (bool flipY)
virtual void	setScaleX (float scaleX) override
	Sets the scale (x) of the node. More...
virtual void	setScaleY (float scaleY) override
	Sets the scale (y) of the node. More...
virtual void	setScale (float scale) override
	Sets the scale (x,y,z) of the node. More...
virtual void	setScale (float scalex, float scaley) override
	Sets the scale (x,y) of the node. More...
virtual float	getScaleX () const override
	Returns the scale factor on X axis of this node. More...
virtual float	getScaleY () const override
	Returns the scale factor on Y axis of this node. More...
virtual float	getScale () const override
	Gets the scale factor of the node, when X and Y have the same scale factor. More...
bool	clippingParentAreaContainPoint (const Vec2 &pt)
bool	isClippingParentContainsPoint (const Vec2 &pt)
const Vec2 &	getTouchStartPos () const
const Vec2 &	getTouchBeganPosition () const
const Vec2 &	getTouchMovePos () const
const Vec2 &	getTouchMovePosition () const
const Vec2 &	getTouchEndPos () const
const Vec2 &	getTouchEndPosition () const
virtual void	setSize (const Size &size)
	Changes the size that is widget's size. More...
virtual void	setContentSize (const Size &contentSize) override
	Sets the untransformed size of the node. More...
virtual void	setSizePercent (const Vec2 &percent)
	Changes the percent that is widget's percent size. More...
void	setSizeType (SizeType type)
	Changes the size type of widget. More...
SizeType	getSizeType () const
	Gets the size type of widget. More...
const Size &	getSize () const
	Returns size of widget. More...
const Size &	getCustomSize () const
virtual const Size &	getLayoutSize ()
const Vec2 &	getSizePercent ()
	Returns size percent of widget. More...
virtual bool	hitTest (const Vec2 &pt)
	Checks a point if is in widget's space. More...
void	setLayoutParameter (LayoutParameter *parameter)
	Sets a LayoutParameter to widget. More...
LayoutParameter *	getLayoutParameter () const override
	Gets LayoutParameter of widget. More...
LayoutParameter *	getLayoutParameter (LayoutParameter::Type type)
virtual void	ignoreContentAdaptWithSize (bool ignore)
	Note: when you set _ignoreSize to true, no matther you call setContentSize or not, the widget size is always equal to the return value of the member function getVirtualRendererSize. More...
bool	isIgnoreContentAdaptWithSize () const
	Query whether the widget ignores user deinfed content size or not. More...
Vec2	getWorldPosition () const
	Gets world position of widget. More...
virtual Node *	getVirtualRenderer ()
	Gets the Virtual Renderer of widget. More...
virtual Size	getVirtualRendererSize () const
Widget *	clone ()
void	updateSizeAndPosition ()
void	updateSizeAndPosition (const Size &parentSize)
void	setActionTag (int tag)
int	getActionTag () const
void	setPropagateTouchEvents (bool isPropagate)
	Allow widget touch events to propagate to its parents. More...
bool	isPropagateTouchEvents () const
	Return whether the widget is propagate touch events to its parents or not. More...
void	setSwallowTouches (bool swallow)
	Specify widget to swallow touches or not. More...
bool	isSwallowTouches () const
	Return whether the widget is swallowing touch or not. More...
bool	isFocused () const
void	setFocused (bool focus)
bool	isFocusEnabled () const
void	setFocusEnabled (bool enable)
virtual Widget *	findNextFocusedWidget (FocusDirection direction, Widget *current)
	When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...
void	requestFocus ()
	when a widget calls this method, it will get focus immediately. More...
Widget *	getCurrentFocusedWidget (bool isWidget)
	no matter what widget object you call this method on , it will return you the exact one focused widget More...
Widget *	getCurrentFocusedWidget () const
void	setUnifySizeEnabled (bool enable)
bool	isUnifySizeEnabled () const
void	setCallbackName (const std::string &callbackName)
	callbackName getter and setter. More...
const std::string &	getCallbackName () const
void	setCallbackType (const std::string &callbackType)
	callbackType getter and setter. More...
const std::string &	getCallbackType () const
void	propagateTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
	Propagate touch events to its parents. More...
void	onFocusChange (Widget *widgetLostFocus, Widget *widgetGetFocus)
	This method is called when a focus change event happens. More...
void	dispatchFocusEvent (Widget *widgetLoseFocus, Widget *widgetGetFocus)
	Dispatch a EventFocus through a EventDispatcher. More...
Public Member Functions inherited from ProtectedNode
virtual void	cleanup () override
	Stops all running actions and schedulers. More...
var	cleanup ()
	Stops all running actions and schedulers. More...
local	cleanup ()
	Stops all running actions and schedulers. More...
virtual void	onEnterTransitionDidFinish () override
	Event callback that is invoked when the Node enters in the 'stage'. More...
virtual void	onExitTransitionDidStart () override
	Event callback that is called every time the Node leaves the 'stage'. More...
virtual void	updateDisplayedOpacity (GLubyte parentOpacity) override
var	updateDisplayedOpacity ( var parentOpacity)
local	updateDisplayedOpacity ( local parentOpacity)
virtual void	updateDisplayedColor (const Color3B &parentColor) override
var	updateDisplayedColor ( var parentColor)
local	updateDisplayedColor ( local parentColor)
virtual void	disableCascadeColor () override
var	disableCascadeColor ()
local	disableCascadeColor ()
virtual void	disableCascadeOpacity () override
local	disableCascadeOpacity ()
virtual	~ProtectedNode ()
local	~ProtectedNode ()
virtual void	addProtectedChild (Node *child)
	Adds a child to the container with z-order as 0. More...
local	addProtectedChild ( local child)
	Adds a child to the container with z-order as 0. More...
virtual void	addProtectedChild (Node *child, int localZOrder)
	Adds a child to the container with a local z-order. More...
local	addProtectedChild ( local child, local localZOrder)
	Adds a child to the container with a local z-order. More...
virtual void	addProtectedChild (Node *child, int localZOrder, int tag)
	Adds a child to the container with z order and tag. More...
local	addProtectedChild ( local child, local localZOrder, local tag)
	Adds a child to the container with z order and tag. More...
virtual Node *	getProtectedChildByTag (int tag)
	Gets a child from the container with its tag. More...
var	getProtectedChildByTag ( var tag)
	Gets a child from the container with its tag. More...
local	getProtectedChildByTag ( local tag)
	Gets a child from the container with its tag. More...
virtual void	removeProtectedChild (Node *child, bool cleanup=true)
	Removes a child from the container. More...
local	removeProtectedChild ( local child, local true)
	Removes a child from the container. More...
virtual void	removeProtectedChildByTag (int tag, bool cleanup=true)
	Removes a child from the container by tag value. More...
var	removeProtectedChildByTag ( var tag, var true)
	Removes a child from the container by tag value. More...
local	removeProtectedChildByTag ( local tag, local true)
	Removes a child from the container by tag value. More...
virtual void	removeAllProtectedChildren ()
	Removes all children from the container with a cleanup. More...
var	removeAllProtectedChildren ()
	Removes all children from the container with a cleanup. More...
local	removeAllProtectedChildren ()
	Removes all children from the container with a cleanup. More...
virtual void	removeAllProtectedChildrenWithCleanup (bool cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
var	removeAllChildren ( var cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
local	removeAllChildren ( local cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
virtual void	reorderProtectedChild (Node *child, int localZOrder)
	Reorders a child according to a new z value. More...
var	reorderProtectedChild ( var child, var localZOrder)
	Reorders a child according to a new z value. More...
local	reorderProtectedChild ( local child, local localZOrder)
	Reorders a child according to a new z value. More...
virtual void	sortAllProtectedChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...
Public Member Functions inherited from Node
virtual bool	isRunning () const
	Returns whether or not the node is "running". More...
var	isRunning ()
	Returns whether or not the node is "running". More...
local	isRunning ()
	Returns whether or not the node is "running". More...
void	scheduleUpdateWithPriorityLua (int handler, int priority)
	Schedules for lua script. More...
virtual void	draw (Renderer *renderer, const Mat4 &transform, uint32_t flags)
	Override this method to draw your own node. More...
var	draw ( var renderer, var transform, var flags)
	Override this method to draw your own node. More...
local	draw ( local renderer, local transform, local flags)
	Override this method to draw your own node. More...
virtual void	draw () final
var	draw ()
local	draw ()
virtual void	visit () final
virtual Scene *	getScene () const
	Returns the Scene that contains the Node. More...
local	getScene ()
	Returns the Scene that contains the Node. More...
virtual Rect	getBoundingBox () const
	Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...
virtual Rect	boundingBox () const
local	boundingBox ()
virtual void	setEventDispatcher (EventDispatcher *dispatcher)
var	setEventDispatcher ( var dispatcher)
local	setEventDispatcher ( local dispatcher)
virtual EventDispatcher *	getEventDispatcher () const
local	getEventDispatcher ()
void	setPhysicsBody (PhysicsBody *body)
	set the PhysicsBody that let the sprite effect with physics More...
var	setPhysicsBody ( var body)
	set the PhysicsBody that let the sprite effect with physics More...
local	setPhysicsBody ( local body)
	set the PhysicsBody that let the sprite effect with physics More...
PhysicsBody *	getPhysicsBody () const
	get the PhysicsBody the sprite have More...
var	getPhysicsBody ()
	get the PhysicsBody the sprite have More...
local	getPhysicsBody ()
	get the PhysicsBody the sprite have More...
void	removeFromPhysicsWorld ()
	remove this node from physics world. More...
virtual GLubyte	getOpacity () const
var	getOpacity ()
local	getOpacity ()
virtual GLubyte	getDisplayedOpacity () const
local	getDisplayedOpacity ()
virtual void	setOpacity (GLubyte opacity)
local	setOpacity ( local opacity)
virtual bool	isCascadeOpacityEnabled () const
var	isCascadeOpacityEnabled ()
local	isCascadeOpacityEnabled ()
virtual void	setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
local	setCascadeOpacityEnabled ( local cascadeOpacityEnabled)
virtual const Color3B &	getColor () const
local	getColor ()
virtual const Color3B &	getDisplayedColor () const
local	getDisplayedColor ()
virtual void	setColor (const Color3B &color)
var	setColor ( var color)
local	setColor ( local color)
virtual bool	isCascadeColorEnabled () const
var	isCascadeColorEnabled ()
local	isCascadeColorEnabled ()
virtual void	setCascadeColorEnabled (bool cascadeColorEnabled)
virtual void	setOpacityModifyRGB (bool value)
var	setOpacityModifyRGB ( var value)
local	setOpacityModifyRGB ( local value)
virtual bool	isOpacityModifyRGB () const
var	isOpacityModifyRGB ()
local	isOpacityModifyRGB ()
void	setOnEnterCallback (const std::function< void()> &callback)
var	setOnEnterCallback ( var callback)
local	setOnEnterCallback ( local callback)
const std::function< void()> &	getOnEnterCallback () const
local	getOnEnterCallback ()
void	setOnExitCallback (const std::function< void()> &callback)
var	setOnExitCallback ( var callback)
local	setOnExitCallback ( local callback)
const std::function< void()> &	getOnExitCallback () const
local	getOnExitCallback ()
void	setonEnterTransitionDidFinishCallback (const std::function< void()> &callback)
var	setonEnterTransitionDidFinishCallback ( var callback)
local	setonEnterTransitionDidFinishCallback ( local callback)
const std::function< void()> &	getonEnterTransitionDidFinishCallback () const
local	getonEnterTransitionDidFinishCallback ()
void	setonExitTransitionDidStartCallback (const std::function< void()> &callback)
var	setonExitTransitionDidStartCallback ( var callback)
local	setonExitTransitionDidStartCallback ( local callback)
const std::function< void()> &	getonExitTransitionDidStartCallback () const
local	getonExitTransitionDidStartCallback ()
unsigned short	getCameraMask () const
	get & set camera mask, the node is visible by the camera whose camera flag & node's camera mask is true More...
void	setCameraMask (unsigned short mask, bool applyChildren=true)
var	setCameraMask ( var mask, var true)
local	setCameraMask ( local mask, local true)
virtual	~Node ()
virtual bool	init ()
local	init ()
virtual void	setLocalZOrder (int localZOrder)
	LocalZOrder is the 'key' used to sort the node relative to its siblings. More...
local	setLocalZOrder ( local localZOrder)
	LocalZOrder is the 'key' used to sort the node relative to its siblings. More...
virtual void	setZOrder (int localZOrder)
virtual void	_setLocalZOrder (int z)
local	_setLocalZOrder ( local z)
virtual int	getLocalZOrder () const
	Gets the local Z order of this node. More...
var	getLocalZOrder ()
	Gets the local Z order of this node. More...
local	getLocalZOrder ()
	Gets the local Z order of this node. More...
virtual int	getZOrder () const
var	getZOrder ()
local	getZOrder ()
virtual void	setGlobalZOrder (float globalZOrder)
	Defines the oder in which the nodes are renderer. More...
local	setGlobalZOrder ( local globalZOrder)
	Defines the oder in which the nodes are renderer. More...
virtual float	getGlobalZOrder () const
	Returns the Node's Global Z Order. More...
var	getGlobalZOrder ()
	Returns the Node's Global Z Order. More...
local	getGlobalZOrder ()
	Returns the Node's Global Z Order. More...
virtual void	setScaleZ (float scaleZ)
	Changes the scale factor on Z axis of this node. More...
local	setScaleZ ( local scaleZ)
	Changes the scale factor on Z axis of this node. More...
virtual float	getScaleZ () const
	Returns the scale factor on Z axis of this node. More...
virtual void	setNormalizedPosition (const Vec2 &position)
	Sets the position (x,y) using values between 0 and 1. More...
local	setNormalizedPosition ( local position)
	Sets the position (x,y) using values between 0 and 1. More...
virtual const Vec2 &	getPosition () const
	Gets the position (x,y) of the node in its parent's coordinate system. More...
virtual const Vec2 &	getNormalizedPosition () const
	returns the normalized position More...
local	getNormalizedPosition ()
	returns the normalized position More...
virtual void	setPosition (float x, float y)
	Sets the position (x,y) of the node in its parent's coordinate system. More...
local	setPosition ( local x, local y)
	Sets the position (x,y) of the node in its parent's coordinate system. More...
virtual void	getPosition (float *x, float *y) const
	Gets position in a more efficient way, returns two number instead of a Vec2 object. More...
virtual void	setPositionX (float x)
	Gets/Sets x or y coordinate individually for position. More...
virtual float	getPositionX (void) const
var	getPositionX ()
local	getPositionX ()
virtual void	setPositionY (float y)
local	setPositionY ( local y)
virtual float	getPositionY (void) const
local	getPositionY ()
virtual void	setPosition3D (const Vec3 &position)
	Sets the position (X, Y, and Z) in its parent's coordinate system. More...
local	setPosition3D ( local position)
	Sets the position (X, Y, and Z) in its parent's coordinate system. More...
virtual Vec3	getPosition3D () const
	returns the position (X,Y,Z) in its parent's coordinate system More...
virtual void	setPositionZ (float positionZ)
	Sets the 'z' coordinate in the position. More...
local	setPositionZ ( local positionZ)
	Sets the 'z' coordinate in the position. More...
virtual void	setVertexZ (float vertexZ)
var	setVertexZ ( var vertexZ)
local	setVertexZ ( local vertexZ)
virtual float	getPositionZ () const
	Gets position Z coordinate of this node. More...
virtual float	getVertexZ () const
virtual void	setSkewX (float skewX)
	Changes the X skew angle of the node in degrees. More...
local	setSkewX ( local skewX)
	Changes the X skew angle of the node in degrees. More...
virtual float	getSkewX () const
	Returns the X skew angle of the node in degrees. More...
virtual void	setSkewY (float skewY)
	Changes the Y skew angle of the node in degrees. More...
var	setSkewY ( var skewY)
	Changes the Y skew angle of the node in degrees. More...
local	setSkewY ( local skewY)
	Changes the Y skew angle of the node in degrees. More...
virtual float	getSkewY () const
	Returns the Y skew angle of the node in degrees. More...
virtual void	setAnchorPoint (const Vec2 &anchorPoint)
	Sets the anchor point in percent. More...
local	setAnchorPoint ( local anchorPoint)
	Sets the anchor point in percent. More...
virtual const Vec2 &	getAnchorPoint () const
	Returns the anchor point in percent. More...
virtual const Vec2 &	getAnchorPointInPoints () const
	Returns the anchorPoint in absolute pixels. More...
virtual const Size &	getContentSize () const
	Returns the untransformed size of the node. More...
local	getContentSize ()
	Returns the untransformed size of the node. More...
virtual void	setVisible (bool visible)
	Sets whether the node is visible. More...
local	setVisible ( local visible)
	Sets whether the node is visible. More...
virtual bool	isVisible () const
	Determines if the node is visible. More...
virtual void	setRotation (float rotation)
	Sets the rotation (angle) of the node in degrees. More...
var	setRotation ( var rotation)
	Sets the rotation (angle) of the node in degrees. More...
local	setRotation ( local rotation)
	Sets the rotation (angle) of the node in degrees. More...
virtual float	getRotation () const
	Returns the rotation of the node in degrees. More...
virtual void	setRotation3D (const Vec3 &rotation)
	Sets the rotation (X,Y,Z) in degrees. More...
local	setRotation3D ( local rotation)
	Sets the rotation (X,Y,Z) in degrees. More...
virtual Vec3	getRotation3D () const
	returns the rotation (X,Y,Z) in degrees. More...
virtual void	setRotationSkewX (float rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...
virtual void	setRotationX (float rotationX)
virtual float	getRotationSkewX () const
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
var	getRotationSkewX ()
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
local	getRotationSkewX ()
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
virtual float	getRotationX () const
virtual void	setRotationSkewY (float rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
local	setRotationSkewY ( local rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
virtual void	setRotationY (float rotationY)
virtual float	getRotationSkewY () const
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
local	getRotationSkewY ()
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
virtual float	getRotationY () const
void	setOrderOfArrival (int orderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...
int	getOrderOfArrival () const
	Returns the arrival order, indicates which children is added previously. More...
void	setGLServerState (int serverState)
int	getGLServerState () const
virtual void	ignoreAnchorPointForPosition (bool ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...
local	ignoreAnchorPointForPosition ( local ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...
virtual bool	isIgnoreAnchorPointForPosition () const
	Gets whether the anchor point will be (0,0) when you position this node. More...
virtual Node *	getChildByTag (int tag) const
	Gets a child from the container with its tag. More...
var	getChildByTag ( var tag)
	Gets a child from the container with its tag. More...
local	getChildByTag ( local tag)
	Gets a child from the container with its tag. More...
virtual Node *	getChildByName (const std::string &name) const
	Gets a child from the container with its name. More...
var	getChildByName ( var name)
	Gets a child from the container with its name. More...
local	getChildByName ( local name)
	Gets a child from the container with its name. More...
template<typename T >
T	getChildByName (const std::string &name) const
	Gets a child from the container with its name that can be cast to Type T. More...
virtual void	enumerateChildren (const std::string &name, std::function< bool(Node *node)> callback) const
	Search the children of the receiving node to perform processing for nodes which share a name. More...
virtual Vector< Node * > &	getChildren ()
	Returns the array of the node's children. More...
local	getChildren ()
	Returns the array of the node's children. More...
virtual const Vector< Node * > &	getChildren () const
local	getChildren ()
virtual ssize_t	getChildrenCount () const
	Returns the amount of children. More...
virtual void	setParent (Node *parent)
	Sets the parent node. More...
local	setParent ( local parent)
	Sets the parent node. More...
virtual Node *	getParent ()
	Returns a pointer to the parent node. More...
virtual const Node *	getParent () const
local	getParent ()
virtual void	removeFromParent ()
	Removes this node itself from its parent node with a cleanup. More...
virtual void	removeFromParentAndCleanup (bool cleanup)
	Removes this node itself from its parent node. More...
local	removeFromParent ( local cleanup)
	Removes this node itself from its parent node. More...
virtual void	removeChildByTag (int tag, bool cleanup=true)
	Removes a child from the container by tag value. More...
local	removeChildByTag ( local tag, local true)
	Removes a child from the container by tag value. More...
virtual void	removeChildByName (const std::string &name, bool cleanup=true)
	Removes a child from the container by tag value. More...
var	removeChildByName ( var name, var true)
	Removes a child from the container by tag value. More...
local	removeChildByName ( local name, local true)
	Removes a child from the container by tag value. More...
virtual void	reorderChild (Node *child, int localZOrder)
	Reorders a child according to a new z value. More...
var	reorderChild ( var child, var localZOrder)
	Reorders a child according to a new z value. More...
local	reorderChild ( local child, local localZOrder)
	Reorders a child according to a new z value. More...
virtual void	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...
virtual int	getTag () const
	Returns a tag that is used to identify the node easily. More...
local	getTag ()
	Returns a tag that is used to identify the node easily. More...
virtual void	setTag (int tag)
	Changes the tag that is used to identify the node easily. More...
local	setTag ( local tag)
	Changes the tag that is used to identify the node easily. More...
virtual std::string	getName () const
	Returns a string that is used to identify the node. More...
local	getName ()
	Returns a string that is used to identify the node. More...
virtual void	setName (const std::string &name)
	Changes the name that is used to identify the node easily. More...
local	setName ( local name)
	Changes the name that is used to identify the node easily. More...
virtual void *	getUserData ()
	Returns a custom user data pointer. More...
virtual const void *	getUserData () const
virtual void	setUserData (void *userData)
	Sets a custom user data pointer. More...
virtual Ref *	getUserObject ()
	Returns a user assigned Object. More...
virtual const Ref *	getUserObject () const
virtual void	setUserObject (Ref *userObject)
	Returns a user assigned Object. More...
local	setUserObject ( local userObject)
	Returns a user assigned Object. More...
GLProgram *	getGLProgram () const
	Return the GLProgram (shader) currently used for this node. More...
var	getGLProgram ()
	Return the GLProgram (shader) currently used for this node. More...
local	getGLProgram ()
	Return the GLProgram (shader) currently used for this node. More...
GLProgram *	getShaderProgram () const
var	getShaderProgram ()
local	getShaderProgram ()
GLProgramState *	getGLProgramState () const
var	getGLProgramState ()
local	getGLProgramState ()
virtual void	setGLProgramState (GLProgramState *glProgramState)
virtual void	setGLProgram (GLProgram *glprogram)
	Sets the shader program for this node. More...
var	setGLProgram ( var glprogram)
	Sets the shader program for this node. More...
local	setGLProgram ( local glprogram)
	Sets the shader program for this node. More...
void	setShaderProgram (GLProgram *glprogram)
var	setShaderProgram ( var glprogram)
local	setShaderProgram ( local glprogram)
virtual void	setActionManager (ActionManager *actionManager)
	Sets the ActionManager object that is used by all actions. More...
local	setActionManager ( local actionManager)
	Sets the ActionManager object that is used by all actions. More...
virtual ActionManager *	getActionManager ()
	Gets the ActionManager object that is used by all actions. More...
local	getActionManager ()
	Gets the ActionManager object that is used by all actions. More...
virtual const ActionManager *	getActionManager () const
local	getActionManager ()
Action *	runAction (Action *action)
	Executes an action, and returns the action that is executed. More...
void	stopAllActions ()
	Stops and removes all actions from the running action list . More...
var	stopAllActions ()
	Stops and removes all actions from the running action list . More...
local	stopAllActions ()
	Stops and removes all actions from the running action list . More...
void	stopAction (Action *action)
	Stops and removes an action from the running action list. More...
var	stopAction ( var action)
	Stops and removes an action from the running action list. More...
local	stopAction ( local action)
	Stops and removes an action from the running action list. More...
void	stopActionByTag (int tag)
	Removes an action from the running action list by its tag. More...
void	stopAllActionsByTag (int tag)
	Removes all actions from the running action list by its tag. More...
var	stopAllActionsByTag ( var tag)
	Removes all actions from the running action list by its tag. More...
local	stopAllActionsByTag ( local tag)
	Removes all actions from the running action list by its tag. More...
Action *	getActionByTag (int tag)
	Gets an action from the running action list by its tag. More...
ssize_t	getNumberOfRunningActions () const
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...
local	getNumberOfRunningActions ()
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...
ssize_t	numberOfRunningActions () const
var	numberOfRunningActions ()
local	numberOfRunningActions ()
virtual void	setScheduler (Scheduler *scheduler)
	Sets a Scheduler object that is used to schedule all "updates" and timers. More...
virtual Scheduler *	getScheduler ()
	Gets a Sheduler object. More...
local	getScheduler ()
	Gets a Sheduler object. More...
virtual const Scheduler *	getScheduler () const
local	getScheduler ()
bool	isScheduled (SEL_SCHEDULE selector)
	Checks whether a selector is scheduled. More...
bool	isScheduled (const std::string &key)
	Checks whether a lambda function is scheduled. More...
void	scheduleUpdate (void)
	Schedules the "update" method. More...
void	scheduleUpdateWithPriority (int priority)
	Schedules the "update" method with a custom priority. More...
void	unscheduleUpdate (void)
var	unscheduleUpdate ()
local	unscheduleUpdate ()
void	schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
	Schedules a custom selector. More...
void	schedule (SEL_SCHEDULE selector, float interval)
	Schedules a custom selector with an interval time in seconds. More...
void	scheduleOnce (SEL_SCHEDULE selector, float delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...
void	scheduleOnce (const std::function< void(float)> &callback, float delay, const std::string &key)
	Schedules a lambda function that runs only once, with a delay of 0 or larger. More...
void	schedule (SEL_SCHEDULE selector)
	Schedules a custom selector, the scheduled selector will be ticked every frame. More...
void	schedule (const std::function< void(float)> &callback, const std::string &key)
	Schedules a lambda function. More...
var	schedule ( var callback, var key)
	Schedules a lambda function. More...
void	schedule (const std::function< void(float)> &callback, float interval, const std::string &key)
	Schedules a lambda function. More...
void	schedule (const std::function< void(float)> &callback, float interval, unsigned int repeat, float delay, const std::string &key)
	Schedules a lambda function. More...
void	unschedule (SEL_SCHEDULE selector)
	Unschedules a custom selector. More...
void	unschedule (const std::string &key)
	Unschedules a lambda function. More...
void	unscheduleAllCallbacks ()
	Unschedule all scheduled selectors and lambda functions: custom selectors, and the 'update' selector and lambda functions Actions are not affected by this method. More...
void	unscheduleAllSelectors ()
var	unscheduleAllSelectors ()
local	unscheduleAllSelectors ()
virtual void	resume (void)
	Resumes all scheduled selectors, actions and event listeners. More...
var	resume ()
	Resumes all scheduled selectors, actions and event listeners. More...
local	resume ()
	Resumes all scheduled selectors, actions and event listeners. More...
virtual void	pause (void)
	Pauses all scheduled selectors, actions and event listeners. More...
var	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...
local	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...
void	resumeSchedulerAndActions ()
	Resumes all scheduled selectors, actions and event listeners. More...
void	pauseSchedulerAndActions ()
	Pauses all scheduled selectors, actions and event listeners. More...
virtual void	updateTransform ()
	Calls children's updateTransform() method recursively. More...
var	updateTransform ()
	Calls children's updateTransform() method recursively. More...
local	updateTransform ()
	Calls children's updateTransform() method recursively. More...
virtual const Mat4 &	getNodeToParentTransform () const
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...
local	getNodeToParentTransform ()
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...
virtual AffineTransform	getNodeToParentAffineTransform () const
local	getNodeToParentAffineTransform ()
virtual void	setNodeToParentTransform (const Mat4 &transform)
	Sets the Transformation matrix manually. More...
local	setNodeToParentTransform ( local transform)
	Sets the Transformation matrix manually. More...
virtual AffineTransform	nodeToParentTransform () const
local	nodeToParentTransform ()
virtual const Mat4 &	getParentToNodeTransform () const
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...
virtual AffineTransform	getParentToNodeAffineTransform () const
local	getParentToNodeAffineTransform ()
virtual AffineTransform	parentToNodeTransform () const
local	parentToNodeTransform ()
virtual Mat4	getNodeToWorldTransform () const
	Returns the world affine transform matrix. More...
var	getNodeToWorldTransform ()
	Returns the world affine transform matrix. More...
local	getNodeToWorldTransform ()
	Returns the world affine transform matrix. More...
virtual AffineTransform	getNodeToWorldAffineTransform () const
local	getNodeToWorldAffineTransform ()
virtual AffineTransform	nodeToWorldTransform () const
local	nodeToWorldTransform ()
virtual Mat4	getWorldToNodeTransform () const
	Returns the inverse world affine transform matrix. More...
var	getWorldToNodeTransform ()
	Returns the inverse world affine transform matrix. More...
local	getWorldToNodeTransform ()
	Returns the inverse world affine transform matrix. More...
virtual AffineTransform	getWorldToNodeAffineTransform () const
local	getWorldToNodeAffineTransform ()
virtual AffineTransform	worldToNodeTransform () const
local	worldToNodeTransform ()
Vec2	convertToNodeSpace (const Vec2 &worldPoint) const
	Converts a Vec2 to node (local) space coordinates. More...
var	convertToNodeSpace ( var worldPoint)
	Converts a Vec2 to node (local) space coordinates. More...
local	convertToNodeSpace ( local worldPoint)
	Converts a Vec2 to node (local) space coordinates. More...
Vec2	convertToWorldSpace (const Vec2 &nodePoint) const
	Converts a Vec2 to world space coordinates. More...
var	convertToWorldSpace ( var nodePoint)
	Converts a Vec2 to world space coordinates. More...
local	convertToWorldSpace ( local nodePoint)
	Converts a Vec2 to world space coordinates. More...
Vec2	convertToNodeSpaceAR (const Vec2 &worldPoint) const
	Converts a Vec2 to node (local) space coordinates. More...
Vec2	convertToWorldSpaceAR (const Vec2 &nodePoint) const
	Converts a local Vec2 to world space coordinates.The result is in Points. More...
Vec2	convertTouchToNodeSpace (Touch *touch) const
	convenience methods which take a Touch instead of Vec2 More...
Vec2	convertTouchToNodeSpaceAR (Touch *touch) const
	converts a Touch (world coordinates) into a local coordinate. More...
var	convertTouchToNodeSpaceAR ( var touch)
	converts a Touch (world coordinates) into a local coordinate. More...
local	convertTouchToNodeSpaceAR ( local touch)
	converts a Touch (world coordinates) into a local coordinate. More...
void	setAdditionalTransform (Mat4 *additionalTransform)
	Sets an additional transform matrix to the node. More...
var	setAdditionalTransform ( var additionalTransform)
	Sets an additional transform matrix to the node. More...
local	setAdditionalTransform ( local additionalTransform)
	Sets an additional transform matrix to the node. More...
void	setAdditionalTransform (const AffineTransform &additionalTransform)
var	setAdditionalTransform ( var additionalTransform)
local	setAdditionalTransform ( local additionalTransform)
Component *	getComponent (const std::string &name)
	gets a component by its name More...
local	getComponent ( local name)
	gets a component by its name More...
virtual bool	addComponent (Component *component)
	adds a component More...
local	addComponent ( local component)
	adds a component More...
virtual bool	removeComponent (const std::string &name)
	removes a component by its name More...
local	removeComponent ( local name)
	removes a component by its name More...
virtual bool	removeComponent (Component *component)
	removes a component by its pointer More...
var	removeComponent ( var component)
	removes a component by its pointer More...
local	removeComponent ( local component)
	removes a component by its pointer More...
virtual void	removeAllComponents ()
	removes all components More...
var	removeAllComponents ()
	removes all components More...
local	removeAllComponents ()
	removes all components More...
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...
void	release ()
	Releases the ownership immediately. More...
Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...
unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...
virtual	~Ref ()
Public Member Functions inherited from LayoutParameterProtocol
virtual	~LayoutParameterProtocol ()
Public Member Functions inherited from LayoutProtocol
	LayoutProtocol ()
virtual	~LayoutProtocol ()
var	~LayoutProtocol ()
local	~LayoutProtocol ()

Static Public Member Functions
static PageView *	create ()
	Allocates and initializes. More...
local	create ()
	Allocates and initializes. More...
Static Public Member Functions inherited from Layout
static Layout *	create ()
	Allocates and initializes a layout. More...
Static Public Member Functions inherited from Widget
static Widget *	create ()
	Allocates and initializes a widget. More...
static void	enableDpadNavigation (bool enable)
Static Public Member Functions inherited from ProtectedNode
static ProtectedNode *	create (void)
Static Public Member Functions inherited from Node
static Node *	create ()
	Allocates and initializes a node. More...

Public Attributes
CC_CONSTRUCTOR_ACCESS	__pad0__: virtual bool init() override
Public Attributes inherited from Layout
std::function< int(FocusDirection, Widget *)>	onPassFocusToChild
	To specify a user-defined functor to decide which child widget of the layout should get focused. More...
CC_CONSTRUCTOR_ACCESS	__pad0__: virtual bool init() override
Public Attributes inherited from Widget
std::function< void(Widget *, Widget *)>	onFocusChanged
	When a widget lose/get focus, this method will be called. More...
std::function< Widget *(FocusDirection)>	onNextFocusedWidget
	use this function to manually specify the next focused widget regards to each direction More...
CC_CONSTRUCTOR_ACCESS	__pad0__: virtual bool init() override
Public Attributes inherited from ProtectedNode
CC_CONSTRUCTOR_ACCESS	__pad0__: ProtectedNode()
Public Attributes inherited from Node
CC_CONSTRUCTOR_ACCESS	__pad0__: Node()

Protected Types
enum	AutoScrollDirection { LEFT, RIGHT }

Protected Member Functions
Layout *	createPage ()
float	getPositionXByIndex (ssize_t idx) const
var	getPositionXByIndex ( var idx)
local	getPositionXByIndex ( local idx)
ssize_t	getPageCount () const
void	updateBoundaryPages ()
var	updateBoundaryPages ()
local	updateBoundaryPages ()
virtual bool	scrollPages (float touchOffset)
var	scrollPages ( var touchOffset)
local	scrollPages ( local touchOffset)
void	movePages (float offset)
void	pageTurningEvent ()
void	updateAllPagesSize ()
var	updateAllPagesSize ()
local	updateAllPagesSize ()
void	updateAllPagesPosition ()
var	updateAllPagesPosition ()
local	updateAllPagesPosition ()
void	autoScroll (float dt)
var	autoScroll ( var dt)
local	autoScroll ( local dt)
virtual void	handleMoveLogic (Touch *touch)
local	handleMoveLogic ( local touch)
virtual void	handleReleaseLogic (Touch *touch)
local	handleReleaseLogic ( local touch)
virtual void	interceptTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
virtual void	onSizeChanged () override
var	onSizeChanged ()
local	onSizeChanged ()
virtual Widget *	createCloneInstance () override
local	createCloneInstance ()
virtual void	copySpecialProperties (Widget *model) override
local	copySpecialProperties ( local model)
virtual void	copyClonedWidgetChildren (Widget *model) override
var	copyClonedWidgetChildren ( var model)
local	copyClonedWidgetChildren ( local model)
virtual void	doLayout () override
var	doLayout ()
local	doLayout ()
Protected Member Functions inherited from Layout
void	addBackGroundImage ()
void	supplyTheLayoutParameterLackToChild (Widget *child)
void	stencilClippingVisit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags)
void	scissorClippingVisit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags)
void	setStencilClippingSize (const Size &size)
const Rect &	getClippingRect ()
virtual LayoutManager *	createLayoutManager () override
virtual Size	getLayoutContentSize () const override
virtual const Vector< Node * > &	getLayoutElements () const override
void	onBeforeVisitStencil ()
void	onAfterDrawStencil ()
void	onAfterVisitStencil ()
void	drawFullScreenQuadClearStencil ()
	draw fullscreen quad to clear stencil bits More...
void	onBeforeVisitScissor ()
void	onAfterVisitScissor ()
void	updateBackGroundImageColor ()
void	updateBackGroundImageOpacity ()
void	updateBackGroundImageRGBA ()
Size	getLayoutAccumulatedSize () const
	get the content size of the layout, it will accumulate all its children's content size More...
int	findNearestChildWidgetIndex (FocusDirection direction, Widget *baseWidget)
	When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...
int	findFarthestChildWidgetIndex (FocusDirection direction, Widget *baseWidget)
	When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...
float	calculateNearestDistance (Widget *baseWidget)
	caculate the nearest distance between the baseWidget and the children of the layout More...
float	calculateFarthestDistance (Widget *baseWidget)
	caculate the farthest distance between the baseWidget and the children of the layout More...
void	findProperSearchingFunctor (FocusDirection dir, Widget *baseWidget)
	when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not More...
Widget *	findFirstNonLayoutWidget ()
	find the first non-layout widget in this layout More...
int	findFirstFocusEnabledWidgetIndex ()
	find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget More...
Widget *	findFocusEnabledChildWidgetByIndex (ssize_t index)
	find a focus enabled child Widget in the layout by index More...
Vec2	getWorldCenterPoint (Widget *node) const
	get the center point of a widget in world space More...
Widget *	getNextFocusedWidget (FocusDirection direction, Widget *current)
	this method is called internally by nextFocusedWidget. More...
Widget *	getPreviousFocusedWidget (FocusDirection direction, Widget *current)
	this method is called internally by nextFocusedWidget. More...
Widget *	getChildWidgetByIndex (ssize_t index) const
	find the nth elment in the _children array. More...
bool	isLastWidgetInContainer (Widget *widget, FocusDirection direction) const
	whether it is the last element according to all their parents More...
bool	isWidgetAncestorSupportLoopFocus (Widget *widget, FocusDirection direction) const
	Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false. More...
Widget *	passFocusToChild (FocusDirection direction, Widget *current)
	pass the focus to the layout's next focus enabled child More...
bool	checkFocusEnabledChild () const
	If there are no focus enabled child in the layout, it will return false, otherwise it returns true. More...
Protected Member Functions inherited from Widget
virtual void	initRenderer ()
virtual void	onPressStateChangedToNormal ()
virtual void	onPressStateChangedToPressed ()
virtual void	onPressStateChangedToDisabled ()
void	pushDownEvent ()
void	moveEvent ()
virtual void	releaseUpEvent ()
virtual void	cancelUpEvent ()
virtual void	adaptRenderers ()
void	updateChildrenDisplayedRGBA ()
void	copyProperties (Widget *model)
Widget *	getWidgetParent ()
void	updateContentSizeWithTextureSize (const Size &size)
bool	isAncestorsEnabled ()
Widget *	getAncensterWidget (Node *node)
bool	isAncestorsVisible (Node *node)
void	cleanupWidget ()
LayoutComponent *	getOrCreateLayoutComponent ()
Protected Member Functions inherited from ProtectedNode
void	insertProtectedChild (Node *child, int z)
	helper that reorder a child More...
var	insertProtectedChild ( var child, var z)
	helper that reorder a child More...
local	insertProtectedChild ( local child, local z)
	helper that reorder a child More...
Protected Member Functions inherited from Node
void	childrenAlloc (void)
	lazy allocs More...
var	childrenAlloc ()
	lazy allocs More...
local	childrenAlloc ()
	lazy allocs More...
void	insertChild (Node *child, int z)
	helper that reorder a child More...
var	insertChild ( var child, var z)
	helper that reorder a child More...
local	insertChild ( local child, local z)
	helper that reorder a child More...
void	detachChild (Node *child, ssize_t index, bool doCleanup)
	Removes a child, call child->onExit(), do cleanup, remove it from children array. More...
Vec2	convertToWindowSpace (const Vec2 &nodePoint) const
	Convert cocos2d coordinates to UI windows coordinate. More...
Mat4	transform (const Mat4 &parentTransform)
var	transform ( var parentTransform)
local	transform ( local parentTransform)
uint32_t	processParentFlags (const Mat4 &parentTransform, uint32_t parentFlags)
var	processParentFlags ( var parentTransform, var parentFlags)
local	processParentFlags ( local parentTransform, local parentFlags)
virtual void	updateCascadeOpacity ()
var	updateCascadeOpacity ()
local	updateCascadeOpacity ()
virtual void	updateCascadeColor ()
local	updateCascadeColor ()
virtual void	updateColor ()
var	updateColor ()
local	updateColor ()
bool	doEnumerate (std::string name, std::function< bool(Node *)> callback) const
var	doEnumerate ( var name, var callback)
local	doEnumerate ( local name, local callback)
bool	doEnumerateRecursive (const Node *node, const std::string &name, std::function< bool(Node *)> callback) const
var	doEnumerateRecursive ( var node, var name, var callback)
local	doEnumerateRecursive ( local node, local name, local callback)
bool	isVisitableByVisitingCamera () const
var	isVisitableByVisitingCamera ()
local	isVisitableByVisitingCamera ()
void	updatePhysicsBodyTransform (Scene *layer)
var	updatePhysicsBodyTransform ( var layer)
local	updatePhysicsBodyTransform ( local layer)
virtual void	updatePhysicsBodyPosition (Scene *layer)
local	updatePhysicsBodyPosition ( local layer)
virtual void	updatePhysicsBodyRotation (Scene *layer)
var	updatePhysicsBodyRotation ( var layer)
local	updatePhysicsBodyRotation ( local layer)
virtual void	updatePhysicsBodyScale (Scene *scene)
var	updatePhysicsBodyScale ( var scene)
local	updatePhysicsBodyScale ( local scene)
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Protected Attributes
bool	_isAutoScrolling
float	_autoScrollDistance
var	_autoScrollDistance
local	_autoScrollDistance
float	_autoScrollSpeed
var	_autoScrollSpeed
local	_autoScrollSpeed
AutoScrollDirection	_autoScrollDirection
var	_autoScrollDirection
local	_autoScrollDirection
ssize_t	_curPageIdx
var	_curPageIdx
local	_curPageIdx
Vector< Layout * >	_pages
var	_pages
local	_pages
TouchDirection	_touchMoveDirection
var	_touchMoveDirection
local	_touchMoveDirection
Widget *	_leftBoundaryChild
local	_leftBoundaryChild
Widget *	_rightBoundaryChild
var	_rightBoundaryChild
local	_rightBoundaryChild
float	_leftBoundary
var	_leftBoundary
local	_leftBoundary
float	_rightBoundary
var	_rightBoundary
local	_rightBoundary
float	_customScrollThreshold
var	_customScrollThreshold
local	_customScrollThreshold
bool	_usingCustomScrollThreshold
var	_usingCustomScrollThreshold
local	_usingCustomScrollThreshold
float	_childFocusCancelOffset
var	_childFocusCancelOffset
local	_childFocusCancelOffset
Ref *	_pageViewEventListener
var	_pageViewEventListener
local	_pageViewEventListener
SEL_PageViewEvent	_pageViewEventSelector
var	_pageViewEventSelector
local	_pageViewEventSelector
ccPageViewCallback	_eventCallback
var	_eventCallback
local	_eventCallback
Protected Attributes inherited from Layout
bool	_backGroundScale9Enabled
Scale9Sprite *	_backGroundImage
std::string	_backGroundImageFileName
Rect	_backGroundImageCapInsets
BackGroundColorType	_colorType
TextureResType	_bgImageTexType
Size	_backGroundImageTextureSize
Color3B	_backGroundImageColor
GLubyte	_backGroundImageOpacity
LayerColor *	_colorRender
LayerGradient *	_gradientRender
Color3B	_cColor
Color3B	_gStartColor
Color3B	_gEndColor
Vec2	_alongVector
GLubyte	_cOpacity
bool	_clippingEnabled
Type	_layoutType
ClippingType	_clippingType
DrawNode *	_clippingStencil
bool	_scissorRectDirty
Rect	_clippingRect
Layout *	_clippingParent
bool	_clippingRectDirty
GLboolean	_currentStencilEnabled
GLuint	_currentStencilWriteMask
GLenum	_currentStencilFunc
GLint	_currentStencilRef
GLuint	_currentStencilValueMask
GLenum	_currentStencilFail
GLenum	_currentStencilPassDepthFail
GLenum	_currentStencilPassDepthPass
GLboolean	_currentDepthWriteMask
GLboolean	_currentAlphaTestEnabled
GLenum	_currentAlphaTestFunc
GLclampf	_currentAlphaTestRef
GLint	_mask_layer_le
GroupCommand	_groupCommand
CustomCommand	_beforeVisitCmdStencil
CustomCommand	_afterDrawStencilCmd
CustomCommand	_afterVisitCmdStencil
CustomCommand	_beforeVisitCmdScissor
CustomCommand	_afterVisitCmdScissor
bool	_doLayoutDirty
bool	_isInterceptTouch
bool	_loopFocus
bool	_passFocusToChild
bool	_isFocusPassing
Protected Attributes inherited from Widget
bool	_unifySize
bool	_enabled
bool	_bright
bool	_touchEnabled
bool	_highlight
bool	_affectByClipping
bool	_ignoreSize
bool	_propagateTouchEvents
BrightStyle	_brightStyle
SizeType	_sizeType
PositionType	_positionType
int	_actionTag
Size	_customSize
Vec2	_sizePercent
Vec2	_positionPercent
bool	_hitted
EventListenerTouchOneByOne *	_touchListener
Vec2	_touchBeganPosition
Vec2	_touchMovePosition
Vec2	_touchEndPosition
bool	_flippedX
bool	_flippedY
Map< int, LayoutParameter * >	_layoutParameterDictionary
LayoutParameter::Type	_layoutParameterType
bool	_focused
bool	_focusEnabled
Ref *	_touchEventListener
SEL_TouchEvent	_touchEventSelector
ccWidgetTouchCallback	_touchEventCallback
ccWidgetClickCallback	_clickEventListener
ccWidgetEventCallback	_ccEventCallback
std::string	_callbackType
std::string	_callbackName
Protected Attributes inherited from ProtectedNode
Vector< Node * >	_protectedChildren
	array of children nodes More...
bool	_reorderProtectedChildDirty
var	_reorderProtectedChildDirty
local	_reorderProtectedChildDirty
Protected Attributes inherited from Node
float	_rotationX
	rotation on the X-axis More...
local	_rotationX
	rotation on the X-axis More...
float	_rotationY
	rotation on the Y-axis More...
var	_rotationY
	rotation on the Y-axis More...
local	_rotationY
	rotation on the Y-axis More...
float	_rotationZ_X
	rotation angle on Z-axis, component X More...
var	_rotationZ_X
	rotation angle on Z-axis, component X More...
local	_rotationZ_X
	rotation angle on Z-axis, component X More...
float	_rotationZ_Y
	rotation angle on Z-axis, component Y More...
var	_rotationZ_Y
	rotation angle on Z-axis, component Y More...
local	_rotationZ_Y
	rotation angle on Z-axis, component Y More...
float	_scaleX
	scaling factor on x-axis More...
var	_scaleX
	scaling factor on x-axis More...
local	_scaleX
	scaling factor on x-axis More...
float	_scaleY
	scaling factor on y-axis More...
var	_scaleY
	scaling factor on y-axis More...
local	_scaleY
	scaling factor on y-axis More...
float	_scaleZ
	scaling factor on z-axis More...
var	_scaleZ
	scaling factor on z-axis More...
local	_scaleZ
	scaling factor on z-axis More...
Vec2	_position
	position of the node More...
var	_position
	position of the node More...
local	_position
	position of the node More...
float	_positionZ
	OpenGL real Z position. More...
var	_positionZ
	OpenGL real Z position. More...
local	_positionZ
	OpenGL real Z position. More...
Vec2	_normalizedPosition
var	_normalizedPosition
local	_normalizedPosition
bool	_usingNormalizedPosition
var	_usingNormalizedPosition
local	_usingNormalizedPosition
bool	_normalizedPositionDirty
var	_normalizedPositionDirty
local	_normalizedPositionDirty
float	_skewX
	skew angle on x-axis More...
var	_skewX
	skew angle on x-axis More...
local	_skewX
	skew angle on x-axis More...
float	_skewY
	skew angle on y-axis More...
var	_skewY
	skew angle on y-axis More...
local	_skewY
	skew angle on y-axis More...
Vec2	_anchorPointInPoints
	anchor point in points More...
var	_anchorPointInPoints
	anchor point in points More...
local	_anchorPointInPoints
	anchor point in points More...
Vec2	_anchorPoint
	anchor point normalized (NOT in points) More...
var	_anchorPoint
	anchor point normalized (NOT in points) More...
local	_anchorPoint
	anchor point normalized (NOT in points) More...
Size	_contentSize
	untransformed size of the node More...
var	_contentSize
	untransformed size of the node More...
local	_contentSize
	untransformed size of the node More...
bool	_contentSizeDirty
	whether or not the contentSize is dirty More...
var	_contentSizeDirty
	whether or not the contentSize is dirty More...
local	_contentSizeDirty
	whether or not the contentSize is dirty More...
Mat4	_modelViewTransform
	ModelView transform of the Node. More...
var	_modelViewTransform
	ModelView transform of the Node. More...
local	_modelViewTransform
	ModelView transform of the Node. More...
Mat4	_transform
	transform More...
var	_transform
	transform More...
local	_transform
	transform More...
bool	_transformDirty
	transform dirty flag More...
var	_transformDirty
	transform dirty flag More...
local	_transformDirty
	transform dirty flag More...
Mat4	_inverse
	inverse transform More...
var	_inverse
	inverse transform More...
local	_inverse
	inverse transform More...
bool	_inverseDirty
	inverse transform dirty flag More...
var	_inverseDirty
	inverse transform dirty flag More...
local	_inverseDirty
	inverse transform dirty flag More...
Mat4	_additionalTransform
	transform More...
var	_additionalTransform
	transform More...
local	_additionalTransform
	transform More...
bool	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...
var	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...
local	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...
bool	_transformUpdated
	Whether or not the Transform object was updated since the last frame. More...
var	_transformUpdated
	Whether or not the Transform object was updated since the last frame. More...
local	_transformUpdated
	Whether or not the Transform object was updated since the last frame. More...
int	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...
var	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...
local	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...
float	_globalZOrder
	Global order used to sort the node. More...
var	_globalZOrder
	Global order used to sort the node. More...
local	_globalZOrder
	Global order used to sort the node. More...
Vector< Node * >	_children
	array of children nodes More...
var	_children
	array of children nodes More...
local	_children
	array of children nodes More...
Node *	_parent
	weak reference to parent node More...
var	_parent
	weak reference to parent node More...
local	_parent
	weak reference to parent node More...
int	_tag
	a tag. Can be any number you assigned just to identify this node More...
var	_tag
	a tag. Can be any number you assigned just to identify this node More...
local	_tag
	a tag. Can be any number you assigned just to identify this node More...
std::string	_name
	a string label, an user defined string to identify this node More...
var	_name
	a string label, an user defined string to identify this node More...
local	_name
	a string label, an user defined string to identify this node More...
size_t	_hashOfName
	hash value of _name, used for speed in getChildByName More...
var	_hashOfName
	hash value of _name, used for speed in getChildByName More...
local	_hashOfName
	hash value of _name, used for speed in getChildByName More...
void *	_userData
	A user assingned void pointer, Can be point to any cpp object. More...
var	_userData
	A user assingned void pointer, Can be point to any cpp object. More...
local	_userData
	A user assingned void pointer, Can be point to any cpp object. More...
Ref *	_userObject
	A user assigned Object. More...
var	_userObject
	A user assigned Object. More...
local	_userObject
	A user assigned Object. More...
GLProgramState *	_glProgramState
	OpenGL Program State. More...
var	_glProgramState
	OpenGL Program State. More...
local	_glProgramState
	OpenGL Program State. More...
int	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...
Scheduler *	_scheduler
	scheduler used to schedule timers and updates More...
var	_scheduler
	scheduler used to schedule timers and updates More...
local	_scheduler
	scheduler used to schedule timers and updates More...
ActionManager *	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...
EventDispatcher *	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...
var	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...
local	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...
bool	_running
	is running More...
var	_running
	is running More...
local	_running
	is running More...
bool	_visible
	is this node visible More...
var	_visible
	is this node visible More...
local	_visible
	is this node visible More...
bool	_ignoreAnchorPointForPosition
	true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...
var	_ignoreAnchorPointForPosition
	true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...
local	_ignoreAnchorPointForPosition
	true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...
bool	_reorderChildDirty
	children order dirty flag More...
var	_reorderChildDirty
	children order dirty flag More...
local	_reorderChildDirty
	children order dirty flag More...
bool	_isTransitionFinished
	flag to indicate whether the transition was finished More...
var	_isTransitionFinished
	flag to indicate whether the transition was finished More...
local	_isTransitionFinished
	flag to indicate whether the transition was finished More...
ComponentContainer *	_componentContainer
	Dictionary of components. More...
var	_componentContainer
	Dictionary of components. More...
local	_componentContainer
	Dictionary of components. More...
PhysicsBody *	_physicsBody
	the physicsBody the node have More...
var	_physicsBody
	the physicsBody the node have More...
local	_physicsBody
	the physicsBody the node have More...
float	_physicsScaleStartX
	the scale x value when setPhysicsBody More...
var	_physicsScaleStartX
	the scale x value when setPhysicsBody More...
local	_physicsScaleStartX
	the scale x value when setPhysicsBody More...
float	_physicsScaleStartY
	the scale y value when setPhysicsBody More...
var	_physicsScaleStartY
	the scale y value when setPhysicsBody More...
local	_physicsScaleStartY
	the scale y value when setPhysicsBody More...
GLubyte	_displayedOpacity
GLubyte	_realOpacity
var	_realOpacity
local	_realOpacity
Color3B	_displayedColor
var	_displayedColor
local	_displayedColor
Color3B	_realColor
var	_realColor
local	_realColor
bool	_cascadeColorEnabled
var	_cascadeColorEnabled
local	_cascadeColorEnabled
bool	_cascadeOpacityEnabled
var	_cascadeOpacityEnabled
local	_cascadeOpacityEnabled
unsigned short	_cameraMask
var	_cameraMask
local	_cameraMask
std::function< void()>	_onEnterCallback
var	_onEnterCallback
local	_onEnterCallback
std::function< void()>	_onExitCallback
var	_onExitCallback
local	_onExitCallback
std::function< void()>	_onEnterTransitionDidFinishCallback
var	_onEnterTransitionDidFinishCallback
local	_onEnterTransitionDidFinishCallback
std::function< void()>	_onExitTransitionDidStartCallback
Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Node
static const int	INVALID_TAG = -1
	Default tag used for all the nodes. More...
var	INVALID_TAG = -1
	Default tag used for all the nodes. More...
local	INVALID_TAG = -1
	Default tag used for all the nodes. More...
Static Protected Attributes inherited from Widget
static Widget *	_focusedWidget
	store the only one focued widget More...
Static Protected Attributes inherited from Node
static int	s_globalOrderOfArrival
var	s_globalOrderOfArrival
local	s_globalOrderOfArrival

Member Typedef Documentation

typedef std::function<void(Ref*,EventType)> ccPageViewCallback

var ccPageViewCallback

local ccPageViewCallback

Member Enumeration Documentation

enum AutoScrollDirection

strongprotected

Enumerator
LEFT
RIGHT

var AutoScrollDirection

strongprotected

Enumerator
LEFT
RIGHT

local AutoScrollDirection

strongprotected

Enumerator
LEFT
RIGHT

enum EventType

strong

Enumerator
TURNING

var EventType

strong

Enumerator
TURNING

local EventType

strong

Enumerator
TURNING

enum TouchDirection

strong

Enumerator
LEFT
RIGHT

var TouchDirection

strong

Enumerator
LEFT
RIGHT

local TouchDirection

strong

Enumerator
LEFT
RIGHT

Constructor & Destructor Documentation

PageView

(

)

Default constructor.

var PageView

(

)

Default constructor.

local PageView

(

)

Default constructor.

virtual ~PageView ( )

virtual

Default destructor.

var ~PageView ( )

virtual

Default destructor.

local ~PageView ( )

virtual

Default destructor.

Member Function Documentation

void addEventListener

(

const ccPageViewCallback &

callback

)

var addEventListener

(

var

callback

)

local addEventListener

(

local

callback

)

void addEventListenerPageView	(	Ref *	target,
		SEL_PageViewEvent	selector
	)

var addEventListenerPageView	(	var	target,
		var	selector
	)

local addEventListenerPageView	(	local	target,
		local	selector
	)

void addPage

(

Layout *

page

)

Push back a page to pageview.

Parameters

page	page to be added to pageview.

var addPage

(

var

page

)

Push back a page to pageview.

Parameters

page	page to be added to pageview.

local addPage

(

local

page

)

Push back a page to pageview.

Parameters

page	page to be added to pageview.

void addWidgetToPage	(	Widget *	widget,
		ssize_t	pageIdx,
		bool	forceCreate
	)

Add a widget to a page of pageview.

Parameters

widget	widget to be added to pageview.
pageIdx	index of page.
forceCreate	if force create and there is no page exsit, pageview would create a default page for adding widget.

var addWidgetToPage	(	var	widget,
		var	pageIdx,
		var	forceCreate
	)

Add a widget to a page of pageview.

Parameters

widget	widget to be added to pageview.
pageIdx	index of page.
forceCreate	if force create and there is no page exsit, pageview would create a default page for adding widget.

local addWidgetToPage	(	local	widget,
		local	pageIdx,
		local	forceCreate
	)

Add a widget to a page of pageview.

Parameters

widget	widget to be added to pageview.
pageIdx	index of page.
forceCreate	if force create and there is no page exsit, pageview would create a default page for adding widget.

void autoScroll ( float  dt )

protected

var autoScroll ( var  dt )

protected

local autoScroll ( local  dt )

protected

virtual void copyClonedWidgetChildren ( Widget *  model )

overrideprotectedvirtual

Reimplemented from Layout.

var copyClonedWidgetChildren ( var  model )

overrideprotectedvirtual

Reimplemented from Layout.

local copyClonedWidgetChildren ( local  model )

overrideprotectedvirtual

Reimplemented from Layout.

virtual void copySpecialProperties ( Widget *  model )

overrideprotectedvirtual

Reimplemented from Layout.

var copySpecialProperties ( var  model )

overrideprotectedvirtual

Reimplemented from Layout.

local copySpecialProperties ( local  model )

overrideprotectedvirtual

Reimplemented from Layout.

static PageView* create ( )

static

Allocates and initializes.

var create ( )

static

Allocates and initializes.

local create ( )

static

Allocates and initializes.

virtual Widget* createCloneInstance ( )

overrideprotectedvirtual

Reimplemented from Layout.

var createCloneInstance ( )

overrideprotectedvirtual

Reimplemented from Layout.

local createCloneInstance ( )

overrideprotectedvirtual

Reimplemented from Layout.

Layout* createPage ( )

protected

var createPage ( )

protected

local createPage ( )

protected

virtual void doLayout ( )

overrideprotectedvirtual

Reimplemented from Layout.

var doLayout ( )

overrideprotectedvirtual

Reimplemented from Layout.

local doLayout ( )

overrideprotectedvirtual

Reimplemented from Layout.

ssize_t getCurPageIndex

(

)

const

Gets current page index.

Returns

current page index.

var getCurPageIndex

(

)

Gets current page index.

Returns

current page index.

local getCurPageIndex

(

)

Gets current page index.

Returns

current page index.

float getCustomScrollThreshold

(

)

const

Return user defined scroll page threshold.

var getCustomScrollThreshold

(

)

Return user defined scroll page threshold.

local getCustomScrollThreshold

(

)

Return user defined scroll page threshold.

virtual std::string getDescription ( ) const

overridevirtual

Returns the "class name" of widget.

Reimplemented from Layout.

var getDescription ( )

overridevirtual

Returns the "class name" of widget.

Reimplemented from Layout.

local getDescription ( )

overridevirtual

Returns the "class name" of widget.

Reimplemented from Layout.

virtual Type getLayoutType ( ) const

inlineoverridevirtual

Gets LayoutType.

See also

LayoutType

Returns

LayoutType

Reimplemented from Layout.

var getLayoutType ( )

inlineoverridevirtual

Gets LayoutType.

See also

LayoutType

Returns

LayoutType

Reimplemented from Layout.

local getLayoutType ( )

inlineoverridevirtual

Gets LayoutType.

See also

LayoutType

Returns

LayoutType

Reimplemented from Layout.

Layout* getPage

(

ssize_t

index

)

var getPage

(

var

index

)

local getPage

(

local

index

)

ssize_t getPageCount ( ) const

protected

var getPageCount ( )

protected

local getPageCount ( )

protected

Vector<Layout*>& getPages

(

)

var getPages

(

)

local getPages

(

)

float getPositionXByIndex ( ssize_t  idx ) const

protected

var getPositionXByIndex ( var  idx )

protected

local getPositionXByIndex ( local  idx )

protected

virtual void handleMoveLogic ( Touch *  touch )

protectedvirtual

var handleMoveLogic ( var  touch )

protectedvirtual

local handleMoveLogic ( local  touch )

protectedvirtual

virtual void handleReleaseLogic ( Touch *  touch )

protectedvirtual

var handleReleaseLogic ( var  touch )

protectedvirtual

local handleReleaseLogic ( local  touch )

protectedvirtual

void insertPage	(	Layout *	page,
		int	idx
	)

Insert a page to pageview.

Parameters

page	page to be added to pageview.

var insertPage	(	var	page,
		var	idx
	)

Insert a page to pageview.

Parameters

page	page to be added to pageview.

local insertPage	(	local	page,
		local	idx
	)

Insert a page to pageview.

Parameters

page	page to be added to pageview.

virtual void interceptTouchEvent ( TouchEventType  event, Widget *  sender, Touch *  touch  )

protectedvirtual

Reimplemented from Widget.

var interceptTouchEvent ( var  event, var  sender, var  touch  )

protectedvirtual

Reimplemented from Widget.

local interceptTouchEvent ( local  event, local  sender, local  touch  )

protectedvirtual

Reimplemented from Widget.

bool isUsingCustomScrollThreshold

(

)

const

Query whether we are using user defined scroll page threshold or not.

var isUsingCustomScrollThreshold

(

)

Query whether we are using user defined scroll page threshold or not.

local isUsingCustomScrollThreshold

(

)

Query whether we are using user defined scroll page threshold or not.

void movePages ( float  offset )

protected

var movePages ( var  offset )

protected

local movePages ( local  offset )

protected

virtual void onEnter ( )

overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Layout.

var onEnter ( )

overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Layout.

local onEnter ( )

overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Layout.

virtual void onSizeChanged ( )

overrideprotectedvirtual

Reimplemented from Layout.

var onSizeChanged ( )

overrideprotectedvirtual

Reimplemented from Layout.

local onSizeChanged ( )

overrideprotectedvirtual

Reimplemented from Layout.

virtual bool onTouchBegan ( Touch *  touch, Event *  unusedEvent  )

overridevirtual

Reimplemented from Widget.

var onTouchBegan ( var  touch, var  unusedEvent  )

overridevirtual

Reimplemented from Widget.

local onTouchBegan ( local  touch, local  unusedEvent  )

overridevirtual

Reimplemented from Widget.

virtual void onTouchCancelled ( Touch *  touch, Event *  unusedEvent  )

overridevirtual

Reimplemented from Widget.

var onTouchCancelled ( var  touch, var  unusedEvent  )

overridevirtual

Reimplemented from Widget.

local onTouchCancelled ( local  touch, local  unusedEvent  )

overridevirtual

Reimplemented from Widget.

virtual void onTouchEnded ( Touch *  touch, Event *  unusedEvent  )

overridevirtual

Reimplemented from Widget.

var onTouchEnded ( var  touch, var  unusedEvent  )

overridevirtual

Reimplemented from Widget.

local onTouchEnded ( local  touch, local  unusedEvent  )

overridevirtual

Reimplemented from Widget.

virtual void onTouchMoved ( Touch *  touch, Event *  unusedEvent  )

overridevirtual

Reimplemented from Widget.

var onTouchMoved ( var  touch, var  unusedEvent  )

overridevirtual

Reimplemented from Widget.

local onTouchMoved ( local  touch, local  unusedEvent  )

overridevirtual

Reimplemented from Widget.

void pageTurningEvent ( )

protected

var pageTurningEvent ( )

protected

local pageTurningEvent ( )

protected

void removeAllPages

(

)

var removeAllPages

(

)

local removeAllPages

(

)

void removePage

(

Layout *

page

)

Remove a page of pageview.

Parameters

page	page which will be removed.

var removePage

(

var

page

)

Remove a page of pageview.

Parameters

page	page which will be removed.

local removePage

(

local

page

)

Remove a page of pageview.

Parameters

page	page which will be removed.

void removePageAtIndex

(

ssize_t

index

)

Remove a page at index of pageview.

Parameters

index

index of page.

var removePageAtIndex

(

var

index

)

Remove a page at index of pageview.

Parameters

index

index of page.

local removePageAtIndex

(

local

index

)

Remove a page at index of pageview.

Parameters

index

index of page.

virtual bool scrollPages ( float  touchOffset )

protectedvirtual

var scrollPages ( var  touchOffset )

protectedvirtual

local scrollPages ( local  touchOffset )

protectedvirtual

void scrollToPage

(

ssize_t

idx

)

scroll pageview to index.

Parameters

idx	index of page.

var scrollToPage

(

var

idx

)

scroll pageview to index.

Parameters

idx	index of page.

local scrollToPage

(

local

idx

)

scroll pageview to index.

Parameters

idx	index of page.

void setCustomScrollThreshold

(

float

threshold

)

If you don't specify the value, the pageView will scroll when half pageview width reached.

var setCustomScrollThreshold

(

var

threshold

)

If you don't specify the value, the pageView will scroll when half pageview width reached.

local setCustomScrollThreshold

(

local

threshold

)

If you don't specify the value, the pageView will scroll when half pageview width reached.

virtual void setLayoutType ( Type  type )

inlineoverridevirtual

Sets LayoutType.

See also

LayoutType

Parameters

type	LayoutType

Reimplemented from Layout.

var setLayoutType ( var  type )

inlineoverridevirtual

Sets LayoutType.

See also

LayoutType

Parameters

type	LayoutType

Reimplemented from Layout.

local setLayoutType ( local  type )

inlineoverridevirtual

Sets LayoutType.

See also

LayoutType

Parameters

type	LayoutType

Reimplemented from Layout.

void setUsingCustomScrollThreshold

(

bool

flag

)

Set using user defined scroll page threshold or not If you set it to false, then the default scroll threshold is pageView.width / 2.

var setUsingCustomScrollThreshold

(

var

flag

)

Set using user defined scroll page threshold or not If you set it to false, then the default scroll threshold is pageView.width / 2.

local setUsingCustomScrollThreshold

(

local

flag

)

Set using user defined scroll page threshold or not If you set it to false, then the default scroll threshold is pageView.width / 2.

virtual void update ( float  dt )

overridevirtual

Reimplemented from Node.

var update ( var  dt )

overridevirtual

Reimplemented from Node.

local update ( local  dt )

overridevirtual

Reimplemented from Node.

void updateAllPagesPosition ( )

protected

var updateAllPagesPosition ( )

protected

local updateAllPagesPosition ( )

protected

void updateAllPagesSize ( )

protected

var updateAllPagesSize ( )

protected

local updateAllPagesSize ( )

protected

void updateBoundaryPages ( )

protected

var updateBoundaryPages ( )

protected

local updateBoundaryPages ( )

protected

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

AutoScrollDirection _autoScrollDirection

protected

var _autoScrollDirection

protected

local _autoScrollDirection

protected

float _autoScrollDistance

protected

var _autoScrollDistance

protected

local _autoScrollDistance

protected

float _autoScrollSpeed

protected

var _autoScrollSpeed

protected

local _autoScrollSpeed

protected

float _childFocusCancelOffset

protected

var _childFocusCancelOffset

protected

local _childFocusCancelOffset

protected

ssize_t _curPageIdx

protected

var _curPageIdx

protected

local _curPageIdx

protected

float _customScrollThreshold

protected

var _customScrollThreshold

protected

local _customScrollThreshold

protected

ccPageViewCallback _eventCallback

protected

var _eventCallback

protected

local _eventCallback

protected

bool _isAutoScrolling

protected

var _isAutoScrolling

protected

local _isAutoScrolling

protected

float _leftBoundary

protected

var _leftBoundary

protected

local _leftBoundary

protected

Widget* _leftBoundaryChild

protected

var _leftBoundaryChild

protected

local _leftBoundaryChild

protected

Vector<Layout*> _pages

protected

var _pages

protected

local _pages

protected

Ref* _pageViewEventListener

protected

var _pageViewEventListener

protected

local _pageViewEventListener

protected

SEL_PageViewEvent _pageViewEventSelector

protected

var _pageViewEventSelector

protected

local _pageViewEventSelector

protected

float _rightBoundary

protected

var _rightBoundary

protected

local _rightBoundary

protected

Widget* _rightBoundaryChild

protected

var _rightBoundaryChild

protected

local _rightBoundaryChild

protected

TouchDirection _touchMoveDirection

protected

var _touchMoveDirection

protected

local _touchMoveDirection

protected

bool _usingCustomScrollThreshold

protected

var _usingCustomScrollThreshold

protected

local _usingCustomScrollThreshold

protected

---

The documentation for this class was generated from the following file:

• /Users/guanghui/cocos2d-x-v2/cocos/ui/UIPageView.h
