EditBox Class Reference

Class for edit box. More...

#include <UIEditBox.h>

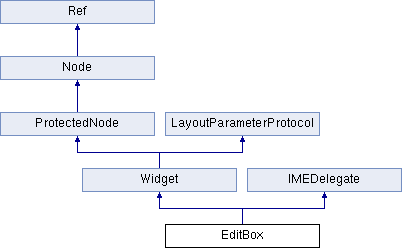

Inheritance diagram for EditBox:
Widget IMEDelegate ProtectedNode LayoutParameterProtocol Node Ref

Public Types

enum  KeyboardReturnType {
  DEFAULT, DONE, SEND, SEARCH,
  GO
}

enum  InputMode {
  ANY, EMAIL_ADDRESS, NUMERIC, PHONE_NUMBER,
  URL, DECIMAL, SINGLE_LINE
}
 The EditBox::InputMode defines the type of text that the user is allowed to enter. More...

enum  InputFlag {
  PASSWORD, SENSITIVE, INITIAL_CAPS_WORD, INITIAL_CAPS_SENTENCE,
  INTIAL_CAPS_ALL_CHARACTERS
}
 The EditBox::InputFlag defines how the input text is displayed/formatted. More...

- Public Types inherited from Widget
enum  FocusDirection { LEFT, RIGHT, UP, DOWN }

enum  PositionType { ABSOLUTE, PERCENT }

enum  SizeType { ABSOLUTE, PERCENT }

enum  TouchEventType { BEGAN, MOVED, ENDED, CANCELED }

enum  TextureResType { LOCAL = 0, PLIST = 1 }

enum  BrightStyle { NONE = -1, NORMAL, HIGHLIGHT }

typedef std::function< void(Ref
*, Widget::TouchEventType)>
ccWidgetTouchCallback
typedef std::function< void(Ref *)> ccWidgetClickCallback
typedef std::function< void(Ref
*, int)>
ccWidgetEventCallback
- Public Types inherited from Node
enum  { FLAGS_TRANSFORM_DIRTY = (1 << 0), FLAGS_CONTENT_SIZE_DIRTY = (1 << 1), FLAGS_DIRTY_MASK = (FLAGS_TRANSFORM_DIRTY | FLAGS_CONTENT_SIZE_DIRTY) }


Public Member Functions

 EditBox (void)
 Constructor. More...

virtual ~EditBox (void)
 Destructor. More...

bool initWithSizeAndBackgroundSprite (const Size &size, const std::string &pNormal9SpriteBg, TextureResType texType=TextureResType::LOCAL)
 Init edit box with specified size. More...

bool initWithSizeAndBackgroundSprite (const Size &size, Scale9Sprite *pNormal9SpriteBg)
void setDelegate (EditBoxDelegate *pDelegate)
 Gets/Sets the delegate for edit box. More...

EditBoxDelegategetDelegate ()
void setText (const char *pText)
 Set the text entered in the edit box. More...

const char * getText (void)
 Get the text entered in the edit box. More...

void setFont (const char *pFontName, int fontSize)
 Set the font. More...

void setFontName (const char *pFontName)
 Set the font name. More...

void setFontSize (int fontSize)
 Set the font size. More...

void setFontColor (const Color3B &color)
 Set the font color of the widget's text. More...

void setPlaceholderFont (const char *pFontName, int fontSize)
 Set the placeholder's font. More...

void setPlaceholderFontName (const char *pFontName)
 Set the placeholder's font name. More...

void setPlaceholderFontSize (int fontSize)
 Set the placeholder's font size. More...

void setPlaceholderFontColor (const Color3B &color)
 Set the font color of the placeholder text when the edit box is empty. More...

void setPlaceHolder (const char *pText)
 Set a text in the edit box that acts as a placeholder when an edit box is empty. More...

const char * getPlaceHolder (void)
 Get a text in the edit box that acts as a placeholder when an edit box is empty. More...

void setInputMode (InputMode inputMode)
 Set the input mode of the edit box. More...

void setMaxLength (int maxLength)
 Sets the maximum input length of the edit box. More...

int getMaxLength ()
 Gets the maximum input length of the edit box. More...

void setInputFlag (InputFlag inputFlag)
 Set the input flags that are to be applied to the edit box. More...

void setReturnType (EditBox::KeyboardReturnType returnType)
 Set the return type that are to be applied to the edit box. More...

virtual void setPosition (const Vec2 &pos) override
 Changes the position (x,y) of the widget in OpenGL coordinates. More...

virtual void setVisible (bool visible) override
 Sets whether the node is visible. More...

virtual void setContentSize (const Size &size) override
 Sets the untransformed size of the node. More...

virtual void setAnchorPoint (const Vec2 &anchorPoint) override
 Sets the anchor point in percent. More...

virtual void visit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags) override
 Visits this node's children and draw them recursively. More...

virtual void onEnter (void) override
 Event callback that is invoked every time when Node enters the 'stage'. More...

virtual void onExit (void) override
 Event callback that is invoked every time the Node leaves the 'stage'. More...

virtual void keyboardWillShow (IMEKeyboardNotificationInfo &info) override
virtual void keyboardDidShow (IMEKeyboardNotificationInfo &info) override
virtual void keyboardWillHide (IMEKeyboardNotificationInfo &info) override
virtual void keyboardDidHide (IMEKeyboardNotificationInfo &info) override
void touchDownAction (Ref *sender, TouchEventType controlEvent)
- Public Member Functions inherited from Widget
 Widget (void)
virtual ~Widget ()
 Default destructor. More...

virtual void setEnabled (bool enabled)
 Sets whether the widget is enabled. More...

bool isEnabled () const
 Determines if the widget is enabled. More...

void setBright (bool bright)
 Sets whether the widget is bright. More...

bool isBright () const
 Determines if the widget is bright. More...

virtual void setTouchEnabled (bool enabled)
 Sets whether the widget is touch enabled. More...

void setBrightStyle (BrightStyle style)
 To set the bright style of widget. More...

bool isTouchEnabled () const
 Determines if the widget is touch enabled. More...

bool isHighlighted () const
 Determines if the widget is highlighted. More...

void setHighlighted (bool hilight)
 Sets whether the widget is hilighted. More...

float getLeftInParent ()
 Gets the left boundary position of this widget in parent's coordination system. More...

float getLeftBoundary () const
float getBottomInParent ()
 Gets the bottom boundary position of this widget in parent's coordination system. More...

float getBottomBoundary () const
float getRightInParent ()
 Gets the right boundary position of this widget in parent's coordination system. More...

float getRightBoundary () const
float getTopInParent ()
 Gets the top boundary position of this widget in parent's coordination system. More...

float getTopBoundary () const
void addTouchEventListener (Ref *target, SEL_TouchEvent selector)
 Sets the touch event target/selector to the widget. More...

void addTouchEventListener (const ccWidgetTouchCallback &callback)
void addClickEventListener (const ccWidgetClickCallback &callback)
 Set a click event handler to the widget. More...

virtual void addCCSEventListener (const ccWidgetEventCallback &callback)
 Set a event handler to the widget in order to use cocostudio editor and framework. More...

void setPositionPercent (const Vec2 &percent)
 Set the percent(x,y) of the widget in OpenGL coordinates. More...

const Vec2getPositionPercent () const
 Gets the percent (x,y) of the widget in OpenGL coordinates. More...

void setPositionType (PositionType type)
 Changes the position type of the widget. More...

PositionType getPositionType () const
 Gets the position type of the widget. More...

virtual void setFlippedX (bool flippedX)
 Sets whether the widget should be flipped horizontally or not. More...

virtual bool isFlippedX () const
 Returns the flag which indicates whether the widget is flipped horizontally or not. More...

virtual void setFlippedY (bool flippedY)
 Sets whether the widget should be flipped vertically or not. More...

virtual bool isFlippedY () const
 Return the flag which indicates whether the widget is flipped vertically or not. More...

bool isFlipX ()
void setFlipX (bool flipX)
bool isFlipY ()
void setFlipY (bool flipY)
virtual void setScaleX (float scaleX) override
 Sets the scale (x) of the node. More...

virtual void setScaleY (float scaleY) override
 Sets the scale (y) of the node. More...

virtual void setScale (float scale) override
 Sets the scale (x,y,z) of the node. More...

virtual void setScale (float scalex, float scaley) override
 Sets the scale (x,y) of the node. More...

virtual float getScaleX () const override
 Returns the scale factor on X axis of this node. More...

virtual float getScaleY () const override
 Returns the scale factor on Y axis of this node. More...

virtual float getScale () const override
 Gets the scale factor of the node, when X and Y have the same scale factor. More...

bool clippingParentAreaContainPoint (const Vec2 &pt)
bool isClippingParentContainsPoint (const Vec2 &pt)
const Vec2getTouchStartPos () const
const Vec2getTouchBeganPosition () const
const Vec2getTouchMovePos () const
const Vec2getTouchMovePosition () const
const Vec2getTouchEndPos () const
const Vec2getTouchEndPosition () const
virtual void setSize (const Size &size)
 Changes the size that is widget's size. More...

virtual void setSizePercent (const Vec2 &percent)
 Changes the percent that is widget's percent size. More...

void setSizeType (SizeType type)
 Changes the size type of widget. More...

SizeType getSizeType () const
 Gets the size type of widget. More...

const SizegetSize () const
 Returns size of widget. More...

const SizegetCustomSize () const
virtual const SizegetLayoutSize ()
const Vec2getSizePercent ()
 Returns size percent of widget. More...

virtual bool hitTest (const Vec2 &pt)
 Checks a point if is in widget's space. More...

virtual bool onTouchBegan (Touch *touch, Event *unusedEvent)
virtual void onTouchMoved (Touch *touch, Event *unusedEvent)
virtual void onTouchEnded (Touch *touch, Event *unusedEvent)
virtual void onTouchCancelled (Touch *touch, Event *unusedEvent)
void setLayoutParameter (LayoutParameter *parameter)
 Sets a LayoutParameter to widget. More...

LayoutParametergetLayoutParameter () const override
 Gets LayoutParameter of widget. More...

LayoutParametergetLayoutParameter (LayoutParameter::Type type)
virtual void ignoreContentAdaptWithSize (bool ignore)
 Note: when you set _ignoreSize to true, no matther you call setContentSize or not, the widget size is always equal to the return value of the member function getVirtualRendererSize. More...

bool isIgnoreContentAdaptWithSize () const
 Query whether the widget ignores user deinfed content size or not. More...

Vec2 getWorldPosition () const
 Gets world position of widget. More...

virtual NodegetVirtualRenderer ()
 Gets the Virtual Renderer of widget. More...

virtual Size getVirtualRendererSize () const
virtual std::string getDescription () const override
 Returns the "class name" of widget. More...

Widgetclone ()
void updateSizeAndPosition ()
void updateSizeAndPosition (const Size &parentSize)
void setActionTag (int tag)
int getActionTag () const
void setPropagateTouchEvents (bool isPropagate)
 Allow widget touch events to propagate to its parents. More...

bool isPropagateTouchEvents () const
 Return whether the widget is propagate touch events to its parents or not. More...

void setSwallowTouches (bool swallow)
 Specify widget to swallow touches or not. More...

bool isSwallowTouches () const
 Return whether the widget is swallowing touch or not. More...

bool isFocused () const
void setFocused (bool focus)
bool isFocusEnabled () const
void setFocusEnabled (bool enable)
virtual WidgetfindNextFocusedWidget (FocusDirection direction, Widget *current)
 When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...

void requestFocus ()
 when a widget calls this method, it will get focus immediately. More...

WidgetgetCurrentFocusedWidget (bool isWidget)
 no matter what widget object you call this method on , it will return you the exact one focused widget More...

WidgetgetCurrentFocusedWidget () const
void setUnifySizeEnabled (bool enable)
bool isUnifySizeEnabled () const
void setCallbackName (const std::string &callbackName)
 callbackName getter and setter. More...

const std::string & getCallbackName () const
void setCallbackType (const std::string &callbackType)
 callbackType getter and setter. More...

const std::string & getCallbackType () const
virtual void interceptTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
void propagateTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
 Propagate touch events to its parents. More...

void onFocusChange (Widget *widgetLostFocus, Widget *widgetGetFocus)
 This method is called when a focus change event happens. More...

void dispatchFocusEvent (Widget *widgetLoseFocus, Widget *widgetGetFocus)
 Dispatch a EventFocus through a EventDispatcher. More...

- Public Member Functions inherited from ProtectedNode
virtual void cleanup () override
 Stops all running actions and schedulers. More...

var cleanup ()
 Stops all running actions and schedulers. More...

local cleanup ()
 Stops all running actions and schedulers. More...

virtual void onEnterTransitionDidFinish () override
 Event callback that is invoked when the Node enters in the 'stage'. More...

virtual void onExitTransitionDidStart () override
 Event callback that is called every time the Node leaves the 'stage'. More...

virtual void updateDisplayedOpacity (GLubyte parentOpacity) override
var updateDisplayedOpacity ( var parentOpacity)
local updateDisplayedOpacity ( local parentOpacity)
virtual void updateDisplayedColor (const Color3B &parentColor) override
var updateDisplayedColor ( var parentColor)
local updateDisplayedColor ( local parentColor)
virtual void disableCascadeColor () override
var disableCascadeColor ()
local disableCascadeColor ()
virtual void disableCascadeOpacity () override
local disableCascadeOpacity ()
virtual ~ProtectedNode ()
local ~ProtectedNode ()
virtual void addProtectedChild (Node *child)
 Adds a child to the container with z-order as 0. More...

local addProtectedChild ( local child)
 Adds a child to the container with z-order as 0. More...

virtual void addProtectedChild (Node *child, int localZOrder)
 Adds a child to the container with a local z-order. More...

local addProtectedChild ( local child, local localZOrder)
 Adds a child to the container with a local z-order. More...

virtual void addProtectedChild (Node *child, int localZOrder, int tag)
 Adds a child to the container with z order and tag. More...

local addProtectedChild ( local child, local localZOrder, local tag)
 Adds a child to the container with z order and tag. More...

virtual NodegetProtectedChildByTag (int tag)
 Gets a child from the container with its tag. More...

var getProtectedChildByTag ( var tag)
 Gets a child from the container with its tag. More...

local getProtectedChildByTag ( local tag)
 Gets a child from the container with its tag. More...

virtual void removeProtectedChild (Node *child, bool cleanup=true)
 Removes a child from the container. More...

local removeProtectedChild ( local child, local true)
 Removes a child from the container. More...

virtual void removeProtectedChildByTag (int tag, bool cleanup=true)
 Removes a child from the container by tag value. More...

var removeProtectedChildByTag ( var tag, var true)
 Removes a child from the container by tag value. More...

local removeProtectedChildByTag ( local tag, local true)
 Removes a child from the container by tag value. More...

virtual void removeAllProtectedChildren ()
 Removes all children from the container with a cleanup. More...

var removeAllProtectedChildren ()
 Removes all children from the container with a cleanup. More...

local removeAllProtectedChildren ()
 Removes all children from the container with a cleanup. More...

virtual void removeAllProtectedChildrenWithCleanup (bool cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

var removeAllChildren ( var cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

local removeAllChildren ( local cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void reorderProtectedChild (Node *child, int localZOrder)
 Reorders a child according to a new z value. More...

var reorderProtectedChild ( var child, var localZOrder)
 Reorders a child according to a new z value. More...

local reorderProtectedChild ( local child, local localZOrder)
 Reorders a child according to a new z value. More...

virtual void sortAllProtectedChildren ()
 Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

- Public Member Functions inherited from Node
virtual bool isRunning () const
 Returns whether or not the node is "running". More...

var isRunning ()
 Returns whether or not the node is "running". More...

local isRunning ()
 Returns whether or not the node is "running". More...

void scheduleUpdateWithPriorityLua (int handler, int priority)
 Schedules for lua script. More...

virtual void draw (Renderer *renderer, const Mat4 &transform, uint32_t flags)
 Override this method to draw your own node. More...

var draw ( var renderer, var transform, var flags)
 Override this method to draw your own node. More...

local draw ( local renderer, local transform, local flags)
 Override this method to draw your own node. More...

virtual void draw () final
var draw ()
local draw ()
virtual void visit () final
virtual ScenegetScene () const
 Returns the Scene that contains the Node. More...

local getScene ()
 Returns the Scene that contains the Node. More...

virtual Rect getBoundingBox () const
 Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...

virtual Rect boundingBox () const
local boundingBox ()
virtual void setEventDispatcher (EventDispatcher *dispatcher)
var setEventDispatcher ( var dispatcher)
local setEventDispatcher ( local dispatcher)
virtual EventDispatchergetEventDispatcher () const
local getEventDispatcher ()
void setPhysicsBody (PhysicsBody *body)
 set the PhysicsBody that let the sprite effect with physics More...

var setPhysicsBody ( var body)
 set the PhysicsBody that let the sprite effect with physics More...

local setPhysicsBody ( local body)
 set the PhysicsBody that let the sprite effect with physics More...

PhysicsBodygetPhysicsBody () const
 get the PhysicsBody the sprite have More...

var getPhysicsBody ()
 get the PhysicsBody the sprite have More...

local getPhysicsBody ()
 get the PhysicsBody the sprite have More...

void removeFromPhysicsWorld ()
 remove this node from physics world. More...

virtual GLubyte getOpacity () const
var getOpacity ()
local getOpacity ()
virtual GLubyte getDisplayedOpacity () const
local getDisplayedOpacity ()
virtual void setOpacity (GLubyte opacity)
local setOpacity ( local opacity)
virtual bool isCascadeOpacityEnabled () const
var isCascadeOpacityEnabled ()
local isCascadeOpacityEnabled ()
virtual void setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
local setCascadeOpacityEnabled ( local cascadeOpacityEnabled)
virtual const Color3BgetColor () const
local getColor ()
virtual const Color3BgetDisplayedColor () const
local getDisplayedColor ()
virtual void setColor (const Color3B &color)
var setColor ( var color)
local setColor ( local color)
virtual bool isCascadeColorEnabled () const
var isCascadeColorEnabled ()
local isCascadeColorEnabled ()
virtual void setCascadeColorEnabled (bool cascadeColorEnabled)
virtual void setOpacityModifyRGB (bool value)
var setOpacityModifyRGB ( var value)
local setOpacityModifyRGB ( local value)
virtual bool isOpacityModifyRGB () const
var isOpacityModifyRGB ()
local isOpacityModifyRGB ()
void setOnEnterCallback (const std::function< void()> &callback)
var setOnEnterCallback ( var callback)
local setOnEnterCallback ( local callback)
const std::function< void()> & getOnEnterCallback () const
local getOnEnterCallback ()
void setOnExitCallback (const std::function< void()> &callback)
var setOnExitCallback ( var callback)
local setOnExitCallback ( local callback)
const std::function< void()> & getOnExitCallback () const
local getOnExitCallback ()
void setonEnterTransitionDidFinishCallback (const std::function< void()> &callback)
var setonEnterTransitionDidFinishCallback ( var callback)
local setonEnterTransitionDidFinishCallback ( local callback)
const std::function< void()> & getonEnterTransitionDidFinishCallback () const
local getonEnterTransitionDidFinishCallback ()
void setonExitTransitionDidStartCallback (const std::function< void()> &callback)
var setonExitTransitionDidStartCallback ( var callback)
local setonExitTransitionDidStartCallback ( local callback)
const std::function< void()> & getonExitTransitionDidStartCallback () const
local getonExitTransitionDidStartCallback ()
unsigned short getCameraMask () const
 get & set camera mask, the node is visible by the camera whose camera flag & node's camera mask is true More...

void setCameraMask (unsigned short mask, bool applyChildren=true)
var setCameraMask ( var mask, var true)
local setCameraMask ( local mask, local true)
virtual ~Node ()
virtual bool init ()
local init ()
virtual void setLocalZOrder (int localZOrder)
 LocalZOrder is the 'key' used to sort the node relative to its siblings. More...

local setLocalZOrder ( local localZOrder)
 LocalZOrder is the 'key' used to sort the node relative to its siblings. More...

virtual void setZOrder (int localZOrder)
virtual void _setLocalZOrder (int z)
local _setLocalZOrder ( local z)
virtual int getLocalZOrder () const
 Gets the local Z order of this node. More...

var getLocalZOrder ()
 Gets the local Z order of this node. More...

local getLocalZOrder ()
 Gets the local Z order of this node. More...

virtual int getZOrder () const
var getZOrder ()
local getZOrder ()
virtual void setGlobalZOrder (float globalZOrder)
 Defines the oder in which the nodes are renderer. More...

local setGlobalZOrder ( local globalZOrder)
 Defines the oder in which the nodes are renderer. More...

virtual float getGlobalZOrder () const
 Returns the Node's Global Z Order. More...

var getGlobalZOrder ()
 Returns the Node's Global Z Order. More...

local getGlobalZOrder ()
 Returns the Node's Global Z Order. More...

virtual void setScaleZ (float scaleZ)
 Changes the scale factor on Z axis of this node. More...

local setScaleZ ( local scaleZ)
 Changes the scale factor on Z axis of this node. More...

virtual float getScaleZ () const
 Returns the scale factor on Z axis of this node. More...

virtual void setNormalizedPosition (const Vec2 &position)
 Sets the position (x,y) using values between 0 and 1. More...

local setNormalizedPosition ( local position)
 Sets the position (x,y) using values between 0 and 1. More...

virtual const Vec2getPosition () const
 Gets the position (x,y) of the node in its parent's coordinate system. More...

virtual const Vec2getNormalizedPosition () const
 returns the normalized position More...

local getNormalizedPosition ()
 returns the normalized position More...

virtual void setPosition (float x, float y)
 Sets the position (x,y) of the node in its parent's coordinate system. More...

local setPosition ( local x, local y)
 Sets the position (x,y) of the node in its parent's coordinate system. More...

virtual void getPosition (float *x, float *y) const
 Gets position in a more efficient way, returns two number instead of a Vec2 object. More...

virtual void setPositionX (float x)
 Gets/Sets x or y coordinate individually for position. More...

virtual float getPositionX (void) const
var getPositionX ()
local getPositionX ()
virtual void setPositionY (float y)
local setPositionY ( local y)
virtual float getPositionY (void) const
local getPositionY ()
virtual void setPosition3D (const Vec3 &position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

local setPosition3D ( local position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

virtual Vec3 getPosition3D () const
 returns the position (X,Y,Z) in its parent's coordinate system More...

virtual void setPositionZ (float positionZ)
 Sets the 'z' coordinate in the position. More...

local setPositionZ ( local positionZ)
 Sets the 'z' coordinate in the position. More...

virtual void setVertexZ (float vertexZ)
var setVertexZ ( var vertexZ)
local setVertexZ ( local vertexZ)
virtual float getPositionZ () const
 Gets position Z coordinate of this node. More...

virtual float getVertexZ () const
virtual void setSkewX (float skewX)
 Changes the X skew angle of the node in degrees. More...

local setSkewX ( local skewX)
 Changes the X skew angle of the node in degrees. More...

virtual float getSkewX () const
 Returns the X skew angle of the node in degrees. More...

virtual void setSkewY (float skewY)
 Changes the Y skew angle of the node in degrees. More...

var setSkewY ( var skewY)
 Changes the Y skew angle of the node in degrees. More...

local setSkewY ( local skewY)
 Changes the Y skew angle of the node in degrees. More...

virtual float getSkewY () const
 Returns the Y skew angle of the node in degrees. More...

virtual const Vec2getAnchorPoint () const
 Returns the anchor point in percent. More...

virtual const Vec2getAnchorPointInPoints () const
 Returns the anchorPoint in absolute pixels. More...

virtual const SizegetContentSize () const
 Returns the untransformed size of the node. More...

local getContentSize ()
 Returns the untransformed size of the node. More...

virtual bool isVisible () const
 Determines if the node is visible. More...

virtual void setRotation (float rotation)
 Sets the rotation (angle) of the node in degrees. More...

var setRotation ( var rotation)
 Sets the rotation (angle) of the node in degrees. More...

local setRotation ( local rotation)
 Sets the rotation (angle) of the node in degrees. More...

virtual float getRotation () const
 Returns the rotation of the node in degrees. More...

virtual void setRotation3D (const Vec3 &rotation)
 Sets the rotation (X,Y,Z) in degrees. More...

local setRotation3D ( local rotation)
 Sets the rotation (X,Y,Z) in degrees. More...

virtual Vec3 getRotation3D () const
 returns the rotation (X,Y,Z) in degrees. More...

virtual void setRotationSkewX (float rotationX)
 Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

virtual void setRotationX (float rotationX)
virtual float getRotationSkewX () const
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

var getRotationSkewX ()
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

local getRotationSkewX ()
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

virtual float getRotationX () const
virtual void setRotationSkewY (float rotationY)
 Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local setRotationSkewY ( local rotationY)
 Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual void setRotationY (float rotationY)
virtual float getRotationSkewY () const
 Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local getRotationSkewY ()
 Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual float getRotationY () const
void setOrderOfArrival (int orderOfArrival)
 Sets the arrival order when this node has a same ZOrder with other children. More...

int getOrderOfArrival () const
 Returns the arrival order, indicates which children is added previously. More...

void setGLServerState (int serverState)
int getGLServerState () const
virtual void ignoreAnchorPointForPosition (bool ignore)
 Sets whether the anchor point will be (0,0) when you position this node. More...

local ignoreAnchorPointForPosition ( local ignore)
 Sets whether the anchor point will be (0,0) when you position this node. More...

virtual bool isIgnoreAnchorPointForPosition () const
 Gets whether the anchor point will be (0,0) when you position this node. More...

virtual void addChild (Node *child)
 Adds a child to the container with z-order as 0. More...

local addChild ( local child)
 Adds a child to the container with z-order as 0. More...

virtual void addChild (Node *child, int localZOrder)
 Adds a child to the container with a local z-order. More...

local addChild ( local child, local localZOrder)
 Adds a child to the container with a local z-order. More...

virtual void addChild (Node *child, int localZOrder, int tag)
 Adds a child to the container with z order and tag. More...

local addChild ( local child, local localZOrder, local tag)
 Adds a child to the container with z order and tag. More...

virtual void addChild (Node *child, int localZOrder, const std::string &name)
 Adds a child to the container with z order and tag. More...

local addChild ( local child, local localZOrder, local name)
 Adds a child to the container with z order and tag. More...

virtual NodegetChildByTag (int tag) const
 Gets a child from the container with its tag. More...

var getChildByTag ( var tag)
 Gets a child from the container with its tag. More...

local getChildByTag ( local tag)
 Gets a child from the container with its tag. More...

virtual NodegetChildByName (const std::string &name) const
 Gets a child from the container with its name. More...

var getChildByName ( var name)
 Gets a child from the container with its name. More...

local getChildByName ( local name)
 Gets a child from the container with its name. More...

template<typename T >
getChildByName (const std::string &name) const
 Gets a child from the container with its name that can be cast to Type T. More...

virtual void enumerateChildren (const std::string &name, std::function< bool(Node *node)> callback) const
 Search the children of the receiving node to perform processing for nodes which share a name. More...

virtual Vector< Node * > & getChildren ()
 Returns the array of the node's children. More...

local getChildren ()
 Returns the array of the node's children. More...

virtual const Vector< Node * > & getChildren () const
local getChildren ()
virtual ssize_t getChildrenCount () const
 Returns the amount of children. More...

virtual void setParent (Node *parent)
 Sets the parent node. More...

local setParent ( local parent)
 Sets the parent node. More...

virtual NodegetParent ()
 Returns a pointer to the parent node. More...

virtual const NodegetParent () const
local getParent ()
virtual void removeFromParent ()
 Removes this node itself from its parent node with a cleanup. More...

virtual void removeFromParentAndCleanup (bool cleanup)
 Removes this node itself from its parent node. More...

local removeFromParent ( local cleanup)
 Removes this node itself from its parent node. More...

virtual void removeChild (Node *child, bool cleanup=true)
 Removes a child from the container. More...

local removeChild ( local child, local true)
 Removes a child from the container. More...

virtual void removeChildByTag (int tag, bool cleanup=true)
 Removes a child from the container by tag value. More...

local removeChildByTag ( local tag, local true)
 Removes a child from the container by tag value. More...

virtual void removeChildByName (const std::string &name, bool cleanup=true)
 Removes a child from the container by tag value. More...

var removeChildByName ( var name, var true)
 Removes a child from the container by tag value. More...

local removeChildByName ( local name, local true)
 Removes a child from the container by tag value. More...

virtual void removeAllChildren ()
 Removes all children from the container with a cleanup. More...

var removeAllChildren ()
 Removes all children from the container with a cleanup. More...

local removeAllChildren ()
 Removes all children from the container with a cleanup. More...

virtual void removeAllChildrenWithCleanup (bool cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void reorderChild (Node *child, int localZOrder)
 Reorders a child according to a new z value. More...

var reorderChild ( var child, var localZOrder)
 Reorders a child according to a new z value. More...

local reorderChild ( local child, local localZOrder)
 Reorders a child according to a new z value. More...

virtual void sortAllChildren ()
 Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

virtual int getTag () const
 Returns a tag that is used to identify the node easily. More...

local getTag ()
 Returns a tag that is used to identify the node easily. More...

virtual void setTag (int tag)
 Changes the tag that is used to identify the node easily. More...

local setTag ( local tag)
 Changes the tag that is used to identify the node easily. More...

virtual std::string getName () const
 Returns a string that is used to identify the node. More...

local getName ()
 Returns a string that is used to identify the node. More...

virtual void setName (const std::string &name)
 Changes the name that is used to identify the node easily. More...

local setName ( local name)
 Changes the name that is used to identify the node easily. More...

virtual void * getUserData ()
 Returns a custom user data pointer. More...

virtual const void * getUserData () const
virtual void setUserData (void *userData)
 Sets a custom user data pointer. More...

virtual RefgetUserObject ()
 Returns a user assigned Object. More...

virtual const RefgetUserObject () const
virtual void setUserObject (Ref *userObject)
 Returns a user assigned Object. More...

local setUserObject ( local userObject)
 Returns a user assigned Object. More...

GLProgramgetGLProgram () const
 Return the GLProgram (shader) currently used for this node. More...

var getGLProgram ()
 Return the GLProgram (shader) currently used for this node. More...

local getGLProgram ()
 Return the GLProgram (shader) currently used for this node. More...

GLProgramgetShaderProgram () const
var getShaderProgram ()
local getShaderProgram ()
GLProgramStategetGLProgramState () const
var getGLProgramState ()
local getGLProgramState ()
virtual void setGLProgramState (GLProgramState *glProgramState)
virtual void setGLProgram (GLProgram *glprogram)
 Sets the shader program for this node. More...

var setGLProgram ( var glprogram)
 Sets the shader program for this node. More...

local setGLProgram ( local glprogram)
 Sets the shader program for this node. More...

void setShaderProgram (GLProgram *glprogram)
var setShaderProgram ( var glprogram)
local setShaderProgram ( local glprogram)
virtual void setActionManager (ActionManager *actionManager)
 Sets the ActionManager object that is used by all actions. More...

local setActionManager ( local actionManager)
 Sets the ActionManager object that is used by all actions. More...

virtual ActionManagergetActionManager ()
 Gets the ActionManager object that is used by all actions. More...

local getActionManager ()
 Gets the ActionManager object that is used by all actions. More...

virtual const ActionManagergetActionManager () const
local getActionManager ()
ActionrunAction (Action *action)
 Executes an action, and returns the action that is executed. More...

void stopAllActions ()
 Stops and removes all actions from the running action list . More...

var stopAllActions ()
 Stops and removes all actions from the running action list . More...

local stopAllActions ()
 Stops and removes all actions from the running action list . More...

void stopAction (Action *action)
 Stops and removes an action from the running action list. More...

var stopAction ( var action)
 Stops and removes an action from the running action list. More...

local stopAction ( local action)
 Stops and removes an action from the running action list. More...

void stopActionByTag (int tag)
 Removes an action from the running action list by its tag. More...

void stopAllActionsByTag (int tag)
 Removes all actions from the running action list by its tag. More...

var stopAllActionsByTag ( var tag)
 Removes all actions from the running action list by its tag. More...

local stopAllActionsByTag ( local tag)
 Removes all actions from the running action list by its tag. More...

ActiongetActionByTag (int tag)
 Gets an action from the running action list by its tag. More...

ssize_t getNumberOfRunningActions () const
 Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

local getNumberOfRunningActions ()
 Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

ssize_t numberOfRunningActions () const
var numberOfRunningActions ()
local numberOfRunningActions ()
virtual void setScheduler (Scheduler *scheduler)
 Sets a Scheduler object that is used to schedule all "updates" and timers. More...

virtual SchedulergetScheduler ()
 Gets a Sheduler object. More...

local getScheduler ()
 Gets a Sheduler object. More...

virtual const SchedulergetScheduler () const
local getScheduler ()
bool isScheduled (SEL_SCHEDULE selector)
 Checks whether a selector is scheduled. More...

bool isScheduled (const std::string &key)
 Checks whether a lambda function is scheduled. More...

void scheduleUpdate (void)
 Schedules the "update" method. More...

void scheduleUpdateWithPriority (int priority)
 Schedules the "update" method with a custom priority. More...

void unscheduleUpdate (void)
var unscheduleUpdate ()
local unscheduleUpdate ()
void schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
 Schedules a custom selector. More...

void schedule (SEL_SCHEDULE selector, float interval)
 Schedules a custom selector with an interval time in seconds. More...

void scheduleOnce (SEL_SCHEDULE selector, float delay)
 Schedules a selector that runs only once, with a delay of 0 or larger. More...

void scheduleOnce (const std::function< void(float)> &callback, float delay, const std::string &key)
 Schedules a lambda function that runs only once, with a delay of 0 or larger. More...

void schedule (SEL_SCHEDULE selector)
 Schedules a custom selector, the scheduled selector will be ticked every frame. More...

void schedule (const std::function< void(float)> &callback, const std::string &key)
 Schedules a lambda function. More...

var schedule ( var callback, var key)
 Schedules a lambda function. More...

void schedule (const std::function< void(float)> &callback, float interval, const std::string &key)
 Schedules a lambda function. More...

void schedule (const std::function< void(float)> &callback, float interval, unsigned int repeat, float delay, const std::string &key)
 Schedules a lambda function. More...

void unschedule (SEL_SCHEDULE selector)
 Unschedules a custom selector. More...

void unschedule (const std::string &key)
 Unschedules a lambda function. More...

void unscheduleAllCallbacks ()
 Unschedule all scheduled selectors and lambda functions: custom selectors, and the 'update' selector and lambda functions Actions are not affected by this method. More...

void unscheduleAllSelectors ()
var unscheduleAllSelectors ()
local unscheduleAllSelectors ()
virtual void resume (void)
 Resumes all scheduled selectors, actions and event listeners. More...

var resume ()
 Resumes all scheduled selectors, actions and event listeners. More...

local resume ()
 Resumes all scheduled selectors, actions and event listeners. More...

virtual void pause (void)
 Pauses all scheduled selectors, actions and event listeners. More...

var pause ()
 Pauses all scheduled selectors, actions and event listeners. More...

local pause ()
 Pauses all scheduled selectors, actions and event listeners. More...

void resumeSchedulerAndActions ()
 Resumes all scheduled selectors, actions and event listeners. More...

void pauseSchedulerAndActions ()
 Pauses all scheduled selectors, actions and event listeners. More...

virtual void update (float delta)
var update ( var delta)
local update ( local delta)
virtual void updateTransform ()
 Calls children's updateTransform() method recursively. More...

var updateTransform ()
 Calls children's updateTransform() method recursively. More...

local updateTransform ()
 Calls children's updateTransform() method recursively. More...

virtual const Mat4getNodeToParentTransform () const
 Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

local getNodeToParentTransform ()
 Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

virtual AffineTransform getNodeToParentAffineTransform () const
local getNodeToParentAffineTransform ()
virtual void setNodeToParentTransform (const Mat4 &transform)
 Sets the Transformation matrix manually. More...

local setNodeToParentTransform ( local transform)
 Sets the Transformation matrix manually. More...

virtual AffineTransform nodeToParentTransform () const
local nodeToParentTransform ()
virtual const Mat4getParentToNodeTransform () const
 Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

virtual AffineTransform getParentToNodeAffineTransform () const
local getParentToNodeAffineTransform ()
virtual AffineTransform parentToNodeTransform () const
local parentToNodeTransform ()
virtual Mat4 getNodeToWorldTransform () const
 Returns the world affine transform matrix. More...

var getNodeToWorldTransform ()
 Returns the world affine transform matrix. More...

local getNodeToWorldTransform ()
 Returns the world affine transform matrix. More...

virtual AffineTransform getNodeToWorldAffineTransform () const
local getNodeToWorldAffineTransform ()
virtual AffineTransform nodeToWorldTransform () const
local nodeToWorldTransform ()
virtual Mat4 getWorldToNodeTransform () const
 Returns the inverse world affine transform matrix. More...

var getWorldToNodeTransform ()
 Returns the inverse world affine transform matrix. More...

local getWorldToNodeTransform ()
 Returns the inverse world affine transform matrix. More...

virtual AffineTransform getWorldToNodeAffineTransform () const
local getWorldToNodeAffineTransform ()
virtual AffineTransform worldToNodeTransform () const
local worldToNodeTransform ()
Vec2 convertToNodeSpace (const Vec2 &worldPoint) const
 Converts a Vec2 to node (local) space coordinates. More...

var convertToNodeSpace ( var worldPoint)
 Converts a Vec2 to node (local) space coordinates. More...

local convertToNodeSpace ( local worldPoint)
 Converts a Vec2 to node (local) space coordinates. More...

Vec2 convertToWorldSpace (const Vec2 &nodePoint) const
 Converts a Vec2 to world space coordinates. More...

var convertToWorldSpace ( var nodePoint)
 Converts a Vec2 to world space coordinates. More...

local convertToWorldSpace ( local nodePoint)
 Converts a Vec2 to world space coordinates. More...

Vec2 convertToNodeSpaceAR (const Vec2 &worldPoint) const
 Converts a Vec2 to node (local) space coordinates. More...

Vec2 convertToWorldSpaceAR (const Vec2 &nodePoint) const
 Converts a local Vec2 to world space coordinates.The result is in Points. More...

Vec2 convertTouchToNodeSpace (Touch *touch) const
 convenience methods which take a Touch instead of Vec2 More...

Vec2 convertTouchToNodeSpaceAR (Touch *touch) const
 converts a Touch (world coordinates) into a local coordinate. More...

var convertTouchToNodeSpaceAR ( var touch)
 converts a Touch (world coordinates) into a local coordinate. More...

local convertTouchToNodeSpaceAR ( local touch)
 converts a Touch (world coordinates) into a local coordinate. More...

void setAdditionalTransform (Mat4 *additionalTransform)
 Sets an additional transform matrix to the node. More...

var setAdditionalTransform ( var additionalTransform)
 Sets an additional transform matrix to the node. More...

local setAdditionalTransform ( local additionalTransform)
 Sets an additional transform matrix to the node. More...

void setAdditionalTransform (const AffineTransform &additionalTransform)
var setAdditionalTransform ( var additionalTransform)
local setAdditionalTransform ( local additionalTransform)
ComponentgetComponent (const std::string &name)
 gets a component by its name More...

local getComponent ( local name)
 gets a component by its name More...

virtual bool addComponent (Component *component)
 adds a component More...

local addComponent ( local component)
 adds a component More...

virtual bool removeComponent (const std::string &name)
 removes a component by its name More...

local removeComponent ( local name)
 removes a component by its name More...

virtual bool removeComponent (Component *component)
 removes a component by its pointer More...

var removeComponent ( var component)
 removes a component by its pointer More...

local removeComponent ( local component)
 removes a component by its pointer More...

virtual void removeAllComponents ()
 removes all components More...

var removeAllComponents ()
 removes all components More...

local removeAllComponents ()
 removes all components More...

- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Releases the ownership immediately. More...

Refautorelease ()
 Releases the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

virtual ~Ref ()
- Public Member Functions inherited from LayoutParameterProtocol
virtual ~LayoutParameterProtocol ()
- Public Member Functions inherited from IMEDelegate
virtual ~IMEDelegate ()
virtual bool attachWithIME ()
virtual bool detachWithIME ()

Static Public Member Functions

static EditBoxcreate (const Size &size, Scale9Sprite *normalSprite, Scale9Sprite *pressedSprite=nullptr, Scale9Sprite *disabledSprite=nullptr)
 create a edit box with size. More...

static EditBoxcreate (const Size &size, const std::string &pNormal9SpriteBg, TextureResType texType=TextureResType::LOCAL)
 create a edit box with size. More...

- Static Public Member Functions inherited from Widget
static Widgetcreate ()
 Allocates and initializes a widget. More...

static void enableDpadNavigation (bool enable)
- Static Public Member Functions inherited from ProtectedNode
static ProtectedNodecreate (void)
- Static Public Member Functions inherited from Node
static Nodecreate ()
 Allocates and initializes a node. More...


Protected Member Functions

virtual void adaptRenderers ()
void updatePosition (float dt)
- Protected Member Functions inherited from Widget
virtual void onSizeChanged ()
virtual void initRenderer ()
virtual void onPressStateChangedToNormal ()
virtual void onPressStateChangedToPressed ()
virtual void onPressStateChangedToDisabled ()
void pushDownEvent ()
void moveEvent ()
virtual void releaseUpEvent ()
virtual void cancelUpEvent ()
void updateChildrenDisplayedRGBA ()
void copyProperties (Widget *model)
virtual WidgetcreateCloneInstance ()
virtual void copySpecialProperties (Widget *model)
virtual void copyClonedWidgetChildren (Widget *model)
WidgetgetWidgetParent ()
void updateContentSizeWithTextureSize (const Size &size)
bool isAncestorsEnabled ()
WidgetgetAncensterWidget (Node *node)
bool isAncestorsVisible (Node *node)
void cleanupWidget ()
LayoutComponentgetOrCreateLayoutComponent ()
- Protected Member Functions inherited from ProtectedNode
void insertProtectedChild (Node *child, int z)
 helper that reorder a child More...

var insertProtectedChild ( var child, var z)
 helper that reorder a child More...

local insertProtectedChild ( local child, local z)
 helper that reorder a child More...

- Protected Member Functions inherited from Node
void childrenAlloc (void)
 lazy allocs More...

var childrenAlloc ()
 lazy allocs More...

local childrenAlloc ()
 lazy allocs More...

void insertChild (Node *child, int z)
 helper that reorder a child More...

var insertChild ( var child, var z)
 helper that reorder a child More...

local insertChild ( local child, local z)
 helper that reorder a child More...

void detachChild (Node *child, ssize_t index, bool doCleanup)
 Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

Vec2 convertToWindowSpace (const Vec2 &nodePoint) const
 Convert cocos2d coordinates to UI windows coordinate. More...

Mat4 transform (const Mat4 &parentTransform)
var transform ( var parentTransform)
local transform ( local parentTransform)
uint32_t processParentFlags (const Mat4 &parentTransform, uint32_t parentFlags)
var processParentFlags ( var parentTransform, var parentFlags)
local processParentFlags ( local parentTransform, local parentFlags)
virtual void updateCascadeOpacity ()
var updateCascadeOpacity ()
local updateCascadeOpacity ()
virtual void updateCascadeColor ()
local updateCascadeColor ()
virtual void updateColor ()
var updateColor ()
local updateColor ()
bool doEnumerate (std::string name, std::function< bool(Node *)> callback) const
var doEnumerate ( var name, var callback)
local doEnumerate ( local name, local callback)
bool doEnumerateRecursive (const Node *node, const std::string &name, std::function< bool(Node *)> callback) const
var doEnumerateRecursive ( var node, var name, var callback)
local doEnumerateRecursive ( local node, local name, local callback)
bool isVisitableByVisitingCamera () const
var isVisitableByVisitingCamera ()
local isVisitableByVisitingCamera ()
void updatePhysicsBodyTransform (Scene *layer)
var updatePhysicsBodyTransform ( var layer)
local updatePhysicsBodyTransform ( local layer)
virtual void updatePhysicsBodyPosition (Scene *layer)
local updatePhysicsBodyPosition ( local layer)
virtual void updatePhysicsBodyRotation (Scene *layer)
var updatePhysicsBodyRotation ( var layer)
local updatePhysicsBodyRotation ( local layer)
virtual void updatePhysicsBodyScale (Scene *scene)
var updatePhysicsBodyScale ( var scene)
local updatePhysicsBodyScale ( local scene)
- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...

- Protected Member Functions inherited from IMEDelegate
virtual bool canAttachWithIME ()
 Decide if the delegate instance is ready to receive an IME message. More...

virtual void didAttachWithIME ()
 When the delegate detaches from the IME, this method is called by IMEDispatcher. More...

virtual bool canDetachWithIME ()
 Decide if the delegate instance can stop receiving IME messages. More...

virtual void didDetachWithIME ()
 When the delegate detaches from the IME, this method is called by IMEDispatcher. More...

virtual void insertText (const char *text, size_t len)
 Called by IMEDispatcher when text input received from the IME. More...

virtual void deleteBackward ()
 Called by IMEDispatcher after the user clicks the backward key. More...

virtual const std::string & getContentText ()
 Called by IMEDispatcher for text stored in delegate. More...

 IMEDelegate ()

Protected Attributes

EditBoxImpl_editBoxImpl
EditBoxDelegate_delegate
InputMode _editBoxInputMode
InputFlag _editBoxInputFlag
EditBox::KeyboardReturnType _keyboardReturnType
Scale9Sprite_backgroundSprite
std::string _text
std::string _placeHolder
std::string _fontName
std::string _placeholderFontName
int _fontSize
int _placeholderFontSize
Color3B _colText
Color3B _colPlaceHolder
int _maxLength
float _adjustHeight
- Protected Attributes inherited from Widget
bool _unifySize
bool _enabled
bool _bright
bool _touchEnabled
bool _highlight
bool _affectByClipping
bool _ignoreSize
bool _propagateTouchEvents
BrightStyle _brightStyle
SizeType _sizeType
PositionType _positionType
int _actionTag
Size _customSize
Vec2 _sizePercent
Vec2 _positionPercent
bool _hitted
EventListenerTouchOneByOne_touchListener
Vec2 _touchBeganPosition
Vec2 _touchMovePosition
Vec2 _touchEndPosition
bool _flippedX
bool _flippedY
Map< int, LayoutParameter * > _layoutParameterDictionary
LayoutParameter::Type _layoutParameterType
bool _focused
bool _focusEnabled
Ref_touchEventListener
SEL_TouchEvent _touchEventSelector
ccWidgetTouchCallback _touchEventCallback
ccWidgetClickCallback _clickEventListener
ccWidgetEventCallback _ccEventCallback
std::string _callbackType
std::string _callbackName
- Protected Attributes inherited from ProtectedNode
Vector< Node * > _protectedChildren
 array of children nodes More...

bool _reorderProtectedChildDirty
var _reorderProtectedChildDirty
local _reorderProtectedChildDirty
- Protected Attributes inherited from Node
float _rotationX
 rotation on the X-axis More...

local _rotationX
 rotation on the X-axis More...

float _rotationY
 rotation on the Y-axis More...

var _rotationY
 rotation on the Y-axis More...

local _rotationY
 rotation on the Y-axis More...

float _rotationZ_X
 rotation angle on Z-axis, component X More...

var _rotationZ_X
 rotation angle on Z-axis, component X More...

local _rotationZ_X
 rotation angle on Z-axis, component X More...

float _rotationZ_Y
 rotation angle on Z-axis, component Y More...

var _rotationZ_Y
 rotation angle on Z-axis, component Y More...

local _rotationZ_Y
 rotation angle on Z-axis, component Y More...

float _scaleX
 scaling factor on x-axis More...

var _scaleX
 scaling factor on x-axis More...

local _scaleX
 scaling factor on x-axis More...

float _scaleY
 scaling factor on y-axis More...

var _scaleY
 scaling factor on y-axis More...

local _scaleY
 scaling factor on y-axis More...

float _scaleZ
 scaling factor on z-axis More...

var _scaleZ
 scaling factor on z-axis More...

local _scaleZ
 scaling factor on z-axis More...

Vec2 _position
 position of the node More...

var _position
 position of the node More...

local _position
 position of the node More...

float _positionZ
 OpenGL real Z position. More...

var _positionZ
 OpenGL real Z position. More...

local _positionZ
 OpenGL real Z position. More...

Vec2 _normalizedPosition
var _normalizedPosition
local _normalizedPosition
bool _usingNormalizedPosition
var _usingNormalizedPosition
local _usingNormalizedPosition
bool _normalizedPositionDirty
var _normalizedPositionDirty
local _normalizedPositionDirty
float _skewX
 skew angle on x-axis More...

var _skewX
 skew angle on x-axis More...

local _skewX
 skew angle on x-axis More...

float _skewY
 skew angle on y-axis More...

var _skewY
 skew angle on y-axis More...

local _skewY
 skew angle on y-axis More...

Vec2 _anchorPointInPoints
 anchor point in points More...

var _anchorPointInPoints
 anchor point in points More...

local _anchorPointInPoints
 anchor point in points More...

Vec2 _anchorPoint
 anchor point normalized (NOT in points) More...

var _anchorPoint
 anchor point normalized (NOT in points) More...

local _anchorPoint
 anchor point normalized (NOT in points) More...

Size _contentSize
 untransformed size of the node More...

var _contentSize
 untransformed size of the node More...

local _contentSize
 untransformed size of the node More...

bool _contentSizeDirty
 whether or not the contentSize is dirty More...

var _contentSizeDirty
 whether or not the contentSize is dirty More...

local _contentSizeDirty
 whether or not the contentSize is dirty More...

Mat4 _modelViewTransform
 ModelView transform of the Node. More...

var _modelViewTransform
 ModelView transform of the Node. More...

local _modelViewTransform
 ModelView transform of the Node. More...

Mat4 _transform
 transform More...

var _transform
 transform More...

local _transform
 transform More...

bool _transformDirty
 transform dirty flag More...

var _transformDirty
 transform dirty flag More...

local _transformDirty
 transform dirty flag More...

Mat4 _inverse
 inverse transform More...

var _inverse
 inverse transform More...

local _inverse
 inverse transform More...

bool _inverseDirty
 inverse transform dirty flag More...

var _inverseDirty
 inverse transform dirty flag More...

local _inverseDirty
 inverse transform dirty flag More...

Mat4 _additionalTransform
 transform More...

var _additionalTransform
 transform More...

local _additionalTransform
 transform More...

bool _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

var _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

local _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

bool _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

var _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

local _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

int _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

var _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

local _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

float _globalZOrder
 Global order used to sort the node. More...

var _globalZOrder
 Global order used to sort the node. More...

local _globalZOrder
 Global order used to sort the node. More...

Vector< Node * > _children
 array of children nodes More...

var _children
 array of children nodes More...

local _children
 array of children nodes More...

Node_parent
 weak reference to parent node More...

var _parent
 weak reference to parent node More...

local _parent
 weak reference to parent node More...

int _tag
 a tag. Can be any number you assigned just to identify this node More...

var _tag
 a tag. Can be any number you assigned just to identify this node More...

local _tag
 a tag. Can be any number you assigned just to identify this node More...

std::string _name
 a string label, an user defined string to identify this node More...

var _name
 a string label, an user defined string to identify this node More...

local _name
 a string label, an user defined string to identify this node More...

size_t _hashOfName
 hash value of _name, used for speed in getChildByName More...

var _hashOfName
 hash value of _name, used for speed in getChildByName More...

local _hashOfName
 hash value of _name, used for speed in getChildByName More...

void * _userData
 A user assingned void pointer, Can be point to any cpp object. More...

var _userData
 A user assingned void pointer, Can be point to any cpp object. More...

local _userData
 A user assingned void pointer, Can be point to any cpp object. More...

Ref_userObject
 A user assigned Object. More...

var _userObject
 A user assigned Object. More...

local _userObject
 A user assigned Object. More...

GLProgramState_glProgramState
 OpenGL Program State. More...

var _glProgramState
 OpenGL Program State. More...

local _glProgramState
 OpenGL Program State. More...

int _orderOfArrival
 used to preserve sequence while sorting children with the same localZOrder More...

Scheduler_scheduler
 scheduler used to schedule timers and updates More...

var _scheduler
 scheduler used to schedule timers and updates More...

local _scheduler
 scheduler used to schedule timers and updates More...

ActionManager_actionManager
 a pointer to ActionManager singleton, which is used to handle all the actions More...

EventDispatcher_eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

var _eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

local _eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

bool _running
 is running More...

var _running
 is running More...

local _running
 is running More...

bool _visible
 is this node visible More...

var _visible
 is this node visible More...

local _visible
 is this node visible More...

bool _ignoreAnchorPointForPosition
 true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...

var _ignoreAnchorPointForPosition
 true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...

local _ignoreAnchorPointForPosition
 true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...

bool _reorderChildDirty
 children order dirty flag More...

var _reorderChildDirty
 children order dirty flag More...

local _reorderChildDirty
 children order dirty flag More...

bool _isTransitionFinished
 flag to indicate whether the transition was finished More...

var _isTransitionFinished
 flag to indicate whether the transition was finished More...

local _isTransitionFinished
 flag to indicate whether the transition was finished More...

ComponentContainer_componentContainer
 Dictionary of components. More...

var _componentContainer
 Dictionary of components. More...

local _componentContainer
 Dictionary of components. More...

PhysicsBody_physicsBody
 the physicsBody the node have More...

var _physicsBody
 the physicsBody the node have More...

local _physicsBody
 the physicsBody the node have More...

float _physicsScaleStartX
 the scale x value when setPhysicsBody More...

var _physicsScaleStartX
 the scale x value when setPhysicsBody More...

local _physicsScaleStartX
 the scale x value when setPhysicsBody More...

float _physicsScaleStartY
 the scale y value when setPhysicsBody More...

var _physicsScaleStartY
 the scale y value when setPhysicsBody More...

local _physicsScaleStartY
 the scale y value when setPhysicsBody More...

GLubyte _displayedOpacity
GLubyte _realOpacity
var _realOpacity
local _realOpacity
Color3B _displayedColor
var _displayedColor
local _displayedColor
Color3B _realColor
var _realColor
local _realColor
bool _cascadeColorEnabled
var _cascadeColorEnabled
local _cascadeColorEnabled
bool _cascadeOpacityEnabled
var _cascadeOpacityEnabled
local _cascadeOpacityEnabled
unsigned short _cameraMask
var _cameraMask
local _cameraMask
std::function< void()> _onEnterCallback
var _onEnterCallback
local _onEnterCallback
std::function< void()> _onExitCallback
var _onExitCallback
local _onExitCallback
std::function< void()> _onEnterTransitionDidFinishCallback
var _onEnterTransitionDidFinishCallback
local _onEnterTransitionDidFinishCallback
std::function< void()> _onExitTransitionDidStartCallback
- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...


Additional Inherited Members

- Public Attributes inherited from Widget
std::function< void(Widget
*, Widget *)>
onFocusChanged
 When a widget lose/get focus, this method will be called. More...

std::function< Widget
*(FocusDirection)>
onNextFocusedWidget
 use this function to manually specify the next focused widget regards to each direction More...

CC_CONSTRUCTOR_ACCESS __pad0__: virtual bool init() override
- Public Attributes inherited from ProtectedNode
CC_CONSTRUCTOR_ACCESS __pad0__: ProtectedNode()
- Public Attributes inherited from Node
CC_CONSTRUCTOR_ACCESS __pad0__: Node()
- Static Public Attributes inherited from Node
static const int INVALID_TAG = -1
 Default tag used for all the nodes. More...

var INVALID_TAG = -1
 Default tag used for all the nodes. More...

local INVALID_TAG = -1
 Default tag used for all the nodes. More...

- Static Protected Attributes inherited from Widget
static Widget_focusedWidget
 store the only one focued widget More...

- Static Protected Attributes inherited from Node
static int s_globalOrderOfArrival
var s_globalOrderOfArrival
local s_globalOrderOfArrival

Detailed Description

Class for edit box.

You can use this widget to gather small amounts of text from the user.

Member Enumeration Documentation

enum InputFlag
strong

The EditBox::InputFlag defines how the input text is displayed/formatted.

Enumerator
PASSWORD

Indicates that the text entered is confidential data that should be obscured whenever possible.

This implies EDIT_BOX_INPUT_FLAG_SENSITIVE.

SENSITIVE

Indicates that the text entered is sensitive data that the implementation must never store into a dictionary or table for use in predictive, auto-completing, or other accelerated input schemes.

A credit card number is an example of sensitive data.

INITIAL_CAPS_WORD

This flag is a hint to the implementation that during text editing, the initial letter of each word should be capitalized.

INITIAL_CAPS_SENTENCE

This flag is a hint to the implementation that during text editing, the initial letter of each sentence should be capitalized.

INTIAL_CAPS_ALL_CHARACTERS

Capitalize all characters automatically.

enum InputMode
strong

The EditBox::InputMode defines the type of text that the user is allowed to enter.

Enumerator
ANY

The user is allowed to enter any text, including line breaks.

EMAIL_ADDRESS

The user is allowed to enter an e-mail address.

NUMERIC

The user is allowed to enter an integer value.

PHONE_NUMBER

The user is allowed to enter a phone number.

URL

The user is allowed to enter a URL.

DECIMAL

The user is allowed to enter a real number value.

This extends kEditBoxInputModeNumeric by allowing a decimal point.

SINGLE_LINE

The user is allowed to enter any text, except for line breaks.

enum KeyboardReturnType
strong
Enumerator
DEFAULT
DONE
SEND
SEARCH
GO

Constructor & Destructor Documentation

EditBox ( void  )

Constructor.

virtual ~EditBox ( void  )
virtual

Destructor.

Member Function Documentation

virtual void adaptRenderers ( )
protectedvirtual

Reimplemented from Widget.

static EditBox* create ( const Size size,
Scale9Sprite normalSprite,
Scale9Sprite pressedSprite = nullptr,
Scale9Sprite disabledSprite = nullptr
)
static

create a edit box with size.

Returns
An autorelease pointer of EditBox, you don't need to release it only if you retain it again.
static EditBox* create ( const Size size,
const std::string &  pNormal9SpriteBg,
TextureResType  texType = TextureResType::LOCAL
)
static

create a edit box with size.

Returns
An autorelease pointer of EditBox, you don't need to release it only if you retain it again.
EditBoxDelegate* getDelegate ( )
int getMaxLength ( )

Gets the maximum input length of the edit box.

Returns
Maximum input length.
const char* getPlaceHolder ( void  )

Get a text in the edit box that acts as a placeholder when an edit box is empty.

const char* getText ( void  )

Get the text entered in the edit box.

Returns
The text entered in the edit box.
bool
initWithSizeAndBackgroundSprite
( const Size size,
const std::string &  pNormal9SpriteBg,
TextureResType  texType = TextureResType::LOCAL
)

Init edit box with specified size.

This method should be invoked right after constructor.

Parameters
sizeThe size of edit box.
bool
initWithSizeAndBackgroundSprite
( const Size size,
Scale9Sprite pNormal9SpriteBg
)
virtual void keyboardDidHide ( IMEKeyboardNotificationInfo info)
overridevirtual

Reimplemented from IMEDelegate.

virtual void keyboardDidShow ( IMEKeyboardNotificationInfo info)
overridevirtual

Reimplemented from IMEDelegate.

virtual void keyboardWillHide ( IMEKeyboardNotificationInfo info)
overridevirtual

Reimplemented from IMEDelegate.

virtual void keyboardWillShow ( IMEKeyboardNotificationInfo info)
overridevirtual

Reimplemented from IMEDelegate.

virtual void onEnter ( void  )
overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Widget.

virtual void onExit ( void  )
overridevirtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented from Widget.

virtual void setAnchorPoint ( const Vec2 anchorPoint)
overridevirtual

Sets the anchor point in percent.

anchorPoint is the point around which all transformations and positioning manipulations take place. It's like a pin in the node where it is "attached" to its parent. The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. But you can use values higher than (1,1) and lower than (0,0) too. The default anchorPoint is (0.5,0.5), so it starts in the center of the node.

Note
If node has a physics body, the anchor must be in the middle, you cann't change this to other value.
Parameters
anchorPointThe anchor point of node.

Reimplemented from Node.

virtual void setContentSize ( const Size contentSize)
overridevirtual

Sets the untransformed size of the node.

The contentSize remains the same no matter the node is scaled or rotated. All nodes has a size. Layer and Scene has the same size of the screen.

Parameters
contentSizeThe untransformed size of the node.

Reimplemented from Widget.

void setDelegate ( EditBoxDelegate pDelegate)

Gets/Sets the delegate for edit box.

void setFont ( const char *  pFontName,
int  fontSize
)

Set the font.

Parameters
pFontNameThe font name.
fontSizeThe font size.
void setFontColor ( const Color3B color)

Set the font color of the widget's text.

void setFontName ( const char *  pFontName)

Set the font name.

Parameters
pFontNameThe font name.
void setFontSize ( int  fontSize)

Set the font size.

Parameters
fontSizeThe font size.
void setInputFlag ( InputFlag  inputFlag)

Set the input flags that are to be applied to the edit box.

Parameters
inputFlagOne of the EditBox::InputFlag constants.
void setInputMode ( InputMode  inputMode)

Set the input mode of the edit box.

Parameters
inputModeOne of the EditBox::InputMode constants.
void setMaxLength ( int  maxLength)

Sets the maximum input length of the edit box.

Setting this value enables multiline input mode by default. Available on Android, iOS and Windows Phone.

Parameters
maxLengthThe maximum length.
void setPlaceHolder ( const char *  pText)

Set a text in the edit box that acts as a placeholder when an edit box is empty.

Parameters
pTextThe given text.
void setPlaceholderFont ( const char *  pFontName,
int  fontSize
)

Set the placeholder's font.

Parameters
pFontNameThe font name.
fontSizeThe font size.
void setPlaceholderFontColor ( const Color3B color)

Set the font color of the placeholder text when the edit box is empty.

Not supported on IOS.

void setPlaceholderFontName ( const char *  pFontName)

Set the placeholder's font name.

Parameters
pFontNameThe font name.
void setPlaceholderFontSize ( int  fontSize)

Set the placeholder's font size.

Parameters
fontSizeThe font size.
virtual void setPosition ( const Vec2 pos)
overridevirtual

Changes the position (x,y) of the widget in OpenGL coordinates.

Usually we use p(x,y) to compose Vec2 object. The original point (0,0) is at the left-bottom corner of screen.

Parameters
positionThe position (x,y) of the widget in OpenGL coordinates

Reimplemented from Widget.

void setReturnType ( EditBox::KeyboardReturnType  returnType)

Set the return type that are to be applied to the edit box.

Parameters
returnTypeOne of the EditBox::KeyboardReturnType constants.
void setText ( const char *  pText)

Set the text entered in the edit box.

Parameters
pTextThe given text.
virtual void setVisible ( bool  visible)
overridevirtual

Sets whether the node is visible.

The default value is true, a node is default to visible

Parameters
visibletrue if the node is visible, false if the node is hidden.

Reimplemented from Node.

void touchDownAction ( Ref sender,
TouchEventType  controlEvent
)
void updatePosition ( float  dt)
protected
virtual void visit ( Renderer renderer,
const Mat4 parentTransform,
uint32_t  parentFlags
)
overridevirtual

Visits this node's children and draw them recursively.

Reimplemented from Widget.

Member Data Documentation

float _adjustHeight
protected
Scale9Sprite* _backgroundSprite
protected
Color3B _colPlaceHolder
protected
Color3B _colText
protected
EditBoxDelegate* _delegate
protected
EditBoxImpl* _editBoxImpl
protected
InputFlag _editBoxInputFlag
protected
InputMode _editBoxInputMode
protected
std::string _fontName
protected
int _fontSize
protected
EditBox::KeyboardReturnType
_keyboardReturnType
protected
int _maxLength
protected
std::string _placeHolder
protected
std::string _placeholderFontName
protected
int _placeholderFontSize
protected
std::string _text
protected

The documentation for this class was generated from the following file:
