OrbitCamera Class Reference

OrbitCamera action Orbits the camera around the center of the screen using spherical coordinates. More...

#include <CCActionCamera.h>

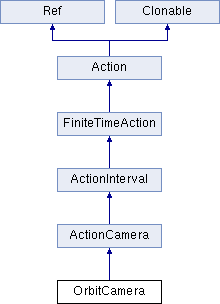

Inheritance diagram for OrbitCamera:
ActionCamera ActionInterval FiniteTimeAction Action Ref Clonable

Public Member Functions

void sphericalRadius (float *r, float *zenith, float *azimuth)
 positions the camera according to spherical coordinates More...

OrbitCameraclone () const override
 returns a clone of action More...

virtual void startWithTarget (Node *target) override
 called before the action start. It will also set the target. More...

virtual void update (float time) override
 called once per frame. More...

virtual ~OrbitCamera ()
bool initWithDuration (float t, float radius, float deltaRadius, float angleZ, float deltaAngleZ, float angleX, float deltaAngleX)
 initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX More...

- Public Member Functions inherited from ActionCamera
 ActionCamera ()
 ctor ()
 ActionCamera ()
virtual ~ActionCamera ()
virtual ActionCamerareverse () const override
 returns a new action that performs the exactly the reverse action More...

local reverse ()
 returns a new action that performs the exactly the reverse action More...

void setEye (const Vec3 &eye)
local setEye ( local eye)
void setEye (float x, float y, float z)
var setEye ( var x, var y, var z)
local setEye ( local x, local y, local z)
const Vec3getEye () const
local getEye ()
void setCenter (const Vec3 &center)
local setCenter ( local center)
const Vec3getCenter () const
var getCenter ()
local getCenter ()
void setUp (const Vec3 &up)
local setUp ( local up)
const Vec3getUp () const
local getUp ()
- Public Member Functions inherited from ActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

var getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

local getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

void setAmplitudeRate (float amp)
local setAmplitudeRate ( local amp)
float getAmplitudeRate (void)
local getAmplitudeRate ()
virtual bool isDone (void) const override
 return true if the action has finished More...

var isDone ()
 return true if the action has finished More...

local isDone ()
 return true if the action has finished More...

virtual void step (float dt) override
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local step ( local dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

- Public Member Functions inherited from FiniteTimeAction
float getDuration () const
 get duration in seconds of the action More...

var getDuration ()
 get duration in seconds of the action More...

local getDuration ()
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

var setDuration ( var duration)
 set duration in seconds of the action More...

local setDuration ( local duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from Action
virtual std::string description () const
virtual void stop ()
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

NodegetTarget () const
var getTarget ()
local getTarget ()
void setTarget (Node *target)
 The action will modify the target properties. More...

var setTarget ( var target)
 The action will modify the target properties. More...

local setTarget ( local target)
 The action will modify the target properties. More...

NodegetOriginalTarget () const
var getOriginalTarget ()
local getOriginalTarget ()
void setOriginalTarget (Node *originalTarget)
 Set the original target, since target can be nil. More...

var setOriginalTarget ( var originalTarget)
 Set the original target, since target can be nil. More...

local setOriginalTarget ( local originalTarget)
 Set the original target, since target can be nil. More...

int getTag () const
var getTag ()
local getTag ()
void setTag (int tag)
var setTag ( var tag)
local setTag ( local tag)
virtual ~Action ()
var ~Action ()
local ~Action ()
- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Releases the ownership immediately. More...

Refautorelease ()
 Releases the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

local getReferenceCount ()
 Returns the Ref's current reference count. More...

virtual ~Ref ()
- Public Member Functions inherited from Clonable
virtual ~Clonable ()
Refcopy () const
 returns a copy of the Ref. More...

var copy ()
 returns a copy of the Ref. More...

local copy ()
 returns a copy of the Ref. More...


Static Public Member Functions

static OrbitCameracreate (float t, float radius, float deltaRadius, float angleZ, float deltaAngleZ, float angleX, float deltaAngleX)
 creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX More...


Public Attributes

CC_CONSTRUCTOR_ACCESS __pad0__: OrbitCamera()
- Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS __pad0__: bool initWithDuration(float d)
local __pad0__: bool initWithDuration(float d)
- Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS __pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var __pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local __pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
- Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS __pad0__: Action()

Protected Attributes

float _radius
float _deltaRadius
float _angleZ
float _deltaAngleZ
float _angleX
float _deltaAngleX
float _radZ
float _radDeltaZ
float _radX
float _radDeltaX
- Protected Attributes inherited from ActionCamera
Vec3 _center
Vec3 _eye
var _eye
local _eye
Vec3 _up
var _up
local _up
- Protected Attributes inherited from ActionInterval
float _elapsed
var _elapsed
local _elapsed
bool _firstTick
var _firstTick
local _firstTick
- Protected Attributes inherited from Action
Node_originalTarget
Node_target
 The "target". More...

int _tag
 The action tag. More...

- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...

local _referenceCount
 count of references More...


Additional Inherited Members

- Static Public Attributes inherited from Action
static const int INVALID_TAG = -1
 Default tag used for all the actions. More...

var INVALID_TAG = -1
 Default tag used for all the actions. More...

local INVALID_TAG = -1
 Default tag used for all the actions. More...

- Protected Member Functions inherited from ActionCamera
void restore ()
var restore ()
local restore ()
void updateTransform ()
var updateTransform ()
local updateTransform ()
- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...

 Ref ()
 Constructor. More...


Detailed Description

OrbitCamera action Orbits the camera around the center of the screen using spherical coordinates.

Constructor & Destructor Documentation

virtual ~OrbitCamera ( )
virtual

Member Function Documentation

OrbitCamera* clone ( ) const
overridevirtual

returns a clone of action

Reimplemented from ActionCamera.

static OrbitCamera* create ( float  t,
float  radius,
float  deltaRadius,
float  angleZ,
float  deltaAngleZ,
float  angleX,
float  deltaAngleX
)
static

creates a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX

bool initWithDuration ( float  t,
float  radius,
float  deltaRadius,
float  angleZ,
float  deltaAngleZ,
float  angleX,
float  deltaAngleX
)

initializes a OrbitCamera action with radius, delta-radius, z, deltaZ, x, deltaX

void sphericalRadius ( float *  r,
float *  zenith,
float *  azimuth
)

positions the camera according to spherical coordinates

virtual void startWithTarget ( Node target)
overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionCamera.

virtual void update ( float  time)
overridevirtual

called once per frame.

time a value between 0 and 1

For example:

  • 0 means that the action just started
  • 0.5 means that the action is in the middle
  • 1 means that the action is over

Reimplemented from Action.

Member Data Documentation

float _angleX
protected
float _angleZ
protected
float _deltaAngleX
protected
float _deltaAngleZ
protected
float _deltaRadius
protected
float _radDeltaX
protected
float _radDeltaZ
protected
float _radius
protected
float _radX
protected
float _radZ
protected

The documentation for this class was generated from the following file:
