BezierTo Class Reference

An action that moves the target with a cubic Bezier curve to a destination point. More...

#include <CCActionInterval.h>

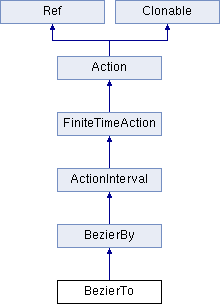

Inheritance diagram for BezierTo:
BezierBy ActionInterval FiniteTimeAction Action Ref Clonable

Public Member Functions

virtual void startWithTarget (Node *target) override
 called before the action start. It will also set the target. More...

var startWithTarget ( var target)
 called before the action start. It will also set the target. More...

local startWithTarget ( local target)
 called before the action start. It will also set the target. More...

virtual BezierToclone () const override
 returns a clone of action More...

local clone ()
 returns a clone of action More...

virtual BezierToreverse (void) const override
 returns a new action that performs the exactly the reverse action More...

var reverse ()
 returns a new action that performs the exactly the reverse action More...

local reverse ()
 returns a new action that performs the exactly the reverse action More...

- Public Member Functions inherited from BezierBy
virtual void update (float time) override
 called once per frame. More...

- Public Member Functions inherited from ActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

var getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

local getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

void setAmplitudeRate (float amp)
local setAmplitudeRate ( local amp)
float getAmplitudeRate (void)
local getAmplitudeRate ()
virtual bool isDone (void) const override
 return true if the action has finished More...

var isDone ()
 return true if the action has finished More...

local isDone ()
 return true if the action has finished More...

virtual void step (float dt) override
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local step ( local dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

- Public Member Functions inherited from FiniteTimeAction
float getDuration () const
 get duration in seconds of the action More...

var getDuration ()
 get duration in seconds of the action More...

local getDuration ()
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

var setDuration ( var duration)
 set duration in seconds of the action More...

local setDuration ( local duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from Action
virtual std::string description () const
virtual void stop ()
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

NodegetTarget () const
var getTarget ()
local getTarget ()
void setTarget (Node *target)
 The action will modify the target properties. More...

var setTarget ( var target)
 The action will modify the target properties. More...

local setTarget ( local target)
 The action will modify the target properties. More...

NodegetOriginalTarget () const
var getOriginalTarget ()
local getOriginalTarget ()
void setOriginalTarget (Node *originalTarget)
 Set the original target, since target can be nil. More...

var setOriginalTarget ( var originalTarget)
 Set the original target, since target can be nil. More...

local setOriginalTarget ( local originalTarget)
 Set the original target, since target can be nil. More...

int getTag () const
var getTag ()
local getTag ()
void setTag (int tag)
var setTag ( var tag)
local setTag ( local tag)
virtual ~Action ()
var ~Action ()
local ~Action ()
- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Releases the ownership immediately. More...

Refautorelease ()
 Releases the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

local getReferenceCount ()
 Returns the Ref's current reference count. More...

virtual ~Ref ()
- Public Member Functions inherited from Clonable
virtual ~Clonable ()
Refcopy () const
 returns a copy of the Ref. More...

var copy ()
 returns a copy of the Ref. More...

local copy ()
 returns a copy of the Ref. More...


Static Public Member Functions

static BezierTocreate (float t, const ccBezierConfig &c)
 creates the action with a duration and a bezier configuration More...

var create ( var t, var c)
 creates the action with a duration and a bezier configuration More...

local create ( local t, local c)
 creates the action with a duration and a bezier configuration More...

- Static Public Member Functions inherited from BezierBy
static BezierBycreate (float t, const ccBezierConfig &c)
 creates the action with a duration and a bezier configuration More...


Public Attributes

CC_CONSTRUCTOR_ACCESS __pad0__: BezierTo() {} virtual ~BezierTo() {} bool initWithDuration(float t
var __pad0__: BezierTo() {} virtual ~BezierTo() {} bool initWithDuration(float t
local __pad0__: BezierTo() {} virtual ~BezierTo() {} bool initWithDuration(float t
CC_CONSTRUCTOR_ACCESS const
ccBezierConfig
c
var c
local c
- Public Attributes inherited from BezierBy
CC_CONSTRUCTOR_ACCESS __pad0__: BezierBy() {} virtual ~BezierBy() {} bool initWithDuration(float t
CC_CONSTRUCTOR_ACCESS const
ccBezierConfig
c
- Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS __pad0__: bool initWithDuration(float d)
local __pad0__: bool initWithDuration(float d)
- Public Attributes inherited from FiniteTimeAction
CC_CONSTRUCTOR_ACCESS __pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
var __pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
local __pad0__: FiniteTimeAction() : _duration(0) {} virtual ~FiniteTimeAction(){}protected: float _duration
- Public Attributes inherited from Action
CC_CONSTRUCTOR_ACCESS __pad0__: Action()

Protected Attributes

ccBezierConfig _toConfig
var _toConfig
local _toConfig
- Protected Attributes inherited from BezierBy
ccBezierConfig _config
Vec2 _startPosition
Vec2 _previousPosition
- Protected Attributes inherited from ActionInterval
float _elapsed
var _elapsed
local _elapsed
bool _firstTick
var _firstTick
local _firstTick
- Protected Attributes inherited from Action
Node_originalTarget
Node_target
 The "target". More...

int _tag
 The action tag. More...

- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...

local _referenceCount
 count of references More...


Additional Inherited Members

- Static Public Attributes inherited from Action
static const int INVALID_TAG = -1
 Default tag used for all the actions. More...

var INVALID_TAG = -1
 Default tag used for all the actions. More...

local INVALID_TAG = -1
 Default tag used for all the actions. More...

- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...

 Ref ()
 Constructor. More...


Detailed Description

An action that moves the target with a cubic Bezier curve to a destination point.

Since
v0.8.2

Member Function Documentation

virtual BezierTo* clone ( ) const
overridevirtual

returns a clone of action

Reimplemented from BezierBy.

var clone ( )
overridevirtual

returns a clone of action

Reimplemented from BezierBy.

local clone ( )
overridevirtual

returns a clone of action

Reimplemented from BezierBy.

static BezierTo* create ( float  t,
const ccBezierConfig c
)
static

creates the action with a duration and a bezier configuration

when this function bound to js or lua,the input params are changed
in js: var create(var t,var table)
in lua: lcaol create(local t, local table)
var create ( var  t,
var  c
)
static

creates the action with a duration and a bezier configuration

when this function bound to js or lua,the input params are changed
in js: var create(var t,var table)
in lua: lcaol create(local t, local table)
local create ( local  t,
local  c
)
static

creates the action with a duration and a bezier configuration

when this function bound to js or lua,the input params are changed
in js: var create(var t,var table)
in lua: lcaol create(local t, local table)
virtual BezierTo* reverse ( void  ) const
overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from BezierBy.

var reverse (   )
overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from BezierBy.

local reverse (   )
overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from BezierBy.

virtual void startWithTarget ( Node target)
overridevirtual

called before the action start. It will also set the target.

Reimplemented from BezierBy.

var startWithTarget ( var  target)
overridevirtual

called before the action start. It will also set the target.

Reimplemented from BezierBy.

local startWithTarget ( local  target)
overridevirtual

called before the action start. It will also set the target.

Reimplemented from BezierBy.

Member Data Documentation

var __pad0__
local __pad0__
ccBezierConfig _toConfig
protected
var _toConfig
protected
local _toConfig
protected
var c
local c

The documentation for this class was generated from the following file:
