CardinalSplineTo Class Reference

Cardinal Spline path. More...

#include <CCActionCatmullRom.h>

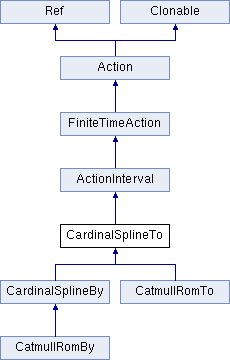

Inheritance diagram for CardinalSplineTo:
ActionInterval FiniteTimeAction Action Ref Clonable CardinalSplineBy CatmullRomTo CatmullRomBy

Public Member Functions

virtual ~CardinalSplineTo ()
 CardinalSplineTo ()
bool initWithDuration (float duration, PointArray *points, float tension)
 initializes the action with a duration and an array of points More...

virtual void updatePosition (Vec2 &newPos)
PointArraygetPoints ()
void setPoints (PointArray *points)
virtual CardinalSplineToclone () const override
 returns a clone of action More...

virtual CardinalSplineToreverse () const override
 returns a new action that performs the exactly the reverse action More...

virtual void startWithTarget (Node *target) override
 called before the action start. It will also set the target. More...

virtual void update (float time) override
 called once per frame. More...

- Public Member Functions inherited from ActionInterval
float getElapsed (void)
 how many seconds had elapsed since the actions started to run. More...

var getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

local getElapsed ()
 how many seconds had elapsed since the actions started to run. More...

void setAmplitudeRate (float amp)
float getAmplitudeRate (void)
local getAmplitudeRate ()
virtual bool isDone (void) const override
 return true if the action has finished More...

var isDone ()
 return true if the action has finished More...

local isDone ()
 return true if the action has finished More...

virtual void step (float dt) override
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local step ( local dt)
 called every frame with it's delta time. DON'T override unless you know what you are doing. More...

- Public Member Functions inherited from FiniteTimeAction
float getDuration () const
 get duration in seconds of the action More...

void setDuration (float duration)
 set duration in seconds of the action More...

- Public Member Functions inherited from Action
virtual std::string description () const
virtual void stop ()
 called after the action has finished. More...

var stop ()
 called after the action has finished. More...

local stop ()
 called after the action has finished. More...

NodegetTarget () const
var getTarget ()
local getTarget ()
void setTarget (Node *target)
 The action will modify the target properties. More...

var setTarget ( var target)
 The action will modify the target properties. More...

local setTarget ( local target)
 The action will modify the target properties. More...

NodegetOriginalTarget () const
var getOriginalTarget ()
local getOriginalTarget ()
void setOriginalTarget (Node *originalTarget)
 Set the original target, since target can be nil. More...

var setOriginalTarget ( var originalTarget)
 Set the original target, since target can be nil. More...

local setOriginalTarget ( local originalTarget)
 Set the original target, since target can be nil. More...

int getTag () const
var getTag ()
local getTag ()
void setTag (int tag)
var setTag ( var tag)
local setTag ( local tag)
- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Releases the ownership immediately. More...

Refautorelease ()
 Releases the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

virtual ~Ref ()
- Public Member Functions inherited from Clonable
virtual ~Clonable ()
Refcopy () const
 returns a copy of the Ref. More...

var copy ()
 returns a copy of the Ref. More...

local copy ()
 returns a copy of the Ref. More...


Static Public Member Functions

static CardinalSplineTocreate (float duration, PointArray *points, float tension)
 creates an action with a Cardinal Spline array of points and tension More...


Protected Attributes

PointArray_points
 Array of control points. More...

float _deltaT
float _tension
Vec2 _previousPosition
Vec2 _accumulatedDiff
- Protected Attributes inherited from ActionInterval
float _elapsed
bool _firstTick
var _firstTick
local _firstTick
- Protected Attributes inherited from FiniteTimeAction
float _duration
 duration in seconds More...

- Protected Attributes inherited from Action
Node_originalTarget
var _originalTarget
Node_target
 The "target". More...

int _tag
 The action tag. More...

var _tag
 The action tag. More...

- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...


Additional Inherited Members

- Public Attributes inherited from ActionInterval
CC_CONSTRUCTOR_ACCESS __pad0__: bool initWithDuration(float d)
local __pad0__: bool initWithDuration(float d)
- Static Public Attributes inherited from Action
static const int INVALID_TAG = -1
 Default tag used for all the actions. More...

var INVALID_TAG = -1
 Default tag used for all the actions. More...

local INVALID_TAG = -1
 Default tag used for all the actions. More...

- Protected Member Functions inherited from FiniteTimeAction
 FiniteTimeAction ()
virtual ~FiniteTimeAction ()
- Protected Member Functions inherited from Action
 Action ()
 Action ()
 Action ()
virtual ~Action ()
local ~Action ()
- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...


Detailed Description

Constructor & Destructor Documentation

virtual ~CardinalSplineTo ( )
virtual

Member Function Documentation

virtual CardinalSplineTo* clone ( ) const
overridevirtual

returns a clone of action

Implements ActionInterval.

Reimplemented in CatmullRomBy, CatmullRomTo, and CardinalSplineBy.

static CardinalSplineTo* create ( float  duration,
PointArray points,
float  tension
)
static

creates an action with a Cardinal Spline array of points and tension

when this function bound to js or lua,the input params are changed
in js: var create(var t,var table)
in lua: lcaol create(local t, local table)
PointArray* getPoints ( )
inline
bool initWithDuration ( float  duration,
PointArray points,
float  tension
)

initializes the action with a duration and an array of points

virtual CardinalSplineTo* reverse ( ) const
overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

Reimplemented in CatmullRomBy, CatmullRomTo, and CardinalSplineBy.

void setPoints ( PointArray points)
inline
virtual void startWithTarget ( Node target)
overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in CardinalSplineBy.

virtual void update ( float  time)
overridevirtual

called once per frame.

time a value between 0 and 1

For example:

  • 0 means that the action just started
  • 0.5 means that the action is in the middle
  • 1 means that the action is over

Reimplemented from Action.

virtual void updatePosition ( Vec2 newPos)
virtual

Reimplemented in CardinalSplineBy.

Member Data Documentation

Vec2 _accumulatedDiff
protected
float _deltaT
protected
PointArray* _points
protected

Array of control points.

Vec2 _previousPosition
protected
float _tension
protected

The documentation for this class was generated from the following file:
