An action that moves the target with a CatmullRom curve by a certain distance. More...

#include <CCActionCatmullRom.h>

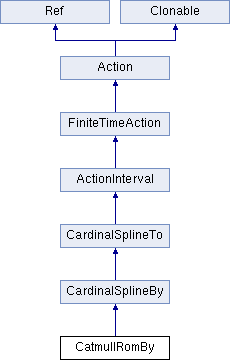

Inheritance diagram for CatmullRomBy:

Public Member Functions
bool	initWithDuration (float dt, PointArray *points)
	initializes the action with a duration and an array of points More...

virtual CatmullRomBy *	clone () const override
	returns a clone of action More...

virtual CatmullRomBy *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

Public Member Functions inherited from CardinalSplineBy
	CardinalSplineBy ()
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

virtual void	updatePosition (Point &newPos) override
Public Member Functions inherited from CardinalSplineTo
virtual	~CardinalSplineTo ()
	CardinalSplineTo ()
bool	initWithDuration (float duration, PointArray *points, float tension)
	initializes the action with a duration and an array of points More...

PointArray *	getPoints ()
void	setPoints (PointArray *points)
virtual void	update (float time) override
	called once per frame. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Release the ownership immediately. More...

Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static CatmullRomBy *	create (float dt, PointArray *points)
	creates an action with a Cardinal Spline array of points and tension More...

Static Public Member Functions inherited from CardinalSplineBy
static CardinalSplineBy *	create (float duration, PointArray *points, float tension)
	creates an action with a Cardinal Spline array of points and tension More...

Static Public Member Functions inherited from CardinalSplineTo
static CardinalSplineTo *	create (float duration, PointArray *points, float tension)
	creates an action with a Cardinal Spline array of points and tension More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Member Functions inherited from ActionInterval
bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

Protected Attributes inherited from CardinalSplineBy
Point	_startPosition

Detailed Description

An action that moves the target with a CatmullRom curve by a certain distance.

A Catmull Rom is a Cardinal Spline with a tension of 0.5. http://en.wikipedia.org/wiki/Cubic_Hermite_spline#Catmull.E2.80.93Rom_spline

Member Function Documentation

virtual CatmullRomBy* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from CardinalSplineBy.

static CatmullRomBy* create	(	float	dt,
		PointArray *	points
	)

static

creates an action with a Cardinal Spline array of points and tension

when this function bound to js or lua,the input params are changed
in js: var create(var dt,var table)
in lua: lcaol create(local dt, local table)

bool initWithDuration	(	float	dt,
		PointArray *	points
	)

initializes the action with a duration and an array of points

virtual CatmullRomBy* reverse ( ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from CardinalSplineBy.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionCatmullRom.h
