Base class actions that do have a finite time duration. More...

#include <CCAction.h>

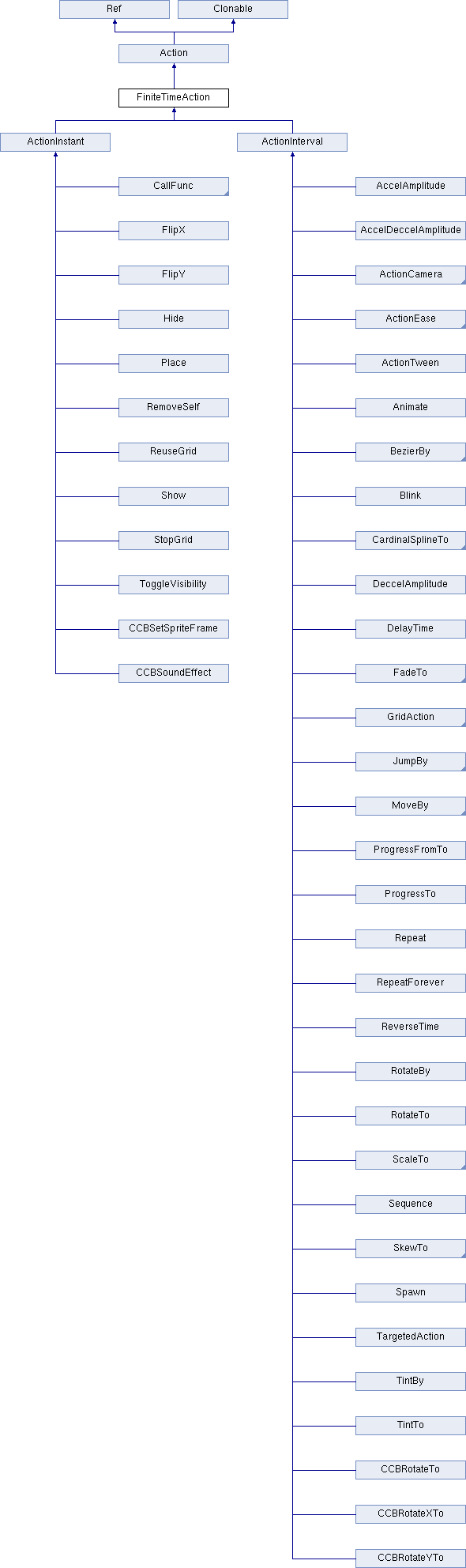

Inheritance diagram for FiniteTimeAction:

Public Member Functions
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

virtual FiniteTimeAction *	reverse () const override=0
	returns a new action that performs the exactly the reverse action More...

virtual FiniteTimeAction *	clone () const override=0
	returns a clone of action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual bool	isDone () const
	return true if the action has finished More...

virtual void	startWithTarget (Node *target)
	called before the action start. It will also set the target. More...

var	startWithTarget ( var target)
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

virtual void	step (float dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

virtual void	update (float time)
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Release the ownership immediately. More...

Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Protected Member Functions
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
Protected Member Functions inherited from Action
	Action ()
	Action ()
	Action ()
virtual	~Action ()
var	~Action ()
local	~Action ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Protected Attributes
float	_duration
	duration in seconds More...

Protected Attributes inherited from Action
Node *	_originalTarget
local	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Base class actions that do have a finite time duration.

Possible actions:

An action with a duration of 0 seconds
An action with a duration of 35.5 seconds

Infinite time actions are valid

Constructor & Destructor Documentation

FiniteTimeAction ( )

inlineprotected

virtual ~FiniteTimeAction ( )

inlineprotectedvirtual

Member Function Documentation

virtual FiniteTimeAction* clone ( ) const

overridepure virtual

returns a clone of action

Implements Action.

Implemented in TargetedAction, EaseCubicActionInOut, Animate, EaseCubicActionOut, ReverseTime, EaseCubicActionIn, EaseCircleActionInOut, DelayTime, EaseCircleActionOut, TintBy, EaseCircleActionIn, EaseQuinticActionInOut, TintTo, EaseQuinticActionOut, FadeOut, EaseQuinticActionIn, FadeIn, EaseQuarticActionInOut, FadeTo, EaseQuarticActionOut, EaseQuarticActionIn, Blink, EaseQuadraticActionInOut, ScaleBy, EaseQuadraticActionOut, EaseQuadraticActionIn, ScaleTo, EaseBezierAction, BezierTo, EaseBackInOut, BezierBy, EaseBackOut, EaseBackIn, JumpTo, EaseBounceInOut, JumpBy, EaseBounceOut, SkewBy, EaseBounceIn, SkewTo, EaseBounce, __CCCallFuncO, EaseElasticInOut, MoveTo, __CCCallFuncND, EaseElasticOut, MoveBy, EaseElasticIn, CallFuncN, SplitCols, RotateBy, EaseElastic, SplitRows, Twirl, JumpTiles3D, EaseSineInOut, RotateTo, CallFunc, ReuseGrid, EaseSineOut, CatmullRomBy, CCBEaseInstant, StopGrid, Waves, WavesTiles3D, Spawn, CCBRotateYTo, EaseSineIn, CatmullRomTo, DeccelAmplitude, Liquid, CCBRotateXTo, Place, TurnOffTiles, EaseExponentialInOut, CardinalSplineBy, CCBRotateTo, RepeatForever, AccelAmplitude, Shaky3D, EaseExponentialOut, FlipY, FadeOutDownTiles, CCBSoundEffect, CardinalSplineTo, EaseExponentialIn, FadeOutUpTiles, CCBSetSpriteFrame, AccelDeccelAmplitude, Ripple3D, FlipX, Repeat, TiledGrid3DAction, EaseInOut, FadeOutBLTiles, RemoveSelf, FadeOutTRTiles, EaseOut, Lens3D, OrbitCamera, ToggleVisibility, Sequence, EaseIn, Grid3DAction, FlipY3D, ShuffleTiles, Hide, EaseRateAction, FlipX3D, ProgressFromTo, ActionTween, ActionInterval, LuaCallFunc, Show, ShatteredTiles3D, ActionCamera, Waves3D, ActionInstant, PageTurn3D, ActionEase, GridAction, ProgressTo, and ShakyTiles3D.

float getDuration ( ) const

inline

get duration in seconds of the action

virtual FiniteTimeAction* reverse ( ) const

overridepure virtual

returns a new action that performs the exactly the reverse action

Implements Action.

Implemented in TargetedAction, EaseCubicActionInOut, Animate, EaseCubicActionOut, ReverseTime, EaseCubicActionIn, EaseCircleActionInOut, DelayTime, EaseCircleActionOut, TintBy, EaseCircleActionIn, EaseQuinticActionInOut, TintTo, EaseQuinticActionOut, FadeOut, EaseQuinticActionIn, FadeIn, EaseQuarticActionInOut, FadeTo, EaseQuarticActionOut, EaseQuarticActionIn, Blink, EaseQuadraticActionInOut, ScaleBy, EaseQuadraticActionOut, EaseQuadraticActionIn, ScaleTo, EaseBezierAction, BezierTo, EaseBackInOut, BezierBy, EaseBackOut, EaseBackIn, JumpTo, EaseBounceInOut, JumpBy, EaseBounceOut, SkewBy, EaseBounceIn, SkewTo, EaseBounce, EaseElasticInOut, EaseElasticOut, MoveBy, EaseElasticIn, RotateBy, EaseElastic, EaseSineInOut, RotateTo, ReuseGrid, CallFunc, EaseSineOut, CatmullRomBy, CCBEaseInstant, StopGrid, Spawn, CCBRotateYTo, EaseSineIn, CatmullRomTo, DeccelAmplitude, CCBRotateXTo, Place, EaseExponentialInOut, CardinalSplineBy, CCBRotateTo, RepeatForever, AccelAmplitude, EaseExponentialOut, FlipY, CCBSoundEffect, CardinalSplineTo, EaseExponentialIn, CCBSetSpriteFrame, AccelDeccelAmplitude, FlipX, Repeat, EaseInOut, RemoveSelf, EaseOut, ToggleVisibility, Sequence, EaseIn, Hide, EaseRateAction, ProgressFromTo, ActionTween, ActionInterval, Show, ActionCamera, ActionInstant, ActionEase, GridAction, and ProgressTo.

void setDuration ( float duration)

inline

set duration in seconds of the action

Member Data Documentation

float _duration

protected

duration in seconds

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCAction.h
