Base class for Camera actions. More...

#include <CCActionCamera.h>

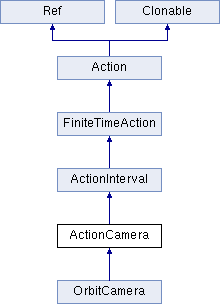

Inheritance diagram for ActionCamera:

Public Member Functions
	ActionCamera ()
virtual	~ActionCamera ()
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

local	startWithTarget ( local target)
	called before the action start. It will also set the target. More...

virtual ActionCamera *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

virtual ActionCamera *	clone () const override
	returns a clone of action More...

var	clone ()
	returns a clone of action More...

local	clone ()
	returns a clone of action More...

void	setEye (const kmVec3 &eye)
void	setEye (float x, float y, float z)
var	setEye ( var x, var y, var z)
local	setEye ( local x, local y, local z)
const kmVec3 &	getEye () const
var	getEye ()
local	getEye ()
void	setCenter (const kmVec3 &center)
local	setCenter ( local center)
const kmVec3 &	getCenter () const
var	getCenter ()
local	getCenter ()
void	setUp (const kmVec3 &up)
local	setUp ( local up)
const kmVec3 &	getUp () const
Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

virtual void	update (float time)
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Release the ownership immediately. More...

Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Protected Member Functions
void	restore ()
void	updateTransform ()
Protected Member Functions inherited from ActionInterval
bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

Protected Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
Protected Member Functions inherited from Action
	Action ()
	Action ()
	Action ()
virtual	~Action ()
var	~Action ()
local	~Action ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Protected Attributes
kmVec3	_center
kmVec3	_eye
local	_eye
kmVec3	_up
var	_up
local	_up
Protected Attributes inherited from ActionInterval
float	_elapsed
bool	_firstTick
Protected Attributes inherited from FiniteTimeAction
float	_duration
	duration in seconds More...

Protected Attributes inherited from Action
Node *	_originalTarget
local	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Base class for Camera actions.

Constructor & Destructor Documentation

ActionCamera ( )

var ctor ( )

local ActionCamera ( )

virtual ~ActionCamera ( )

inlinevirtual

Member Function Documentation

virtual ActionCamera* clone ( ) const

overridevirtual

returns a clone of action

Implements ActionInterval.

Reimplemented in OrbitCamera.

var clone ( )

overridevirtual

returns a clone of action

Implements ActionInterval.

Reimplemented in OrbitCamera.

local clone ( )

overridevirtual

returns a clone of action

Implements ActionInterval.

Reimplemented in OrbitCamera.

const kmVec3& getCenter ( ) const

inline

var getCenter ( )

inline

local getCenter ( )

inline

const kmVec3& getEye ( ) const

inline

var getEye ( )

inline

local getEye ( )

inline

const kmVec3& getUp ( ) const

inline

var getUp ( )

inline

local getUp ( )

inline

void restore ( )

protected

var restore ( )

protected

local restore ( )

protected

virtual ActionCamera* reverse ( ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

var reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

local reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

void setCenter ( const kmVec3 & center)

var setCenter ( var center)

local setCenter ( local center)

void setEye ( const kmVec3 & eye)

var setEye ( var eye)

local setEye ( local eye)

void setEye	(	float	x,
		float	y,
		float	z
	)

var setEye	(	var	x,
		var	y,
		var	z
	)

local setEye	(	local	x,
		local	y,
		local	z
	)

void setUp ( const kmVec3 & up)

var setUp ( var up)

local setUp ( local up)

virtual void startWithTarget ( Node * target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in OrbitCamera.

var startWithTarget ( var target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in OrbitCamera.

local startWithTarget ( local target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in OrbitCamera.

void updateTransform ( )

protected

var updateTransform ( )

protected

local updateTransform ( )

protected

Member Data Documentation

kmVec3 _center

protected

var _center

protected

local _center

protected

kmVec3 _eye

protected

var _eye

protected

local _eye

protected

kmVec3 _up

protected

var _up

protected

local _up

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionCamera.h
