Fades Out an object that implements the RGBAProtocol protocol. More...

#include <CCActionInterval.h>

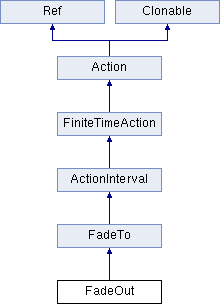

Inheritance diagram for FadeOut:

Public Member Functions
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

virtual FadeOut *	clone () const override
	returns a clone of action More...

virtual FadeTo *	reverse (void) const override
	returns a new action that performs the exactly the reverse action More...

void	setReverseAction (FadeTo *ac)
Public Member Functions inherited from FadeTo
virtual void	update (float time) override
	called once per frame. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Release the ownership immediately. More...

Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static FadeOut *	create (float d)
	creates the action More...

Static Public Member Functions inherited from FadeTo
static FadeTo *	create (float duration, GLubyte opacity)
	creates an action with duration and opacity More...

Protected Member Functions
	FadeOut ()
virtual	~FadeOut ()
Protected Member Functions inherited from FadeTo
	FadeTo ()
virtual	~FadeTo ()
bool	initWithDuration (float duration, GLubyte opacity)
	initializes the action with duration and opacity More...

Protected Member Functions inherited from ActionInterval
bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

Protected Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
Protected Member Functions inherited from Action
	Action ()
	Action ()
	Action ()
virtual	~Action ()
var	~Action ()
local	~Action ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Attributes inherited from FadeTo
GLubyte	_toOpacity
GLubyte	_fromOpacity

Detailed Description

Fades Out an object that implements the RGBAProtocol protocol.

It modifies the opacity from 255 to 0. The "reverse" of this action is FadeIn

Constructor & Destructor Documentation

FadeOut ( )

inlineprotected

virtual ~FadeOut ( )

inlineprotectedvirtual

Member Function Documentation

virtual FadeOut* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from FadeTo.

static FadeOut* create ( float d)

static

creates the action

virtual FadeTo* reverse ( void ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Reimplemented from FadeTo.

void setReverseAction ( FadeTo * ac)

virtual void startWithTarget ( Node * target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from FadeTo.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionInterval.h
