MoveTo Class Reference

Moves a Node object to the position x,y. More...

#include <CCActionInterval.h>

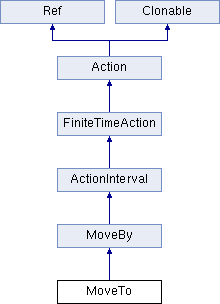

Inheritance diagram for MoveTo:

Public Member Functions
virtual MoveTo *	clone () const override
	returns a clone of action More...
virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...
Public Member Functions inherited from MoveBy
virtual MoveBy *	reverse (void) const override
	returns a new action that performs the exactly the reverse action More...
virtual void	update (float time) override
	called once per frame. More...
Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...
void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...
virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...
Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...
void	setDuration (float duration)
	set duration in seconds of the action More...
Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...
var	stop ()
	called after the action has finished. More...
local	stop ()
	called after the action has finished. More...
Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...
var	setTarget ( var target)
	The action will modify the target properties. More...
local	setTarget ( local target)
	The action will modify the target properties. More...
Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...
local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...
int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...
void	release ()
	Release the ownership immediately. More...
Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...
unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...
virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...
var	copy ()
	returns a copy of the Ref. More...
local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static MoveTo *	create (float duration, const Point &position)
	creates the action More...
Static Public Member Functions inherited from MoveBy
static MoveBy *	create (float duration, const Point &deltaPosition)
	creates the action More...

Protected Member Functions
	MoveTo ()
virtual	~MoveTo ()
bool	initWithDuration (float duration, const Point &position)
	initializes the action More...
Protected Member Functions inherited from MoveBy
	MoveBy ()
virtual	~MoveBy ()
bool	initWithDuration (float duration, const Point &deltaPosition)
	initializes the action More...
Protected Member Functions inherited from ActionInterval
bool	initWithDuration (float d)
	initializes the action More...
var	initWithDuration ( var d)
	initializes the action More...
local	initWithDuration ( local d)
	initializes the action More...
Protected Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
Protected Member Functions inherited from Action
	Action ()
	Action ()
	Action ()
virtual	~Action ()
var	~Action ()
local	~Action ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Protected Attributes
Point	_endPosition
Protected Attributes inherited from MoveBy
Point	_positionDelta
Point	_startPosition
Point	_previousPosition
Protected Attributes inherited from ActionInterval
float	_elapsed
bool	_firstTick
Protected Attributes inherited from FiniteTimeAction
float	_duration
	duration in seconds More...
Protected Attributes inherited from Action
Node *	_originalTarget
local	_originalTarget
Node *	_target
	The "target". More...
int	_tag
	The action tag. More...
Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...
var	INVALID_TAG = -1
	Default tag used for all the actions. More...
local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Moves a Node object to the position x,y.

x and y are absolute coordinates by modifying it's position attribute. Several MoveTo actions can be concurrently called, and the resulting movement will be the sum of individual movements.

Since

v2.1beta2-custom

Constructor & Destructor Documentation

MoveTo ( )

inlineprotected

virtual ~MoveTo ( )

inlineprotectedvirtual

Member Function Documentation

virtual MoveTo* clone ( ) const

overridevirtual

returns a clone of action

Reimplemented from MoveBy.

static MoveTo* create ( float  duration, const Point &  position  )

static

creates the action

bool initWithDuration ( float  duration, const Point &  position  )

protected

initializes the action

virtual void startWithTarget ( Node *  target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from MoveBy.

Member Data Documentation

Point _endPosition

protected

---

The documentation for this class was generated from the following file:

• /Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionInterval.h
