GLView Class Referenceabstract
Platform Adaptor

#include <CCGLView.h>

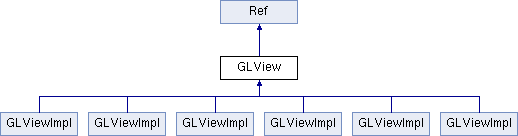

Inheritance diagram for GLView:
Ref GLViewImpl GLViewImpl GLViewImpl GLViewImpl GLViewImpl GLViewImpl

Public Member Functions

 GLView ()
 ctor ()
 GLView ()
virtual ~GLView ()
virtual void end ()=0
 Force destroying EGL view, subclass must implement this method. More...

var end ()
 Force destroying EGL view, subclass must implement this method. More...

local end ()
 Force destroying EGL view, subclass must implement this method. More...

virtual bool isOpenGLReady ()=0
 Get whether opengl render system is ready, subclass must implement this method. More...

virtual void swapBuffers ()=0
 Exchanges the front and back buffers, subclass must implement this method. More...

virtual void setIMEKeyboardState (bool open)=0
 Open or close IME keyboard , subclass must implement this method. More...

local setIMEKeyboardState ( local open)
 Open or close IME keyboard , subclass must implement this method. More...

virtual void setIMEKeyboardState (bool open, std::string str)=0
var setIMEKeyboardState ( var open, var str)
local setIMEKeyboardState ( local open, local str)
virtual bool windowShouldClose ()
var windowShouldClose ()
local windowShouldClose ()
virtual void pollInputEvents ()
 Polls input events. More...

var pollInputEvents ()
 Polls input events. More...

local pollInputEvents ()
 Polls input events. More...

virtual void pollEvents ()
virtual const Size & getFrameSize () const
 Get the frame size of EGL view. More...

var getFrameSize ()
 Get the frame size of EGL view. More...

local getFrameSize ()
 Get the frame size of EGL view. More...

virtual void setFrameSize (float width, float height)
 Set the frame size of EGL view. More...

var setFrameSize ( var width, var height)
 Set the frame size of EGL view. More...

local setFrameSize ( local width, local height)
 Set the frame size of EGL view. More...

virtual void setFrameZoomFactor (float zoomFactor)
 Set and get zoom factor for frame. More...

local setFrameZoomFactor ( local zoomFactor)
 Set and get zoom factor for frame. More...

virtual float getFrameZoomFactor () const
virtual int getRetinaFactor () const
 Get retina factor. More...

var getRetinaFactor ()
 Get retina factor. More...

local getRetinaFactor ()
 Get retina factor. More...

virtual bool setContentScaleFactor (float scaleFactor)
 only works on ios platform More...

virtual float getContentScaleFactor () const
local getContentScaleFactor ()
virtual bool isRetinaDisplay () const
 returns whether or not the view is in Retina Display mode More...

var isRetinaDisplay ()
 returns whether or not the view is in Retina Display mode More...

local isRetinaDisplay ()
 returns whether or not the view is in Retina Display mode More...

virtual void * getEAGLView () const
var getEAGLView ()
local getEAGLView ()
virtual Size getRenerTargetSize () const =0
local getRenerTargetSize ()
virtual const Mat4 & getOrientationMatrix () const =0
local getOrientationMatrix ()
virtual const Mat4 & getReverseOrientationMatrix () const =0
var getReverseOrientationMatrix ()
local getReverseOrientationMatrix ()
virtual Size getVisibleSize () const
 Get the visible area size of opengl viewport. More...

var getVisibleSize ()
 Get the visible area size of opengl viewport. More...

local getVisibleSize ()
 Get the visible area size of opengl viewport. More...

virtual Vec2 getVisibleOrigin () const
 Get the visible origin point of opengl viewport. More...

local getVisibleOrigin ()
 Get the visible origin point of opengl viewport. More...

virtual Rect getVisibleRect () const
 Get the visible rectangle of opengl viewport. More...

var getVisibleRect ()
 Get the visible rectangle of opengl viewport. More...

local getVisibleRect ()
 Get the visible rectangle of opengl viewport. More...

virtual void setDesignResolutionSize (float width, float height, ResolutionPolicy resolutionPolicy)
 Set the design resolution size. More...

local setDesignResolutionSize ( local width, local height, local resolutionPolicy)
 Set the design resolution size. More...

virtual const Size & getDesignResolutionSize () const
 Get design resolution size. More...

var getDesignResolutionSize ()
 Get design resolution size. More...

local getDesignResolutionSize ()
 Get design resolution size. More...

virtual void setViewPortInPoints (float x, float y, float w, float h)
 Set opengl view port rectangle with points. More...

virtual void setScissorInPoints (float x, float y, float w, float h)
 Set Scissor rectangle with points. More...

local setScissorInPoints ( local x, local y, local w, local h)
 Set Scissor rectangle with points. More...

virtual bool isScissorEnabled ()
 Get whether GL_SCISSOR_TEST is enable. More...

virtual Rect getScissorRect () const
 Get the current scissor rectangle. More...

var getScissorRect ()
 Get the current scissor rectangle. More...

local getScissorRect ()
 Get the current scissor rectangle. More...

virtual void setViewName (const std::string &viewname)
local setViewName ( local viewname)
const std::string & getViewName () const
var getViewName ()
local getViewName ()
virtual void handleTouchesBegin (int num, intptr_t ids[], float xs[], float ys[])
 Touch events are handled by default; if you want to customize your handlers, please override these functions: More...

virtual void handleTouchesMove (int num, intptr_t ids[], float xs[], float ys[])
var handleTouchesMove ( var num)
local handleTouchesMove ( local num)
virtual void handleTouchesEnd (int num, intptr_t ids[], float xs[], float ys[])
local handleTouchesEnd ( local num)
virtual void handleTouchesCancel (int num, intptr_t ids[], float xs[], float ys[])
var handleTouchesCancel ( var num)
local handleTouchesCancel ( local num)
const Rect & getViewPortRect () const
 Get the opengl view port rectangle. More...

std::vector< Touch * > getAllTouches () const
 Get list of all active touches. More...

float getScaleX () const
 Get scale factor of the horizontal direction. More...

var getScaleX ()
 Get scale factor of the horizontal direction. More...

local getScaleX ()
 Get scale factor of the horizontal direction. More...

float getScaleY () const
 Get scale factor of the vertical direction. More...

var getScaleY ()
 Get scale factor of the vertical direction. More...

local getScaleY ()
 Get scale factor of the vertical direction. More...

ResolutionPolicy getResolutionPolicy () const
 returns the current Resolution policy More...

var getResolutionPolicy ()
 returns the current Resolution policy More...

local getResolutionPolicy ()
 returns the current Resolution policy More...

virtual HWND getWin32Window ()=0
virtual id getCocoaWindow ()=0
var getCocoaWindow ()
local getCocoaWindow ()
- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Releases the ownership immediately. More...

Ref * autorelease ()
 Releases the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

local getReferenceCount ()
 Returns the Ref's current reference count. More...

virtual ~Ref ()

Static Public Member Functions

static void setGLContextAttrs (GLContextAttrs &glContextAttrs)
local setGLContextAttrs ( local glContextAttrs)
static GLContextAttrs getGLContextAttrs ()
var getGLContextAttrs ()
local getGLContextAttrs ()

Static Public Attributes

static GLContextAttrs _glContextAttrs
var _glContextAttrs
local _glContextAttrs

Protected Member Functions

void updateDesignResolutionSize ()
var updateDesignResolutionSize ()
local updateDesignResolutionSize ()
void handleTouchesOfEndOrCancel (EventTouch::EventCode eventCode, int num, intptr_t ids[], float xs[], float ys[])
var handleTouchesOfEndOrCancel ( var eventCode, var num)
local handleTouchesOfEndOrCancel ( local eventCode, local num)
- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...

 Ref ()
 Constructor. More...


Protected Attributes

Size _screenSize
var _screenSize
Size _designResolutionSize
var _designResolutionSize
local _designResolutionSize
Rect _viewPortRect
var _viewPortRect
local _viewPortRect
std::string _viewName
var _viewName
local _viewName
float _scaleX
var _scaleX
local _scaleX
float _scaleY
var _scaleY
local _scaleY
ResolutionPolicy _resolutionPolicy
var _resolutionPolicy
local _resolutionPolicy
- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...

local _referenceCount
 count of references More...


Constructor & Destructor Documentation

GLView ( )
var ctor ( )
local GLView ( )
virtual ~GLView ( )
virtual

Member Function Documentation

virtual void end ( )
pure virtual

Force destroying EGL view, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

var end ( )
pure virtual

Force destroying EGL view, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

local end ( )
pure virtual

Force destroying EGL view, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

std::vector<Touch*> getAllTouches ( ) const

Get list of all active touches.

var getAllTouches ( )

Get list of all active touches.

local getAllTouches ( )

Get list of all active touches.

virtual id getCocoaWindow ( )
pure virtual

Implemented in GLViewImpl.

var getCocoaWindow ( )
pure virtual

Implemented in GLViewImpl.

local getCocoaWindow ( )
pure virtual

Implemented in GLViewImpl.

virtual float getContentScaleFactor ( ) const
inlinevirtual

Reimplemented in GLViewImpl.

var getContentScaleFactor ( )
inlinevirtual

Reimplemented in GLViewImpl.

local getContentScaleFactor ( )
inlinevirtual

Reimplemented in GLViewImpl.

virtual const Size&
getDesignResolutionSize 		( ) const
virtual

Get design resolution size.

Default resolution size is the same as 'getFrameSize'.

var getDesignResolutionSize ( )
virtual

Get design resolution size.

Default resolution size is the same as 'getFrameSize'.

local getDesignResolutionSize ( )
virtual

Get design resolution size.

Default resolution size is the same as 'getFrameSize'.

virtual void* getEAGLView ( ) const
inlinevirtual

Reimplemented in GLViewImpl.

var getEAGLView ( )
inlinevirtual

Reimplemented in GLViewImpl.

local getEAGLView ( )
inlinevirtual

Reimplemented in GLViewImpl.

virtual const Size& getFrameSize ( ) const
virtual

Get the frame size of EGL view.

In general, it returns the screen size since the EGL view is a fullscreen view.

var getFrameSize ( )
virtual

Get the frame size of EGL view.

In general, it returns the screen size since the EGL view is a fullscreen view.

local getFrameSize ( )
virtual

Get the frame size of EGL view.

In general, it returns the screen size since the EGL view is a fullscreen view.

virtual float getFrameZoomFactor ( ) const
inlinevirtual

Reimplemented in GLViewImpl.

var getFrameZoomFactor ( )
inlinevirtual

Reimplemented in GLViewImpl.

local getFrameZoomFactor ( )
inlinevirtual

Reimplemented in GLViewImpl.

static GLContextAttrs
getGLContextAttrs 		( )
static
var getGLContextAttrs ( )
static
local getGLContextAttrs ( )
static
virtual const Mat4&
getOrientationMatrix 		( ) const
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

var getOrientationMatrix ( )
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

local getOrientationMatrix ( )
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

virtual Size getRenerTargetSize ( ) const
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

var getRenerTargetSize ( )
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

local getRenerTargetSize ( )
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

ResolutionPolicy
getResolutionPolicy 		( ) const
inline

returns the current Resolution policy

var getResolutionPolicy ( )
inline

returns the current Resolution policy

local getResolutionPolicy ( )
inline

returns the current Resolution policy

virtual int getRetinaFactor ( ) const
inlinevirtual

Get retina factor.

Reimplemented in GLViewImpl.

var getRetinaFactor ( )
inlinevirtual

Get retina factor.

Reimplemented in GLViewImpl.

local getRetinaFactor ( )
inlinevirtual

Get retina factor.

Reimplemented in GLViewImpl.

virtual const Mat4&
getReverseOrientationMatrix 		( ) const
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

var getReverseOrientationMatrix ( )
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

local getReverseOrientationMatrix ( )
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

float getScaleX ( ) const

Get scale factor of the horizontal direction.

var getScaleX ( )

Get scale factor of the horizontal direction.

local getScaleX ( )

Get scale factor of the horizontal direction.

float getScaleY ( ) const

Get scale factor of the vertical direction.

var getScaleY ( )

Get scale factor of the vertical direction.

local getScaleY ( )

Get scale factor of the vertical direction.

virtual Rect getScissorRect ( ) const
virtual

Get the current scissor rectangle.

var getScissorRect ( )
virtual

Get the current scissor rectangle.

local getScissorRect ( )
virtual

Get the current scissor rectangle.

const std::string& getViewName ( ) const
var getViewName ( )
local getViewName ( )
const Rect& getViewPortRect ( ) const

Get the opengl view port rectangle.

var getViewPortRect ( )

Get the opengl view port rectangle.

local getViewPortRect ( )

Get the opengl view port rectangle.

virtual Vec2 getVisibleOrigin ( ) const
virtual

Get the visible origin point of opengl viewport.

var getVisibleOrigin ( )
virtual

Get the visible origin point of opengl viewport.

local getVisibleOrigin ( )
virtual

Get the visible origin point of opengl viewport.

virtual Rect getVisibleRect ( ) const
virtual

Get the visible rectangle of opengl viewport.

var getVisibleRect ( )
virtual

Get the visible rectangle of opengl viewport.

local getVisibleRect ( )
virtual

Get the visible rectangle of opengl viewport.

virtual Size getVisibleSize ( ) const
virtual

Get the visible area size of opengl viewport.

var getVisibleSize ( )
virtual

Get the visible area size of opengl viewport.

local getVisibleSize ( )
virtual

Get the visible area size of opengl viewport.

virtual HWND getWin32Window ( )
pure virtual

Implemented in GLViewImpl.

var getWin32Window ( )
pure virtual

Implemented in GLViewImpl.

local getWin32Window ( )
pure virtual

Implemented in GLViewImpl.

virtual void handleTouchesBegin ( int  num,
intptr_t  ids[],
float  xs[],
float  ys[]
)
virtual

Touch events are handled by default; if you want to customize your handlers, please override these functions:

var handleTouchesBegin ( var  num,
var  ids[],
var  xs[],
var  ys[]
)
virtual

Touch events are handled by default; if you want to customize your handlers, please override these functions:

local handleTouchesBegin ( local  num,
local  ids[],
local  xs[],
local  ys[]
)
virtual

Touch events are handled by default; if you want to customize your handlers, please override these functions:

virtual void handleTouchesCancel ( int  num,
intptr_t  ids[],
float  xs[],
float  ys[]
)
virtual
var handleTouchesCancel ( var  num,
var  ids[],
var  xs[],
var  ys[]
)
virtual
local handleTouchesCancel ( local  num,
local  ids[],
local  xs[],
local  ys[]
)
virtual
virtual void handleTouchesEnd ( int  num,
intptr_t  ids[],
float  xs[],
float  ys[]
)
virtual
var handleTouchesEnd ( var  num,
var  ids[],
var  xs[],
var  ys[]
)
virtual
local handleTouchesEnd ( local  num,
local  ids[],
local  xs[],
local  ys[]
)
virtual
virtual void handleTouchesMove ( int  num,
intptr_t  ids[],
float  xs[],
float  ys[]
)
virtual
var handleTouchesMove ( var  num,
var  ids[],
var  xs[],
var  ys[]
)
virtual
local handleTouchesMove ( local  num,
local  ids[],
local  xs[],
local  ys[]
)
virtual
void handleTouchesOfEndOrCancel ( EventTouch::EventCode  eventCode,
int  num,
intptr_t  ids[],
float  xs[],
float  ys[]
)
protected
var handleTouchesOfEndOrCancel ( var  eventCode,
var  num,
var  ids[],
var  xs[],
var  ys[]
)
protected
local handleTouchesOfEndOrCancel ( local  eventCode,
local  num,
local  ids[],
local  xs[],
local  ys[]
)
protected
virtual bool isOpenGLReady ( )
pure virtual

Get whether opengl render system is ready, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

var isOpenGLReady ( )
pure virtual

Get whether opengl render system is ready, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

local isOpenGLReady ( )
pure virtual

Get whether opengl render system is ready, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

virtual bool isRetinaDisplay ( ) const
inlinevirtual

returns whether or not the view is in Retina Display mode

Reimplemented in GLViewImpl.

var isRetinaDisplay ( )
inlinevirtual

returns whether or not the view is in Retina Display mode

Reimplemented in GLViewImpl.

local isRetinaDisplay ( )
inlinevirtual

returns whether or not the view is in Retina Display mode

Reimplemented in GLViewImpl.

virtual bool isScissorEnabled ( )
virtual

Get whether GL_SCISSOR_TEST is enable.

var isScissorEnabled ( )
virtual

Get whether GL_SCISSOR_TEST is enable.

local isScissorEnabled ( )
virtual

Get whether GL_SCISSOR_TEST is enable.

virtual void pollEvents ( )
virtual

Reimplemented in GLViewImpl.

var pollEvents ( )
virtual

Reimplemented in GLViewImpl.

local pollEvents ( )
virtual

Reimplemented in GLViewImpl.

virtual void pollInputEvents ( )
virtual

Polls input events.

Subclass must implement methods if platform does not provide event callbacks.

var pollInputEvents ( )
virtual

Polls input events.

Subclass must implement methods if platform does not provide event callbacks.

local pollInputEvents ( )
virtual

Polls input events.

Subclass must implement methods if platform does not provide event callbacks.

virtual bool setContentScaleFactor ( float  scaleFactor)
inlinevirtual

only works on ios platform

Reimplemented in GLViewImpl.

var setContentScaleFactor ( var  scaleFactor)
inlinevirtual

only works on ios platform

Reimplemented in GLViewImpl.

local setContentScaleFactor ( local  scaleFactor)
inlinevirtual

only works on ios platform

Reimplemented in GLViewImpl.

virtual void
setDesignResolutionSize 		( float  width,
float  height,
ResolutionPolicy  resolutionPolicy
)
virtual

Set the design resolution size.

Parameters
widthDesign resolution width.
heightDesign resolution height.
resolutionPolicyThe resolution policy desired, you may choose: [1] EXACT_FIT Fill screen by stretch-to-fit: if the design resolution ratio of width to height is different from the screen resolution ratio, your game view will be stretched. [2] NO_BORDER Full screen without black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two areas of your game view will be cut. [3] SHOW_ALL Full screen with black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two black borders will be shown.
var setDesignResolutionSize ( var  width,
var  height,
var  resolutionPolicy
)
virtual

Set the design resolution size.

Parameters
widthDesign resolution width.
heightDesign resolution height.
resolutionPolicyThe resolution policy desired, you may choose: [1] EXACT_FIT Fill screen by stretch-to-fit: if the design resolution ratio of width to height is different from the screen resolution ratio, your game view will be stretched. [2] NO_BORDER Full screen without black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two areas of your game view will be cut. [3] SHOW_ALL Full screen with black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two black borders will be shown.
local setDesignResolutionSize ( local  width,
local  height,
local  resolutionPolicy
)
virtual

Set the design resolution size.

Parameters
widthDesign resolution width.
heightDesign resolution height.
resolutionPolicyThe resolution policy desired, you may choose: [1] EXACT_FIT Fill screen by stretch-to-fit: if the design resolution ratio of width to height is different from the screen resolution ratio, your game view will be stretched. [2] NO_BORDER Full screen without black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two areas of your game view will be cut. [3] SHOW_ALL Full screen with black border: if the design resolution ratio of width to height is different from the screen resolution ratio, two black borders will be shown.
virtual void setFrameSize ( float  width,
float  height
)
virtual

Set the frame size of EGL view.

Reimplemented in GLViewImpl, and GLViewImpl.

var setFrameSize ( var  width,
var  height
)
virtual

Set the frame size of EGL view.

Reimplemented in GLViewImpl, and GLViewImpl.

local setFrameSize ( local  width,
local  height
)
virtual

Set the frame size of EGL view.

Reimplemented in GLViewImpl, and GLViewImpl.

virtual void setFrameZoomFactor ( float  zoomFactor)
inlinevirtual

Set and get zoom factor for frame.

This two methods are for debugging big resolution (e.g.new ipad) app on desktop.

Reimplemented in GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

var setFrameZoomFactor ( var  zoomFactor)
inlinevirtual

Set and get zoom factor for frame.

This two methods are for debugging big resolution (e.g.new ipad) app on desktop.

Reimplemented in GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

local setFrameZoomFactor ( local  zoomFactor)
inlinevirtual

Set and get zoom factor for frame.

This two methods are for debugging big resolution (e.g.new ipad) app on desktop.

Reimplemented in GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

static void setGLContextAttrs ( GLContextAttrs &  glContextAttrs)
static
var setGLContextAttrs ( var  glContextAttrs)
static
local setGLContextAttrs ( local  glContextAttrs)
static
virtual void setIMEKeyboardState ( bool  open)
pure virtual

Open or close IME keyboard , subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

var setIMEKeyboardState ( var  open)
pure virtual

Open or close IME keyboard , subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

local setIMEKeyboardState ( local  open)
pure virtual

Open or close IME keyboard , subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

virtual void setIMEKeyboardState ( bool  open,
std::string  str
)
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

var setIMEKeyboardState ( var  open,
var  str
)
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

local setIMEKeyboardState ( local  open,
local  str
)
pure virtual

Implemented in GLViewImpl, and GLViewImpl.

virtual void setScissorInPoints ( float  x,
float  y,
float  w,
float  h
)
virtual

Set Scissor rectangle with points.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

var setScissorInPoints ( var  x,
var  y,
var  w,
var  h
)
virtual

Set Scissor rectangle with points.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

local setScissorInPoints ( local  x,
local  y,
local  w,
local  h
)
virtual

Set Scissor rectangle with points.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

virtual void setViewName ( const std::string &  viewname)
virtual
var setViewName ( var  viewname)
virtual
local setViewName ( local  viewname)
virtual
virtual void setViewPortInPoints ( float  x,
float  y,
float  w,
float  h
)
virtual

Set opengl view port rectangle with points.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

var setViewPortInPoints ( var  x,
var  y,
var  w,
var  h
)
virtual

Set opengl view port rectangle with points.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

local setViewPortInPoints ( local  x,
local  y,
local  w,
local  h
)
virtual

Set opengl view port rectangle with points.

Reimplemented in GLViewImpl, GLViewImpl, and GLViewImpl.

virtual void swapBuffers ( )
pure virtual

Exchanges the front and back buffers, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

var swapBuffers ( )
pure virtual

Exchanges the front and back buffers, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

local swapBuffers ( )
pure virtual

Exchanges the front and back buffers, subclass must implement this method.

Implemented in GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, GLViewImpl, and GLViewImpl.

void updateDesignResolutionSize ( )
protected
var updateDesignResolutionSize ( )
protected
local updateDesignResolutionSize ( )
protected
virtual bool windowShouldClose ( )
inlinevirtual

Reimplemented in GLViewImpl.

var windowShouldClose ( )
inlinevirtual

Reimplemented in GLViewImpl.

local windowShouldClose ( )
inlinevirtual

Reimplemented in GLViewImpl.

Member Data Documentation

Size _designResolutionSize
protected
var _designResolutionSize
protected
local _designResolutionSize
protected
GLContextAttrs _glContextAttrs
static
var _glContextAttrs
static
local _glContextAttrs
static
ResolutionPolicy _resolutionPolicy
protected
var _resolutionPolicy
protected
local _resolutionPolicy
protected
float _scaleX
protected
var _scaleX
protected
local _scaleX
protected
float _scaleY
protected
var _scaleY
protected
local _scaleY
protected
Size _screenSize
protected
var _screenSize
protected
std::string _viewName
protected
var _viewName
protected
local _viewName
protected
Rect _viewPortRect
protected
var _viewPortRect
protected
local _viewPortRect
protected
The documentation for this class was generated from the following file:
