#include <CCActionGrid3D.h>

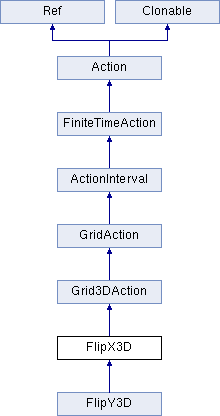

Inheritance diagram for FlipX3D:

Public Member Functions
virtual FlipX3D *	clone () const override
	returns a clone of action More...

virtual void	update (float time) override
	called once per frame. More...

Public Member Functions inherited from Grid3DAction
virtual GridBase *	getGrid ()
	returns the grid More...

Vertex3F	getVertex (const Point &position) const
	returns the vertex than belongs to certain position in the grid More...

CC_DEPRECATED_ATTRIBUTE Vertex3F	vertex (const Point &position)
Vertex3F	getOriginalVertex (const Point &position) const
	returns the non-transformed vertex than belongs to certain position in the grid More...

CC_DEPRECATED_ATTRIBUTE Vertex3F	originalVertex (const Point &position)
void	setVertex (const Point &position, const Vertex3F &vertex)
	sets a new vertex to a certain position of the grid More...

Public Member Functions inherited from GridAction
virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Release the ownership immediately. More...

Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Static Public Member Functions
static FlipX3D *	create (float duration)
	creates the action with duration More...

Protected Member Functions
	FlipX3D ()
virtual	~FlipX3D ()
bool	initWithDuration (float duration)
	initializes the action with duration More...

virtual bool	initWithSize (const Size &gridSize, float duration)

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Protected Attributes inherited from GridAction
Size	_gridSize
NodeGrid *	_gridNodeTarget
var	_gridNodeTarget
local	_gridNodeTarget

Detailed Description

FlipX3D action.

Constructor & Destructor Documentation

FlipX3D ( )

inlineprotected

virtual ~FlipX3D ( )

inlineprotectedvirtual

Member Function Documentation

virtual FlipX3D* clone ( ) const

overridevirtual

returns a clone of action

Implements Grid3DAction.

Reimplemented in FlipY3D.

static FlipX3D* create ( float duration)

static

creates the action with duration

bool initWithDuration ( float duration)

protected

initializes the action with duration

virtual bool initWithSize	(	const Size &	gridSize,
		float	duration
	)

protectedvirtual

virtual void update ( float time)

overridevirtual

called once per frame.

time a value between 0 and 1

For example:

0 means that the action just started
0.5 means that the action is in the middle
1 means that the action is over

Reimplemented from Action.

Reimplemented in FlipY3D.

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionGrid3D.h
