Base class for Grid actions. More...

#include <CCActionGrid.h>

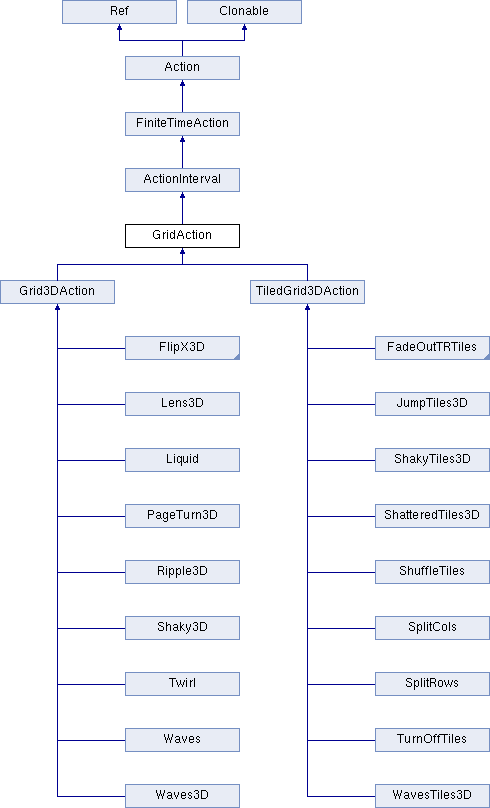

Inheritance diagram for GridAction:

Public Member Functions
virtual GridBase *	getGrid ()
	returns the grid More...

local	getGrid ()
	returns the grid More...

virtual GridAction *	clone () const override=0
	returns a clone of action More...

virtual GridAction *	reverse () const override
	returns a new action that performs the exactly the reverse action More...

var	reverse ()
	returns a new action that performs the exactly the reverse action More...

local	reverse ()
	returns a new action that performs the exactly the reverse action More...

virtual void	startWithTarget (Node *target) override
	called before the action start. It will also set the target. More...

Public Member Functions inherited from ActionInterval
float	getElapsed (void)
	how many seconds had elapsed since the actions started to run. More...

void	setAmplitudeRate (float amp)
float	getAmplitudeRate (void)
virtual bool	isDone (void) const override
	return true if the action has finished More...

virtual void	step (float dt) override
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

local	step ( local dt)
	called every frame with it's delta time. DON'T override unless you know what you are doing. More...

Public Member Functions inherited from FiniteTimeAction
float	getDuration () const
	get duration in seconds of the action More...

void	setDuration (float duration)
	set duration in seconds of the action More...

Public Member Functions inherited from Action
virtual std::string	description () const
virtual void	stop ()
	called after the action has finished. More...

var	stop ()
	called after the action has finished. More...

local	stop ()
	called after the action has finished. More...

virtual void	update (float time)
	called once per frame. More...

local	update ( local time)
	called once per frame. More...

Node *	getTarget () const
var	getTarget ()
local	getTarget ()
void	setTarget (Node *target)
	The action will modify the target properties. More...

var	setTarget ( var target)
	The action will modify the target properties. More...

local	setTarget ( local target)
	The action will modify the target properties. More...

Node *	getOriginalTarget () const
void	setOriginalTarget (Node *originalTarget)
	Set the original target, since target can be nil. More...

local	setOriginalTarget ( local originalTarget)
	Set the original target, since target can be nil. More...

int	getTag () const
var	getTag ()
local	getTag ()
void	setTag (int tag)
var	setTag ( var tag)
local	setTag ( local tag)
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...

void	release ()
	Release the ownership immediately. More...

Ref *	autorelease ()
	Release the ownership sometime soon automatically. More...

unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...

virtual	~Ref ()
Public Member Functions inherited from Clonable
virtual	~Clonable ()
Ref *	copy () const
	returns a copy of the Ref. More...

var	copy ()
	returns a copy of the Ref. More...

local	copy ()
	returns a copy of the Ref. More...

Protected Member Functions
	GridAction ()
virtual	~GridAction ()
var	~GridAction ()
local	~GridAction ()
bool	initWithDuration (float duration, const Size &gridSize)
	initializes the action with size and duration More...

var	initWithDuration ( var duration, var gridSize)
	initializes the action with size and duration More...

local	initWithDuration ( local duration, local gridSize)
	initializes the action with size and duration More...

void	cacheTargetAsGridNode ()
var	cacheTargetAsGridNode ()
local	cacheTargetAsGridNode ()
Protected Member Functions inherited from ActionInterval
bool	initWithDuration (float d)
	initializes the action More...

var	initWithDuration ( var d)
	initializes the action More...

local	initWithDuration ( local d)
	initializes the action More...

Protected Member Functions inherited from FiniteTimeAction
	FiniteTimeAction ()
virtual	~FiniteTimeAction ()
Protected Member Functions inherited from Action
	Action ()
	Action ()
	Action ()
virtual	~Action ()
var	~Action ()
local	~Action ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...

Protected Attributes
Size	_gridSize
NodeGrid *	_gridNodeTarget
var	_gridNodeTarget
local	_gridNodeTarget
Protected Attributes inherited from ActionInterval
float	_elapsed
bool	_firstTick
Protected Attributes inherited from FiniteTimeAction
float	_duration
	duration in seconds More...

Protected Attributes inherited from Action
Node *	_originalTarget
local	_originalTarget
Node *	_target
	The "target". More...

int	_tag
	The action tag. More...

Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Action
static const int	INVALID_TAG = -1
	Default tag used for all the actions. More...

var	INVALID_TAG = -1
	Default tag used for all the actions. More...

local	INVALID_TAG = -1
	Default tag used for all the actions. More...

Detailed Description

Base class for Grid actions.

Constructor & Destructor Documentation

GridAction ( )

inlineprotected

var GridAction ( )

inlineprotected

local GridAction ( )

inlineprotected

virtual ~GridAction ( )

inlineprotectedvirtual

var ~GridAction ( )

inlineprotectedvirtual

local ~GridAction ( )

inlineprotectedvirtual

Member Function Documentation

void cacheTargetAsGridNode ( )

protected

var cacheTargetAsGridNode ( )

protected

local cacheTargetAsGridNode ( )

protected

virtual GridAction* clone ( ) const

overridepure virtual

returns a clone of action

Implements ActionInterval.

Implemented in SplitCols, SplitRows, Twirl, JumpTiles3D, Waves, WavesTiles3D, Liquid, TurnOffTiles, Shaky3D, FadeOutDownTiles, FadeOutUpTiles, Ripple3D, TiledGrid3DAction, FadeOutBLTiles, FadeOutTRTiles, Lens3D, Grid3DAction, FlipY3D, ShuffleTiles, FlipX3D, ShatteredTiles3D, Waves3D, PageTurn3D, and ShakyTiles3D.

var clone ( )

overridepure virtual

returns a clone of action

Implements ActionInterval.

Implemented in SplitCols, SplitRows, Twirl, JumpTiles3D, Waves, WavesTiles3D, Liquid, TurnOffTiles, Shaky3D, FadeOutDownTiles, FadeOutUpTiles, Ripple3D, TiledGrid3DAction, FadeOutBLTiles, FadeOutTRTiles, Lens3D, Grid3DAction, FlipY3D, ShuffleTiles, FlipX3D, ShatteredTiles3D, Waves3D, PageTurn3D, and ShakyTiles3D.

local clone ( )

overridepure virtual

returns a clone of action

Implements ActionInterval.

Implemented in SplitCols, SplitRows, Twirl, JumpTiles3D, Waves, WavesTiles3D, Liquid, TurnOffTiles, Shaky3D, FadeOutDownTiles, FadeOutUpTiles, Ripple3D, TiledGrid3DAction, FadeOutBLTiles, FadeOutTRTiles, Lens3D, Grid3DAction, FlipY3D, ShuffleTiles, FlipX3D, ShatteredTiles3D, Waves3D, PageTurn3D, and ShakyTiles3D.

virtual GridBase* getGrid ( )

virtual

returns the grid

Reimplemented in TiledGrid3DAction, and Grid3DAction.

var getGrid ( )

virtual

returns the grid

Reimplemented in TiledGrid3DAction, and Grid3DAction.

local getGrid ( )

virtual

returns the grid

Reimplemented in TiledGrid3DAction, and Grid3DAction.

bool initWithDuration	(	float	duration,
		const Size &	gridSize
	)

protected

initializes the action with size and duration

var initWithDuration	(	var	duration,
		var	gridSize
	)

protected

initializes the action with size and duration

local initWithDuration	(	local	duration,
		local	gridSize
	)

protected

initializes the action with size and duration

virtual GridAction* reverse ( ) const

overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

var reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

local reverse ( )

overridevirtual

returns a new action that performs the exactly the reverse action

Implements ActionInterval.

virtual void startWithTarget ( Node * target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in SplitCols, SplitRows, TurnOffTiles, and ShuffleTiles.

var startWithTarget ( var target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in SplitCols, SplitRows, TurnOffTiles, and ShuffleTiles.

local startWithTarget ( local target)

overridevirtual

called before the action start. It will also set the target.

Reimplemented from ActionInterval.

Reimplemented in SplitCols, SplitRows, TurnOffTiles, and ShuffleTiles.

Member Data Documentation

NodeGrid* _gridNodeTarget

protected

var _gridNodeTarget

protected

local _gridNodeTarget

protected

Size _gridSize

protected

var _gridSize

protected

local _gridSize

protected

The documentation for this class was generated from the following file:

/Users/cocos2d/MyWork/cocos2d-x-develop/cocos/2d/CCActionGrid.h
