Layout Class Reference

#include <UILayout.h>

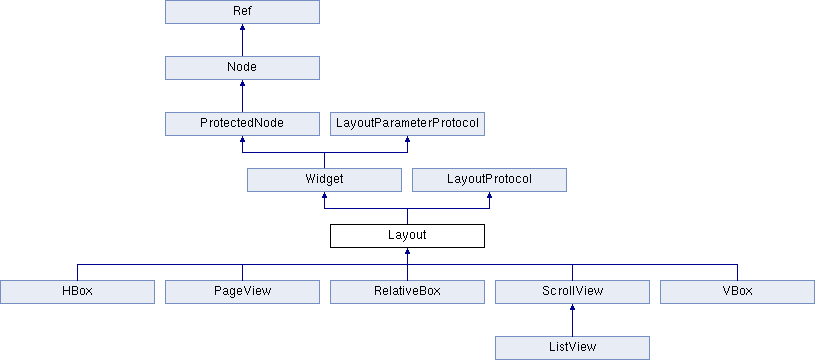

Inheritance diagram for Layout:
Widget LayoutProtocol ProtectedNode LayoutParameterProtocol Node Ref HBox PageView RelativeBox ScrollView VBox ListView

Public Types

enum  Type { ABSOLUTE, VERTICAL, HORIZONTAL, RELATIVE }

enum  ClippingType { STENCIL, SCISSOR }

enum  BackGroundColorType { NONE, SOLID, GRADIENT }

- Public Types inherited from Widget
enum  FocusDirection { LEFT, RIGHT, UP, DOWN }

enum  PositionType { ABSOLUTE, PERCENT }

enum  SizeType { ABSOLUTE, PERCENT }

enum  TouchEventType { BEGAN, MOVED, ENDED, CANCELED }

enum  TextureResType { LOCAL = 0, PLIST = 1 }

enum  BrightStyle { NONE = -1, NORMAL, HIGHLIGHT }

typedef std::function< void(Ref
*, Widget::TouchEventType)>
ccWidgetTouchCallback
typedef std::function< void(Ref *)> ccWidgetClickCallback
- Public Types inherited from Node
enum  { FLAGS_TRANSFORM_DIRTY = (1 << 0), FLAGS_CONTENT_SIZE_DIRTY = (1 << 1), FLAGS_DIRTY_MASK = (FLAGS_TRANSFORM_DIRTY | FLAGS_CONTENT_SIZE_DIRTY) }


Public Member Functions

 Layout ()
 Default constructor. More...

virtual ~Layout ()
 Default destructor. More...

void setBackGroundImage (const std::string &fileName, TextureResType texType=TextureResType::LOCAL)
 Sets a background image for layout. More...

void setBackGroundImageCapInsets (const Rect &capInsets)
 Sets a background image capinsets for layout, if the background image is a scale9 render. More...

const RectgetBackGroundImageCapInsets () const
void setBackGroundColorType (BackGroundColorType type)
 Sets Color Type for layout. More...

BackGroundColorType getBackGroundColorType () const
void setBackGroundImageScale9Enabled (bool enabled)
 Sets background iamge use scale9 renderer. More...

bool isBackGroundImageScale9Enabled () const
void setBackGroundColor (const Color3B &color)
 Sets background color for layout, if color type is BackGroundColorType::SOLIDE. More...

const Color3BgetBackGroundColor () const
void setBackGroundColor (const Color3B &startColor, const Color3B &endColor)
 Sets background color for layout, if color type is BackGroundColorType::GRADIENT. More...

const Color3BgetBackGroundStartColor () const
const Color3BgetBackGroundEndColor () const
void setBackGroundColorOpacity (GLubyte opacity)
 Sets background opacity layout. More...

GLubyte getBackGroundColorOpacity () const
void setBackGroundColorVector (const Vec2 &vector)
 Sets background color vector for layout, if color type is BackGroundColorType::GRADIENT. More...

const Vec2getBackGroundColorVector () const
void setBackGroundImageColor (const Color3B &color)
void setBackGroundImageOpacity (GLubyte opacity)
const Color3BgetBackGroundImageColor () const
GLubyte getBackGroundImageOpacity () const
void removeBackGroundImage ()
 Remove the background image of layout. More...

const SizegetBackGroundImageTextureSize () const
 Gets background image texture size. More...

virtual void setClippingEnabled (bool enabled)
 Changes if layout can clip it's content and child. More...

void setClippingType (ClippingType type)
ClippingType getClippingType () const
virtual bool isClippingEnabled () const
 Gets if layout is clipping enabled. More...

virtual std::string getDescription () const override
 Returns the "class name" of widget. More...

virtual void setLayoutType (Type type)
virtual Type getLayoutType () const
virtual void addChild (Node *child) override
 Adds a child to the container with z order and tag. More...

virtual void addChild (Node *child, int localZOrder) override
 Adds a child to the container with a local z-order. More...

virtual void addChild (Node *child, int zOrder, int tag) override
 Adds a child to the container with z order and tag. More...

virtual void addChild (Node *child, int zOrder, const std::string &name) override
 Adds a child to the container with z order and tag. More...

virtual void visit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags) override
 Visits this node's children and draw them recursively. More...

virtual void removeChild (Node *child, bool cleanup=true) override
 Removes a child from the container. More...

virtual void removeAllChildren () override
 Removes all children from the container with a cleanup. More...

virtual void removeAllChildrenWithCleanup (bool cleanup) override
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

void forceDoLayout ()
 force refresh widget layout More...

void requestDoLayout ()
 request to refresh widget layout More...

virtual void onEnter () override
 Event callback that is invoked every time when Node enters the 'stage'. More...

virtual void onExit () override
 Event callback that is invoked every time the Node leaves the 'stage'. More...

void setLoopFocus (bool loop)
 If a layout is loop focused which means that the focus movement will be inside the layout. More...

bool isLoopFocus () const
void setPassFocusToChild (bool pass)
bool isPassFocusToChild () const
virtual WidgetfindNextFocusedWidget (FocusDirection direction, Widget *current) override
 When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...

- Public Member Functions inherited from Widget
 Widget (void)
virtual ~Widget ()
 Default destructor. More...

virtual void setEnabled (bool enabled)
 Sets whether the widget is enabled. More...

bool isEnabled () const
 Determines if the widget is enabled. More...

void setBright (bool bright)
 Sets whether the widget is bright. More...

bool isBright () const
 Determines if the widget is bright. More...

virtual void setTouchEnabled (bool enabled)
 Sets whether the widget is touch enabled. More...

void setBrightStyle (BrightStyle style)
 To set the bright style of widget. More...

bool isTouchEnabled () const
 Determines if the widget is touch enabled. More...

bool isHighlighted () const
 Determines if the widget is highlighted. More...

void setHighlighted (bool hilight)
 Sets whether the widget is hilighted. More...

float getLeftInParent ()
 Gets the left boundary position of this widget in parent's coordination system. More...

float getLeftBoundary () const
float getBottomInParent ()
 Gets the bottom boundary position of this widget in parent's coordination system. More...

float getBottomBoundary () const
float getRightInParent ()
 Gets the right boundary position of this widget in parent's coordination system. More...

float getRightBoundary () const
float getTopInParent ()
 Gets the top boundary position of this widget in parent's coordination system. More...

float getTopBoundary () const
void addTouchEventListener (Ref *target, SEL_TouchEvent selector)
 Sets the touch event target/selector to the widget. More...

void addTouchEventListener (const ccWidgetTouchCallback &callback)
void addClickEventListener (const ccWidgetClickCallback &callback)
 Set a click event handler to the widget. More...

virtual void setPosition (const Vec2 &pos) override
 Changes the position (x,y) of the widget in OpenGL coordinates. More...

void setPositionPercent (const Vec2 &percent)
 Set the percent(x,y) of the widget in OpenGL coordinates. More...

const Vec2getPositionPercent () const
 Gets the percent (x,y) of the widget in OpenGL coordinates. More...

void setPositionType (PositionType type)
 Changes the position type of the widget. More...

PositionType getPositionType () const
 Gets the position type of the widget. More...

virtual void setFlippedX (bool flippedX)
 Sets whether the widget should be flipped horizontally or not. More...

virtual bool isFlippedX () const
 Returns the flag which indicates whether the widget is flipped horizontally or not. More...

virtual void setFlippedY (bool flippedY)
 Sets whether the widget should be flipped vertically or not. More...

virtual bool isFlippedY () const
 Return the flag which indicates whether the widget is flipped vertically or not. More...

bool isFlipX ()
void setFlipX (bool flipX)
bool isFlipY ()
void setFlipY (bool flipY)
bool clippingParentAreaContainPoint (const Vec2 &pt)
bool isClippingParentContainsPoint (const Vec2 &pt)
const Vec2getTouchStartPos () const
const Vec2getTouchBeganPosition () const
const Vec2getTouchMovePos () const
const Vec2getTouchMovePosition () const
const Vec2getTouchEndPos () const
const Vec2getTouchEndPosition () const
virtual void setSize (const Size &size)
 Changes the size that is widget's size. More...

virtual void setContentSize (const Size &contentSize) override
 Sets the untransformed size of the node. More...

virtual void setSizePercent (const Vec2 &percent)
 Changes the percent that is widget's percent size. More...

void setSizeType (SizeType type)
 Changes the size type of widget. More...

SizeType getSizeType () const
 Gets the size type of widget. More...

const SizegetSize () const
 Returns size of widget. More...

const SizegetCustomSize () const
virtual const SizegetLayoutSize ()
const Vec2getSizePercent ()
 Returns size percent of widget. More...

virtual bool hitTest (const Vec2 &pt)
 Checks a point if is in widget's space. More...

virtual bool onTouchBegan (Touch *touch, Event *unusedEvent)
virtual void onTouchMoved (Touch *touch, Event *unusedEvent)
virtual void onTouchEnded (Touch *touch, Event *unusedEvent)
virtual void onTouchCancelled (Touch *touch, Event *unusedEvent)
void setLayoutParameter (LayoutParameter *parameter)
 Sets a LayoutParameter to widget. More...

LayoutParametergetLayoutParameter () const override
 Gets LayoutParameter of widget. More...

LayoutParametergetLayoutParameter (LayoutParameter::Type type)
virtual void ignoreContentAdaptWithSize (bool ignore)
 Note: when you set _ignoreSize to true, no matther you call setContentSize or not, the widget size is always equal to the return value of the member function getVirtualRendererSize. More...

bool isIgnoreContentAdaptWithSize () const
 Query whether the widget ignores user deinfed content size or not. More...

Vec2 getWorldPosition () const
 Gets world position of widget. More...

virtual NodegetVirtualRenderer ()
 Gets the Virtual Renderer of widget. More...

virtual Size getVirtualRendererSize () const
Widgetclone ()
void updateSizeAndPosition ()
void updateSizeAndPosition (const Size &parentSize)
void setActionTag (int tag)
int getActionTag () const
void setPropagateTouchEvents (bool isPropagate)
 Allow widget touch events to propagate to its parents. More...

bool isPropagateTouchEvents () const
 Return whether the widget is propagate touch events to its parents or not. More...

void setSwallowTouches (bool swallow)
 Specify widget to swallow touches or not. More...

bool isSwallowTouches () const
 Return whether the widget is swallowing touch or not. More...

bool isFocused () const
void setFocused (bool focus)
bool isFocusEnabled () const
void setFocusEnabled (bool enable)
virtual WidgetfindNextFocusedWidget (FocusDirection direction, Widget *current)
 When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...

void requestFocus ()
 when a widget calls this method, it will get focus immediately. More...

WidgetgetCurrentFocusedWidget (bool isWidget)
 no matter what widget object you call this method on , it will return you the exact one focused widget More...

WidgetgetCurrentFocusedWidget () const
void setUnifySizeEnabled (bool enable)
virtual void interceptTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
void propagateTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
 Propagate touch events to its parents. More...

void onFocusChange (Widget *widgetLostFocus, Widget *widgetGetFocus)
 This method is called when a focus change event happens. More...

void dispatchFocusEvent (Widget *widgetLoseFocus, Widget *widgetGetFocus)
 Dispatch a EventFocus through a EventDispatcher. More...

bool isUnifySizeEnabled () const
- Public Member Functions inherited from ProtectedNode
virtual void cleanup () override
 Stops all running actions and schedulers. More...

virtual void onEnterTransitionDidFinish () override
 Event callback that is invoked when the Node enters in the 'stage'. More...

virtual void onExitTransitionDidStart () override
 Event callback that is called every time the Node leaves the 'stage'. More...

virtual void updateDisplayedOpacity (GLubyte parentOpacity) override
var updateDisplayedOpacity ( var parentOpacity)
local updateDisplayedOpacity ( local parentOpacity)
virtual void updateDisplayedColor (const Color3B &parentColor) override
var updateDisplayedColor ( var parentColor)
local updateDisplayedColor ( local parentColor)
virtual void disableCascadeColor () override
var disableCascadeColor ()
local disableCascadeColor ()
virtual void disableCascadeOpacity () override
local disableCascadeOpacity ()
virtual ~ProtectedNode ()
local ~ProtectedNode ()
virtual void addProtectedChild (Node *child)
 Adds a child to the container with z-order as 0. More...

local addProtectedChild ( local child)
 Adds a child to the container with z-order as 0. More...

virtual void addProtectedChild (Node *child, int localZOrder)
 Adds a child to the container with a local z-order. More...

local addProtectedChild ( local child, local localZOrder)
 Adds a child to the container with a local z-order. More...

virtual void addProtectedChild (Node *child, int localZOrder, int tag)
 Adds a child to the container with z order and tag. More...

local addProtectedChild ( local child, local localZOrder, local tag)
 Adds a child to the container with z order and tag. More...

virtual NodegetProtectedChildByTag (int tag)
 Gets a child from the container with its tag. More...

local getProtectedChildByTag ( local tag)
 Gets a child from the container with its tag. More...

virtual void removeProtectedChild (Node *child, bool cleanup=true)
 Removes a child from the container. More...

local removeProtectedChild ( local child, local true)
 Removes a child from the container. More...

virtual void removeProtectedChildByTag (int tag, bool cleanup=true)
 Removes a child from the container by tag value. More...

local removeProtectedChildByTag ( local tag, local true)
 Removes a child from the container by tag value. More...

virtual void removeAllProtectedChildren ()
 Removes all children from the container with a cleanup. More...

local removeAllProtectedChildren ()
 Removes all children from the container with a cleanup. More...

virtual void removeAllProtectedChildrenWithCleanup (bool cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

local removeAllChildren ( local cleanup)
 Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...

virtual void reorderProtectedChild (Node *child, int localZOrder)
 Reorders a child according to a new z value. More...

var reorderProtectedChild ( var child, var localZOrder)
 Reorders a child according to a new z value. More...

local reorderProtectedChild ( local child, local localZOrder)
 Reorders a child according to a new z value. More...

virtual void sortAllProtectedChildren ()
 Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

- Public Member Functions inherited from Node
virtual bool isRunning () const
 Returns whether or not the node is "running". More...

var isRunning ()
 Returns whether or not the node is "running". More...

local isRunning ()
 Returns whether or not the node is "running". More...

void scheduleUpdateWithPriorityLua (int handler, int priority)
 Schedules for lua script. More...

virtual void draw (Renderer *renderer, const Mat4 &transform, uint32_t flags)
 Override this method to draw your own node. More...

var draw ( var renderer, var transform, var flags)
 Override this method to draw your own node. More...

local draw ( local renderer, local transform, local flags)
 Override this method to draw your own node. More...

virtual void draw () final
var draw ()
local draw ()
virtual void visit () final
virtual ScenegetScene () const
 Returns the Scene that contains the Node. More...

local getScene ()
 Returns the Scene that contains the Node. More...

virtual Rect getBoundingBox () const
 Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...

virtual Rect boundingBox () const
local boundingBox ()
virtual void setEventDispatcher (EventDispatcher *dispatcher)
var setEventDispatcher ( var dispatcher)
local setEventDispatcher ( local dispatcher)
virtual EventDispatchergetEventDispatcher () const
local getEventDispatcher ()
void setPhysicsBody (PhysicsBody *body)
 set the PhysicsBody that let the sprite effect with physics More...

var setPhysicsBody ( var body)
 set the PhysicsBody that let the sprite effect with physics More...

local setPhysicsBody ( local body)
 set the PhysicsBody that let the sprite effect with physics More...

PhysicsBodygetPhysicsBody () const
 get the PhysicsBody the sprite have More...

var getPhysicsBody ()
 get the PhysicsBody the sprite have More...

local getPhysicsBody ()
 get the PhysicsBody the sprite have More...

void removeFromPhysicsWorld ()
 remove this node from physics world. More...

virtual GLubyte getOpacity () const
var getOpacity ()
local getOpacity ()
virtual GLubyte getDisplayedOpacity () const
local getDisplayedOpacity ()
virtual void setOpacity (GLubyte opacity)
local setOpacity ( local opacity)
virtual bool isCascadeOpacityEnabled () const
var isCascadeOpacityEnabled ()
local isCascadeOpacityEnabled ()
virtual void setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
local setCascadeOpacityEnabled ( local cascadeOpacityEnabled)
virtual const Color3BgetColor () const
local getColor ()
virtual const Color3BgetDisplayedColor () const
local getDisplayedColor ()
virtual void setColor (const Color3B &color)
var setColor ( var color)
local setColor ( local color)
virtual bool isCascadeColorEnabled () const
var isCascadeColorEnabled ()
local isCascadeColorEnabled ()
virtual void setCascadeColorEnabled (bool cascadeColorEnabled)
virtual void setOpacityModifyRGB (bool value)
var setOpacityModifyRGB ( var value)
local setOpacityModifyRGB ( local value)
virtual bool isOpacityModifyRGB () const
var isOpacityModifyRGB ()
local isOpacityModifyRGB ()
void setOnEnterCallback (const std::function< void()> &callback)
var setOnEnterCallback ( var callback)
local setOnEnterCallback ( local callback)
const std::function< void()> & getOnEnterCallback () const
local getOnEnterCallback ()
void setOnExitCallback (const std::function< void()> &callback)
var setOnExitCallback ( var callback)
local setOnExitCallback ( local callback)
const std::function< void()> & getOnExitCallback () const
local getOnExitCallback ()
void setonEnterTransitionDidFinishCallback (const std::function< void()> &callback)
var setonEnterTransitionDidFinishCallback ( var callback)
local setonEnterTransitionDidFinishCallback ( local callback)
const std::function< void()> & getonEnterTransitionDidFinishCallback () const
local getonEnterTransitionDidFinishCallback ()
void setonExitTransitionDidStartCallback (const std::function< void()> &callback)
var setonExitTransitionDidStartCallback ( var callback)
local setonExitTransitionDidStartCallback ( local callback)
const std::function< void()> & getonExitTransitionDidStartCallback () const
local getonExitTransitionDidStartCallback ()
unsigned short getCameraMask () const
 get & set camera mask, the node is visible by the camera whose camera flag & node's camera mask is true More...

void setCameraMask (unsigned short mask, bool applyChildren=true)
var setCameraMask ( var mask, var true)
local setCameraMask ( local mask, local true)
virtual ~Node ()
virtual bool init ()
local init ()
virtual void setLocalZOrder (int localZOrder)
 LocalZOrder is the 'key' used to sort the node relative to its siblings. More...

virtual void setZOrder (int localZOrder)
virtual void _setLocalZOrder (int z)
local _setLocalZOrder ( local z)
virtual int getLocalZOrder () const
 Gets the local Z order of this node. More...

var getLocalZOrder ()
 Gets the local Z order of this node. More...

local getLocalZOrder ()
 Gets the local Z order of this node. More...

virtual int getZOrder () const
var getZOrder ()
local getZOrder ()
virtual void setGlobalZOrder (float globalZOrder)
 Defines the oder in which the nodes are renderer. More...

local setGlobalZOrder ( local globalZOrder)
 Defines the oder in which the nodes are renderer. More...

virtual float getGlobalZOrder () const
 Returns the Node's Global Z Order. More...

var getGlobalZOrder ()
 Returns the Node's Global Z Order. More...

local getGlobalZOrder ()
 Returns the Node's Global Z Order. More...

virtual void setScaleX (float scaleX)
 Sets the scale (x) of the node. More...

var setScaleX ( var scaleX)
 Sets the scale (x) of the node. More...

local setScaleX ( local scaleX)
 Sets the scale (x) of the node. More...

virtual float getScaleX () const
 Returns the scale factor on X axis of this node. More...

local getScaleX ()
 Returns the scale factor on X axis of this node. More...

virtual void setScaleY (float scaleY)
 Sets the scale (y) of the node. More...

local setScaleY ( local scaleY)
 Sets the scale (y) of the node. More...

virtual float getScaleY () const
 Returns the scale factor on Y axis of this node. More...

virtual void setScaleZ (float scaleZ)
 Changes the scale factor on Z axis of this node. More...

local setScaleZ ( local scaleZ)
 Changes the scale factor on Z axis of this node. More...

virtual float getScaleZ () const
 Returns the scale factor on Z axis of this node. More...

virtual void setScale (float scale)
 Sets the scale (x,y,z) of the node. More...

local setScale ( local scale)
 Sets the scale (x,y,z) of the node. More...

virtual float getScale () const
 Gets the scale factor of the node, when X and Y have the same scale factor. More...

virtual void setScale (float scaleX, float scaleY)
 Sets the scale (x,y) of the node. More...

local setScale ( local scaleX, local scaleY)
 Sets the scale (x,y) of the node. More...

virtual void setNormalizedPosition (const Vec2 &position)
 Sets the position (x,y) using values between 0 and 1. More...

local setNormalizedPosition ( local position)
 Sets the position (x,y) using values between 0 and 1. More...

virtual const Vec2getPosition () const
 Gets the position (x,y) of the node in its parent's coordinate system. More...

virtual const Vec2getNormalizedPosition () const
 returns the normalized position More...

local getNormalizedPosition ()
 returns the normalized position More...

virtual void setPosition (float x, float y)
 Sets the position (x,y) of the node in its parent's coordinate system. More...

local setPosition ( local x, local y)
 Sets the position (x,y) of the node in its parent's coordinate system. More...

virtual void getPosition (float *x, float *y) const
 Gets position in a more efficient way, returns two number instead of a Vec2 object. More...

virtual void setPositionX (float x)
 Gets/Sets x or y coordinate individually for position. More...

virtual float getPositionX (void) const
var getPositionX ()
local getPositionX ()
virtual void setPositionY (float y)
local setPositionY ( local y)
virtual float getPositionY (void) const
local getPositionY ()
virtual void setPosition3D (const Vec3 &position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

local setPosition3D ( local position)
 Sets the position (X, Y, and Z) in its parent's coordinate system. More...

virtual Vec3 getPosition3D () const
 returns the position (X,Y,Z) in its parent's coordinate system More...

virtual void setPositionZ (float positionZ)
 Sets the 'z' coordinate in the position. More...

local setPositionZ ( local positionZ)
 Sets the 'z' coordinate in the position. More...

virtual void setVertexZ (float vertexZ)
var setVertexZ ( var vertexZ)
local setVertexZ ( local vertexZ)
virtual float getPositionZ () const
 Gets position Z coordinate of this node. More...

virtual float getVertexZ () const
var getVertexZ ()
virtual void setSkewX (float skewX)
 Changes the X skew angle of the node in degrees. More...

local setSkewX ( local skewX)
 Changes the X skew angle of the node in degrees. More...

virtual float getSkewX () const
 Returns the X skew angle of the node in degrees. More...

virtual void setSkewY (float skewY)
 Changes the Y skew angle of the node in degrees. More...

var setSkewY ( var skewY)
 Changes the Y skew angle of the node in degrees. More...

local setSkewY ( local skewY)
 Changes the Y skew angle of the node in degrees. More...

virtual float getSkewY () const
 Returns the Y skew angle of the node in degrees. More...

virtual void setAnchorPoint (const Vec2 &anchorPoint)
 Sets the anchor point in percent. More...

local setAnchorPoint ( local anchorPoint)
 Sets the anchor point in percent. More...

virtual const Vec2getAnchorPoint () const
 Returns the anchor point in percent. More...

virtual const Vec2getAnchorPointInPoints () const
 Returns the anchorPoint in absolute pixels. More...

virtual const SizegetContentSize () const
 Returns the untransformed size of the node. More...

local getContentSize ()
 Returns the untransformed size of the node. More...

virtual void setVisible (bool visible)
 Sets whether the node is visible. More...

local setVisible ( local visible)
 Sets whether the node is visible. More...

virtual bool isVisible () const
 Determines if the node is visible. More...

virtual void setRotation (float rotation)
 Sets the rotation (angle) of the node in degrees. More...

var setRotation ( var rotation)
 Sets the rotation (angle) of the node in degrees. More...

local setRotation ( local rotation)
 Sets the rotation (angle) of the node in degrees. More...

virtual float getRotation () const
 Returns the rotation of the node in degrees. More...

virtual void setRotation3D (const Vec3 &rotation)
 Sets the rotation (X,Y,Z) in degrees. More...

local setRotation3D ( local rotation)
 Sets the rotation (X,Y,Z) in degrees. More...

virtual Vec3 getRotation3D () const
 returns the rotation (X,Y,Z) in degrees. More...

virtual void setRotationSkewX (float rotationX)
 Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...

virtual void setRotationX (float rotationX)
virtual float getRotationSkewX () const
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

var getRotationSkewX ()
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

local getRotationSkewX ()
 Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...

virtual float getRotationX () const
virtual void setRotationSkewY (float rotationY)
 Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local setRotationSkewY ( local rotationY)
 Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual void setRotationY (float rotationY)
virtual float getRotationSkewY () const
 Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

local getRotationSkewY ()
 Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...

virtual float getRotationY () const
void setOrderOfArrival (int orderOfArrival)
 Sets the arrival order when this node has a same ZOrder with other children. More...

int getOrderOfArrival () const
 Returns the arrival order, indicates which children is added previously. More...

void setGLServerState (int serverState)
int getGLServerState () const
virtual void ignoreAnchorPointForPosition (bool ignore)
 Sets whether the anchor point will be (0,0) when you position this node. More...

local ignoreAnchorPointForPosition ( local ignore)
 Sets whether the anchor point will be (0,0) when you position this node. More...

virtual bool isIgnoreAnchorPointForPosition () const
 Gets whether the anchor point will be (0,0) when you position this node. More...

virtual NodegetChildByTag (int tag) const
 Gets a child from the container with its tag. More...

var getChildByTag ( var tag)
 Gets a child from the container with its tag. More...

local getChildByTag ( local tag)
 Gets a child from the container with its tag. More...

virtual NodegetChildByName (const std::string &name) const
 Gets a child from the container with its name. More...

var getChildByName ( var name)
 Gets a child from the container with its name. More...

local getChildByName ( local name)
 Gets a child from the container with its name. More...

template<typename T >
getChildByName (const std::string &name) const
 Gets a child from the container with its name that can be cast to Type T. More...

virtual void enumerateChildren (const std::string &name, std::function< bool(Node *node)> callback) const
 Search the children of the receiving node to perform processing for nodes which share a name. More...

virtual Vector< Node * > & getChildren ()
 Returns the array of the node's children. More...

local getChildren ()
 Returns the array of the node's children. More...

virtual const Vector< Node * > & getChildren () const
local getChildren ()
virtual ssize_t getChildrenCount () const
 Returns the amount of children. More...

virtual void setParent (Node *parent)
 Sets the parent node. More...

local setParent ( local parent)
 Sets the parent node. More...

virtual NodegetParent ()
 Returns a pointer to the parent node. More...

virtual const NodegetParent () const
local getParent ()
virtual void removeFromParent ()
 Removes this node itself from its parent node with a cleanup. More...

virtual void removeFromParentAndCleanup (bool cleanup)
 Removes this node itself from its parent node. More...

local removeFromParent ( local cleanup)
 Removes this node itself from its parent node. More...

virtual void removeChildByTag (int tag, bool cleanup=true)
 Removes a child from the container by tag value. More...

local removeChildByTag ( local tag, local true)
 Removes a child from the container by tag value. More...

virtual void removeChildByName (const std::string &name, bool cleanup=true)
 Removes a child from the container by tag value. More...

var removeChildByName ( var name, var true)
 Removes a child from the container by tag value. More...

local removeChildByName ( local name, local true)
 Removes a child from the container by tag value. More...

virtual void reorderChild (Node *child, int localZOrder)
 Reorders a child according to a new z value. More...

var reorderChild ( var child, var localZOrder)
 Reorders a child according to a new z value. More...

local reorderChild ( local child, local localZOrder)
 Reorders a child according to a new z value. More...

virtual void sortAllChildren ()
 Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...

virtual int getTag () const
 Returns a tag that is used to identify the node easily. More...

local getTag ()
 Returns a tag that is used to identify the node easily. More...

virtual void setTag (int tag)
 Changes the tag that is used to identify the node easily. More...

local setTag ( local tag)
 Changes the tag that is used to identify the node easily. More...

virtual std::string getName () const
 Returns a string that is used to identify the node. More...

local getName ()
 Returns a string that is used to identify the node. More...

virtual void setName (const std::string &name)
 Changes the name that is used to identify the node easily. More...

local setName ( local name)
 Changes the name that is used to identify the node easily. More...

virtual void * getUserData ()
 Returns a custom user data pointer. More...

virtual const void * getUserData () const
virtual void setUserData (void *userData)
 Sets a custom user data pointer. More...

virtual RefgetUserObject ()
 Returns a user assigned Object. More...

virtual const RefgetUserObject () const
virtual void setUserObject (Ref *userObject)
 Returns a user assigned Object. More...

local setUserObject ( local userObject)
 Returns a user assigned Object. More...

GLProgramgetGLProgram () const
 Return the GLProgram (shader) currently used for this node. More...

var getGLProgram ()
 Return the GLProgram (shader) currently used for this node. More...

local getGLProgram ()
 Return the GLProgram (shader) currently used for this node. More...

GLProgramgetShaderProgram () const
var getShaderProgram ()
local getShaderProgram ()
GLProgramStategetGLProgramState () const
var getGLProgramState ()
local getGLProgramState ()
virtual void setGLProgramState (GLProgramState *glProgramState)
virtual void setGLProgram (GLProgram *glprogram)
 Sets the shader program for this node. More...

var setGLProgram ( var glprogram)
 Sets the shader program for this node. More...

local setGLProgram ( local glprogram)
 Sets the shader program for this node. More...

void setShaderProgram (GLProgram *glprogram)
var setShaderProgram ( var glprogram)
local setShaderProgram ( local glprogram)
virtual void setActionManager (ActionManager *actionManager)
 Sets the ActionManager object that is used by all actions. More...

local setActionManager ( local actionManager)
 Sets the ActionManager object that is used by all actions. More...

virtual ActionManagergetActionManager ()
 Gets the ActionManager object that is used by all actions. More...

local getActionManager ()
 Gets the ActionManager object that is used by all actions. More...

virtual const ActionManagergetActionManager () const
local getActionManager ()
ActionrunAction (Action *action)
 Executes an action, and returns the action that is executed. More...

void stopAllActions ()
 Stops and removes all actions from the running action list . More...

var stopAllActions ()
 Stops and removes all actions from the running action list . More...

local stopAllActions ()
 Stops and removes all actions from the running action list . More...

void stopAction (Action *action)
 Stops and removes an action from the running action list. More...

var stopAction ( var action)
 Stops and removes an action from the running action list. More...

local stopAction ( local action)
 Stops and removes an action from the running action list. More...

void stopActionByTag (int tag)
 Removes an action from the running action list by its tag. More...

void stopAllActionsByTag (int tag)
 Removes all actions from the running action list by its tag. More...

var stopAllActionsByTag ( var tag)
 Removes all actions from the running action list by its tag. More...

local stopAllActionsByTag ( local tag)
 Removes all actions from the running action list by its tag. More...

ActiongetActionByTag (int tag)
 Gets an action from the running action list by its tag. More...

ssize_t getNumberOfRunningActions () const
 Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

local getNumberOfRunningActions ()
 Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...

ssize_t numberOfRunningActions () const
var numberOfRunningActions ()
local numberOfRunningActions ()
virtual void setScheduler (Scheduler *scheduler)
 Sets a Scheduler object that is used to schedule all "updates" and timers. More...

virtual SchedulergetScheduler ()
 Gets a Sheduler object. More...

local getScheduler ()
 Gets a Sheduler object. More...

virtual const SchedulergetScheduler () const
local getScheduler ()
bool isScheduled (SEL_SCHEDULE selector)
 Checks whether a selector is scheduled. More...

bool isScheduled (const std::string &key)
 Checks whether a lambda function is scheduled. More...

void scheduleUpdate (void)
 Schedules the "update" method. More...

void scheduleUpdateWithPriority (int priority)
 Schedules the "update" method with a custom priority. More...

void unscheduleUpdate (void)
var unscheduleUpdate ()
local unscheduleUpdate ()
void schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
 Schedules a custom selector. More...

void schedule (SEL_SCHEDULE selector, float interval)
 Schedules a custom selector with an interval time in seconds. More...

void scheduleOnce (SEL_SCHEDULE selector, float delay)
 Schedules a selector that runs only once, with a delay of 0 or larger. More...

void scheduleOnce (const std::function< void(float)> &callback, float delay, const std::string &key)
 Schedules a lambda function that runs only once, with a delay of 0 or larger. More...

void schedule (SEL_SCHEDULE selector)
 Schedules a custom selector, the scheduled selector will be ticked every frame. More...

void schedule (const std::function< void(float)> &callback, const std::string &key)
 Schedules a lambda function. More...

var schedule ( var callback, var key)
 Schedules a lambda function. More...

void schedule (const std::function< void(float)> &callback, float interval, const std::string &key)
 Schedules a lambda function. More...

void schedule (const std::function< void(float)> &callback, float interval, unsigned int repeat, float delay, const std::string &key)
 Schedules a lambda function. More...

void unschedule (SEL_SCHEDULE selector)
 Unschedules a custom selector. More...

void unschedule (const std::string &key)
 Unschedules a lambda function. More...

void unscheduleAllCallbacks ()
 Unschedule all scheduled selectors and lambda functions: custom selectors, and the 'update' selector and lambda functions Actions are not affected by this method. More...

void unscheduleAllSelectors ()
var unscheduleAllSelectors ()
local unscheduleAllSelectors ()
virtual void resume (void)
 Resumes all scheduled selectors, actions and event listeners. More...

var resume ()
 Resumes all scheduled selectors, actions and event listeners. More...

local resume ()
 Resumes all scheduled selectors, actions and event listeners. More...

virtual void pause (void)
 Pauses all scheduled selectors, actions and event listeners. More...

var pause ()
 Pauses all scheduled selectors, actions and event listeners. More...

local pause ()
 Pauses all scheduled selectors, actions and event listeners. More...

void resumeSchedulerAndActions ()
 Resumes all scheduled selectors, actions and event listeners. More...

void pauseSchedulerAndActions ()
 Pauses all scheduled selectors, actions and event listeners. More...

virtual void update (float delta)
var update ( var delta)
local update ( local delta)
virtual void updateTransform ()
 Calls children's updateTransform() method recursively. More...

var updateTransform ()
 Calls children's updateTransform() method recursively. More...

local updateTransform ()
 Calls children's updateTransform() method recursively. More...

virtual const Mat4getNodeToParentTransform () const
 Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

local getNodeToParentTransform ()
 Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...

virtual AffineTransform getNodeToParentAffineTransform () const
local getNodeToParentAffineTransform ()
virtual void setNodeToParentTransform (const Mat4 &transform)
 Sets the Transformation matrix manually. More...

local setNodeToParentTransform ( local transform)
 Sets the Transformation matrix manually. More...

virtual AffineTransform nodeToParentTransform () const
local nodeToParentTransform ()
virtual const Mat4getParentToNodeTransform () const
 Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...

virtual AffineTransform getParentToNodeAffineTransform () const
local getParentToNodeAffineTransform ()
virtual AffineTransform parentToNodeTransform () const
local parentToNodeTransform ()
virtual Mat4 getNodeToWorldTransform () const
 Returns the world affine transform matrix. More...

var getNodeToWorldTransform ()
 Returns the world affine transform matrix. More...

local getNodeToWorldTransform ()
 Returns the world affine transform matrix. More...

virtual AffineTransform getNodeToWorldAffineTransform () const
local getNodeToWorldAffineTransform ()
virtual AffineTransform nodeToWorldTransform () const
local nodeToWorldTransform ()
virtual Mat4 getWorldToNodeTransform () const
 Returns the inverse world affine transform matrix. More...

var getWorldToNodeTransform ()
 Returns the inverse world affine transform matrix. More...

local getWorldToNodeTransform ()
 Returns the inverse world affine transform matrix. More...

virtual AffineTransform getWorldToNodeAffineTransform () const
local getWorldToNodeAffineTransform ()
virtual AffineTransform worldToNodeTransform () const
local worldToNodeTransform ()
Vec2 convertToNodeSpace (const Vec2 &worldPoint) const
 Converts a Vec2 to node (local) space coordinates. More...

var convertToNodeSpace ( var worldPoint)
 Converts a Vec2 to node (local) space coordinates. More...

local convertToNodeSpace ( local worldPoint)
 Converts a Vec2 to node (local) space coordinates. More...

Vec2 convertToWorldSpace (const Vec2 &nodePoint) const
 Converts a Vec2 to world space coordinates. More...

var convertToWorldSpace ( var nodePoint)
 Converts a Vec2 to world space coordinates. More...

local convertToWorldSpace ( local nodePoint)
 Converts a Vec2 to world space coordinates. More...

Vec2 convertToNodeSpaceAR (const Vec2 &worldPoint) const
 Converts a Vec2 to node (local) space coordinates. More...

Vec2 convertToWorldSpaceAR (const Vec2 &nodePoint) const
 Converts a local Vec2 to world space coordinates.The result is in Points. More...

Vec2 convertTouchToNodeSpace (Touch *touch) const
 convenience methods which take a Touch instead of Vec2 More...

Vec2 convertTouchToNodeSpaceAR (Touch *touch) const
 converts a Touch (world coordinates) into a local coordinate. More...

var convertTouchToNodeSpaceAR ( var touch)
 converts a Touch (world coordinates) into a local coordinate. More...

local convertTouchToNodeSpaceAR ( local touch)
 converts a Touch (world coordinates) into a local coordinate. More...

void setAdditionalTransform (Mat4 *additionalTransform)
 Sets an additional transform matrix to the node. More...

var setAdditionalTransform ( var additionalTransform)
 Sets an additional transform matrix to the node. More...

local setAdditionalTransform ( local additionalTransform)
 Sets an additional transform matrix to the node. More...

void setAdditionalTransform (const AffineTransform &additionalTransform)
var setAdditionalTransform ( var additionalTransform)
local setAdditionalTransform ( local additionalTransform)
ComponentgetComponent (const std::string &name)
 gets a component by its name More...

local getComponent ( local name)
 gets a component by its name More...

virtual bool addComponent (Component *component)
 adds a component More...

local addComponent ( local component)
 adds a component More...

virtual bool removeComponent (const std::string &name)
 removes a component by its name More...

local removeComponent ( local name)
 removes a component by its name More...

virtual bool removeComponent (Component *component)
 removes a component by its pointer More...

var removeComponent ( var component)
 removes a component by its pointer More...

local removeComponent ( local component)
 removes a component by its pointer More...

virtual void removeAllComponents ()
 removes all components More...

var removeAllComponents ()
 removes all components More...

local removeAllComponents ()
 removes all components More...

- Public Member Functions inherited from Ref
void retain ()
 Retains the ownership. More...

void release ()
 Releases the ownership immediately. More...

Refautorelease ()
 Releases the ownership sometime soon automatically. More...

unsigned int getReferenceCount () const
 Returns the Ref's current reference count. More...

local getReferenceCount ()
 Returns the Ref's current reference count. More...

virtual ~Ref ()
- Public Member Functions inherited from LayoutParameterProtocol
virtual ~LayoutParameterProtocol ()
- Public Member Functions inherited from LayoutProtocol
 LayoutProtocol ()
virtual ~LayoutProtocol ()
var ~LayoutProtocol ()
local ~LayoutProtocol ()

Static Public Member Functions

static Layoutcreate ()
 Allocates and initializes a layout. More...

- Static Public Member Functions inherited from Widget
static Widgetcreate ()
 Allocates and initializes a widget. More...

static void enableDpadNavigation (bool enable)
- Static Public Member Functions inherited from ProtectedNode
static ProtectedNodecreate (void)
- Static Public Member Functions inherited from Node
static Nodecreate ()
 Allocates and initializes a node. More...


Public Attributes

std::function< int(FocusDirection,
Widget *)>
onPassFocusToChild
 To specify a user-defined functor to decide which child widget of the layout should get focused. More...

CC_CONSTRUCTOR_ACCESS __pad0__: virtual bool init() override
- Public Attributes inherited from Widget
std::function< void(Widget
*, Widget *)>
onFocusChanged
 When a widget lose/get focus, this method will be called. More...

std::function< Widget
*(FocusDirection)>
onNextFocusedWidget
 use this function to manually specify the next focused widget regards to each direction More...

CC_CONSTRUCTOR_ACCESS __pad0__: virtual bool init() override
- Public Attributes inherited from ProtectedNode
CC_CONSTRUCTOR_ACCESS __pad0__: ProtectedNode()
- Public Attributes inherited from Node
CC_CONSTRUCTOR_ACCESS __pad0__: Node()

Protected Member Functions

virtual void onSizeChanged () override
void addBackGroundImage ()
void supplyTheLayoutParameterLackToChild (Widget *child)
virtual WidgetcreateCloneInstance () override
virtual void copySpecialProperties (Widget *model) override
virtual void copyClonedWidgetChildren (Widget *model) override
void stencilClippingVisit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags)
void scissorClippingVisit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags)
void setStencilClippingSize (const Size &size)
const RectgetClippingRect ()
virtual void doLayout () override
virtual LayoutManagercreateLayoutManager () override
virtual Size getLayoutContentSize () const override
virtual const Vector< Node * > & getLayoutElements () const override
void onBeforeVisitStencil ()
void onAfterDrawStencil ()
void onAfterVisitStencil ()
void drawFullScreenQuadClearStencil ()
 draw fullscreen quad to clear stencil bits More...

void onBeforeVisitScissor ()
void onAfterVisitScissor ()
void updateBackGroundImageColor ()
void updateBackGroundImageOpacity ()
void updateBackGroundImageRGBA ()
Size getLayoutAccumulatedSize () const
 get the content size of the layout, it will accumulate all its children's content size More...

int findNearestChildWidgetIndex (FocusDirection direction, Widget *baseWidget)
 When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...

int findFarthestChildWidgetIndex (FocusDirection direction, Widget *baseWidget)
 When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...

float calculateNearestDistance (Widget *baseWidget)
 caculate the nearest distance between the baseWidget and the children of the layout More...

float calculateFarthestDistance (Widget *baseWidget)
 caculate the farthest distance between the baseWidget and the children of the layout More...

void findProperSearchingFunctor (FocusDirection dir, Widget *baseWidget)
 when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not More...

WidgetfindFirstNonLayoutWidget ()
 find the first non-layout widget in this layout More...

int findFirstFocusEnabledWidgetIndex ()
 find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget More...

WidgetfindFocusEnabledChildWidgetByIndex (ssize_t index)
 find a focus enabled child Widget in the layout by index More...

Vec2 getWorldCenterPoint (Widget *node) const
 get the center point of a widget in world space More...

WidgetgetNextFocusedWidget (FocusDirection direction, Widget *current)
 this method is called internally by nextFocusedWidget. More...

WidgetgetPreviousFocusedWidget (FocusDirection direction, Widget *current)
 this method is called internally by nextFocusedWidget. More...

WidgetgetChildWidgetByIndex (ssize_t index) const
 find the nth elment in the _children array. More...

bool isLastWidgetInContainer (Widget *widget, FocusDirection direction) const
 whether it is the last element according to all their parents More...

bool isWidgetAncestorSupportLoopFocus (Widget *widget, FocusDirection direction) const
 Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false. More...

WidgetpassFocusToChild (FocusDirection direction, Widget *current)
 pass the focus to the layout's next focus enabled child More...

bool checkFocusEnabledChild () const
 If there are no focus enabled child in the layout, it will return false, otherwise it returns true. More...

- Protected Member Functions inherited from Widget
virtual void initRenderer ()
virtual void onPressStateChangedToNormal ()
virtual void onPressStateChangedToPressed ()
virtual void onPressStateChangedToDisabled ()
void pushDownEvent ()
void moveEvent ()
virtual void releaseUpEvent ()
virtual void cancelUpEvent ()
virtual void updateFlippedX ()
virtual void updateFlippedY ()
virtual void adaptRenderers ()
void updateChildrenDisplayedRGBA ()
void copyProperties (Widget *model)
WidgetgetWidgetParent ()
void updateContentSizeWithTextureSize (const Size &size)
bool isAncestorsEnabled ()
WidgetgetAncensterWidget (Node *node)
bool isAncestorsVisible (Node *node)
void cleanupWidget ()
LayoutComponentgetOrCreateLayoutComponent ()
- Protected Member Functions inherited from ProtectedNode
void insertProtectedChild (Node *child, int z)
 helper that reorder a child More...

var insertProtectedChild ( var child, var z)
 helper that reorder a child More...

local insertProtectedChild ( local child, local z)
 helper that reorder a child More...

- Protected Member Functions inherited from Node
void childrenAlloc (void)
 lazy allocs More...

var childrenAlloc ()
 lazy allocs More...

local childrenAlloc ()
 lazy allocs More...

void insertChild (Node *child, int z)
 helper that reorder a child More...

var insertChild ( var child, var z)
 helper that reorder a child More...

local insertChild ( local child, local z)
 helper that reorder a child More...

void detachChild (Node *child, ssize_t index, bool doCleanup)
 Removes a child, call child->onExit(), do cleanup, remove it from children array. More...

Vec2 convertToWindowSpace (const Vec2 &nodePoint) const
 Convert cocos2d coordinates to UI windows coordinate. More...

Mat4 transform (const Mat4 &parentTransform)
var transform ( var parentTransform)
local transform ( local parentTransform)
uint32_t processParentFlags (const Mat4 &parentTransform, uint32_t parentFlags)
var processParentFlags ( var parentTransform, var parentFlags)
local processParentFlags ( local parentTransform, local parentFlags)
virtual void updateCascadeOpacity ()
var updateCascadeOpacity ()
local updateCascadeOpacity ()
virtual void updateCascadeColor ()
local updateCascadeColor ()
virtual void updateColor ()
var updateColor ()
local updateColor ()
bool doEnumerate (std::string name, std::function< bool(Node *)> callback) const
var doEnumerate ( var name, var callback)
local doEnumerate ( local name, local callback)
bool doEnumerateRecursive (const Node *node, const std::string &name, std::function< bool(Node *)> callback) const
var doEnumerateRecursive ( var node, var name, var callback)
local doEnumerateRecursive ( local node, local name, local callback)
bool isVisitableByVisitingCamera () const
var isVisitableByVisitingCamera ()
local isVisitableByVisitingCamera ()
void updatePhysicsBodyTransform (Scene *layer)
var updatePhysicsBodyTransform ( var layer)
local updatePhysicsBodyTransform ( local layer)
virtual void updatePhysicsBodyPosition (Scene *layer)
local updatePhysicsBodyPosition ( local layer)
virtual void updatePhysicsBodyRotation (Scene *layer)
var updatePhysicsBodyRotation ( var layer)
local updatePhysicsBodyRotation ( local layer)
virtual void updatePhysicsBodyScale (Scene *scene)
var updatePhysicsBodyScale ( var scene)
local updatePhysicsBodyScale ( local scene)
- Protected Member Functions inherited from Ref
 Ref ()
 Constructor. More...

 Ref ()
 Constructor. More...


Protected Attributes

bool _backGroundScale9Enabled
Scale9Sprite_backGroundImage
std::string _backGroundImageFileName
Rect _backGroundImageCapInsets
BackGroundColorType _colorType
TextureResType _bgImageTexType
Size _backGroundImageTextureSize
Color3B _backGroundImageColor
GLubyte _backGroundImageOpacity
LayerColor_colorRender
LayerGradient_gradientRender
Color3B _cColor
Color3B _gStartColor
Color3B _gEndColor
Vec2 _alongVector
GLubyte _cOpacity
bool _clippingEnabled
Type _layoutType
ClippingType _clippingType
DrawNode_clippingStencil
bool _scissorRectDirty
Rect _clippingRect
Layout_clippingParent
bool _clippingRectDirty
GLboolean _currentStencilEnabled
GLuint _currentStencilWriteMask
GLenum _currentStencilFunc
GLint _currentStencilRef
GLuint _currentStencilValueMask
GLenum _currentStencilFail
GLenum _currentStencilPassDepthFail
GLenum _currentStencilPassDepthPass
GLboolean _currentDepthWriteMask
GLboolean _currentAlphaTestEnabled
GLenum _currentAlphaTestFunc
GLclampf _currentAlphaTestRef
GLint _mask_layer_le
GroupCommand _groupCommand
CustomCommand _beforeVisitCmdStencil
CustomCommand _afterDrawStencilCmd
CustomCommand _afterVisitCmdStencil
CustomCommand _beforeVisitCmdScissor
CustomCommand _afterVisitCmdScissor
bool _doLayoutDirty
bool _isInterceptTouch
bool _loopFocus
bool _passFocusToChild
bool _isFocusPassing
- Protected Attributes inherited from Widget
bool _unifySize
bool _enabled
bool _bright
bool _touchEnabled
bool _highlight
bool _affectByClipping
bool _ignoreSize
bool _propagateTouchEvents
BrightStyle _brightStyle
SizeType _sizeType
PositionType _positionType
int _actionTag
Size _customSize
Vec2 _sizePercent
Vec2 _positionPercent
bool _hitted
EventListenerTouchOneByOne_touchListener
Vec2 _touchBeganPosition
Vec2 _touchMovePosition
Vec2 _touchEndPosition
bool _flippedX
bool _flippedY
Map< int, LayoutParameter * > _layoutParameterDictionary
LayoutParameter::Type _layoutParameterType
bool _focused
bool _focusEnabled
Ref_touchEventListener
SEL_TouchEvent _touchEventSelector
ccWidgetTouchCallback _touchEventCallback
ccWidgetClickCallback _clickEventListener
- Protected Attributes inherited from ProtectedNode
Vector< Node * > _protectedChildren
 array of children nodes More...

bool _reorderProtectedChildDirty
var _reorderProtectedChildDirty
local _reorderProtectedChildDirty
- Protected Attributes inherited from Node
float _rotationX
 rotation on the X-axis More...

local _rotationX
 rotation on the X-axis More...

float _rotationY
 rotation on the Y-axis More...

var _rotationY
 rotation on the Y-axis More...

local _rotationY
 rotation on the Y-axis More...

float _rotationZ_X
 rotation angle on Z-axis, component X More...

var _rotationZ_X
 rotation angle on Z-axis, component X More...

local _rotationZ_X
 rotation angle on Z-axis, component X More...

float _rotationZ_Y
 rotation angle on Z-axis, component Y More...

var _rotationZ_Y
 rotation angle on Z-axis, component Y More...

local _rotationZ_Y
 rotation angle on Z-axis, component Y More...

float _scaleX
 scaling factor on x-axis More...

var _scaleX
 scaling factor on x-axis More...

local _scaleX
 scaling factor on x-axis More...

float _scaleY
 scaling factor on y-axis More...

var _scaleY
 scaling factor on y-axis More...

local _scaleY
 scaling factor on y-axis More...

float _scaleZ
 scaling factor on z-axis More...

var _scaleZ
 scaling factor on z-axis More...

local _scaleZ
 scaling factor on z-axis More...

Vec2 _position
 position of the node More...

var _position
 position of the node More...

local _position
 position of the node More...

float _positionZ
 OpenGL real Z position. More...

var _positionZ
 OpenGL real Z position. More...

local _positionZ
 OpenGL real Z position. More...

Vec2 _normalizedPosition
var _normalizedPosition
local _normalizedPosition
bool _usingNormalizedPosition
var _usingNormalizedPosition
local _usingNormalizedPosition
bool _normalizedPositionDirty
var _normalizedPositionDirty
local _normalizedPositionDirty
float _skewX
 skew angle on x-axis More...

var _skewX
 skew angle on x-axis More...

local _skewX
 skew angle on x-axis More...

float _skewY
 skew angle on y-axis More...

var _skewY
 skew angle on y-axis More...

local _skewY
 skew angle on y-axis More...

Vec2 _anchorPointInPoints
 anchor point in points More...

var _anchorPointInPoints
 anchor point in points More...

local _anchorPointInPoints
 anchor point in points More...

Vec2 _anchorPoint
 anchor point normalized (NOT in points) More...

var _anchorPoint
 anchor point normalized (NOT in points) More...

local _anchorPoint
 anchor point normalized (NOT in points) More...

Size _contentSize
 untransformed size of the node More...

var _contentSize
 untransformed size of the node More...

local _contentSize
 untransformed size of the node More...

bool _contentSizeDirty
 whether or not the contentSize is dirty More...

var _contentSizeDirty
 whether or not the contentSize is dirty More...

local _contentSizeDirty
 whether or not the contentSize is dirty More...

Mat4 _modelViewTransform
 ModelView transform of the Node. More...

var _modelViewTransform
 ModelView transform of the Node. More...

local _modelViewTransform
 ModelView transform of the Node. More...

Mat4 _transform
 transform More...

var _transform
 transform More...

local _transform
 transform More...

bool _transformDirty
 transform dirty flag More...

var _transformDirty
 transform dirty flag More...

local _transformDirty
 transform dirty flag More...

Mat4 _inverse
 inverse transform More...

var _inverse
 inverse transform More...

local _inverse
 inverse transform More...

bool _inverseDirty
 inverse transform dirty flag More...

var _inverseDirty
 inverse transform dirty flag More...

local _inverseDirty
 inverse transform dirty flag More...

Mat4 _additionalTransform
 transform More...

var _additionalTransform
 transform More...

local _additionalTransform
 transform More...

bool _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

var _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

local _useAdditionalTransform
 The flag to check whether the additional transform is dirty. More...

bool _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

var _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

local _transformUpdated
 Whether or not the Transform object was updated since the last frame. More...

int _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

var _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

local _localZOrder
 Local order (relative to its siblings) used to sort the node. More...

float _globalZOrder
 Global order used to sort the node. More...

var _globalZOrder
 Global order used to sort the node. More...

local _globalZOrder
 Global order used to sort the node. More...

Vector< Node * > _children
 array of children nodes More...

var _children
 array of children nodes More...

local _children
 array of children nodes More...

Node_parent
 weak reference to parent node More...

var _parent
 weak reference to parent node More...

local _parent
 weak reference to parent node More...

int _tag
 a tag. Can be any number you assigned just to identify this node More...

var _tag
 a tag. Can be any number you assigned just to identify this node More...

local _tag
 a tag. Can be any number you assigned just to identify this node More...

std::string _name
 a string label, an user defined string to identify this node More...

var _name
 a string label, an user defined string to identify this node More...

local _name
 a string label, an user defined string to identify this node More...

size_t _hashOfName
 hash value of _name, used for speed in getChildByName More...

var _hashOfName
 hash value of _name, used for speed in getChildByName More...

local _hashOfName
 hash value of _name, used for speed in getChildByName More...

void * _userData
 A user assingned void pointer, Can be point to any cpp object. More...

var _userData
 A user assingned void pointer, Can be point to any cpp object. More...

local _userData
 A user assingned void pointer, Can be point to any cpp object. More...

Ref_userObject
 A user assigned Object. More...

var _userObject
 A user assigned Object. More...

local _userObject
 A user assigned Object. More...

GLProgramState_glProgramState
 OpenGL Program State. More...

var _glProgramState
 OpenGL Program State. More...

local _glProgramState
 OpenGL Program State. More...

int _orderOfArrival
 used to preserve sequence while sorting children with the same localZOrder More...

Scheduler_scheduler
 scheduler used to schedule timers and updates More...

var _scheduler
 scheduler used to schedule timers and updates More...

local _scheduler
 scheduler used to schedule timers and updates More...

ActionManager_actionManager
 a pointer to ActionManager singleton, which is used to handle all the actions More...

EventDispatcher_eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

var _eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

local _eventDispatcher
 event dispatcher used to dispatch all kinds of events More...

bool _running
 is running More...

var _running
 is running More...

local _running
 is running More...

bool _visible
 is this node visible More...

var _visible
 is this node visible More...

local _visible
 is this node visible More...

bool _ignoreAnchorPointForPosition
 true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...

var _ignoreAnchorPointForPosition
 true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...

local _ignoreAnchorPointForPosition
 true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...

bool _reorderChildDirty
 children order dirty flag More...

var _reorderChildDirty
 children order dirty flag More...

local _reorderChildDirty
 children order dirty flag More...

bool _isTransitionFinished
 flag to indicate whether the transition was finished More...

var _isTransitionFinished
 flag to indicate whether the transition was finished More...

local _isTransitionFinished
 flag to indicate whether the transition was finished More...

ComponentContainer_componentContainer
 Dictionary of components. More...

var _componentContainer
 Dictionary of components. More...

local _componentContainer
 Dictionary of components. More...

PhysicsBody_physicsBody
 the physicsBody the node have More...

var _physicsBody
 the physicsBody the node have More...

local _physicsBody
 the physicsBody the node have More...

float _physicsScaleStartX
 the scale x value when setPhysicsBody More...

var _physicsScaleStartX
 the scale x value when setPhysicsBody More...

local _physicsScaleStartX
 the scale x value when setPhysicsBody More...

float _physicsScaleStartY
 the scale y value when setPhysicsBody More...

var _physicsScaleStartY
 the scale y value when setPhysicsBody More...

local _physicsScaleStartY
 the scale y value when setPhysicsBody More...

GLubyte _displayedOpacity
GLubyte _realOpacity
var _realOpacity
local _realOpacity
Color3B _displayedColor
var _displayedColor
local _displayedColor
Color3B _realColor
var _realColor
local _realColor
bool _cascadeColorEnabled
var _cascadeColorEnabled
local _cascadeColorEnabled
bool _cascadeOpacityEnabled
var _cascadeOpacityEnabled
local _cascadeOpacityEnabled
unsigned short _cameraMask
var _cameraMask
local _cameraMask
std::function< void()> _onEnterCallback
var _onEnterCallback
local _onEnterCallback
std::function< void()> _onExitCallback
var _onExitCallback
local _onExitCallback
std::function< void()> _onEnterTransitionDidFinishCallback
var _onEnterTransitionDidFinishCallback
local _onEnterTransitionDidFinishCallback
std::function< void()> _onExitTransitionDidStartCallback
- Protected Attributes inherited from Ref
unsigned int _referenceCount
 count of references More...

local _referenceCount
 count of references More...


Additional Inherited Members

- Static Public Attributes inherited from Node
static const int INVALID_TAG = -1
 Default tag used for all the nodes. More...

var INVALID_TAG = -1
 Default tag used for all the nodes. More...

local INVALID_TAG = -1
 Default tag used for all the nodes. More...

- Static Protected Attributes inherited from Widget
static Widget_focusedWidget
 store the only one focued widget More...

- Static Protected Attributes inherited from Node
static int s_globalOrderOfArrival
var s_globalOrderOfArrival
local s_globalOrderOfArrival

Member Enumeration Documentation

enum BackGroundColorType
strong
Enumerator
NONE
SOLID
GRADIENT
enum ClippingType
strong
Enumerator
STENCIL
SCISSOR
enum Type
strong
Enumerator
ABSOLUTE
VERTICAL
HORIZONTAL
RELATIVE

Constructor & Destructor Documentation

Layout ( )

Default constructor.

virtual ~Layout ( )
virtual

Default destructor.

Member Function Documentation

void addBackGroundImage ( )
protected
virtual void addChild ( Node child)
overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)
tagA interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void addChild ( Node child,
int  localZOrder
)
overridevirtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void addChild ( Node child,
int  localZOrder,
int  tag
)
overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)
tagAn integer to identify the node easily. Please refer to setTag(int)

Please use addChild(Node* child, int localZOrder, const std::string &name) instead.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void addChild ( Node child,
int  localZOrder,
const std::string &  name
)
overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters
childA child node
zOrderZ order for drawing priority. Please refer to setLocalZOrder(int)
nameA string to identify the node easily. Please refer to setName(int)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

float calculateFarthestDistance ( Widget baseWidget)
protected

caculate the farthest distance between the baseWidget and the children of the layout

Parameters
thebase widget which will be used to caculate the distance between the layout's children and itself
Returns
return the farthest distance between the baseWidget and the layout's children
float calculateNearestDistance ( Widget baseWidget)
protected

caculate the nearest distance between the baseWidget and the children of the layout

Parameters
thebase widget which will be used to caculate the distance between the layout's children and itself
Returns
return the nearest distance between the baseWidget and the layout's children
bool checkFocusEnabledChild ( ) const
protected

If there are no focus enabled child in the layout, it will return false, otherwise it returns true.

virtual void
copyClonedWidgetChildren
( Widget model)
overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, PageView, and ListView.

virtual void copySpecialProperties ( Widget model)
overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, PageView, and ListView.

static Layout* create ( )
static

Allocates and initializes a layout.

virtual Widget* createCloneInstance ( )
overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, PageView, and ListView.

virtual LayoutManager*
createLayoutManager
( )
overrideprotectedvirtual

Implements LayoutProtocol.

virtual void doLayout ( )
overrideprotectedvirtual

Implements LayoutProtocol.

Reimplemented in ScrollView, PageView, and ListView.

void drawFullScreenQuadClearStencil ( )
protected

draw fullscreen quad to clear stencil bits

int findFarthestChildWidgetIndex ( FocusDirection  direction,
Widget baseWidget
)
protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is farthest-distance-priority algorithm

Parameters
dirnext focused widget direction
Returns
The index of child widget in the container
int
findFirstFocusEnabledWidgetIndex
( )
protected

find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget

Widget* findFirstNonLayoutWidget ( )
protected

find the first non-layout widget in this layout

Widget*
findFocusEnabledChildWidgetByIndex
( ssize_t  index)
protected

find a focus enabled child Widget in the layout by index

int findNearestChildWidgetIndex ( FocusDirection  direction,
Widget baseWidget
)
protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is nearest-distance-priority algorithm

Parameters
dirnext focused widget direction
Returns
The index of child widget in the container
virtual Widget*
findNextFocusedWidget
( FocusDirection  direction,
Widget current
)
overridevirtual

When a widget is in a layout, you could call this method to get the next focused widget within a specified direction.

If the widget is not in a layout, it will return itself

Parameters
dirthe direction to look for the next focused widget in a layout
currentthe current focused widget
Returns
the next focused widget in a layout
void findProperSearchingFunctor ( FocusDirection  dir,
Widget baseWidget
)
protected

when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not

void forceDoLayout ( )

force refresh widget layout

const Color3B& getBackGroundColor ( ) const
GLubyte getBackGroundColorOpacity ( ) const
BackGroundColorType
getBackGroundColorType
( ) const
const Vec2&
getBackGroundColorVector
( ) const
const Color3B&
getBackGroundEndColor
( ) const
const Rect&
getBackGroundImageCapInsets
( ) const
const Color3B&
getBackGroundImageColor
( ) const
GLubyte getBackGroundImageOpacity ( ) const
const Size&
getBackGroundImageTextureSize
( ) const

Gets background image texture size.

Returns
background image texture size.
const Color3B&
getBackGroundStartColor
( ) const
Widget* getChildWidgetByIndex ( ssize_t  index) const
protected

find the nth elment in the _children array.

Only the Widget descendant object will be returned

Parameters
indexThe index of a element in the _children array
const Rect& getClippingRect ( )
protected
ClippingType getClippingType ( ) const
virtual std::string getDescription ( ) const
overridevirtual

Returns the "class name" of widget.

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

Size getLayoutAccumulatedSize ( ) const
protected

get the content size of the layout, it will accumulate all its children's content size

virtual Size getLayoutContentSize ( ) const
overrideprotectedvirtual

Implements LayoutProtocol.

virtual const Vector<Node*>
& getLayoutElements
( ) const
overrideprotectedvirtual

Implements LayoutProtocol.

virtual Type getLayoutType ( ) const
virtual

Reimplemented in ScrollView, and PageView.

Widget* getNextFocusedWidget ( FocusDirection  direction,
Widget current
)
protected

this method is called internally by nextFocusedWidget.

When the dir is Right/Down, then this method will be called

Parameters
dirthe direction.
currentthe current focused widget
Returns
the next focused widget
Widget* getPreviousFocusedWidget ( FocusDirection  direction,
Widget current
)
protected

this method is called internally by nextFocusedWidget.

When the dir is Left/Up, then this method will be called

Parameters
dirthe direction.
currentthe current focused widget
Returns
the next focused widget
Vec2 getWorldCenterPoint ( Widget node) const
protected

get the center point of a widget in world space

bool isBackGroundImageScale9Enabled ( ) const
virtual bool isClippingEnabled ( ) const
virtual

Gets if layout is clipping enabled.

Returns
if layout is clipping enabled.
bool isLastWidgetInContainer ( Widget widget,
FocusDirection  direction
) const
protected

whether it is the last element according to all their parents

bool isLoopFocus ( ) const
Returns
If focus loop is enabled, then it will return true, otherwise it returns false. The default value is false.
bool isPassFocusToChild ( ) const
Returns
To query whether the layout will pass the focus to its children or not. The default value is true
bool
isWidgetAncestorSupportLoopFocus
( Widget widget,
FocusDirection  direction
) const
protected

Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false.

void onAfterDrawStencil ( )
protected
void onAfterVisitScissor ( )
protected
void onAfterVisitStencil ( )
protected
void onBeforeVisitScissor ( )
protected
void onBeforeVisitStencil ( )
protected
virtual void onEnter ( )
overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Widget.

Reimplemented in ScrollView, and PageView.

virtual void onExit ( )
overridevirtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented from Widget.

virtual void onSizeChanged ( )
overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, PageView, and ListView.

Widget* passFocusToChild ( FocusDirection  direction,
Widget current
)
protected

pass the focus to the layout's next focus enabled child

virtual void removeAllChildren ( )
overridevirtual

Removes all children from the container with a cleanup.

See also
removeAllChildrenWithCleanup(bool)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void
removeAllChildrenWithCleanup
( bool  cleanup)
overridevirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters
cleanuptrue if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

void removeBackGroundImage ( )

Remove the background image of layout.

virtual void removeChild ( Node child,
bool  cleanup = true
)
overridevirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters
childThe child node which will be removed.
cleanuptrue if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

void requestDoLayout ( )

request to refresh widget layout

void scissorClippingVisit ( Renderer renderer,
const Mat4 parentTransform,
uint32_t  parentFlags
)
protected
void setBackGroundColor ( const Color3B color)

Sets background color for layout, if color type is BackGroundColorType::SOLIDE.

Parameters
color
void setBackGroundColor ( const Color3B startColor,
const Color3B endColor
)

Sets background color for layout, if color type is BackGroundColorType::GRADIENT.

Parameters
startcolor
endcolor
void setBackGroundColorOpacity ( GLubyte  opacity)

Sets background opacity layout.

Parameters
opacity
void setBackGroundColorType ( BackGroundColorType  type)

Sets Color Type for layout.

Parameters
type
See also
LayoutBackGroundColorType.
void setBackGroundColorVector ( const Vec2 vector)

Sets background color vector for layout, if color type is BackGroundColorType::GRADIENT.

Parameters
vector
void setBackGroundImage ( const std::string &  fileName,
TextureResType  texType = TextureResType::LOCAL
)

Sets a background image for layout.

Parameters
fileNameimage file path.
texType
See also
TextureResType. TextureResType::LOCAL means local file, TextureResType::PLIST means sprite frame.
void setBackGroundImageCapInsets ( const Rect capInsets)

Sets a background image capinsets for layout, if the background image is a scale9 render.

Parameters
capinsetsof background image.
void setBackGroundImageColor ( const Color3B color)
void setBackGroundImageOpacity ( GLubyte  opacity)
void
setBackGroundImageScale9Enabled
( bool  enabled)

Sets background iamge use scale9 renderer.

Parameters
enabledtrue that use scale9 renderer, false otherwise.
virtual void setClippingEnabled ( bool  enabled)
virtual

Changes if layout can clip it's content and child.

If you really need this, please enable it. But it would reduce the rendering efficiency.

Parameters
clippingenabled.
void setClippingType ( ClippingType  type)
virtual void setLayoutType ( Type  type)
virtual

Reimplemented in ScrollView, and PageView.

void setLoopFocus ( bool  loop)

If a layout is loop focused which means that the focus movement will be inside the layout.

Parameters
looppass true to let the focus movement loop inside the layout
void setPassFocusToChild ( bool  pass)
Parameters
passTo specify whether the layout pass its focus to its child
void setStencilClippingSize ( const Size size)
protected
void stencilClippingVisit ( Renderer renderer,
const Mat4 parentTransform,
uint32_t  parentFlags
)
protected
void
supplyTheLayoutParameterLackToChild
( Widget child)
protected
void updateBackGroundImageColor ( )
protected
void updateBackGroundImageOpacity ( )
protected
void updateBackGroundImageRGBA ( )
protected
virtual void visit ( Renderer renderer,
const Mat4 parentTransform,
uint32_t  parentFlags
)
overridevirtual

Visits this node's children and draw them recursively.

Reimplemented from Widget.

Member Data Documentation

CustomCommand _afterDrawStencilCmd
protected
CustomCommand _afterVisitCmdScissor
protected
CustomCommand _afterVisitCmdStencil
protected
Vec2 _alongVector
protected
Scale9Sprite* _backGroundImage
protected
Rect _backGroundImageCapInsets
protected
Color3B _backGroundImageColor
protected
std::string
_backGroundImageFileName
protected
GLubyte _backGroundImageOpacity
protected
Size _backGroundImageTextureSize
protected
bool _backGroundScale9Enabled
protected
CustomCommand
_beforeVisitCmdScissor
protected
CustomCommand
_beforeVisitCmdStencil
protected
TextureResType _bgImageTexType
protected
Color3B _cColor
protected
bool _clippingEnabled
protected
Layout* _clippingParent
protected
Rect _clippingRect
protected
bool _clippingRectDirty
protected
DrawNode* _clippingStencil
protected
ClippingType _clippingType
protected
LayerColor* _colorRender
protected
BackGroundColorType _colorType
protected
GLubyte _cOpacity
protected
GLboolean _currentAlphaTestEnabled
protected
GLenum _currentAlphaTestFunc
protected
GLclampf _currentAlphaTestRef
protected
GLboolean _currentDepthWriteMask
protected
GLboolean _currentStencilEnabled
protected
GLenum _currentStencilFail
protected
GLenum _currentStencilFunc
protected
GLenum _currentStencilPassDepthFail
protected
GLenum _currentStencilPassDepthPass
protected
GLint _currentStencilRef
protected
GLuint _currentStencilValueMask
protected
GLuint _currentStencilWriteMask
protected
bool _doLayoutDirty
protected
Color3B _gEndColor
protected
LayerGradient* _gradientRender
protected
GroupCommand _groupCommand
protected
Color3B _gStartColor
protected
bool _isFocusPassing
protected
bool _isInterceptTouch
protected
Type _layoutType
protected
bool _loopFocus
protected
GLint _mask_layer_le
protected
bool _passFocusToChild
protected
bool _scissorRectDirty
protected
std::function<int(FocusDirection,
Widget*)> onPassFocusToChild

To specify a user-defined functor to decide which child widget of the layout should get focused.

Parameters
FocusDirectionthe finding direction
thisprevious focused widget
Returns
return the index of widget in the layout

The documentation for this class was generated from the following file:
