Layout Class Reference

A container for holding a few child widgets. More...

#include <UILayout.h>

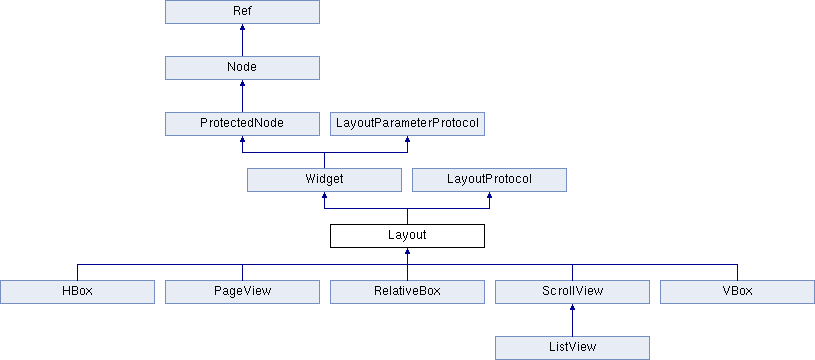

Inheritance diagram for Layout:

Public Types
enum	Type { ABSOLUTE, VERTICAL, HORIZONTAL, RELATIVE }
	Layout type, default is ABSOLUTE. More...
enum	ClippingType { STENCIL, SCISSOR }
	Clipping Type, default is STENCIL. More...
enum	BackGroundColorType { NONE, SOLID, GRADIENT }
	Background color type, default is NONE. More...
Public Types inherited from Widget
enum	FocusDirection { LEFT, RIGHT, UP, DOWN }
	Widget focus direction. More...
enum	PositionType { ABSOLUTE, PERCENT }
	Widget position type for layout. More...
enum	SizeType { ABSOLUTE, PERCENT }
	Widget size type for layout. More...
enum	TouchEventType { BEGAN, MOVED, ENDED, CANCELED }
	Touch event type. More...
enum	TextureResType { LOCAL = 0, PLIST = 1 }
	Texture resource type. More...
enum	BrightStyle { NONE = -1, NORMAL, HIGHLIGHT }
	Widget bright style. More...
typedef std::function< void(Ref *, Widget::TouchEventType)>	ccWidgetTouchCallback
	Widget touch event callback. More...
typedef std::function< void(Ref *)>	ccWidgetClickCallback
	Widget click event callback. More...
typedef std::function< void(Ref *, int)>	ccWidgetEventCallback
	Widget custom event callback. More...
Public Types inherited from Node
enum	{ FLAGS_TRANSFORM_DIRTY = (1 << 0), FLAGS_CONTENT_SIZE_DIRTY = (1 << 1), FLAGS_RENDER_AS_3D = (1 << 3), FLAGS_DIRTY_MASK = (FLAGS_TRANSFORM_DIRTY | FLAGS_CONTENT_SIZE_DIRTY) }

Public Member Functions
	Layout ()
	Default constructor. More...
	Layout ()
	Default constructor. More...
	Layout ()
	Default constructor. More...
virtual	~Layout ()
	Default destructor. More...
local	~Layout ()
	Default destructor. More...
void	setBackGroundImage (const std::string &fileName, TextureResType texType=TextureResType::LOCAL)
	Sets a background image for layout. More...
var	setBackGroundImage ( var fileName, var LOCAL)
	Sets a background image for layout. More...
local	setBackGroundImage ( local fileName, local LOCAL)
	Sets a background image for layout. More...
void	setBackGroundImageCapInsets (const Rect &capInsets)
	Sets a background image capinsets for layout, it only affects the scale9 enabled background image. More...
local	setBackGroundImageCapInsets ( local capInsets)
	Sets a background image capinsets for layout, it only affects the scale9 enabled background image. More...
const Rect &	getBackGroundImageCapInsets () const
	Query background image's capInsets size. More...
void	setBackGroundColorType (BackGroundColorType type)
	Sets Color Type for layout's background. More...
var	setBackGroundColorType ( var type)
	Sets Color Type for layout's background. More...
local	setBackGroundColorType ( local type)
	Sets Color Type for layout's background. More...
BackGroundColorType	getBackGroundColorType () const
	Query the layout's background color type. More...
local	getBackGroundColorType ()
	Query the layout's background color type. More...
void	setBackGroundImageScale9Enabled (bool enabled)
	Enable background image scale9 rendering. More...
bool	isBackGroundImageScale9Enabled () const
	Query background image scale9 enable status. More...
var	isBackGroundImageScale9Enabled ()
	Query background image scale9 enable status. More...
local	isBackGroundImageScale9Enabled ()
	Query background image scale9 enable status. More...
void	setBackGroundColor (const Color3B &color)
	Set background color for layout The color only applies to layout when it's color type is BackGroundColorType::SOLIDE. More...
const Color3B &	getBackGroundColor () const
	Query the layout's background color. More...
var	getBackGroundColor ()
	Query the layout's background color. More...
local	getBackGroundColor ()
	Query the layout's background color. More...
void	setBackGroundColor (const Color3B &startColor, const Color3B &endColor)
	Set start and end background color for layout. More...
const Color3B &	getBackGroundStartColor () const
	Get the gradient background start color. More...
var	getBackGroundStartColor ()
	Get the gradient background start color. More...
local	getBackGroundStartColor ()
	Get the gradient background start color. More...
const Color3B &	getBackGroundEndColor () const
	Get the gradient background end color. More...
var	getBackGroundEndColor ()
	Get the gradient background end color. More...
local	getBackGroundEndColor ()
	Get the gradient background end color. More...
void	setBackGroundColorOpacity (GLubyte opacity)
	Sets background color opacity of layout. More...
local	setBackGroundColorOpacity ( local opacity)
	Sets background color opacity of layout. More...
GLubyte	getBackGroundColorOpacity () const
	Get the layout's background color opacity. More...
var	getBackGroundColorOpacity ()
	Get the layout's background color opacity. More...
local	getBackGroundColorOpacity ()
	Get the layout's background color opacity. More...
void	setBackGroundColorVector (const Vec2 &vector)
	Sets background color vector for layout. More...
var	setBackGroundColorVector ( var vector)
	Sets background color vector for layout. More...
local	setBackGroundColorVector ( local vector)
	Sets background color vector for layout. More...
const Vec2 &	getBackGroundColorVector () const
	Get the layout's background color vector. More...
var	getBackGroundColorVector ()
	Get the layout's background color vector. More...
local	getBackGroundColorVector ()
	Get the layout's background color vector. More...
void	setBackGroundImageColor (const Color3B &color)
	Set layout's background image color. More...
var	setBackGroundImageColor ( var color)
	Set layout's background image color. More...
local	setBackGroundImageColor ( local color)
	Set layout's background image color. More...
void	setBackGroundImageOpacity (GLubyte opacity)
	Set opacity of background image. More...
var	setBackGroundImageOpacity ( var opacity)
	Set opacity of background image. More...
local	setBackGroundImageOpacity ( local opacity)
	Set opacity of background image. More...
const Color3B &	getBackGroundImageColor () const
	Get color of layout's background image. More...
GLubyte	getBackGroundImageOpacity () const
	Get the opacity of layout's background image. More...
var	getBackGroundImageOpacity ()
	Get the opacity of layout's background image. More...
local	getBackGroundImageOpacity ()
	Get the opacity of layout's background image. More...
void	removeBackGroundImage ()
	Remove the background image of layout. More...
var	removeBackGroundImage ()
	Remove the background image of layout. More...
local	removeBackGroundImage ()
	Remove the background image of layout. More...
const Size &	getBackGroundImageTextureSize () const
	Gets background image texture size. More...
var	getBackGroundImageTextureSize ()
	Gets background image texture size. More...
local	getBackGroundImageTextureSize ()
	Gets background image texture size. More...
virtual void	setClippingEnabled (bool enabled)
	Toggle layout clipping. More...
var	setClippingEnabled ( var enabled)
	Toggle layout clipping. More...
local	setClippingEnabled ( local enabled)
	Toggle layout clipping. More...
void	setClippingType (ClippingType type)
	Change the clipping type of layout. More...
ClippingType	getClippingType () const
var	getClippingType ()
local	getClippingType ()
virtual bool	isClippingEnabled () const
	Gets if layout is clipping enabled. More...
local	isClippingEnabled ()
	Gets if layout is clipping enabled. More...
virtual std::string	getDescription () const override
	Returns the "class name" of widget. More...
var	getDescription ()
	Returns the "class name" of widget. More...
local	getDescription ()
	Returns the "class name" of widget. More...
virtual void	setLayoutType (Type type)
	Change the layout type. More...
local	setLayoutType ( local type)
	Change the layout type. More...
virtual Type	getLayoutType () const
	Query layout type. More...
var	getLayoutType ()
	Query layout type. More...
local	getLayoutType ()
	Query layout type. More...
virtual void	addChild (Node *child) override
	Adds a child to the container with z order and tag. More...
local	addChild ( local child)
	Adds a child to the container with z order and tag. More...
virtual void	addChild (Node *child, int localZOrder) override
	Adds a child to the container with a local z-order. More...
var	addChild ( var child, var localZOrder)
	Adds a child to the container with a local z-order. More...
local	addChild ( local child, local localZOrder)
	Adds a child to the container with a local z-order. More...
virtual void	addChild (Node *child, int zOrder, int tag) override
	Adds a child to the container with z order and tag. More...
local	addChild ( local child, local zOrder, local tag)
	Adds a child to the container with z order and tag. More...
virtual void	addChild (Node *child, int zOrder, const std::string &name) override
	Adds a child to the container with z order and tag. More...
var	addChild ( var child, var zOrder, var name)
	Adds a child to the container with z order and tag. More...
local	addChild ( local child, local zOrder, local name)
	Adds a child to the container with z order and tag. More...
virtual void	visit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags) override
	Visits this node's children and draw them recursively. More...
virtual void	removeChild (Node *child, bool cleanup=true) override
	Removes a child from the container. More...
virtual void	removeAllChildren () override
	Removes all children from the container with a cleanup. More...
local	removeAllChildren ()
	Removes all children from the container with a cleanup. More...
virtual void	removeAllChildrenWithCleanup (bool cleanup) override
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
var	removeAllChildren ( var cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
local	removeAllChildren ( local cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
virtual void	forceDoLayout ()
	force refresh widget layout More...
void	requestDoLayout ()
	request to refresh widget layout More...
var	requestDoLayout ()
	request to refresh widget layout More...
local	requestDoLayout ()
	request to refresh widget layout More...
virtual void	onEnter () override
	Event callback that is invoked every time when Node enters the 'stage'. More...
virtual void	onExit () override
	Event callback that is invoked every time the Node leaves the 'stage'. More...
var	onExit ()
	Event callback that is invoked every time the Node leaves the 'stage'. More...
local	onExit ()
	Event callback that is invoked every time the Node leaves the 'stage'. More...
void	setLoopFocus (bool loop)
	If a layout is loop focused which means that the focus movement will be inside the layout. More...
var	setLoopFocus ( var loop)
	If a layout is loop focused which means that the focus movement will be inside the layout. More...
local	setLoopFocus ( local loop)
	If a layout is loop focused which means that the focus movement will be inside the layout. More...
bool	isLoopFocus () const
void	setPassFocusToChild (bool pass)
bool	isPassFocusToChild () const
var	isPassFocusToChild ()
local	isPassFocusToChild ()
virtual Widget *	findNextFocusedWidget (FocusDirection direction, Widget *current) override
	When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...
var	findNextFocusedWidget ( var direction, var current)
	When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...
local	findNextFocusedWidget ( local direction, local current)
	When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...
Public Member Functions inherited from Widget
	Widget (void)
	Default constructor. More...
virtual	~Widget ()
	Default destructor. More...
virtual void	setEnabled (bool enabled)
	Sets whether the widget is enabled. More...
bool	isEnabled () const
	Determines if the widget is enabled or not. More...
void	setBright (bool bright)
	Sets whether the widget is bright. More...
bool	isBright () const
	Determines if the widget is bright. More...
virtual void	setTouchEnabled (bool enabled)
	Sets whether the widget is touch enabled. More...
void	setBrightStyle (BrightStyle style)
	To set the bright style of widget. More...
bool	isTouchEnabled () const
	Determines if the widget is touch enabled. More...
bool	isHighlighted () const
	Determines if the widget is highlighted. More...
void	setHighlighted (bool hilight)
	Sets whether the widget is hilighted. More...
float	getLeftInParent ()
	Gets the left boundary position of this widget in parent's coordination system. More...
float	getLeftBoundary () const
	Gets the left boundary position of this widget in parent's coordination system. More...
float	getBottomInParent ()
	Gets the bottom boundary position of this widget in parent's coordination system. More...
float	getBottomBoundary () const
	Gets the bottom boundary position of this widget in parent's coordination system. More...
float	getRightInParent ()
	Gets the right boundary position of this widget in parent's coordination system. More...
float	getRightBoundary () const
	Gets the right boundary position of this widget in parent's coordination system. More...
float	getTopInParent ()
	Gets the top boundary position of this widget in parent's coordination system. More...
float	getTopBoundary () const
	Gets the top boundary position of this widget in parent's coordination system. More...
void	addTouchEventListener (Ref *target, SEL_TouchEvent selector)
	Sets the touch event target/selector to the widget. More...
void	addTouchEventListener (const ccWidgetTouchCallback &callback)
	Set a callback to touch vent listener. More...
void	addClickEventListener (const ccWidgetClickCallback &callback)
	Set a click event handler to the widget. More...
virtual void	addCCSEventListener (const ccWidgetEventCallback &callback)
	Set a event handler to the widget in order to use cocostudio editor and framework. More...
virtual void	setPosition (const Vec2 &pos) override
	Changes the position (x,y) of the widget in OpenGL coordinates. More...
void	setPositionPercent (const Vec2 &percent)
	Set the percent(x,y) of the widget in OpenGL coordinates. More...
const Vec2 &	getPositionPercent ()
	Gets the percent (x,y) of the widget in OpenGL coordinates. More...
void	setPositionType (PositionType type)
	Changes the position type of the widget. More...
PositionType	getPositionType () const
	Gets the position type of the widget. More...
virtual void	setFlippedX (bool flippedX)
	Sets whether the widget should be flipped horizontally or not. More...
virtual bool	isFlippedX () const
	Returns the flag which indicates whether the widget is flipped horizontally or not. More...
virtual void	setFlippedY (bool flippedY)
	Sets whether the widget should be flipped vertically or not. More...
virtual bool	isFlippedY () const
	Return the flag which indicates whether the widget is flipped vertically or not. More...
bool	isFlipX ()
void	setFlipX (bool flipX)
bool	isFlipY ()
void	setFlipY (bool flipY)
virtual void	setScaleX (float scaleX) override
	Sets the scale (x) of the node. More...
virtual void	setScaleY (float scaleY) override
	Sets the scale (y) of the node. More...
virtual void	setScale (float scale) override
	Sets the scale (x,y,z) of the node. More...
virtual void	setScale (float scalex, float scaley) override
	Sets the scale (x,y) of the node. More...
virtual float	getScaleX () const override
	Returns the scale factor on X axis of this node. More...
virtual float	getScaleY () const override
	Returns the scale factor on Y axis of this node. More...
virtual float	getScale () const override
	Gets the scale factor of the node, when X and Y have the same scale factor. More...
bool	clippingParentAreaContainPoint (const Vec2 &pt)
	Checks a point if in parent's area. More...
bool	isClippingParentContainsPoint (const Vec2 &pt)
	Checks a point if in parent's area. More...
const Vec2 &	getTouchStartPos () const
	Gets the touch began point of widget when widget is selected. More...
const Vec2 &	getTouchBeganPosition () const
	Gets the touch began point of widget when widget is selected. More...
const Vec2 &	getTouchMovePos () const
const Vec2 &	getTouchMovePosition () const
const Vec2 &	getTouchEndPos () const
const Vec2 &	getTouchEndPosition () const
virtual void	setSize (const Size &size)
	Changes the size that is widget's size. More...
virtual void	setContentSize (const Size &contentSize) override
	Changes the size that is widget's size. More...
virtual void	setSizePercent (const Vec2 &percent)
	Changes the percent that is widget's percent size. More...
void	setSizeType (SizeType type)
	Changes the size type of widget. More...
SizeType	getSizeType () const
	Gets the size type of widget. More...
const Size &	getSize () const
	Get the size of widget. More...
const Size &	getCustomSize () const
	Get the user defined widget size. More...
virtual const Size &	getLayoutSize ()
	Get the content size of widget. More...
const Vec2 &	getSizePercent ()
	Get size percent of widget. More...
virtual bool	hitTest (const Vec2 &pt)
	Checks a point is in widget's content space. More...
virtual bool	onTouchBegan (Touch *touch, Event *unusedEvent)
	A callback which will be called when touch began event is issued. More...
virtual void	onTouchMoved (Touch *touch, Event *unusedEvent)
	A callback which will be called when touch moved event is issued. More...
virtual void	onTouchEnded (Touch *touch, Event *unusedEvent)
	A callback which will be called when touch ended event is issued. More...
virtual void	onTouchCancelled (Touch *touch, Event *unusedEvent)
	A callback which will be called when touch cancelled event is issued. More...
void	setLayoutParameter (LayoutParameter *parameter)
	Sets a LayoutParameter to widget. More...
LayoutParameter *	getLayoutParameter () const override
	Gets LayoutParameter of widget. More...
LayoutParameter *	getLayoutParameter (LayoutParameter::Type type)
	Gets LayoutParameter of widget. More...
virtual void	ignoreContentAdaptWithSize (bool ignore)
	Toggle whether ignore user defined content size for widget. More...
bool	isIgnoreContentAdaptWithSize () const
	Query whether the widget ignores user deinfed content size or not. More...
Vec2	getWorldPosition () const
	Gets position of widget in world space. More...
virtual Node *	getVirtualRenderer ()
	Gets the inner Renderer node of widget. More...
virtual Size	getVirtualRendererSize () const
	Get the virtual renderer's size. More...
Widget *	clone ()
	Create a new widget copy of the original one. More...
void	updateSizeAndPosition ()
	Update all children's contents size and position recursively. More...
void	updateSizeAndPosition (const Size &parentSize)
	Update all children's contents size and position recursively. More...
void	setActionTag (int tag)
	Set the tag of action. More...
int	getActionTag () const
	Get the action tag. More...
void	setPropagateTouchEvents (bool isPropagate)
	Allow widget touch events to propagate to its parents. More...
bool	isPropagateTouchEvents () const
	Return whether the widget is propagate touch events to its parents or not. More...
void	setSwallowTouches (bool swallow)
	Toggle widget swallow touch option. More...
bool	isSwallowTouches () const
	Return whether the widget is swallowing touch or not. More...
bool	isFocused () const
	Query whether widget is focused or not. More...
void	setFocused (bool focus)
	Toggle widget focus status. More...
bool	isFocusEnabled () const
	Query widget's focus enable state. More...
void	setFocusEnabled (bool enable)
	Allow widget to accept focus. More...
virtual Widget *	findNextFocusedWidget (FocusDirection direction, Widget *current)
	When a widget is in a layout, you could call this method to get the next focused widget within a specified direction. More...
void	requestFocus ()
	when a widget calls this method, it will get focus immediately. More...
Widget *	getCurrentFocusedWidget (bool isWidget)
	Return a current focused widget in your UI scene. More...
Widget *	getCurrentFocusedWidget () const
	Return a current focused widget in your UI scene. More...
void	setUnifySizeEnabled (bool enable)
	Toggle use unify size. More...
bool	isUnifySizeEnabled () const
	Query whether unify size enable state. More...
void	setCallbackName (const std::string &callbackName)
	Set callback name. More...
const std::string &	getCallbackName () const
	Query callback name. More...
void	setCallbackType (const std::string &callbackType)
	Set callback type. More...
const std::string &	getCallbackType () const
	Query callback type. More...
void	setLayoutComponentEnabled (bool enable)
	Toggle layout component enable. More...
bool	isLayoutComponentEnabled () const
	Query whether layout component is enabled or not. More...
virtual void	interceptTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
void	propagateTouchEvent (TouchEventType event, Widget *sender, Touch *touch)
	Propagate touch events to its parents. More...
void	onFocusChange (Widget *widgetLostFocus, Widget *widgetGetFocus)
	This method is called when a focus change event happens. More...
void	dispatchFocusEvent (Widget *widgetLoseFocus, Widget *widgetGetFocus)
	Dispatch a EventFocus through a EventDispatcher. More...
Public Member Functions inherited from ProtectedNode
virtual void	cleanup () override
	Stops all running actions and schedulers. More...
var	cleanup ()
	Stops all running actions and schedulers. More...
local	cleanup ()
	Stops all running actions and schedulers. More...
virtual void	onEnterTransitionDidFinish () override
	Event callback that is invoked when the Node enters in the 'stage'. More...
virtual void	onExitTransitionDidStart () override
	Event callback that is called every time the Node leaves the 'stage'. More...
virtual void	updateDisplayedOpacity (GLubyte parentOpacity) override
var	updateDisplayedOpacity ( var parentOpacity)
local	updateDisplayedOpacity ( local parentOpacity)
virtual void	updateDisplayedColor (const Color3B &parentColor) override
var	updateDisplayedColor ( var parentColor)
local	updateDisplayedColor ( local parentColor)
virtual void	disableCascadeColor () override
var	disableCascadeColor ()
local	disableCascadeColor ()
virtual void	disableCascadeOpacity () override
local	disableCascadeOpacity ()
virtual void	setCameraMask (unsigned short mask, bool applyChildren=true) override
virtual	~ProtectedNode ()
virtual void	addProtectedChild (Node *child)
	Adds a child to the container with z-order as 0. More...
local	addProtectedChild ( local child)
	Adds a child to the container with z-order as 0. More...
virtual void	addProtectedChild (Node *child, int localZOrder)
	Adds a child to the container with a local z-order. More...
local	addProtectedChild ( local child, local localZOrder)
	Adds a child to the container with a local z-order. More...
virtual void	addProtectedChild (Node *child, int localZOrder, int tag)
	Adds a child to the container with z order and tag. More...
local	addProtectedChild ( local child, local localZOrder, local tag)
	Adds a child to the container with z order and tag. More...
virtual Node *	getProtectedChildByTag (int tag)
	Gets a child from the container with its tag. More...
virtual void	removeProtectedChild (Node *child, bool cleanup=true)
	Removes a child from the container. More...
local	removeProtectedChild ( local child, local true)
	Removes a child from the container. More...
virtual void	removeProtectedChildByTag (int tag, bool cleanup=true)
	Removes a child from the container by tag value. More...
var	removeProtectedChildByTag ( var tag, var true)
	Removes a child from the container by tag value. More...
local	removeProtectedChildByTag ( local tag, local true)
	Removes a child from the container by tag value. More...
virtual void	removeAllProtectedChildren ()
	Removes all children from the container with a cleanup. More...
var	removeAllProtectedChildren ()
	Removes all children from the container with a cleanup. More...
local	removeAllProtectedChildren ()
	Removes all children from the container with a cleanup. More...
virtual void	removeAllProtectedChildrenWithCleanup (bool cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
var	removeAllChildren ( var cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
local	removeAllChildren ( local cleanup)
	Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter. More...
virtual void	reorderProtectedChild (Node *child, int localZOrder)
	Reorders a child according to a new z value. More...
var	reorderProtectedChild ( var child, var localZOrder)
	Reorders a child according to a new z value. More...
local	reorderProtectedChild ( local child, local localZOrder)
	Reorders a child according to a new z value. More...
virtual void	sortAllProtectedChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...
Public Member Functions inherited from Node
virtual bool	isRunning () const
	Returns whether or not the node is "running". More...
void	scheduleUpdateWithPriorityLua (int handler, int priority)
	Schedules for lua script. More...
virtual void	draw (Renderer *renderer, const Mat4 &transform, uint32_t flags)
	Override this method to draw your own node. More...
local	draw ( local renderer, local transform, local flags)
	Override this method to draw your own node. More...
virtual void	draw () final
var	draw ()
local	draw ()
virtual void	visit () final
var	visit ()
local	visit ()
virtual Scene *	getScene () const
	Returns the Scene that contains the Node. More...
local	getScene ()
	Returns the Scene that contains the Node. More...
virtual Rect	getBoundingBox () const
	Returns an AABB (axis-aligned bounding-box) in its parent's coordinate system. More...
virtual Rect	boundingBox () const
local	boundingBox ()
virtual void	setEventDispatcher (EventDispatcher *dispatcher)
	Set event dispatcher for scene. More...
local	setEventDispatcher ( local dispatcher)
	Set event dispatcher for scene. More...
virtual EventDispatcher *	getEventDispatcher () const
	Get the event dispatcher of scene. More...
local	getEventDispatcher ()
	Get the event dispatcher of scene. More...
void	setPhysicsBody (PhysicsBody *body)
	Set the PhysicsBody that let the sprite effect with physics. More...
PhysicsBody *	getPhysicsBody () const
	Get the PhysicsBody the sprite have. More...
var	getPhysicsBody ()
	Get the PhysicsBody the sprite have. More...
local	getPhysicsBody ()
	Get the PhysicsBody the sprite have. More...
void	removeFromPhysicsWorld ()
	Remove this node from physics world. More...
var	removeFromPhysicsWorld ()
	Remove this node from physics world. More...
local	removeFromPhysicsWorld ()
	Remove this node from physics world. More...
void	updateTransformFromPhysics (const Mat4 &parentTransform, uint32_t parentFlags)
	Update the transform matrix from physics. More...
var	updateTransformFromPhysics ( var parentTransform, var parentFlags)
	Update the transform matrix from physics. More...
local	updateTransformFromPhysics ( local parentTransform, local parentFlags)
	Update the transform matrix from physics. More...
virtual void	updatePhysicsBodyTransform (const Mat4 &parentTransform, uint32_t parentFlags, float parentScaleX, float parentScaleY)
	Update physics body transform matrix. More...
var	updatePhysicsBodyTransform ( var parentTransform, var parentFlags, var parentScaleX, var parentScaleY)
	Update physics body transform matrix. More...
local	updatePhysicsBodyTransform ( local parentTransform, local parentFlags, local parentScaleX, local parentScaleY)
	Update physics body transform matrix. More...
virtual GLubyte	getOpacity () const
virtual GLubyte	getDisplayedOpacity () const
local	getDisplayedOpacity ()
virtual void	setOpacity (GLubyte opacity)
local	setOpacity ( local opacity)
virtual bool	isCascadeOpacityEnabled () const
var	isCascadeOpacityEnabled ()
local	isCascadeOpacityEnabled ()
virtual void	setCascadeOpacityEnabled (bool cascadeOpacityEnabled)
local	setCascadeOpacityEnabled ( local cascadeOpacityEnabled)
virtual const Color3B &	getColor () const
local	getColor ()
virtual const Color3B &	getDisplayedColor () const
local	getDisplayedColor ()
virtual void	setColor (const Color3B &color)
var	setColor ( var color)
local	setColor ( local color)
virtual bool	isCascadeColorEnabled () const
virtual void	setCascadeColorEnabled (bool cascadeColorEnabled)
local	setCascadeColorEnabled ( local cascadeColorEnabled)
virtual void	setOpacityModifyRGB (bool value)
var	setOpacityModifyRGB ( var value)
local	setOpacityModifyRGB ( local value)
virtual bool	isOpacityModifyRGB () const
void	setOnEnterCallback (const std::function< void()> &callback)
var	setOnEnterCallback ( var callback)
local	setOnEnterCallback ( local callback)
const std::function< void()> &	getOnEnterCallback () const
local	getOnEnterCallback ()
void	setOnExitCallback (const std::function< void()> &callback)
var	setOnExitCallback ( var callback)
local	setOnExitCallback ( local callback)
const std::function< void()> &	getOnExitCallback () const
local	getOnExitCallback ()
void	setonEnterTransitionDidFinishCallback (const std::function< void()> &callback)
var	setonEnterTransitionDidFinishCallback ( var callback)
local	setonEnterTransitionDidFinishCallback ( local callback)
const std::function< void()> &	getonEnterTransitionDidFinishCallback () const
local	getonEnterTransitionDidFinishCallback ()
void	setonExitTransitionDidStartCallback (const std::function< void()> &callback)
var	setonExitTransitionDidStartCallback ( var callback)
local	setonExitTransitionDidStartCallback ( local callback)
const std::function< void()> &	getonExitTransitionDidStartCallback () const
local	getonExitTransitionDidStartCallback ()
unsigned short	getCameraMask () const
	get & set camera mask, the node is visible by the camera whose camera flag & node's camera mask is true More...
virtual	~Node ()
virtual bool	init ()
var	init ()
local	init ()
virtual void	setLocalZOrder (int localZOrder)
	LocalZOrder is the 'key' used to sort the node relative to its siblings. More...
virtual void	setZOrder (int localZOrder)
virtual void	_setLocalZOrder (int z)
var	_setLocalZOrder ( var z)
local	_setLocalZOrder ( local z)
virtual int	getLocalZOrder () const
	Gets the local Z order of this node. More...
var	getLocalZOrder ()
	Gets the local Z order of this node. More...
local	getLocalZOrder ()
	Gets the local Z order of this node. More...
virtual int	getZOrder () const
virtual void	setGlobalZOrder (float globalZOrder)
	Defines the oder in which the nodes are renderer. More...
local	setGlobalZOrder ( local globalZOrder)
	Defines the oder in which the nodes are renderer. More...
virtual float	getGlobalZOrder () const
	Returns the Node's Global Z Order. More...
var	getGlobalZOrder ()
	Returns the Node's Global Z Order. More...
local	getGlobalZOrder ()
	Returns the Node's Global Z Order. More...
virtual void	setScaleZ (float scaleZ)
	Changes the scale factor on Z axis of this node. More...
var	setScaleZ ( var scaleZ)
	Changes the scale factor on Z axis of this node. More...
local	setScaleZ ( local scaleZ)
	Changes the scale factor on Z axis of this node. More...
virtual float	getScaleZ () const
	Returns the scale factor on Z axis of this node. More...
virtual void	setNormalizedPosition (const Vec2 &position)
	Sets the position (x,y) using values between 0 and 1. More...
var	setNormalizedPosition ( var position)
	Sets the position (x,y) using values between 0 and 1. More...
local	setNormalizedPosition ( local position)
	Sets the position (x,y) using values between 0 and 1. More...
virtual const Vec2 &	getPosition () const
	Gets the position (x,y) of the node in its parent's coordinate system. More...
virtual const Vec2 &	getNormalizedPosition () const
	Returns the normalized position. More...
local	getNormalizedPosition ()
	Returns the normalized position. More...
virtual void	setPosition (float x, float y)
	Sets the position (x,y) of the node in its parent's coordinate system. More...
local	setPosition ( local x, local y)
	Sets the position (x,y) of the node in its parent's coordinate system. More...
virtual void	getPosition (float *x, float *y) const
	Gets position in a more efficient way, returns two number instead of a Vec2 object. More...
virtual void	setPositionX (float x)
	Gets/Sets x or y coordinate individually for position. More...
virtual float	getPositionX (void) const
	Gets the x coordinate of the node in its parent's coordinate system. More...
virtual void	setPositionY (float y)
	Sets the y coordinate of the node in its parent's coordinate system. More...
virtual float	getPositionY (void) const
	Gets the y coordinate of the node in its parent's coordinate system. More...
virtual void	setPosition3D (const Vec3 &position)
	Sets the position (X, Y, and Z) in its parent's coordinate system. More...
virtual Vec3	getPosition3D () const
	Returns the position (X,Y,Z) in its parent's coordinate system. More...
virtual void	setPositionZ (float positionZ)
	Sets the 'z' coordinate in the position. More...
var	setVertexZ ( var positionZ)
	Sets the 'z' coordinate in the position. More...
local	setPositionZ ( local positionZ)
	Sets the 'z' coordinate in the position. More...
virtual void	setVertexZ (float vertexZ)
var	setVertexZ ( var vertexZ)
local	setVertexZ ( local vertexZ)
virtual float	getPositionZ () const
	Gets position Z coordinate of this node. More...
var	getVertexZ ()
	Gets position Z coordinate of this node. More...
local	getPositionZ ()
	Gets position Z coordinate of this node. More...
virtual float	getVertexZ () const
virtual void	setSkewX (float skewX)
	Changes the X skew angle of the node in degrees. More...
local	setSkewX ( local skewX)
	Changes the X skew angle of the node in degrees. More...
virtual float	getSkewX () const
	Returns the X skew angle of the node in degrees. More...
var	getSkewX ()
	Returns the X skew angle of the node in degrees. More...
local	getSkewX ()
	Returns the X skew angle of the node in degrees. More...
virtual void	setSkewY (float skewY)
	Changes the Y skew angle of the node in degrees. More...
var	setSkewY ( var skewY)
	Changes the Y skew angle of the node in degrees. More...
local	setSkewY ( local skewY)
	Changes the Y skew angle of the node in degrees. More...
virtual float	getSkewY () const
	Returns the Y skew angle of the node in degrees. More...
var	getSkewY ()
	Returns the Y skew angle of the node in degrees. More...
local	getSkewY ()
	Returns the Y skew angle of the node in degrees. More...
virtual void	setAnchorPoint (const Vec2 &anchorPoint)
	Sets the anchor point in percent. More...
local	setAnchorPoint ( local anchorPoint)
	Sets the anchor point in percent. More...
virtual const Vec2 &	getAnchorPoint () const
	Returns the anchor point in percent. More...
local	getAnchorPoint ()
	Returns the anchor point in percent. More...
virtual const Vec2 &	getAnchorPointInPoints () const
	Returns the anchorPoint in absolute pixels. More...
virtual const Size &	getContentSize () const
	Returns the untransformed size of the node. More...
virtual void	setVisible (bool visible)
	Sets whether the node is visible. More...
var	setVisible ( var visible)
	Sets whether the node is visible. More...
local	setVisible ( local visible)
	Sets whether the node is visible. More...
virtual bool	isVisible () const
	Determines if the node is visible. More...
virtual void	setRotation (float rotation)
	Sets the rotation (angle) of the node in degrees. More...
local	setRotation ( local rotation)
	Sets the rotation (angle) of the node in degrees. More...
virtual float	getRotation () const
	Returns the rotation of the node in degrees. More...
virtual void	setRotation3D (const Vec3 &rotation)
	Sets the rotation (X,Y,Z) in degrees. More...
local	setRotation3D ( local rotation)
	Sets the rotation (X,Y,Z) in degrees. More...
virtual Vec3	getRotation3D () const
	Returns the rotation (X,Y,Z) in degrees. More...
virtual void	setRotationQuat (const Quaternion &quat)
	Set rotation by quaternion. More...
local	setRotationQuat ( local quat)
	Set rotation by quaternion. More...
virtual Quaternion	getRotationQuat () const
	Return the rotation by quaternion, Note that when _rotationZ_X == _rotationZ_Y, the returned quaternion equals to RotationZ_X * RotationY * RotationX, it equals to RotationY * RotationX otherwise. More...
virtual void	setRotationSkewX (float rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...
local	setRotationSkewX ( local rotationX)
	Sets the X rotation (angle) of the node in degrees which performs a horizontal rotational skew. More...
virtual void	setRotationX (float rotationX)
var	setRotationX ( var rotationX)
local	setRotationX ( local rotationX)
virtual float	getRotationSkewX () const
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
var	getRotationX ()
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
local	getRotationSkewX ()
	Gets the X rotation (angle) of the node in degrees which performs a horizontal rotation skew. More...
virtual float	getRotationX () const
var	getRotationX ()
local	getRotationX ()
virtual void	setRotationSkewY (float rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
local	setRotationSkewY ( local rotationY)
	Sets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
virtual void	setRotationY (float rotationY)
local	setRotationY ( local rotationY)
virtual float	getRotationSkewY () const
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
local	getRotationSkewY ()
	Gets the Y rotation (angle) of the node in degrees which performs a vertical rotational skew. More...
virtual float	getRotationY () const
void	setOrderOfArrival (int orderOfArrival)
	Sets the arrival order when this node has a same ZOrder with other children. More...
int	getOrderOfArrival () const
	Returns the arrival order, indicates which children is added previously. More...
void	setGLServerState (int serverState)
var	setGLServerState ( var serverState)
int	getGLServerState () const
virtual void	ignoreAnchorPointForPosition (bool ignore)
	Sets whether the anchor point will be (0,0) when you position this node. More...
virtual bool	isIgnoreAnchorPointForPosition () const
	Gets whether the anchor point will be (0,0) when you position this node. More...
virtual Node *	getChildByTag (int tag) const
	Gets a child from the container with its tag. More...
var	getChildByTag ( var tag)
	Gets a child from the container with its tag. More...
local	getChildByTag ( local tag)
	Gets a child from the container with its tag. More...
virtual Node *	getChildByName (const std::string &name) const
	Gets a child from the container with its name. More...
local	getChildByName ( local name)
	Gets a child from the container with its name. More...
template<typename T >
T	getChildByName (const std::string &name) const
	Gets a child from the container with its name that can be cast to Type T. More...
virtual void	enumerateChildren (const std::string &name, std::function< bool(Node *node)> callback) const
	Search the children of the receiving node to perform processing for nodes which share a name. More...
virtual Vector< Node * > &	getChildren ()
	Returns the array of the node's children. More...
local	getChildren ()
	Returns the array of the node's children. More...
virtual const Vector< Node * > &	getChildren () const
local	getChildren ()
virtual ssize_t	getChildrenCount () const
	Returns the amount of children. More...
var	getChildrenCount ()
	Returns the amount of children. More...
local	getChildrenCount ()
	Returns the amount of children. More...
virtual void	setParent (Node *parent)
	Sets the parent node. More...
local	setParent ( local parent)
	Sets the parent node. More...
virtual Node *	getParent ()
	Returns a pointer to the parent node. More...
virtual const Node *	getParent () const
virtual void	removeFromParent ()
	Removes this node itself from its parent node with a cleanup. More...
virtual void	removeFromParentAndCleanup (bool cleanup)
	Removes this node itself from its parent node. More...
local	removeFromParent ( local cleanup)
	Removes this node itself from its parent node. More...
virtual void	removeChildByTag (int tag, bool cleanup=true)
	Removes a child from the container by tag value. More...
local	removeChildByTag ( local tag, local true)
	Removes a child from the container by tag value. More...
virtual void	removeChildByName (const std::string &name, bool cleanup=true)
	Removes a child from the container by tag value. More...
var	removeChildByName ( var name, var true)
	Removes a child from the container by tag value. More...
local	removeChildByName ( local name, local true)
	Removes a child from the container by tag value. More...
virtual void	reorderChild (Node *child, int localZOrder)
	Reorders a child according to a new z value. More...
local	reorderChild ( local child, local localZOrder)
	Reorders a child according to a new z value. More...
virtual void	sortAllChildren ()
	Sorts the children array once before drawing, instead of every time when a child is added or reordered. More...
virtual int	getTag () const
	Returns a tag that is used to identify the node easily. More...
virtual void	setTag (int tag)
	Changes the tag that is used to identify the node easily. More...
local	setTag ( local tag)
	Changes the tag that is used to identify the node easily. More...
virtual std::string	getName () const
	Returns a string that is used to identify the node. More...
virtual void	setName (const std::string &name)
	Changes the name that is used to identify the node easily. More...
var	setName ( var name)
	Changes the name that is used to identify the node easily. More...
local	setName ( local name)
	Changes the name that is used to identify the node easily. More...
virtual void *	getUserData ()
	Returns a custom user data pointer. More...
virtual const void *	getUserData () const
virtual void	setUserData (void *userData)
	Sets a custom user data pointer. More...
virtual Ref *	getUserObject ()
	Returns a user assigned Object. More...
virtual const Ref *	getUserObject () const
virtual void	setUserObject (Ref *userObject)
	Returns a user assigned Object. More...
local	setUserObject ( local userObject)
	Returns a user assigned Object. More...
GLProgram *	getGLProgram () const
	Return the GLProgram (shader) currently used for this node. More...
var	getGLProgram ()
	Return the GLProgram (shader) currently used for this node. More...
local	getGLProgram ()
	Return the GLProgram (shader) currently used for this node. More...
GLProgram *	getShaderProgram () const
var	getShaderProgram ()
local	getShaderProgram ()
virtual void	setGLProgram (GLProgram *glprogram)
	Sets the shader program for this node. More...
var	setGLProgram ( var glprogram)
	Sets the shader program for this node. More...
local	setGLProgram ( local glprogram)
	Sets the shader program for this node. More...
void	setShaderProgram (GLProgram *glprogram)
var	setShaderProgram ( var glprogram)
local	setShaderProgram ( local glprogram)
GLProgramState *	getGLProgramState () const
	Return the GLProgramState currently used for this node. More...
var	getGLProgramState ()
	Return the GLProgramState currently used for this node. More...
local	getGLProgramState ()
	Return the GLProgramState currently used for this node. More...
virtual void	setGLProgramState (GLProgramState *glProgramState)
	Set the GLProgramState for this node. More...
local	setGLProgramState ( local glProgramState)
	Set the GLProgramState for this node. More...
virtual void	setActionManager (ActionManager *actionManager)
	Sets the ActionManager object that is used by all actions. More...
var	setActionManager ( var actionManager)
	Sets the ActionManager object that is used by all actions. More...
local	setActionManager ( local actionManager)
	Sets the ActionManager object that is used by all actions. More...
virtual ActionManager *	getActionManager ()
	Gets the ActionManager object that is used by all actions. More...
local	getActionManager ()
	Gets the ActionManager object that is used by all actions. More...
virtual const ActionManager *	getActionManager () const
virtual Action *	runAction (Action *action)
	Executes an action, and returns the action that is executed. More...
var	runAction ( var action)
	Executes an action, and returns the action that is executed. More...
local	runAction ( local action)
	Executes an action, and returns the action that is executed. More...
void	stopAllActions ()
	Stops and removes all actions from the running action list . More...
void	stopAction (Action *action)
	Stops and removes an action from the running action list. More...
var	stopAction ( var action)
	Stops and removes an action from the running action list. More...
local	stopAction ( local action)
	Stops and removes an action from the running action list. More...
void	stopActionByTag (int tag)
	Removes an action from the running action list by its tag. More...
var	stopActionByTag ( var tag)
	Removes an action from the running action list by its tag. More...
local	stopActionByTag ( local tag)
	Removes an action from the running action list by its tag. More...
void	stopAllActionsByTag (int tag)
	Removes all actions from the running action list by its tag. More...
var	stopAllActionsByTag ( var tag)
	Removes all actions from the running action list by its tag. More...
local	stopAllActionsByTag ( local tag)
	Removes all actions from the running action list by its tag. More...
Action *	getActionByTag (int tag)
	Gets an action from the running action list by its tag. More...
ssize_t	getNumberOfRunningActions () const
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...
local	getNumberOfRunningActions ()
	Returns the numbers of actions that are running plus the ones that are schedule to run (actions in actionsToAdd and actions arrays). More...
ssize_t	numberOfRunningActions () const
var	numberOfRunningActions ()
local	numberOfRunningActions ()
virtual void	setScheduler (Scheduler *scheduler)
	Sets a Scheduler object that is used to schedule all "updates" and timers. More...
virtual Scheduler *	getScheduler ()
	Gets a Sheduler object. More...
local	getScheduler ()
	Gets a Sheduler object. More...
virtual const Scheduler *	getScheduler () const
bool	isScheduled (SEL_SCHEDULE selector)
	Checks whether a selector is scheduled. More...
bool	isScheduled (const std::string &key)
	Checks whether a lambda function is scheduled. More...
void	scheduleUpdate (void)
	Schedules the "update" method. More...
void	scheduleUpdateWithPriority (int priority)
	Schedules the "update" method with a custom priority. More...
var	scheduleUpdateWithPriority ( var priority)
	Schedules the "update" method with a custom priority. More...
void	unscheduleUpdate (void)
var	unscheduleUpdate ()
local	unscheduleUpdate ()
void	schedule (SEL_SCHEDULE selector, float interval, unsigned int repeat, float delay)
	Schedules a custom selector. More...
void	schedule (SEL_SCHEDULE selector, float interval)
	Schedules a custom selector with an interval time in seconds. More...
void	scheduleOnce (SEL_SCHEDULE selector, float delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...
var	scheduleOnce ( var selector, var delay)
	Schedules a selector that runs only once, with a delay of 0 or larger. More...
void	scheduleOnce (const std::function< void(float)> &callback, float delay, const std::string &key)
	Schedules a lambda function that runs only once, with a delay of 0 or larger. More...
void	schedule (SEL_SCHEDULE selector)
	Schedules a custom selector, the scheduled selector will be ticked every frame. More...
void	schedule (const std::function< void(float)> &callback, const std::string &key)
	Schedules a lambda function. More...
void	schedule (const std::function< void(float)> &callback, float interval, const std::string &key)
	Schedules a lambda function. More...
void	schedule (const std::function< void(float)> &callback, float interval, unsigned int repeat, float delay, const std::string &key)
	Schedules a lambda function. More...
var	schedule ( var callback, var interval, var repeat, var delay, var key)
	Schedules a lambda function. More...
void	unschedule (SEL_SCHEDULE selector)
	Unschedules a custom selector. More...
var	unschedule ( var selector)
	Unschedules a custom selector. More...
void	unschedule (const std::string &key)
	Unschedules a lambda function. More...
void	unscheduleAllCallbacks ()
	Unschedule all scheduled selectors and lambda functions: custom selectors, and the 'update' selector and lambda functions. More...
void	unscheduleAllSelectors ()
var	unscheduleAllSelectors ()
local	unscheduleAllSelectors ()
virtual void	resume (void)
	Resumes all scheduled selectors, actions and event listeners. More...
local	resume ()
	Resumes all scheduled selectors, actions and event listeners. More...
virtual void	pause (void)
	Pauses all scheduled selectors, actions and event listeners. More...
local	pause ()
	Pauses all scheduled selectors, actions and event listeners. More...
void	resumeSchedulerAndActions ()
	Resumes all scheduled selectors, actions and event listeners. More...
void	pauseSchedulerAndActions ()
	Pauses all scheduled selectors, actions and event listeners. More...
var	pauseSchedulerAndActions ()
	Pauses all scheduled selectors, actions and event listeners. More...
local	pauseSchedulerAndActions ()
	Pauses all scheduled selectors, actions and event listeners. More...
virtual void	update (float delta)
	Update method will be called automatically every frame if "scheduleUpdate" is called, and the node is "live". More...
virtual void	updateTransform ()
	Calls children's updateTransform() method recursively. More...
virtual const Mat4 &	getNodeToParentTransform () const
	Returns the matrix that transform the node's (local) space coordinates into the parent's space coordinates. More...
virtual AffineTransform	getNodeToParentAffineTransform () const
local	getNodeToParentAffineTransform ()
virtual void	setNodeToParentTransform (const Mat4 &transform)
	Sets the transformation matrix manually. More...
virtual AffineTransform	nodeToParentTransform () const
virtual const Mat4 &	getParentToNodeTransform () const
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...
var	getParentToNodeTransform ()
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...
local	getParentToNodeTransform ()
	Returns the matrix that transform parent's space coordinates to the node's (local) space coordinates. More...
virtual AffineTransform	getParentToNodeAffineTransform () const
local	getParentToNodeAffineTransform ()
virtual AffineTransform	parentToNodeTransform () const
local	parentToNodeTransform ()
virtual Mat4	getNodeToWorldTransform () const
	Returns the world affine transform matrix. More...
virtual AffineTransform	getNodeToWorldAffineTransform () const
local	getNodeToWorldAffineTransform ()
virtual AffineTransform	nodeToWorldTransform () const
local	nodeToWorldTransform ()
virtual Mat4	getWorldToNodeTransform () const
	Returns the inverse world affine transform matrix. More...
var	getWorldToNodeTransform ()
	Returns the inverse world affine transform matrix. More...
local	getWorldToNodeTransform ()
	Returns the inverse world affine transform matrix. More...
virtual AffineTransform	getWorldToNodeAffineTransform () const
local	getWorldToNodeAffineTransform ()
virtual AffineTransform	worldToNodeTransform () const
local	worldToNodeTransform ()
Vec2	convertToNodeSpace (const Vec2 &worldPoint) const
	Converts a Vec2 to node (local) space coordinates. More...
var	convertToNodeSpace ( var worldPoint)
	Converts a Vec2 to node (local) space coordinates. More...
local	convertToNodeSpace ( local worldPoint)
	Converts a Vec2 to node (local) space coordinates. More...
Vec2	convertToWorldSpace (const Vec2 &nodePoint) const
	Converts a Vec2 to world space coordinates. More...
Vec2	convertToNodeSpaceAR (const Vec2 &worldPoint) const
	Converts a Vec2 to node (local) space coordinates. More...
Vec2	convertToWorldSpaceAR (const Vec2 &nodePoint) const
	Converts a local Vec2 to world space coordinates.The result is in Points. More...
Vec2	convertTouchToNodeSpace (Touch *touch) const
	convenience methods which take a Touch instead of Vec2. More...
Vec2	convertTouchToNodeSpaceAR (Touch *touch) const
	converts a Touch (world coordinates) into a local coordinate. More...
void	setAdditionalTransform (Mat4 *additionalTransform)
	Sets an additional transform matrix to the node. More...
void	setAdditionalTransform (const AffineTransform &additionalTransform)
var	setAdditionalTransform ( var additionalTransform)
local	setAdditionalTransform ( local additionalTransform)
Component *	getComponent (const std::string &name)
	Gets a component by its name. More...
var	getComponent ( var name)
	Gets a component by its name. More...
local	getComponent ( local name)
	Gets a component by its name. More...
virtual bool	addComponent (Component *component)
	Adds a component. More...
virtual bool	removeComponent (const std::string &name)
	Removes a component by its name. More...
virtual bool	removeComponent (Component *component)
	Removes a component by its pointer. More...
virtual void	removeAllComponents ()
	Removes all components. More...
var	removeAllComponents ()
	Removes all components. More...
local	removeAllComponents ()
	Removes all components. More...
Public Member Functions inherited from Ref
void	retain ()
	Retains the ownership. More...
void	release ()
	Releases the ownership immediately. More...
Ref *	autorelease ()
	Releases the ownership sometime soon automatically. More...
unsigned int	getReferenceCount () const
	Returns the Ref's current reference count. More...
virtual	~Ref ()
	Destructor. More...
Public Member Functions inherited from LayoutParameterProtocol
virtual	~LayoutParameterProtocol ()
	Default destructor. More...
Public Member Functions inherited from LayoutProtocol
	LayoutProtocol ()
	LayoutProtocol ()
	LayoutProtocol ()
virtual	~LayoutProtocol ()
local	~LayoutProtocol ()

Static Public Member Functions
static Layout *	create ()
	Create a empty layout. More...
local	create ()
	Create a empty layout. More...
Static Public Member Functions inherited from Widget
static Widget *	create ()
	Create and return a empty Widget instance pointer. More...
static void	enableDpadNavigation (bool enable)
Static Public Member Functions inherited from ProtectedNode
static ProtectedNode *	create (void)
	Creates a ProtectedNode with no argument. More...
Static Public Member Functions inherited from Node
static Node *	create ()
	Allocates and initializes a node. More...
var	create ()
	Allocates and initializes a node. More...
local	create ()
	Allocates and initializes a node. More...

Public Attributes
std::function< int(FocusDirection, Widget *)>	onPassFocusToChild
	To specify a user-defined functor to decide which child widget of the layout should get focused. More...
CC_CONSTRUCTOR_ACCESS	__pad0__: virtual bool init() override
var	__pad0__: virtual bool init() override
local	__pad0__: virtual bool init() override
Public Attributes inherited from Widget
std::function< void(Widget *, Widget *)>	onFocusChanged
	When a widget lose/get focus, this method will be called. More...
std::function< Widget *(FocusDirection)>	onNextFocusedWidget
	use this function to manually specify the next focused widget regards to each direction More...
CC_CONSTRUCTOR_ACCESS	__pad0__: virtual bool init() override
Public Attributes inherited from ProtectedNode
CC_CONSTRUCTOR_ACCESS	__pad0__: ProtectedNode()
Public Attributes inherited from Node
CC_CONSTRUCTOR_ACCESS	__pad0__: Node()

Protected Member Functions
virtual void	onSizeChanged () override
void	addBackGroundImage ()
var	addBackGroundImage ()
local	addBackGroundImage ()
void	supplyTheLayoutParameterLackToChild (Widget *child)
var	supplyTheLayoutParameterLackToChild ( var child)
local	supplyTheLayoutParameterLackToChild ( local child)
virtual Widget *	createCloneInstance () override
local	createCloneInstance ()
virtual void	copySpecialProperties (Widget *model) override
local	copySpecialProperties ( local model)
virtual void	copyClonedWidgetChildren (Widget *model) override
var	copyClonedWidgetChildren ( var model)
local	copyClonedWidgetChildren ( local model)
void	stencilClippingVisit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags)
var	stencilClippingVisit ( var renderer, var parentTransform, var parentFlags)
local	stencilClippingVisit ( local renderer, local parentTransform, local parentFlags)
void	scissorClippingVisit (Renderer *renderer, const Mat4 &parentTransform, uint32_t parentFlags)
void	setStencilClippingSize (const Size &size)
const Rect &	getClippingRect ()
var	getClippingRect ()
local	getClippingRect ()
virtual void	doLayout () override
local	doLayout ()
virtual LayoutManager *	createLayoutManager () override
var	createLayoutManager ()
local	createLayoutManager ()
virtual Size	getLayoutContentSize () const override
var	getLayoutContentSize ()
local	getLayoutContentSize ()
virtual const Vector< Node * > &	getLayoutElements () const override
local	getLayoutElements ()
void	onBeforeVisitStencil ()
var	onBeforeVisitStencil ()
local	onBeforeVisitStencil ()
void	onAfterDrawStencil ()
var	onAfterDrawStencil ()
local	onAfterDrawStencil ()
void	onAfterVisitStencil ()
var	onAfterVisitStencil ()
local	onAfterVisitStencil ()
void	drawFullScreenQuadClearStencil ()
	draw fullscreen quad to clear stencil bits More...
var	drawFullScreenQuadClearStencil ()
	draw fullscreen quad to clear stencil bits More...
local	drawFullScreenQuadClearStencil ()
	draw fullscreen quad to clear stencil bits More...
void	onBeforeVisitScissor ()
void	onAfterVisitScissor ()
var	onAfterVisitScissor ()
local	onAfterVisitScissor ()
void	updateBackGroundImageColor ()
var	updateBackGroundImageColor ()
local	updateBackGroundImageColor ()
void	updateBackGroundImageOpacity ()
var	updateBackGroundImageOpacity ()
local	updateBackGroundImageOpacity ()
void	updateBackGroundImageRGBA ()
var	updateBackGroundImageRGBA ()
local	updateBackGroundImageRGBA ()
Size	getLayoutAccumulatedSize () const
	get the content size of the layout, it will accumulate all its children's content size More...
var	getLayoutAccumulatedSize ()
	get the content size of the layout, it will accumulate all its children's content size More...
local	getLayoutAccumulatedSize ()
	get the content size of the layout, it will accumulate all its children's content size More...
int	findNearestChildWidgetIndex (FocusDirection direction, Widget *baseWidget)
	When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...
local	findNearestChildWidgetIndex ( local direction, local baseWidget)
	When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...
int	findFarthestChildWidgetIndex (FocusDirection direction, Widget *baseWidget)
	When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus. More...
float	calculateNearestDistance (Widget *baseWidget)
	caculate the nearest distance between the baseWidget and the children of the layout More...
float	calculateFarthestDistance (Widget *baseWidget)
	caculate the farthest distance between the baseWidget and the children of the layout More...
void	findProperSearchingFunctor (FocusDirection dir, Widget *baseWidget)
	when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not More...
var	findProperSearchingFunctor ( var dir, var baseWidget)
	when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not More...
local	findProperSearchingFunctor ( local dir, local baseWidget)
	when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not More...
Widget *	findFirstNonLayoutWidget ()
	find the first non-layout widget in this layout More...
var	findFirstNonLayoutWidget ()
	find the first non-layout widget in this layout More...
local	findFirstNonLayoutWidget ()
	find the first non-layout widget in this layout More...
int	findFirstFocusEnabledWidgetIndex ()
	find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget More...
var	findFirstFocusEnabledWidgetIndex ()
	find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget More...
local	findFirstFocusEnabledWidgetIndex ()
	find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget More...
Widget *	findFocusEnabledChildWidgetByIndex (ssize_t index)
	find a focus enabled child Widget in the layout by index More...
var	findFocusEnabledChildWidgetByIndex ( var index)
	find a focus enabled child Widget in the layout by index More...
local	findFocusEnabledChildWidgetByIndex ( local index)
	find a focus enabled child Widget in the layout by index More...
Vec2	getWorldCenterPoint (Widget *node) const
	get the center point of a widget in world space More...
Widget *	getNextFocusedWidget (FocusDirection direction, Widget *current)
	this method is called internally by nextFocusedWidget. More...
local	getNextFocusedWidget ( local direction, local current)
	this method is called internally by nextFocusedWidget. More...
Widget *	getPreviousFocusedWidget (FocusDirection direction, Widget *current)
	this method is called internally by nextFocusedWidget. More...
var	getPreviousFocusedWidget ( var direction, var current)
	this method is called internally by nextFocusedWidget. More...
local	getPreviousFocusedWidget ( local direction, local current)
	this method is called internally by nextFocusedWidget. More...
Widget *	getChildWidgetByIndex (ssize_t index) const
	find the nth elment in the _children array. More...
bool	isLastWidgetInContainer (Widget *widget, FocusDirection direction) const
	whether it is the last element according to all their parents More...
var	isLastWidgetInContainer ( var widget, var direction)
	whether it is the last element according to all their parents More...
local	isLastWidgetInContainer ( local widget, local direction)
	whether it is the last element according to all their parents More...
bool	isWidgetAncestorSupportLoopFocus (Widget *widget, FocusDirection direction) const
	Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false. More...
Widget *	passFocusToChild (FocusDirection direction, Widget *current)
	pass the focus to the layout's next focus enabled child More...
var	passFocusToChild ( var direction, var current)
	pass the focus to the layout's next focus enabled child More...
local	passFocusToChild ( local direction, local current)
	pass the focus to the layout's next focus enabled child More...
bool	checkFocusEnabledChild () const
	If there are no focus enabled child in the layout, it will return false, otherwise it returns true. More...
Protected Member Functions inherited from Widget
GLProgramState *	getNormalGLProgramState () const
	Get a normal state GLProgramState. More...
GLProgramState *	getGrayGLProgramState () const
	Get a disabled state GLProgramState. More...
virtual void	initRenderer ()
virtual void	onPressStateChangedToNormal ()
virtual void	onPressStateChangedToPressed ()
virtual void	onPressStateChangedToDisabled ()
void	pushDownEvent ()
void	moveEvent ()
virtual void	releaseUpEvent ()
virtual void	cancelUpEvent ()
virtual void	adaptRenderers ()
void	updateChildrenDisplayedRGBA ()
void	copyProperties (Widget *model)
Widget *	getWidgetParent ()
void	updateContentSizeWithTextureSize (const Size &size)
bool	isAncestorsEnabled ()
Widget *	getAncensterWidget (Node *node)
bool	isAncestorsVisible (Node *node)
void	cleanupWidget ()
LayoutComponent *	getOrCreateLayoutComponent ()
Protected Member Functions inherited from ProtectedNode
void	insertProtectedChild (Node *child, int z)
	helper that reorder a child More...
Protected Member Functions inherited from Node
void	childrenAlloc (void)
	lazy allocs More...
var	childrenAlloc ()
	lazy allocs More...
local	childrenAlloc ()
	lazy allocs More...
void	insertChild (Node *child, int z)
	helper that reorder a child More...
var	insertChild ( var child, var z)
	helper that reorder a child More...
local	insertChild ( local child, local z)
	helper that reorder a child More...
void	detachChild (Node *child, ssize_t index, bool doCleanup)
	Removes a child, call child->onExit(), do cleanup, remove it from children array. More...
local	detachChild ( local child, local index, local doCleanup)
	Removes a child, call child->onExit(), do cleanup, remove it from children array. More...
Vec2	convertToWindowSpace (const Vec2 &nodePoint) const
	Convert cocos2d coordinates to UI windows coordinate. More...
var	convertToWindowSpace ( var nodePoint)
	Convert cocos2d coordinates to UI windows coordinate. More...
local	convertToWindowSpace ( local nodePoint)
	Convert cocos2d coordinates to UI windows coordinate. More...
Mat4	transform (const Mat4 &parentTransform)
var	transform ( var parentTransform)
local	transform ( local parentTransform)
uint32_t	processParentFlags (const Mat4 &parentTransform, uint32_t parentFlags)
var	processParentFlags ( var parentTransform, var parentFlags)
local	processParentFlags ( local parentTransform, local parentFlags)
virtual void	updateCascadeOpacity ()
var	updateCascadeOpacity ()
local	updateCascadeOpacity ()
virtual void	updateCascadeColor ()
var	updateCascadeColor ()
local	updateCascadeColor ()
virtual void	updateColor ()
var	updateColor ()
local	updateColor ()
bool	doEnumerate (std::string name, std::function< bool(Node *)> callback) const
var	doEnumerate ( var name, var callback)
local	doEnumerate ( local name, local callback)
bool	doEnumerateRecursive (const Node *node, const std::string &name, std::function< bool(Node *)> callback) const
var	doEnumerateRecursive ( var node, var name, var callback)
local	doEnumerateRecursive ( local node, local name, local callback)
bool	isVisitableByVisitingCamera () const
void	updateRotationQuat ()
var	updateRotationQuat ()
local	updateRotationQuat ()
void	updateRotation3D ()
var	updateRotation3D ()
local	updateRotation3D ()
Protected Member Functions inherited from Ref
	Ref ()
	Constructor. More...
	Ref ()
	Constructor. More...

Protected Attributes
bool	_backGroundScale9Enabled
Scale9Sprite *	_backGroundImage
var	_backGroundImage
local	_backGroundImage
std::string	_backGroundImageFileName
var	_backGroundImageFileName
local	_backGroundImageFileName
Rect	_backGroundImageCapInsets
var	_backGroundImageCapInsets
local	_backGroundImageCapInsets
BackGroundColorType	_colorType
var	_colorType
local	_colorType
TextureResType	_bgImageTexType
Size	_backGroundImageTextureSize
var	_backGroundImageTextureSize
local	_backGroundImageTextureSize
Color3B	_backGroundImageColor
local	_backGroundImageColor
GLubyte	_backGroundImageOpacity
var	_backGroundImageOpacity
local	_backGroundImageOpacity
LayerColor *	_colorRender
var	_colorRender
local	_colorRender
LayerGradient *	_gradientRender
var	_gradientRender
local	_gradientRender
Color3B	_cColor
var	_cColor
local	_cColor
Color3B	_gStartColor
var	_gStartColor
local	_gStartColor
Color3B	_gEndColor
var	_gEndColor
local	_gEndColor
Vec2	_alongVector
var	_alongVector
local	_alongVector
GLubyte	_cOpacity
var	_cOpacity
local	_cOpacity
bool	_clippingEnabled
var	_clippingEnabled
local	_clippingEnabled
Type	_layoutType
var	_layoutType
local	_layoutType
ClippingType	_clippingType
var	_clippingType
local	_clippingType
DrawNode *	_clippingStencil
var	_clippingStencil
local	_clippingStencil
bool	_scissorRectDirty
var	_scissorRectDirty
local	_scissorRectDirty
Rect	_clippingRect
var	_clippingRect
local	_clippingRect
Layout *	_clippingParent
var	_clippingParent
local	_clippingParent
bool	_clippingRectDirty
var	_clippingRectDirty
local	_clippingRectDirty
GLboolean	_currentStencilEnabled
var	_currentStencilEnabled
local	_currentStencilEnabled
GLuint	_currentStencilWriteMask
var	_currentStencilWriteMask
local	_currentStencilWriteMask
GLenum	_currentStencilFunc
var	_currentStencilFunc
local	_currentStencilFunc
GLint	_currentStencilRef
var	_currentStencilRef
local	_currentStencilRef
GLuint	_currentStencilValueMask
var	_currentStencilValueMask
local	_currentStencilValueMask
GLenum	_currentStencilFail
var	_currentStencilFail
local	_currentStencilFail
GLenum	_currentStencilPassDepthFail
var	_currentStencilPassDepthFail
local	_currentStencilPassDepthFail
GLenum	_currentStencilPassDepthPass
var	_currentStencilPassDepthPass
local	_currentStencilPassDepthPass
GLboolean	_currentDepthWriteMask
var	_currentDepthWriteMask
local	_currentDepthWriteMask
GLboolean	_currentAlphaTestEnabled
var	_currentAlphaTestEnabled
local	_currentAlphaTestEnabled
GLenum	_currentAlphaTestFunc
var	_currentAlphaTestFunc
local	_currentAlphaTestFunc
GLclampf	_currentAlphaTestRef
var	_currentAlphaTestRef
local	_currentAlphaTestRef
GLint	_mask_layer_le
var	_mask_layer_le
local	_mask_layer_le
GroupCommand	_groupCommand
var	_groupCommand
local	_groupCommand
CustomCommand	_beforeVisitCmdStencil
var	_beforeVisitCmdStencil
local	_beforeVisitCmdStencil
CustomCommand	_afterDrawStencilCmd
var	_afterDrawStencilCmd
local	_afterDrawStencilCmd
CustomCommand	_afterVisitCmdStencil
var	_afterVisitCmdStencil
local	_afterVisitCmdStencil
CustomCommand	_beforeVisitCmdScissor
var	_beforeVisitCmdScissor
local	_beforeVisitCmdScissor
CustomCommand	_afterVisitCmdScissor
var	_afterVisitCmdScissor
local	_afterVisitCmdScissor
bool	_doLayoutDirty
var	_doLayoutDirty
local	_doLayoutDirty
bool	_isInterceptTouch
var	_isInterceptTouch
local	_isInterceptTouch
bool	_loopFocus
var	_loopFocus
local	_loopFocus
bool	_passFocusToChild
var	_passFocusToChild
local	_passFocusToChild
bool	_isFocusPassing
var	_isFocusPassing
local	_isFocusPassing
Protected Attributes inherited from Widget
bool	_usingLayoutComponent
bool	_unifySize
bool	_enabled
bool	_bright
bool	_touchEnabled
bool	_highlight
bool	_affectByClipping
bool	_ignoreSize
bool	_propagateTouchEvents
BrightStyle	_brightStyle
SizeType	_sizeType
PositionType	_positionType
int	_actionTag
Size	_customSize
Vec2	_sizePercent
Vec2	_positionPercent
bool	_hitted
EventListenerTouchOneByOne *	_touchListener
Vec2	_touchBeganPosition
Vec2	_touchMovePosition
Vec2	_touchEndPosition
bool	_flippedX
bool	_flippedY
Map< int, LayoutParameter * >	_layoutParameterDictionary
LayoutParameter::Type	_layoutParameterType
bool	_focused
bool	_focusEnabled
Ref *	_touchEventListener
SEL_TouchEvent	_touchEventSelector
ccWidgetTouchCallback	_touchEventCallback
ccWidgetClickCallback	_clickEventListener
ccWidgetEventCallback	_ccEventCallback
std::string	_callbackType
std::string	_callbackName
Protected Attributes inherited from ProtectedNode
Vector< Node * >	_protectedChildren
	array of children nodes More...
bool	_reorderProtectedChildDirty
var	_reorderProtectedChildDirty
local	_reorderProtectedChildDirty
Protected Attributes inherited from Node
float	_rotationX
	rotation on the X-axis More...
float	_rotationY
	rotation on the Y-axis More...
var	_rotationY
	rotation on the Y-axis More...
local	_rotationY
	rotation on the Y-axis More...
float	_rotationZ_X
	rotation angle on Z-axis, component X More...
var	_rotationZ_X
	rotation angle on Z-axis, component X More...
local	_rotationZ_X
	rotation angle on Z-axis, component X More...
float	_rotationZ_Y
	rotation angle on Z-axis, component Y More...
var	_rotationZ_Y
	rotation angle on Z-axis, component Y More...
local	_rotationZ_Y
	rotation angle on Z-axis, component Y More...
Quaternion	_rotationQuat
var	_rotationQuat
local	_rotationQuat
float	_scaleX
	rotation using quaternion, if _rotationZ_X == _rotationZ_Y, _rotationQuat = RotationZ_X * RotationY * RotationX, else _rotationQuat = RotationY * RotationX More...
var	_scaleX
	rotation using quaternion, if _rotationZ_X == _rotationZ_Y, _rotationQuat = RotationZ_X * RotationY * RotationX, else _rotationQuat = RotationY * RotationX More...
local	_scaleX
	rotation using quaternion, if _rotationZ_X == _rotationZ_Y, _rotationQuat = RotationZ_X * RotationY * RotationX, else _rotationQuat = RotationY * RotationX More...
float	_scaleY
	scaling factor on y-axis More...
float	_scaleZ
	scaling factor on z-axis More...
var	_scaleZ
	scaling factor on z-axis More...
local	_scaleZ
	scaling factor on z-axis More...
Vec2	_position
	position of the node More...
var	_position
	position of the node More...
local	_position
	position of the node More...
float	_positionZ
	OpenGL real Z position. More...
var	_positionZ
	OpenGL real Z position. More...
local	_positionZ
	OpenGL real Z position. More...
Vec2	_normalizedPosition
var	_normalizedPosition
local	_normalizedPosition
bool	_usingNormalizedPosition
var	_usingNormalizedPosition
local	_usingNormalizedPosition
bool	_normalizedPositionDirty
var	_normalizedPositionDirty
local	_normalizedPositionDirty
float	_skewX
	skew angle on x-axis More...
var	_skewX
	skew angle on x-axis More...
local	_skewX
	skew angle on x-axis More...
float	_skewY
	skew angle on y-axis More...
var	_skewY
	skew angle on y-axis More...
local	_skewY
	skew angle on y-axis More...
Vec2	_anchorPointInPoints
	anchor point in points More...
var	_anchorPointInPoints
	anchor point in points More...
local	_anchorPointInPoints
	anchor point in points More...
Vec2	_anchorPoint
	anchor point normalized (NOT in points) More...
var	_anchorPoint
	anchor point normalized (NOT in points) More...
local	_anchorPoint
	anchor point normalized (NOT in points) More...
Size	_contentSize
	untransformed size of the node More...
bool	_contentSizeDirty
	whether or not the contentSize is dirty More...
var	_contentSizeDirty
	whether or not the contentSize is dirty More...
local	_contentSizeDirty
	whether or not the contentSize is dirty More...
Mat4	_modelViewTransform
	ModelView transform of the Node. More...
var	_modelViewTransform
	ModelView transform of the Node. More...
local	_modelViewTransform
	ModelView transform of the Node. More...
Mat4	_transform
	transform More...
var	_transform
	transform More...
local	_transform
	transform More...
bool	_transformDirty
	transform dirty flag More...
var	_transformDirty
	transform dirty flag More...
local	_transformDirty
	transform dirty flag More...
Mat4	_inverse
	inverse transform More...
bool	_inverseDirty
	inverse transform dirty flag More...
var	_inverseDirty
	inverse transform dirty flag More...
local	_inverseDirty
	inverse transform dirty flag More...
Mat4	_additionalTransform
	transform More...
var	_additionalTransform
	transform More...
local	_additionalTransform
	transform More...
bool	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...
var	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...
local	_useAdditionalTransform
	The flag to check whether the additional transform is dirty. More...
bool	_transformUpdated
	Whether or not the Transform object was updated since the last frame. More...
int	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...
var	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...
local	_localZOrder
	Local order (relative to its siblings) used to sort the node. More...
float	_globalZOrder
	Global order used to sort the node. More...
var	_globalZOrder
	Global order used to sort the node. More...
local	_globalZOrder
	Global order used to sort the node. More...
Vector< Node * >	_children
	array of children nodes More...
var	_children
	array of children nodes More...
local	_children
	array of children nodes More...
Node *	_parent
	weak reference to parent node More...
var	_parent
	weak reference to parent node More...
local	_parent
	weak reference to parent node More...
Director *	_director
var	_director
local	_director
int	_tag
	a tag. Can be any number you assigned just to identify this node More...
var	_tag
	a tag. Can be any number you assigned just to identify this node More...
local	_tag
	a tag. Can be any number you assigned just to identify this node More...
std::string	_name
	a string label, an user defined string to identify this node More...
var	_name
	a string label, an user defined string to identify this node More...
local	_name
	a string label, an user defined string to identify this node More...
size_t	_hashOfName
	hash value of _name, used for speed in getChildByName More...
var	_hashOfName
	hash value of _name, used for speed in getChildByName More...
local	_hashOfName
	hash value of _name, used for speed in getChildByName More...
void *	_userData
	A user assingned void pointer, Can be point to any cpp object. More...
var	_userData
	A user assingned void pointer, Can be point to any cpp object. More...
local	_userData
	A user assingned void pointer, Can be point to any cpp object. More...
Ref *	_userObject
	A user assigned Object. More...
var	_userObject
	A user assigned Object. More...
local	_userObject
	A user assigned Object. More...
GLProgramState *	_glProgramState
	OpenGL Program State. More...
var	_glProgramState
	OpenGL Program State. More...
local	_glProgramState
	OpenGL Program State. More...
int	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...
var	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...
local	_orderOfArrival
	used to preserve sequence while sorting children with the same localZOrder More...
Scheduler *	_scheduler
	scheduler used to schedule timers and updates More...
ActionManager *	_actionManager
	a pointer to ActionManager singleton, which is used to handle all the actions More...
EventDispatcher *	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...
var	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...
local	_eventDispatcher
	event dispatcher used to dispatch all kinds of events More...
bool	_running
	is running More...
var	_running
	is running More...
local	_running
	is running More...
bool	_visible
	is this node visible More...
var	_visible
	is this node visible More...
local	_visible
	is this node visible More...
bool	_ignoreAnchorPointForPosition
	true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...
var	_ignoreAnchorPointForPosition
	true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...
local	_ignoreAnchorPointForPosition
	true if the Anchor Vec2 will be (0,0) when you position the Node, false otherwise. More...
bool	_reorderChildDirty
	children order dirty flag More...
bool	_isTransitionFinished
	flag to indicate whether the transition was finished More...
var	_isTransitionFinished
	flag to indicate whether the transition was finished More...
local	_isTransitionFinished
	flag to indicate whether the transition was finished More...
ComponentContainer *	_componentContainer
	Dictionary of components. More...
var	_componentContainer
	Dictionary of components. More...
local	_componentContainer
	Dictionary of components. More...
PhysicsBody *	_physicsBody
	the physicsBody the node have More...
var	_physicsBody
	the physicsBody the node have More...
local	_physicsBody
	the physicsBody the node have More...
float	_physicsScaleStartX
	the scale x value when setPhysicsBody More...
var	_physicsScaleStartX
	the scale x value when setPhysicsBody More...
local	_physicsScaleStartX
	the scale x value when setPhysicsBody More...
float	_physicsScaleStartY
	the scale y value when setPhysicsBody More...
var	_physicsScaleStartY
	the scale y value when setPhysicsBody More...
local	_physicsScaleStartY
	the scale y value when setPhysicsBody More...
float	_physicsRotation
var	_physicsRotation
local	_physicsRotation
bool	_physicsTransformDirty
var	_physicsTransformDirty
local	_physicsTransformDirty
bool	_updateTransformFromPhysics
var	_updateTransformFromPhysics
local	_updateTransformFromPhysics
GLubyte	_displayedOpacity
var	_displayedOpacity
local	_displayedOpacity
GLubyte	_realOpacity
var	_realOpacity
local	_realOpacity
Color3B	_displayedColor
var	_displayedColor
local	_displayedColor
Color3B	_realColor
var	_realColor
local	_realColor
bool	_cascadeColorEnabled
var	_cascadeColorEnabled
local	_cascadeColorEnabled
bool	_cascadeOpacityEnabled
var	_cascadeOpacityEnabled
local	_cascadeOpacityEnabled
unsigned short	_cameraMask
var	_cameraMask
local	_cameraMask
std::function< void()>	_onEnterCallback
var	_onEnterCallback
local	_onEnterCallback
std::function< void()>	_onExitCallback
var	_onExitCallback
local	_onExitCallback
std::function< void()>	_onEnterTransitionDidFinishCallback
std::function< void()>	_onExitTransitionDidStartCallback
Protected Attributes inherited from Ref
unsigned int	_referenceCount
	count of references More...
local	_referenceCount
	count of references More...

Additional Inherited Members
Static Public Attributes inherited from Node
static const int	INVALID_TAG = -1
	Default tag used for all the nodes. More...
var	INVALID_TAG = -1
	Default tag used for all the nodes. More...
local	INVALID_TAG = -1
	Default tag used for all the nodes. More...
Static Protected Attributes inherited from Widget
static Widget *	_focusedWidget
	store the only one focued widget More...
Static Protected Attributes inherited from Node
static int	s_globalOrderOfArrival
var	s_globalOrderOfArrival
local	s_globalOrderOfArrival

Detailed Description

A container for holding a few child widgets.

The child widgets could be rearranged according to the layout type and it also enables clipping, set background image and color.

There are mainly four types of layout:

• Absolute layout: This the default layout type, child elements are arranged by their absolute position.
• Horizontal layout: child elements are arranged horizontally.
• Vertical layout: child elements are arranged vertically.
• Relative layout: child elements are arranged relative to certain rules.

Constructor & Destructor Documentation

Layout

(

)

Default constructor.

var Layout

(

)

Default constructor.

local Layout

(

)

Default constructor.

virtual ~Layout ( )

virtual

Default destructor.

var ~Layout ( )

virtual

Default destructor.

local ~Layout ( )

virtual

Default destructor.

Member Function Documentation

void addBackGroundImage ( )

protected

var addBackGroundImage ( )

protected

local addBackGroundImage ( )

protected

virtual void addChild ( Node *  child )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)
tag	A interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var addChild ( var  child )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)
tag	A interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local addChild ( local  child )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int)
tag	A interger to identify the node easily. Please refer to setTag(int)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void addChild ( Node *  child, int  localZOrder  )

overridevirtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var addChild ( var  child, var  localZOrder  )

overridevirtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local addChild ( local  child, local  localZOrder  )

overridevirtual

Adds a child to the container with a local z-order.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void addChild ( Node *  child, int  localZOrder, int  tag  )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).
tag	An integer to identify the node easily. Please refer to setTag(int).

Please use addChild(Node* child, int localZOrder, const std::string &name) instead.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var addChild ( var  child, var  localZOrder, var  tag  )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).
tag	An integer to identify the node easily. Please refer to setTag(int).

Please use addChild(Node* child, int localZOrder, const std::string &name) instead.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local addChild ( local  child, local  localZOrder, local  tag  )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).
tag	An integer to identify the node easily. Please refer to setTag(int).

Please use addChild(Node* child, int localZOrder, const std::string &name) instead.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void addChild ( Node *  child, int  localZOrder, const std::string &  name  )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).
name	A string to identify the node easily. Please refer to setName(int).

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var addChild ( var  child, var  localZOrder, var  name  )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).
name	A string to identify the node easily. Please refer to setName(int).

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local addChild ( local  child, local  localZOrder, local  name  )

overridevirtual

Adds a child to the container with z order and tag.

If the child is added to a 'running' node, then 'onEnter' and 'onEnterTransitionDidFinish' will be called immediately.

Parameters

child	A child node.
zOrder	Z order for drawing priority. Please refer to setLocalZOrder(int).
name	A string to identify the node easily. Please refer to setName(int).

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

float calculateFarthestDistance ( Widget *  baseWidget )

protected

caculate the farthest distance between the baseWidget and the children of the layout

Parameters

the	base widget which will be used to caculate the distance between the layout's children and itself

Returns

return the farthest distance between the baseWidget and the layout's children

var calculateFarthestDistance ( var  baseWidget )

protected

caculate the farthest distance between the baseWidget and the children of the layout

Parameters

the	base widget which will be used to caculate the distance between the layout's children and itself

Returns

return the farthest distance between the baseWidget and the layout's children

local calculateFarthestDistance ( local  baseWidget )

protected

caculate the farthest distance between the baseWidget and the children of the layout

Parameters

the	base widget which will be used to caculate the distance between the layout's children and itself

Returns

return the farthest distance between the baseWidget and the layout's children

float calculateNearestDistance ( Widget *  baseWidget )

protected

caculate the nearest distance between the baseWidget and the children of the layout

Parameters

the	base widget which will be used to caculate the distance between the layout's children and itself

Returns

return the nearest distance between the baseWidget and the layout's children

var calculateNearestDistance ( var  baseWidget )

protected

caculate the nearest distance between the baseWidget and the children of the layout

Parameters

the	base widget which will be used to caculate the distance between the layout's children and itself

Returns

return the nearest distance between the baseWidget and the layout's children

local calculateNearestDistance ( local  baseWidget )

protected

caculate the nearest distance between the baseWidget and the children of the layout

Parameters

the	base widget which will be used to caculate the distance between the layout's children and itself

Returns

return the nearest distance between the baseWidget and the layout's children

bool checkFocusEnabledChild ( ) const

protected

If there are no focus enabled child in the layout, it will return false, otherwise it returns true.

var checkFocusEnabledChild ( )

protected

If there are no focus enabled child in the layout, it will return false, otherwise it returns true.

local checkFocusEnabledChild ( )

protected

If there are no focus enabled child in the layout, it will return false, otherwise it returns true.

virtual void copyClonedWidgetChildren ( Widget *  model )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

var copyClonedWidgetChildren ( var  model )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

local copyClonedWidgetChildren ( local  model )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

virtual void copySpecialProperties ( Widget *  model )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

var copySpecialProperties ( var  model )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

local copySpecialProperties ( local  model )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

static Layout* create ( )

static

Create a empty layout.

var create ( )

static

Create a empty layout.

local create ( )

static

Create a empty layout.

virtual Widget* createCloneInstance ( )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

var createCloneInstance ( )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

local createCloneInstance ( )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

virtual LayoutManager* createLayoutManager ( )

overrideprotectedvirtual

Implements LayoutProtocol.

var createLayoutManager ( )

overrideprotectedvirtual

Implements LayoutProtocol.

local createLayoutManager ( )

overrideprotectedvirtual

Implements LayoutProtocol.

virtual void doLayout ( )

overrideprotectedvirtual

Implements LayoutProtocol.

Reimplemented in ScrollView, PageView, and ListView.

var doLayout ( )

overrideprotectedvirtual

Implements LayoutProtocol.

Reimplemented in ScrollView, PageView, and ListView.

local doLayout ( )

overrideprotectedvirtual

Implements LayoutProtocol.

Reimplemented in ScrollView, PageView, and ListView.

void drawFullScreenQuadClearStencil ( )

protected

draw fullscreen quad to clear stencil bits

var drawFullScreenQuadClearStencil ( )

protected

draw fullscreen quad to clear stencil bits

local drawFullScreenQuadClearStencil ( )

protected

draw fullscreen quad to clear stencil bits

int findFarthestChildWidgetIndex ( FocusDirection  direction, Widget *  baseWidget  )

protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is farthest-distance-priority algorithm

Parameters

dir	next focused widget direction

Returns

The index of child widget in the container

var findFarthestChildWidgetIndex ( var  direction, var  baseWidget  )

protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is farthest-distance-priority algorithm

Parameters

dir	next focused widget direction

Returns

The index of child widget in the container

local findFarthestChildWidgetIndex ( local  direction, local  baseWidget  )

protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is farthest-distance-priority algorithm

Parameters

dir	next focused widget direction

Returns

The index of child widget in the container

int findFirstFocusEnabledWidgetIndex ( )

protected

find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget

var findFirstFocusEnabledWidgetIndex ( )

protected

find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget

local findFirstFocusEnabledWidgetIndex ( )

protected

find the fisrt focus enabled widget index in the layout, it will recusive searching the child widget

Widget* findFirstNonLayoutWidget ( )

protected

find the first non-layout widget in this layout

var findFirstNonLayoutWidget ( )

protected

find the first non-layout widget in this layout

local findFirstNonLayoutWidget ( )

protected

find the first non-layout widget in this layout

Widget* findFocusEnabledChildWidgetByIndex ( ssize_t  index )

protected

find a focus enabled child Widget in the layout by index

var findFocusEnabledChildWidgetByIndex ( var  index )

protected

find a focus enabled child Widget in the layout by index

local findFocusEnabledChildWidgetByIndex ( local  index )

protected

find a focus enabled child Widget in the layout by index

int findNearestChildWidgetIndex ( FocusDirection  direction, Widget *  baseWidget  )

protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is nearest-distance-priority algorithm

Parameters

dir	next focused widget direction

Returns

The index of child widget in the container

var findNearestChildWidgetIndex ( var  direction, var  baseWidget  )

protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is nearest-distance-priority algorithm

Parameters

dir	next focused widget direction

Returns

The index of child widget in the container

local findNearestChildWidgetIndex ( local  direction, local  baseWidget  )

protected

When the layout get focused, it the layout pass the focus to its child, it will use this method to determine which child will get the focus.

The current algorithm to determine which child will get focus is nearest-distance-priority algorithm

Parameters

dir	next focused widget direction

Returns

The index of child widget in the container

virtual Widget* findNextFocusedWidget ( FocusDirection  direction, Widget *  current  )

overridevirtual

When a widget is in a layout, you could call this method to get the next focused widget within a specified direction.

If the widget is not in a layout, it will return itself

Parameters

dir	the direction to look for the next focused widget in a layout
current	the current focused widget

Returns

the next focused widget in a layout

var findNextFocusedWidget ( var  direction, var  current  )

overridevirtual

When a widget is in a layout, you could call this method to get the next focused widget within a specified direction.

If the widget is not in a layout, it will return itself

Parameters

dir	the direction to look for the next focused widget in a layout
current	the current focused widget

Returns

the next focused widget in a layout

local findNextFocusedWidget ( local  direction, local  current  )

overridevirtual

When a widget is in a layout, you could call this method to get the next focused widget within a specified direction.

If the widget is not in a layout, it will return itself

Parameters

dir	the direction to look for the next focused widget in a layout
current	the current focused widget

Returns

the next focused widget in a layout

void findProperSearchingFunctor ( FocusDirection  dir, Widget *  baseWidget  )

protected

when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not

var findProperSearchingFunctor ( var  dir, var  baseWidget  )

protected

when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not

local findProperSearchingFunctor ( local  dir, local  baseWidget  )

protected

when a layout pass the focus to it's child, use this method to determine which algorithm to use, nearest or farthest distance algorithm or not

virtual void forceDoLayout ( )

virtual

force refresh widget layout

Reimplemented in ListView.

var forceDoLayout ( )

virtual

force refresh widget layout

Reimplemented in ListView.

local forceDoLayout ( )

virtual

force refresh widget layout

Reimplemented in ListView.

const Color3B& getBackGroundColor

(

)

const

Query the layout's background color.

Returns

Background color in Color3B.

var getBackGroundColor

(

)

Query the layout's background color.

Returns

Background color in Color3B.

local getBackGroundColor

(

)

Query the layout's background color.

Returns

Background color in Color3B.

GLubyte getBackGroundColorOpacity

(

)

const

Get the layout's background color opacity.

Returns

Background color opacity value.

var getBackGroundColorOpacity

(

)

Get the layout's background color opacity.

Returns

Background color opacity value.

local getBackGroundColorOpacity

(

)

Get the layout's background color opacity.

Returns

Background color opacity value.

BackGroundColorType getBackGroundColorType

(

)

const

Query the layout's background color type.

Returns

The layout's background color type.

var getBackGroundColorType

(

)

Query the layout's background color type.

Returns

The layout's background color type.

local getBackGroundColorType

(

)

Query the layout's background color type.

Returns

The layout's background color type.

const Vec2& getBackGroundColorVector

(

)

const

Get the layout's background color vector.

Returns

Background color vector.

var getBackGroundColorVector

(

)

Get the layout's background color vector.

Returns

Background color vector.

local getBackGroundColorVector

(

)

Get the layout's background color vector.

Returns

Background color vector.

const Color3B& getBackGroundEndColor

(

)

const

Get the gradient background end color.

Returns

Gradient background end color value.

var getBackGroundEndColor

(

)

Get the gradient background end color.

Returns

Gradient background end color value.

local getBackGroundEndColor

(

)

Get the gradient background end color.

Returns

Gradient background end color value.

const Rect& getBackGroundImageCapInsets

(

)

const

Query background image's capInsets size.

Returns

The background image capInsets.

var getBackGroundImageCapInsets

(

)

Query background image's capInsets size.

Returns

The background image capInsets.

local getBackGroundImageCapInsets

(

)

Query background image's capInsets size.

Returns

The background image capInsets.

const Color3B& getBackGroundImageColor

(

)

const

Get color of layout's background image.

Returns

Layout's background image color.

var getBackGroundImageColor

(

)

Get color of layout's background image.

Returns

Layout's background image color.

local getBackGroundImageColor

(

)

Get color of layout's background image.

Returns

Layout's background image color.

GLubyte getBackGroundImageOpacity

(

)

const

Get the opacity of layout's background image.

Returns

The opacity of layout's background image.

var getBackGroundImageOpacity

(

)

Get the opacity of layout's background image.

Returns

The opacity of layout's background image.

local getBackGroundImageOpacity

(

)

Get the opacity of layout's background image.

Returns

The opacity of layout's background image.

const Size& getBackGroundImageTextureSize

(

)

const

Gets background image texture size.

Returns

background image texture size.

var getBackGroundImageTextureSize

(

)

Gets background image texture size.

Returns

background image texture size.

local getBackGroundImageTextureSize

(

)

Gets background image texture size.

Returns

background image texture size.

const Color3B& getBackGroundStartColor

(

)

const

Get the gradient background start color.

Returns

Gradient background start color value.

var getBackGroundStartColor

(

)

Get the gradient background start color.

Returns

Gradient background start color value.

local getBackGroundStartColor

(

)

Get the gradient background start color.

Returns

Gradient background start color value.

Widget* getChildWidgetByIndex ( ssize_t  index ) const

protected

find the nth elment in the _children array.

Only the Widget descendant object will be returned

Parameters

index

The index of a element in the _children array

var getChildWidgetByIndex ( var  index )

protected

find the nth elment in the _children array.

Only the Widget descendant object will be returned

Parameters

index

The index of a element in the _children array

local getChildWidgetByIndex ( local  index )

protected

find the nth elment in the _children array.

Only the Widget descendant object will be returned

Parameters

index

The index of a element in the _children array

const Rect& getClippingRect ( )

protected

var getClippingRect ( )

protected

local getClippingRect ( )

protected

ClippingType getClippingType

(

)

const

See also

setClippingType(ClippingType)

var getClippingType

(

)

See also

setClippingType(ClippingType)

local getClippingType

(

)

See also

setClippingType(ClippingType)

virtual std::string getDescription ( ) const

overridevirtual

Returns the "class name" of widget.

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

var getDescription ( )

overridevirtual

Returns the "class name" of widget.

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

local getDescription ( )

overridevirtual

Returns the "class name" of widget.

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

Size getLayoutAccumulatedSize ( ) const

protected

get the content size of the layout, it will accumulate all its children's content size

var getLayoutAccumulatedSize ( )

protected

get the content size of the layout, it will accumulate all its children's content size

local getLayoutAccumulatedSize ( )

protected

get the content size of the layout, it will accumulate all its children's content size

virtual Size getLayoutContentSize ( ) const

overrideprotectedvirtual

Implements LayoutProtocol.

var getLayoutContentSize ( )

overrideprotectedvirtual

Implements LayoutProtocol.

local getLayoutContentSize ( )

overrideprotectedvirtual

Implements LayoutProtocol.

virtual const Vector<Node*> & getLayoutElements ( ) const

overrideprotectedvirtual

Implements LayoutProtocol.

var getLayoutElements ( )

overrideprotectedvirtual

Implements LayoutProtocol.

local getLayoutElements ( )

overrideprotectedvirtual

Implements LayoutProtocol.

virtual Type getLayoutType ( ) const

virtual

Query layout type.

Returns

Get the layout type.

Reimplemented in ScrollView, and PageView.

var getLayoutType ( )

virtual

Query layout type.

Returns

Get the layout type.

Reimplemented in ScrollView, and PageView.

local getLayoutType ( )

virtual

Query layout type.

Returns

Get the layout type.

Reimplemented in ScrollView, and PageView.

Widget* getNextFocusedWidget ( FocusDirection  direction, Widget *  current  )

protected

this method is called internally by nextFocusedWidget.

When the dir is Right/Down, then this method will be called

Parameters

dir	the direction.
current	the current focused widget

Returns

the next focused widget

var getNextFocusedWidget ( var  direction, var  current  )

protected

this method is called internally by nextFocusedWidget.

When the dir is Right/Down, then this method will be called

Parameters

dir	the direction.
current	the current focused widget

Returns

the next focused widget

local getNextFocusedWidget ( local  direction, local  current  )

protected

this method is called internally by nextFocusedWidget.

When the dir is Right/Down, then this method will be called

Parameters

dir	the direction.
current	the current focused widget

Returns

the next focused widget

Widget* getPreviousFocusedWidget ( FocusDirection  direction, Widget *  current  )

protected

this method is called internally by nextFocusedWidget.

When the dir is Left/Up, then this method will be called

Parameters

dir	the direction.
current	the current focused widget

Returns

the next focused widget

var getPreviousFocusedWidget ( var  direction, var  current  )

protected

this method is called internally by nextFocusedWidget.

When the dir is Left/Up, then this method will be called

Parameters

dir	the direction.
current	the current focused widget

Returns

the next focused widget

local getPreviousFocusedWidget ( local  direction, local  current  )

protected

this method is called internally by nextFocusedWidget.

When the dir is Left/Up, then this method will be called

Parameters

dir	the direction.
current	the current focused widget

Returns

the next focused widget

Vec2 getWorldCenterPoint ( Widget *  node ) const

protected

get the center point of a widget in world space

var getWorldCenterPoint ( var  node )

protected

get the center point of a widget in world space

local getWorldCenterPoint ( local  node )

protected

get the center point of a widget in world space

bool isBackGroundImageScale9Enabled

(

)

const

Query background image scale9 enable status.

Returns

Whehter background image is scale9 enabled or not.

var isBackGroundImageScale9Enabled

(

)

Query background image scale9 enable status.

Returns

Whehter background image is scale9 enabled or not.

local isBackGroundImageScale9Enabled

(

)

Query background image scale9 enable status.

Returns

Whehter background image is scale9 enabled or not.

virtual bool isClippingEnabled ( ) const

virtual

Gets if layout is clipping enabled.

Returns

if layout is clipping enabled.

var isClippingEnabled ( )

virtual

Gets if layout is clipping enabled.

Returns

if layout is clipping enabled.

local isClippingEnabled ( )

virtual

Gets if layout is clipping enabled.

Returns

if layout is clipping enabled.

bool isLastWidgetInContainer ( Widget *  widget, FocusDirection  direction  ) const

protected

whether it is the last element according to all their parents

var isLastWidgetInContainer ( var  widget, var  direction  )

protected

whether it is the last element according to all their parents

local isLastWidgetInContainer ( local  widget, local  direction  )

protected

whether it is the last element according to all their parents

bool isLoopFocus

(

)

const

Returns

If focus loop is enabled, then it will return true, otherwise it returns false. The default value is false.

var isLoopFocus

(

)

Returns

If focus loop is enabled, then it will return true, otherwise it returns false. The default value is false.

local isLoopFocus

(

)

Returns

If focus loop is enabled, then it will return true, otherwise it returns false. The default value is false.

bool isPassFocusToChild

(

)

const

Returns

To query whether the layout will pass the focus to its children or not. The default value is true

var isPassFocusToChild

(

)

Returns

To query whether the layout will pass the focus to its children or not. The default value is true

local isPassFocusToChild

(

)

Returns

To query whether the layout will pass the focus to its children or not. The default value is true

bool isWidgetAncestorSupportLoopFocus ( Widget *  widget, FocusDirection  direction  ) const

protected

Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false.

var isWidgetAncestorSupportLoopFocus ( var  widget, var  direction  )

protected

Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false.

local isWidgetAncestorSupportLoopFocus ( local  widget, local  direction  )

protected

Lookup any parent widget with a layout type as the direction, if the layout is loop focused, then return true, otherwise It returns false.

void onAfterDrawStencil ( )

protected

var onAfterDrawStencil ( )

protected

local onAfterDrawStencil ( )

protected

void onAfterVisitScissor ( )

protected

var onAfterVisitScissor ( )

protected

local onAfterVisitScissor ( )

protected

void onAfterVisitStencil ( )

protected

var onAfterVisitStencil ( )

protected

local onAfterVisitStencil ( )

protected

void onBeforeVisitScissor ( )

protected

var onBeforeVisitScissor ( )

protected

local onBeforeVisitScissor ( )

protected

void onBeforeVisitStencil ( )

protected

var onBeforeVisitStencil ( )

protected

local onBeforeVisitStencil ( )

protected

virtual void onEnter ( )

overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Widget.

Reimplemented in ScrollView, and PageView.

var onEnter ( )

overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Widget.

Reimplemented in ScrollView, and PageView.

local onEnter ( )

overridevirtual

Event callback that is invoked every time when Node enters the 'stage'.

If the Node enters the 'stage' with a transition, this event is called when the transition starts. During onEnter you can't access a "sister/brother" node. If you override onEnter, you shall call its parent's one, e.g., Node::onEnter().

Reimplemented from Widget.

Reimplemented in ScrollView, and PageView.

virtual void onExit ( )

overridevirtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented from Widget.

var onExit ( )

overridevirtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented from Widget.

local onExit ( )

overridevirtual

Event callback that is invoked every time the Node leaves the 'stage'.

If the Node leaves the 'stage' with a transition, this event is called when the transition finishes. During onExit you can't access a sibling node. If you override onExit, you shall call its parent's one, e.g., Node::onExit().

Reimplemented from Widget.

virtual void onSizeChanged ( )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

var onSizeChanged ( )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

local onSizeChanged ( )

overrideprotectedvirtual

Reimplemented from Widget.

Reimplemented in ScrollView, ListView, and PageView.

Widget* passFocusToChild ( FocusDirection  direction, Widget *  current  )

protected

pass the focus to the layout's next focus enabled child

var passFocusToChild ( var  direction, var  current  )

protected

pass the focus to the layout's next focus enabled child

local passFocusToChild ( local  direction, local  current  )

protected

pass the focus to the layout's next focus enabled child

virtual void removeAllChildren ( )

overridevirtual

Removes all children from the container with a cleanup.

See also

removeAllChildrenWithCleanup(bool)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var removeAllChildren ( )

overridevirtual

Removes all children from the container with a cleanup.

See also

removeAllChildrenWithCleanup(bool)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local removeAllChildren ( )

overridevirtual

Removes all children from the container with a cleanup.

See also

removeAllChildrenWithCleanup(bool)

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

virtual void removeAllChildrenWithCleanup ( bool  cleanup )

overridevirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters

cleanup

true if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var removeAllChildren ( var  cleanup )

overridevirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters

cleanup

true if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local removeAllChildren ( local  cleanup )

overridevirtual

Removes all children from the container, and do a cleanup to all running actions depending on the cleanup parameter.

Parameters

cleanup

true if all running actions on all children nodes should be cleanup, false oterwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

void removeBackGroundImage

(

)

Remove the background image of layout.

var removeBackGroundImage

(

)

Remove the background image of layout.

local removeBackGroundImage

(

)

Remove the background image of layout.

virtual void removeChild ( Node *  child, bool  cleanup = true  )

overridevirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters

child	The child node which will be removed.
cleanup	True if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

var removeChild ( var  child, var  cleanup = true  )

overridevirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters

child	The child node which will be removed.
cleanup	True if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

local removeChild ( local  child, local  cleanup = true  )

overridevirtual

Removes a child from the container.

It will also cleanup all running actions depending on the cleanup parameter.

Parameters

child	The child node which will be removed.
cleanup	True if all running actions and callbacks on the child node will be cleanup, false otherwise.

Reimplemented from Node.

Reimplemented in ScrollView, and ListView.

void requestDoLayout

(

)

request to refresh widget layout

var requestDoLayout

(

)

request to refresh widget layout

local requestDoLayout

(

)

request to refresh widget layout

void scissorClippingVisit ( Renderer *  renderer, const Mat4 &  parentTransform, uint32_t  parentFlags  )

protected

var scissorClippingVisit ( var  renderer, var  parentTransform, var  parentFlags  )

protected

local scissorClippingVisit ( local  renderer, local  parentTransform, local  parentFlags  )

protected

void setBackGroundColor

(

const Color3B &

color

)

Set background color for layout The color only applies to layout when it's color type is BackGroundColorType::SOLIDE.

Parameters

color

Color in Color3B.

var setBackGroundColor

(

var

color

)

Set background color for layout The color only applies to layout when it's color type is BackGroundColorType::SOLIDE.

Parameters

color

Color in Color3B.

local setBackGroundColor

(

local

color

)

Set background color for layout The color only applies to layout when it's color type is BackGroundColorType::SOLIDE.

Parameters

color

Color in Color3B.

void setBackGroundColor	(	const Color3B &	startColor,
		const Color3B &	endColor
	)

Set start and end background color for layout.

This setting only take effect when the layout's color type is BackGroundColorType::GRADIENT

Parameters

startColor	Color value in Color3B.
endColor	Color value in Color3B.

var setBackGroundColor	(	var	startColor,
		var	endColor
	)

Set start and end background color for layout.

This setting only take effect when the layout's color type is BackGroundColorType::GRADIENT

Parameters

startColor	Color value in Color3B.
endColor	Color value in Color3B.

local setBackGroundColor	(	local	startColor,
		local	endColor
	)

Set start and end background color for layout.

This setting only take effect when the layout's color type is BackGroundColorType::GRADIENT

Parameters

startColor	Color value in Color3B.
endColor	Color value in Color3B.

void setBackGroundColorOpacity

(

GLubyte

opacity

)

Sets background color opacity of layout.

Parameters

opacity

The opacity in GLubyte.

var setBackGroundColorOpacity

(

var

opacity

)

Sets background color opacity of layout.

Parameters

opacity

The opacity in GLubyte.

local setBackGroundColorOpacity

(

local

opacity

)

Sets background color opacity of layout.

Parameters

opacity

The opacity in GLubyte.

void setBackGroundColorType

(

BackGroundColorType

type

)

Sets Color Type for layout's background.

Parameters

type

See also

BackGroundColorType

var setBackGroundColorType

(

var

type

)

Sets Color Type for layout's background.

Parameters

type

See also

BackGroundColorType

local setBackGroundColorType

(

local

type

)

Sets Color Type for layout's background.

Parameters

type

See also

BackGroundColorType

void setBackGroundColorVector

(

const Vec2 &

vector

)

Sets background color vector for layout.

This setting only take effect when layout's color type is BackGroundColorType::GRADIENT

Parameters

vector

The color vector in Vec2.

var setBackGroundColorVector

(

var

vector

)

Sets background color vector for layout.

This setting only take effect when layout's color type is BackGroundColorType::GRADIENT

Parameters

vector

The color vector in Vec2.

local setBackGroundColorVector

(

local

vector

)

Sets background color vector for layout.

This setting only take effect when layout's color type is BackGroundColorType::GRADIENT

Parameters

vector

The color vector in Vec2.

void setBackGroundImage	(	const std::string &	fileName,
		TextureResType	texType = TextureResType::LOCAL
	)

Sets a background image for layout.

Parameters

fileName	image file path.
texType

See also

TextureResType.

var setBackGroundImage	(	var	fileName,
		var	texType = TextureResType::LOCAL
	)

Sets a background image for layout.

Parameters

fileName	image file path.
texType

See also

TextureResType.

local setBackGroundImage	(	local	fileName,
		local	texType = TextureResType::LOCAL
	)

Sets a background image for layout.

Parameters

fileName	image file path.
texType

See also

TextureResType.

void setBackGroundImageCapInsets

(

const Rect &

capInsets

)

Sets a background image capinsets for layout, it only affects the scale9 enabled background image.

Parameters

capInsets

The capInsets in Rect.

var setBackGroundImageCapInsets

(

var

capInsets

)

Sets a background image capinsets for layout, it only affects the scale9 enabled background image.

Parameters

capInsets

The capInsets in Rect.

local setBackGroundImageCapInsets

(

local

capInsets

)

Sets a background image capinsets for layout, it only affects the scale9 enabled background image.

Parameters

capInsets

The capInsets in Rect.

void setBackGroundImageColor

(

const Color3B &

color

)

Set layout's background image color.

Parameters

color

Background color value in Color3B.

var setBackGroundImageColor

(

var

color

)

Set layout's background image color.

Parameters

color

Background color value in Color3B.

local setBackGroundImageColor

(

local

color

)

Set layout's background image color.

Parameters

color

Background color value in Color3B.

void setBackGroundImageOpacity

(

GLubyte

opacity

)

Set opacity of background image.

Parameters

opacity

Background image opacity in GLubyte.

var setBackGroundImageOpacity

(

var

opacity

)

Set opacity of background image.

Parameters

opacity

Background image opacity in GLubyte.

local setBackGroundImageOpacity

(

local

opacity

)

Set opacity of background image.

Parameters

opacity

Background image opacity in GLubyte.

void setBackGroundImageScale9Enabled

(

bool

enabled

)

Enable background image scale9 rendering.

Parameters

enabled

True means enable scale9 rendering for background image, false otherwise.

var setBackGroundImageScale9Enabled

(

var

enabled

)

Enable background image scale9 rendering.

Parameters

enabled

True means enable scale9 rendering for background image, false otherwise.

local setBackGroundImageScale9Enabled

(

local

enabled

)

Enable background image scale9 rendering.

Parameters

enabled

True means enable scale9 rendering for background image, false otherwise.

virtual void setClippingEnabled ( bool  enabled )

virtual

Toggle layout clipping.

If you do need clipping, you pass true to this function.

Parameters

enabled

Pass true to enable clipping, false otherwise.

var setClippingEnabled ( var  enabled )

virtual

Toggle layout clipping.

If you do need clipping, you pass true to this function.

Parameters

enabled

Pass true to enable clipping, false otherwise.

local setClippingEnabled ( local  enabled )

virtual

Toggle layout clipping.

If you do need clipping, you pass true to this function.

Parameters

enabled

Pass true to enable clipping, false otherwise.

void setClippingType

(

ClippingType

type

)

Change the clipping type of layout.

On default, the clipping type is ClippingType::STENCIL.

See also

ClippingType

Parameters

type	The clipping type of layout.

var setClippingType

(

var

type

)

Change the clipping type of layout.

On default, the clipping type is ClippingType::STENCIL.

See also

ClippingType

Parameters

type	The clipping type of layout.

local setClippingType

(

local

type

)

Change the clipping type of layout.

On default, the clipping type is ClippingType::STENCIL.

See also

ClippingType

Parameters

type	The clipping type of layout.

virtual void setLayoutType ( Type  type )

virtual

Change the layout type.

Parameters

type	Layout type.

Reimplemented in ScrollView, and PageView.

var setLayoutType ( var  type )

virtual

Change the layout type.

Parameters

type	Layout type.

Reimplemented in ScrollView, and PageView.

local setLayoutType ( local  type )

virtual

Change the layout type.

Parameters

type	Layout type.

Reimplemented in ScrollView, and PageView.

void setLoopFocus

(

bool

loop

)

If a layout is loop focused which means that the focus movement will be inside the layout.

Parameters

loop	pass true to let the focus movement loop inside the layout

var setLoopFocus

(

var

loop

)

If a layout is loop focused which means that the focus movement will be inside the layout.

Parameters

loop	pass true to let the focus movement loop inside the layout

local setLoopFocus

(

local

loop

)

If a layout is loop focused which means that the focus movement will be inside the layout.

Parameters

loop	pass true to let the focus movement loop inside the layout

void setPassFocusToChild

(

bool

pass

)

Parameters

pass	To specify whether the layout pass its focus to its child

var setPassFocusToChild

(

var

pass

)

Parameters

pass	To specify whether the layout pass its focus to its child

local setPassFocusToChild

(

local

pass

)

Parameters

pass	To specify whether the layout pass its focus to its child

void setStencilClippingSize ( const Size &  size )

protected

var setStencilClippingSize ( var  size )

protected

local setStencilClippingSize ( local  size )

protected

void stencilClippingVisit ( Renderer *  renderer, const Mat4 &  parentTransform, uint32_t  parentFlags  )

protected

var stencilClippingVisit ( var  renderer, var  parentTransform, var  parentFlags  )

protected

local stencilClippingVisit ( local  renderer, local  parentTransform, local  parentFlags  )

protected

void supplyTheLayoutParameterLackToChild ( Widget *  child )

protected

var supplyTheLayoutParameterLackToChild ( var  child )

protected

local supplyTheLayoutParameterLackToChild ( local  child )

protected

void updateBackGroundImageColor ( )

protected

var updateBackGroundImageColor ( )

protected

local updateBackGroundImageColor ( )

protected

void updateBackGroundImageOpacity ( )

protected

var updateBackGroundImageOpacity ( )

protected

local updateBackGroundImageOpacity ( )

protected

void updateBackGroundImageRGBA ( )

protected

var updateBackGroundImageRGBA ( )

protected

local updateBackGroundImageRGBA ( )

protected

virtual void visit ( Renderer *  renderer, const Mat4 &  parentTransform, uint32_t  parentFlags  )

overridevirtual

Visits this node's children and draw them recursively.

Parameters

renderer	A given renderer.
parentTransform	A transform matrix.
parentFlags	Renderer flag.

Reimplemented from Widget.

var visit ( var  renderer, var  parentTransform, var  parentFlags  )

overridevirtual

Visits this node's children and draw them recursively.

Parameters

renderer	A given renderer.
parentTransform	A transform matrix.
parentFlags	Renderer flag.

Reimplemented from Widget.

local visit ( local  renderer, local  parentTransform, local  parentFlags  )

overridevirtual

Visits this node's children and draw them recursively.

Parameters

renderer	A given renderer.
parentTransform	A transform matrix.
parentFlags	Renderer flag.

Reimplemented from Widget.

Member Data Documentation

CC_CONSTRUCTOR_ACCESS __pad0__

var __pad0__

local __pad0__

CustomCommand _afterDrawStencilCmd

protected

var _afterDrawStencilCmd

protected

local _afterDrawStencilCmd

protected

CustomCommand _afterVisitCmdScissor

protected

var _afterVisitCmdScissor

protected

local _afterVisitCmdScissor

protected

CustomCommand _afterVisitCmdStencil

protected

var _afterVisitCmdStencil

protected

local _afterVisitCmdStencil

protected

Vec2 _alongVector

protected

var _alongVector

protected

local _alongVector

protected

Scale9Sprite* _backGroundImage

protected

var _backGroundImage

protected

local _backGroundImage

protected

Rect _backGroundImageCapInsets

protected

var _backGroundImageCapInsets

protected

local _backGroundImageCapInsets

protected

Color3B _backGroundImageColor

protected

var _backGroundImageColor

protected

local _backGroundImageColor

protected

std::string _backGroundImageFileName

protected

var _backGroundImageFileName

protected

local _backGroundImageFileName

protected

GLubyte _backGroundImageOpacity

protected

var _backGroundImageOpacity

protected

local _backGroundImageOpacity

protected

Size _backGroundImageTextureSize

protected

var _backGroundImageTextureSize

protected

local _backGroundImageTextureSize

protected

bool _backGroundScale9Enabled

protected

var _backGroundScale9Enabled

protected

local _backGroundScale9Enabled

protected

CustomCommand _beforeVisitCmdScissor

protected

var _beforeVisitCmdScissor

protected

local _beforeVisitCmdScissor

protected

CustomCommand _beforeVisitCmdStencil

protected

var _beforeVisitCmdStencil

protected

local _beforeVisitCmdStencil

protected

TextureResType _bgImageTexType

protected

var _bgImageTexType

protected

local _bgImageTexType

protected

Color3B _cColor

protected

var _cColor

protected

local _cColor

protected

bool _clippingEnabled

protected

var _clippingEnabled

protected

local _clippingEnabled

protected

Layout* _clippingParent

protected

var _clippingParent

protected

local _clippingParent

protected

Rect _clippingRect

protected

var _clippingRect

protected

local _clippingRect

protected

bool _clippingRectDirty

protected

var _clippingRectDirty

protected

local _clippingRectDirty

protected

DrawNode* _clippingStencil

protected

var _clippingStencil

protected

local _clippingStencil

protected

ClippingType _clippingType

protected

var _clippingType

protected

local _clippingType

protected

LayerColor* _colorRender

protected

var _colorRender

protected

local _colorRender

protected

BackGroundColorType _colorType

protected
